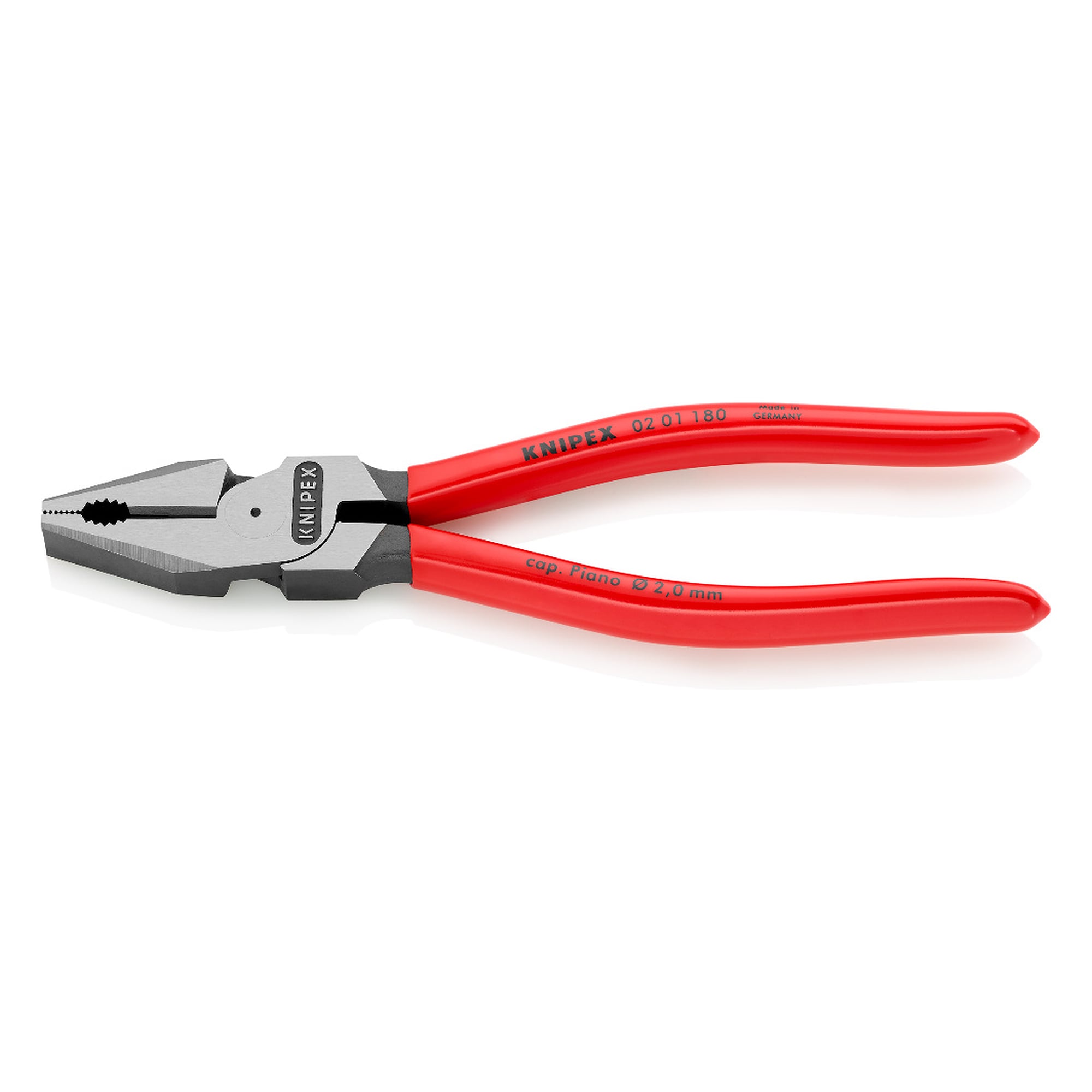

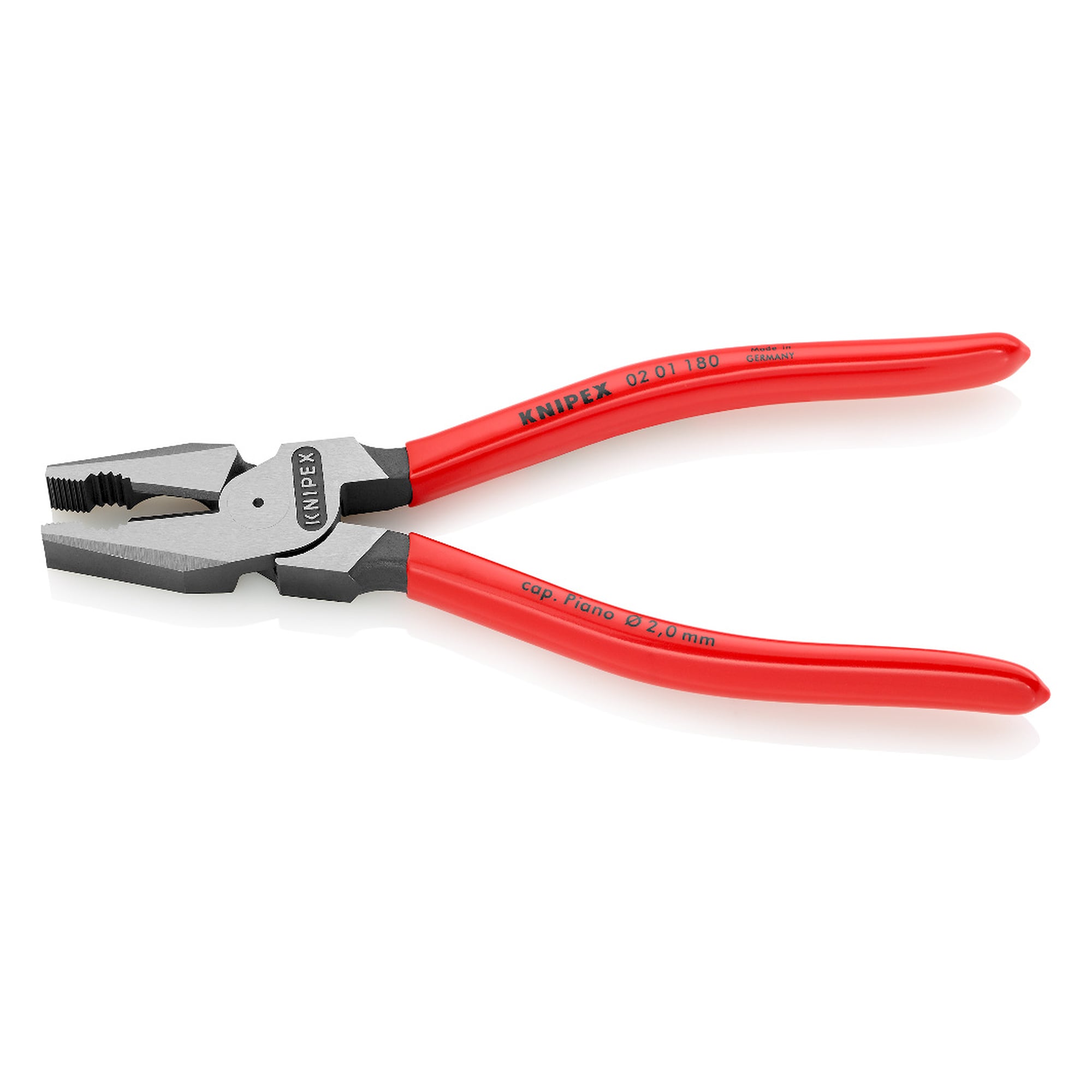

High leverage combination pliers, black atramentized, 35% less effort, 180 mm - Knipex 02 01 180
High leverage combination pliers with optimised leverage that save 35% of the effort needed with conventional combination pliers. The induction-hardened cutting edges reach about 63 HRC and cut hard wire up to 2.5 mm diameter, piano wire up to 2.0 mm and multi-stranded copper cable up to 16.0 mm². 180 mm, 202 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Anyone cutting wire and gripping material all day notices every bit of hand force saved. The 02 01 180 high leverage combination pliers work with optimised leverage and need 35% less effort than conventional combination pliers, cutting hard wire up to 2.5 mm in diameter.
Benefits
- 35% less effort required than with conventional combination pliers thanks to the optimised leverage.
- Easier cutting together with powerful gripping, bending and pulling in one tool.
- Long cutting edges for thicker cables, multi-stranded copper cable up to 16.0 mm².

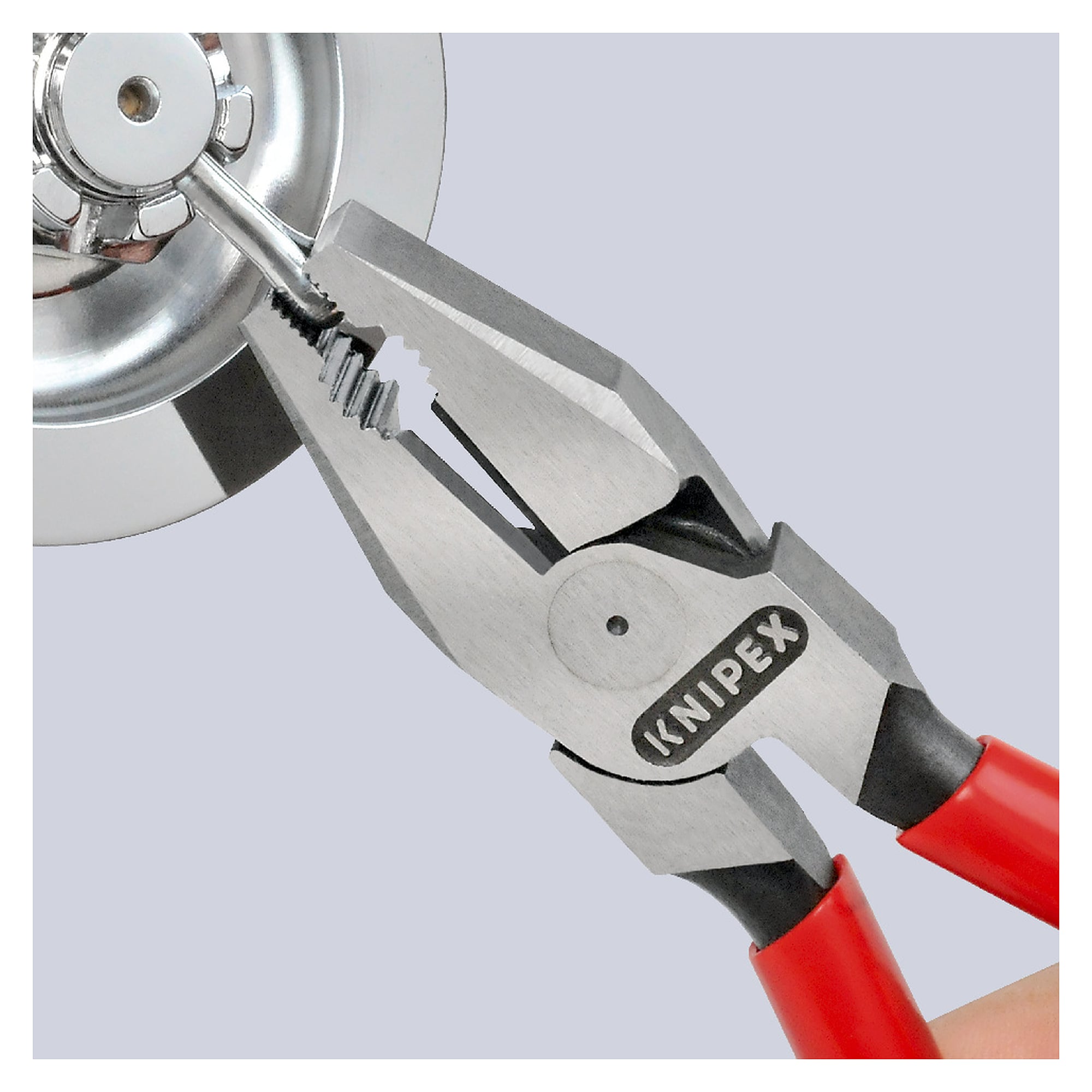

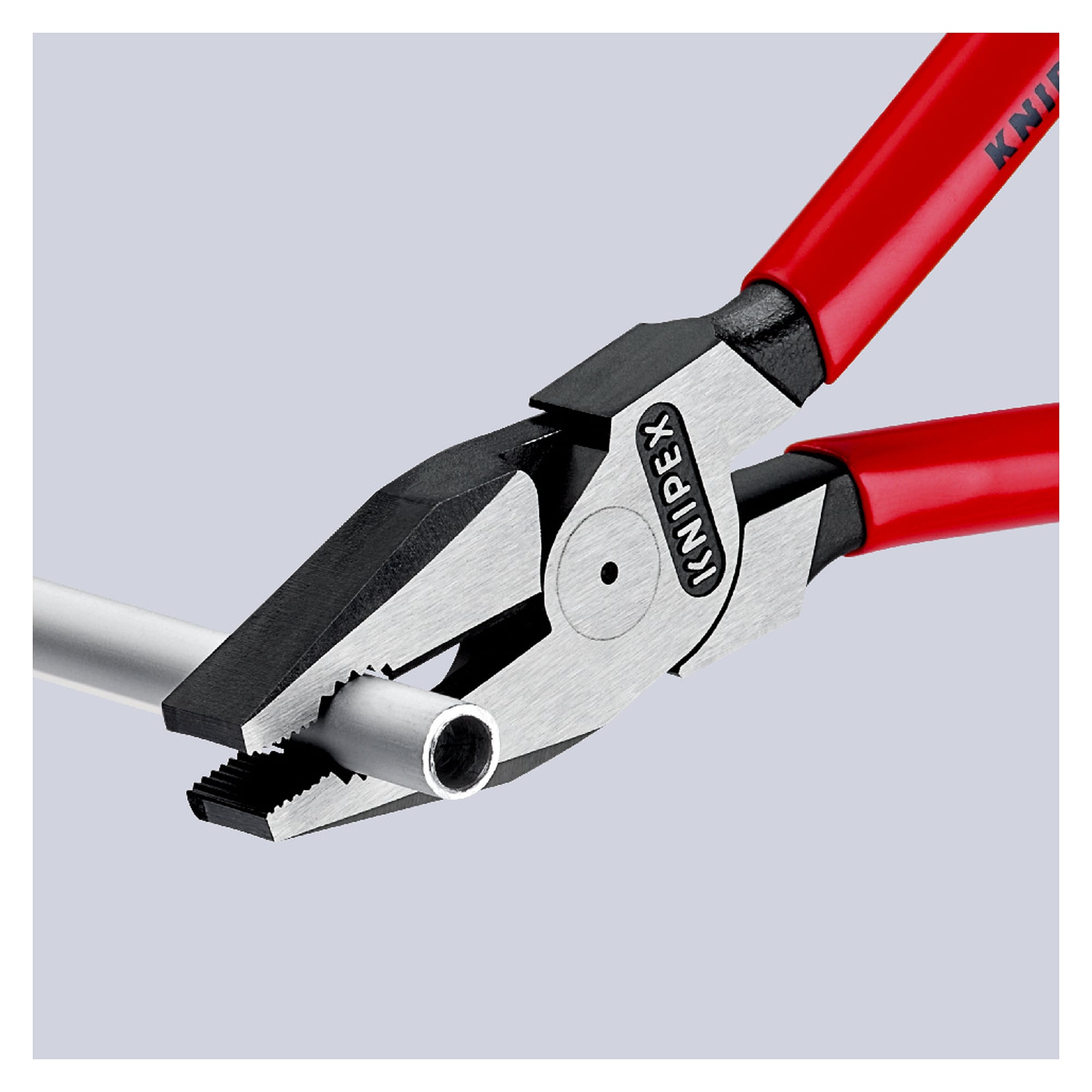

- Gripping zones for flat and round material make the pliers suitable for versatile use.
- A precise, minimal light gap between the gripping jaws ensures the cutting edges work as intended.
- Cutting edges additionally induction-hardened to about 63 HRC, which gives a long service life.
Areas of use
Assembly, maintenance, metalwork and workshop use. The compact length of 180 mm fits into the tool bag and copes with wire, nails and multi-stranded cable in daily work.
Standards and conformity
The tool follows the shape standard DIN ISO 5746 for combination pliers. According to the manufacturer it contains no substances of very high concern under REACH, and the RoHS directive does not apply. The handles are plastic coated and are not tested for live working.
Technical data
| EAN | 4003773033134 |
|---|---|
| Pliers | black atramentized |
| Head | polished |
| Handles | plastic coated |
| Weight | 202 g |
| Dimensions | 180 x 48 x 14 mm |
| Standard | DIN ISO 5746 |
| Cutting capacity hard wire (diameter) | 2.5 mm |
| Cutting capacity piano wire (diameter) | 2.0 mm |
| Cutting capacity Cu cable, multi-stranded | 16.0 mm² |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Manufacturer | Knipex |
| Manufacturer Nr. | 02 01 180 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 14 mm |
| Width | 48 mm |
| Colour | Black |
| Farbe | schwarz |
| Norm | DIN ISO 5746 |
| Overall length [mm] | 180 |
