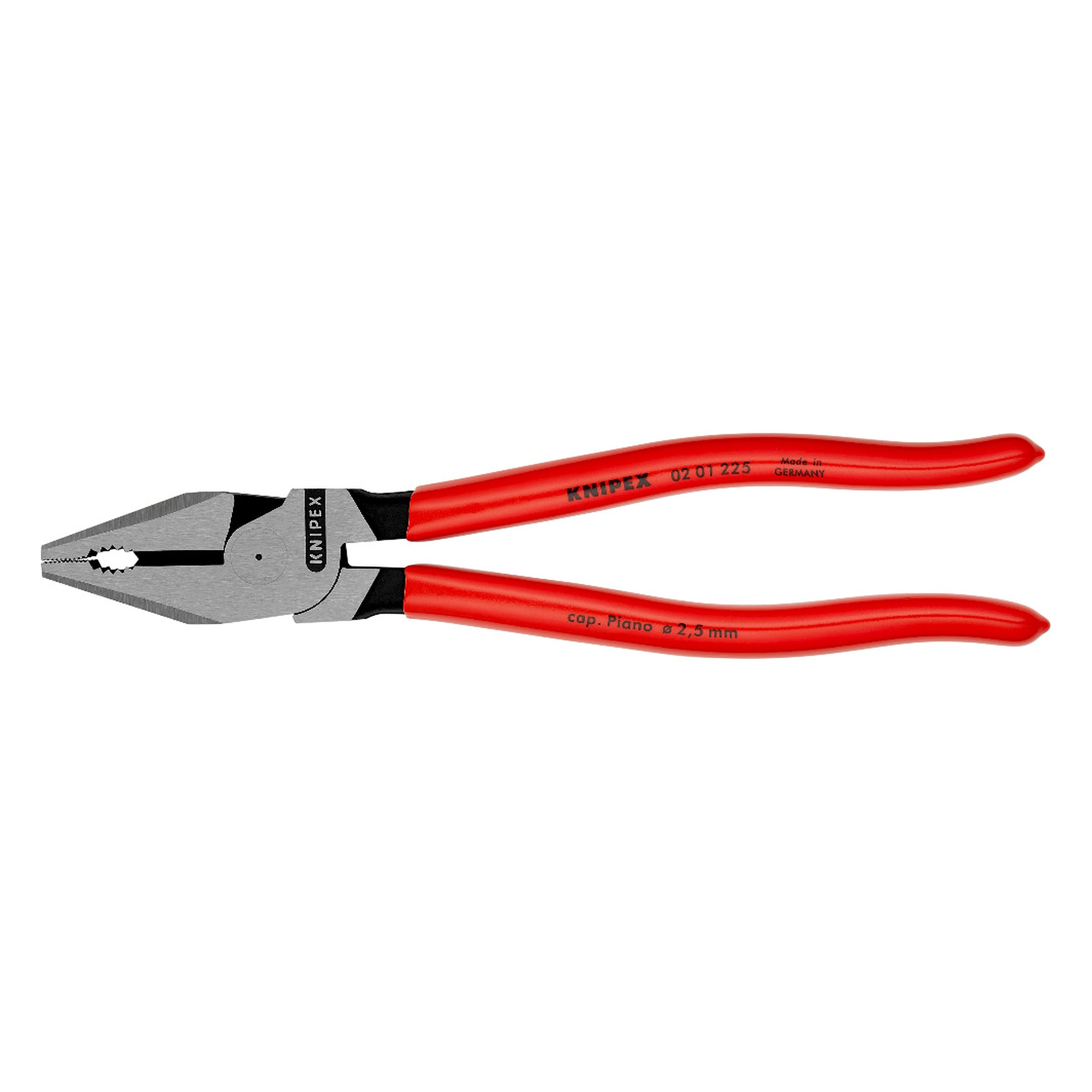

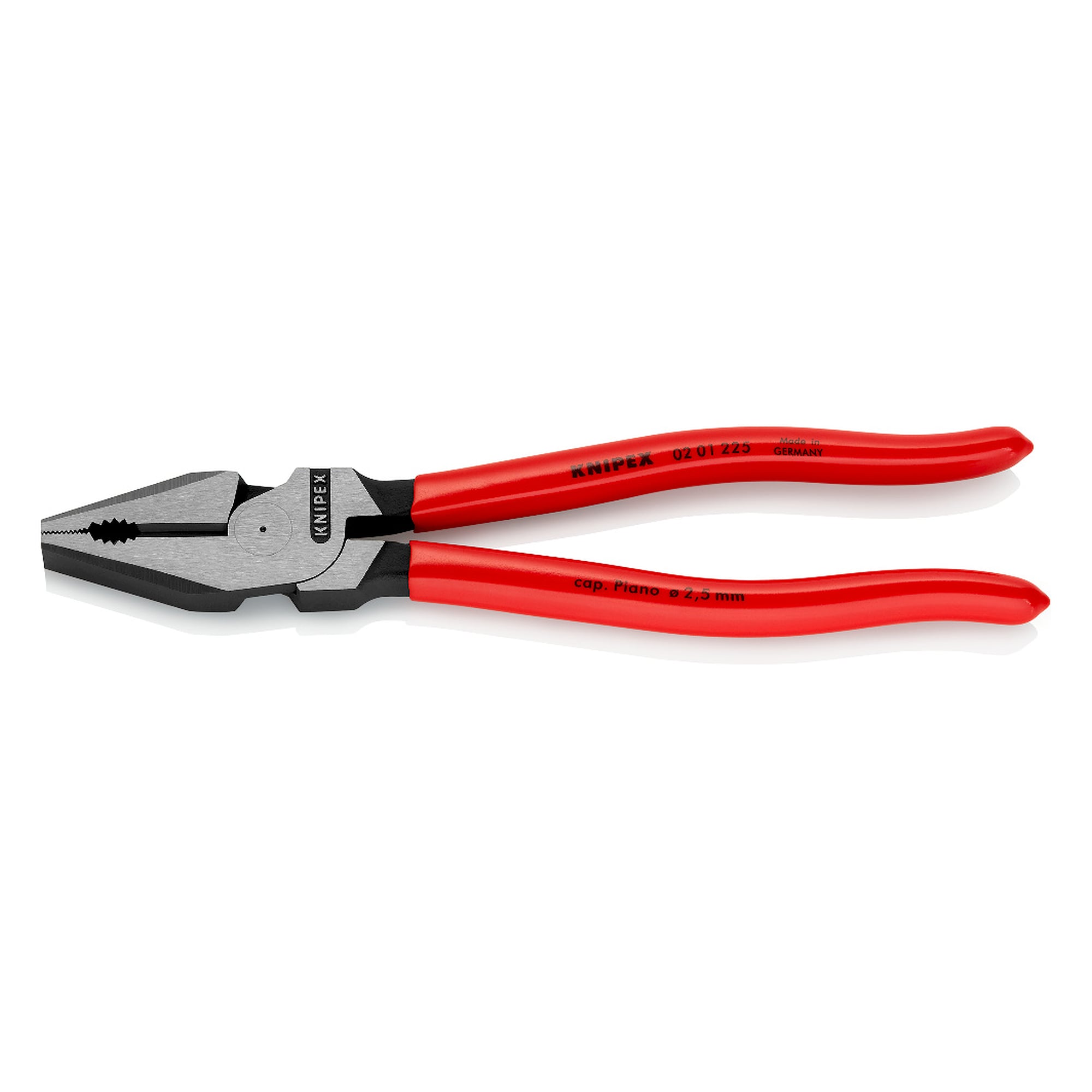

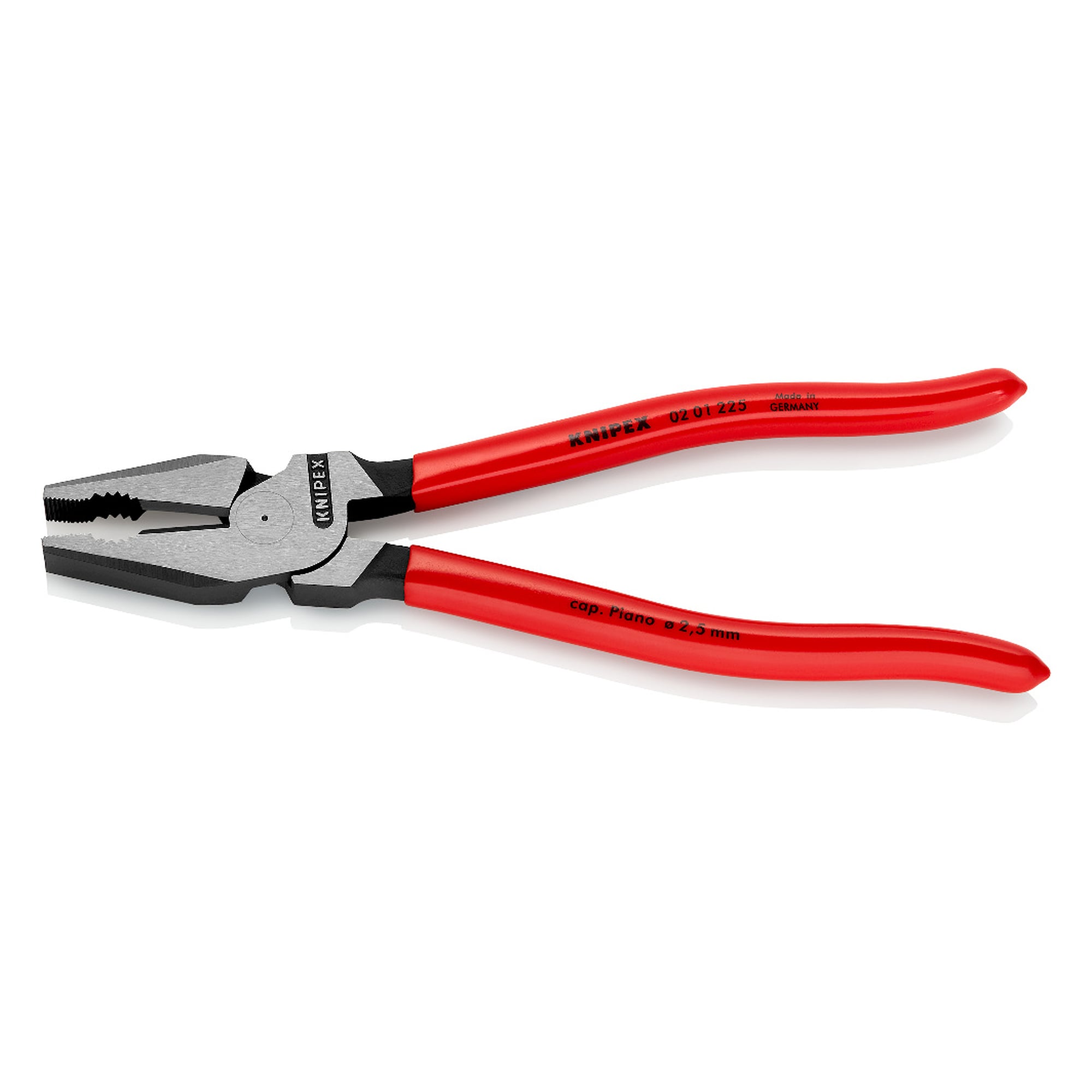

High leverage combination pliers, black atramentized, 35% less effort, 225 mm - Knipex 02 01 225

Knipex ✓ Original product Brand new

High leverage combination pliers with optimised leverage that save 35% of the effort needed with conventional combination pliers. The induction-hardened cutting edges reach about 63 HRC and cut hard wire up to 3.0 mm diameter, piano wire up to 2.5 mm and multi-stranded copper cable up to 25.0 mm². 225 mm, 355 g.

Net
€21.86
excl. VAT
Item WL61272
Manufacturer no. 02 01 225
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Thick wire and hardened nails call for leverage. At 225 mm the 02 01 225 is the longest model in the range, saves 35% of the effort through its optimised leverage and cuts hard wire up to 3.0 mm and piano wire up to 2.5 mm in diameter.

Benefits

  • 35% less effort required than with conventional combination pliers thanks to the optimised leverage.
  • Easier cutting together with powerful gripping, bending and pulling in one tool.
  • Long cutting edges for thicker cables, multi-stranded copper cable up to 25.0 mm².
  • Gripping zones for flat and round material make the pliers suitable for versatile use.
  • A precise, minimal light gap between the gripping jaws ensures the cutting edges work as intended.
  • Cutting edges additionally induction-hardened to about 63 HRC, which gives a long service life.

Areas of use

Assembly, maintenance, metalwork, structural steelwork and workshop use. The 225 mm length pays off wherever wire from 2.8 mm upwards or rebar tie wire has to be cut regularly.

Standards and conformity

The tool follows the shape standard DIN ISO 5746 for combination pliers. According to the manufacturer it contains no substances of very high concern under REACH, and the RoHS directive does not apply. The handles are plastic coated and are not tested for live working.

Technical data

EAN4003773013198
Pliersblack atramentized
Headpolished
Handlesplastic coated
Weight355 g
Dimensions225 x 51 x 16 mm
StandardDIN ISO 5746
Cutting capacity hard wire (diameter)3.0 mm
Cutting capacity piano wire (diameter)2.5 mm
Cutting capacity Cu cable, multi-stranded25.0 mm²
REACH conformitycontains no SVHC
RoHS conformitynot applicable
ManufacturerKnipex
Manufacturer Nr.02 01 225
GPSR manufacturer informationKNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
Condition of articleNew
Article authenticityOriginal product
Height16 mm
Width51 mm
ColourBlack
Farbeschwarz
NormDIN ISO 5746
Overall length [mm]225
