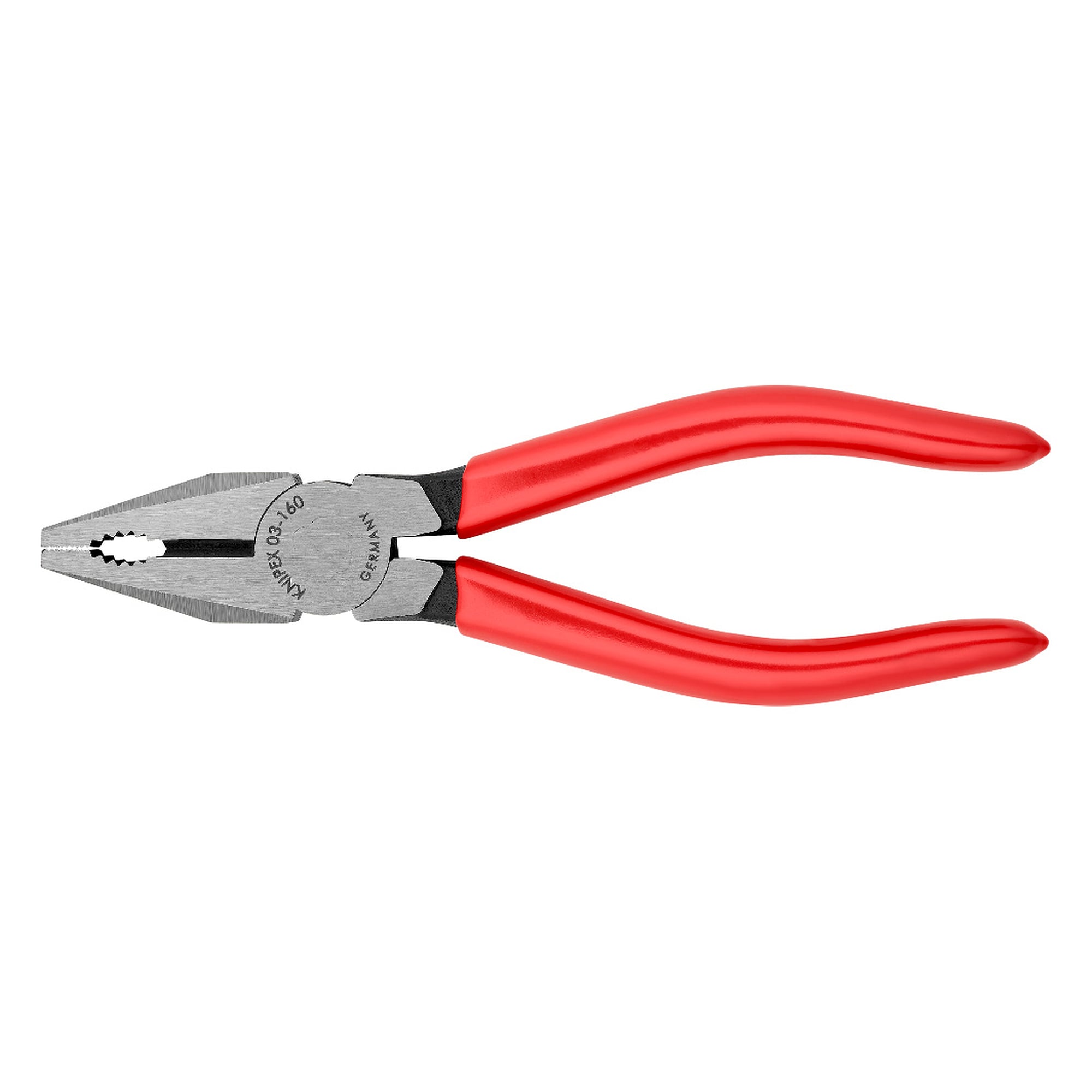

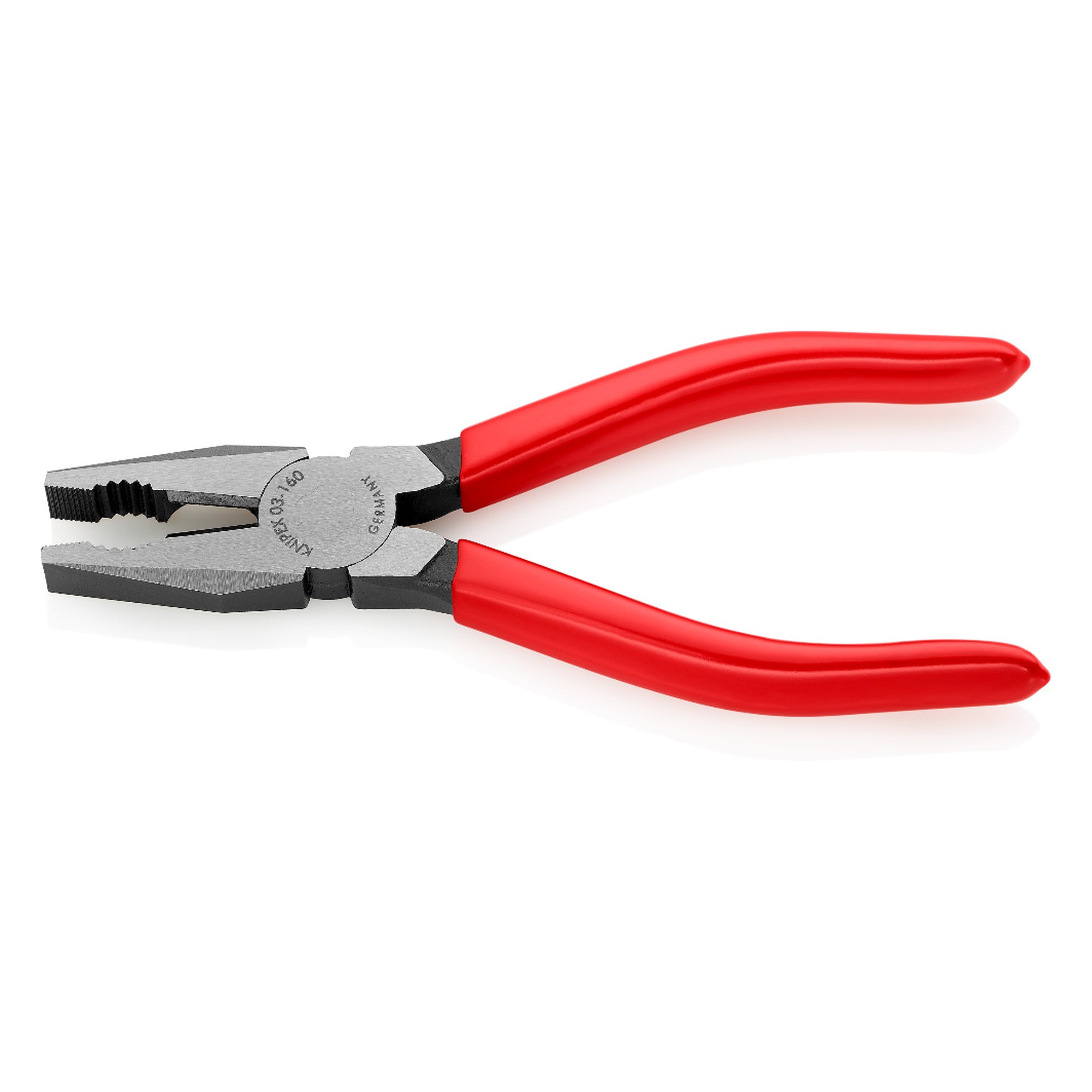

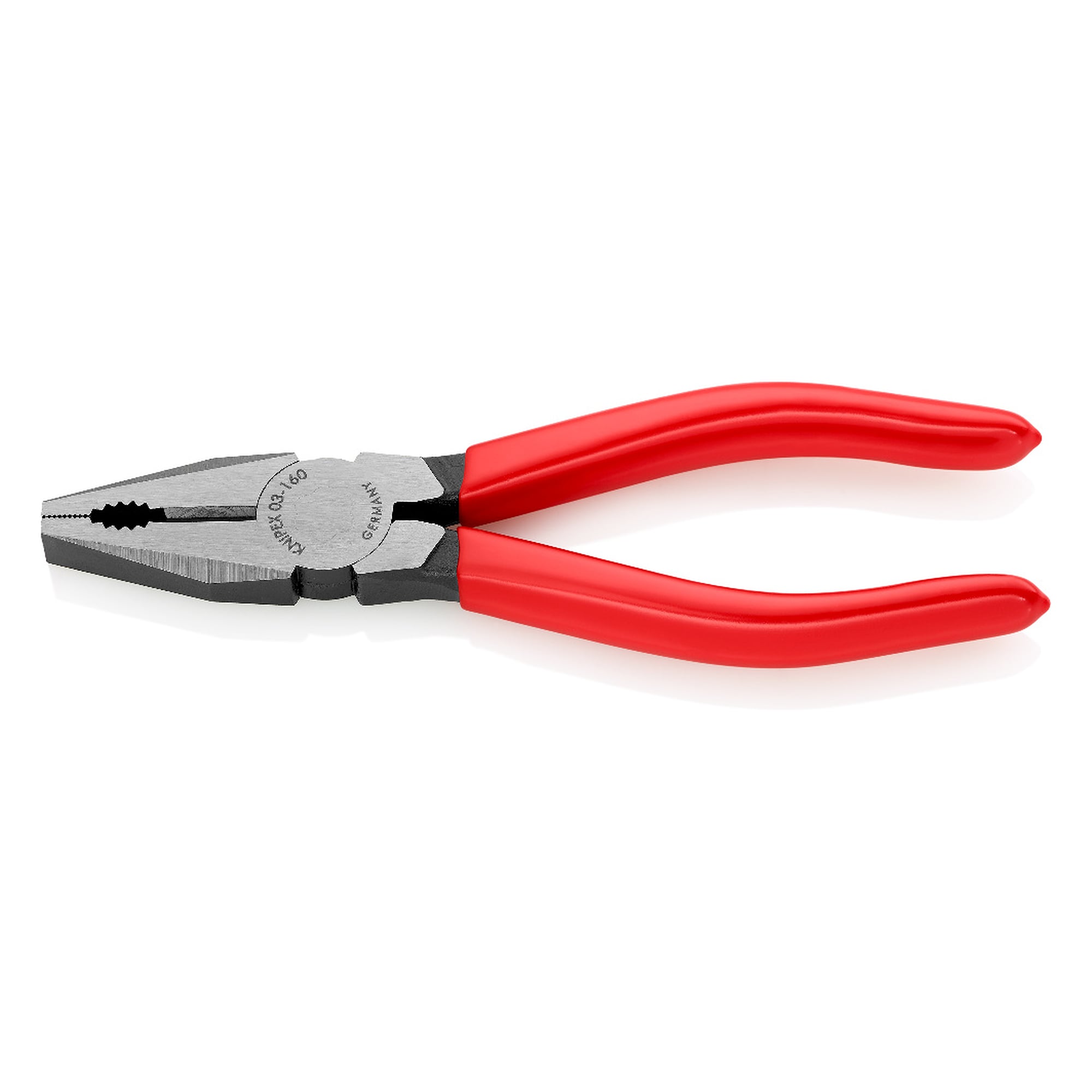

Combination pliers 160 mm long for gripping, bending, pulling and cutting with a single tool. The induction-hardened cutting edges of approx. 60 HRC cut medium hard wire up to Ø 3.1 mm, hard wire up to Ø 2.0 mm and multi-stranded copper cable up to 16.0 mm². Black atramentised pliers with plastic coated handles, weight 187 g.
Combination pliers, black atramentised, cutting edges 60 HRC, 160 mm - Knipex 03 01 160
KNIPEX
Original product
Net price (excl. VAT)
€12.49
Item
WL61284
Manufacturer no.
03 01 160
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.03 01 160
EAN4003773013235
ConditionNew
Article
WL61284
Frequently Bought Together
On installation and repair jobs there is often only one pair of pliers in the pouch, and it has to grip, bend, pull and cut. The 03 01 160 combination pliers cover these four tasks and cut hard wire up to Ø 2.0 mm with induction-hardened edges of approx. 60 HRC, at 160 mm length and only 187 g.
Benefits
- Cutting edges for soft and hard wire, medium hard wire up to Ø 3.1 mm and hard wire up to Ø 2.0 mm are cut with the same edge.
- Long cutting edges for thicker cables, multi-stranded copper cable up to 16.0 mm² fits fully into the edge.
- Cutting edges additionally induction-hardened to approx. 60 HRC, which keeps them sharp over a long service life.
- Gripping zones for flat and round material for versatile use, tube and sheet are held without changing tools.
- Black atramentised pliers with polished head and plastic coated handles, a handy format weighing 187 g.
Technical data
| EAN | 4003773013235 |
|---|---|
| Pliers | black atramentised |
| Head | polished |
| Handles | plastic coated |
| Weight | 187 g |
| Dimensions | 160 x 48 x 13 mm |
| Cutting capacity medium hard wire (diameter) | Ø 3.1 mm |
| Cutting capacity hard wire (diameter) | Ø 2.0 mm |
| Cutting capacity multi-stranded copper cable | 16.0 mm² |
| Standard | DIN ISO 5746 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Electrical installation, building services, assembly and repair, wherever a handy tool for wire, cable and small parts is needed.
Standards and conformity
The pliers meet DIN ISO 5746 for combination pliers. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply. This model carries no insulation to IEC 60900.
| Norm | DIN ISO 5746 |
|---|---|
| Manufacturer Nr. | 03 01 160 |
| Manufacturer | Knipex |
| EAN | 4003773013235 |
| Weight | 0.187000 |
| Colour | Black |
| Height | 13 mm |
| Width | 48 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Farbe | schwarz |
| Overall length [mm] | 160.000000 |
