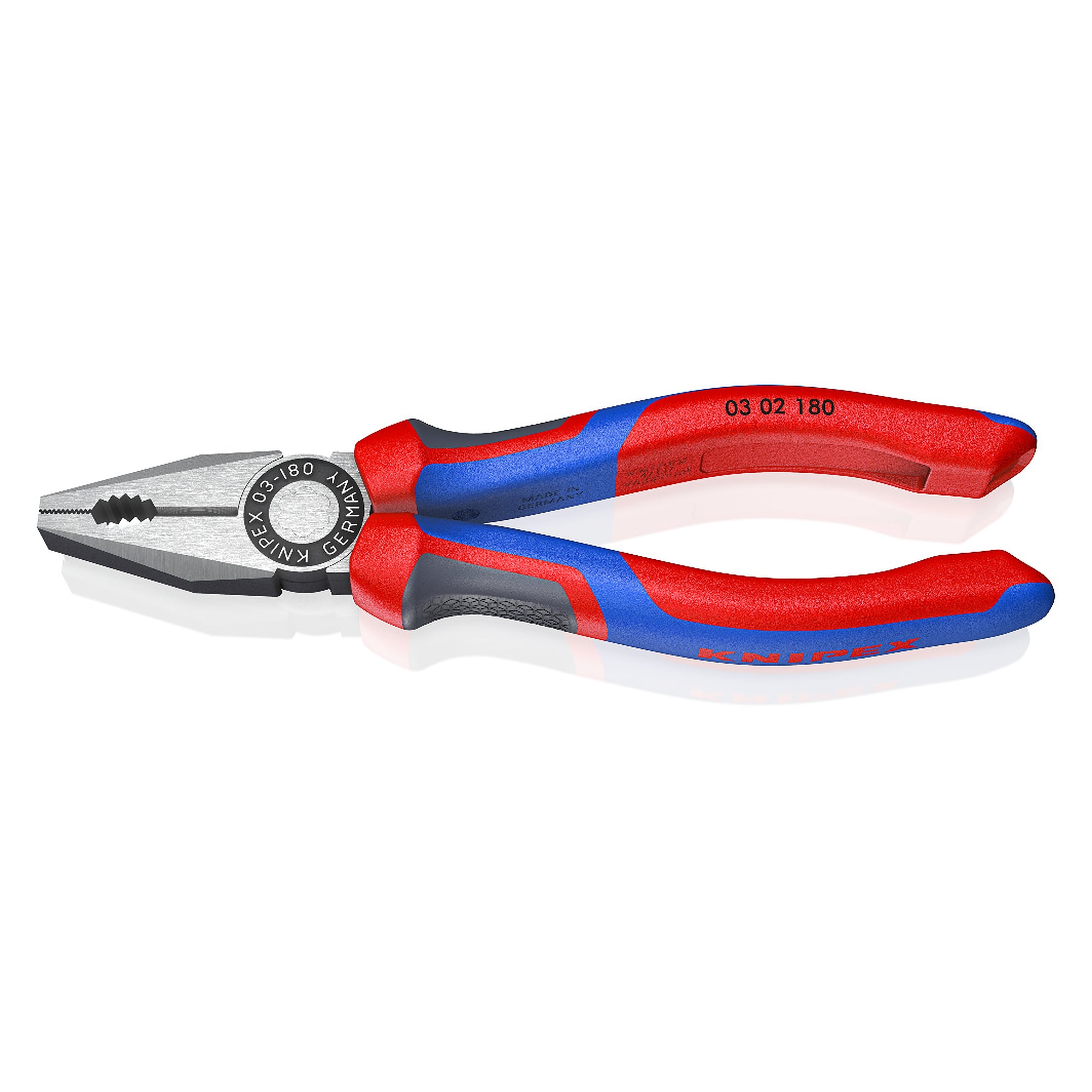

Combination pliers with comfort handles, hard wire up to Ø 2.2 mm, 180 mm - Knipex 03 02 180
Combination pliers 180 mm long with comfort handles made of three ergonomic components. They cut hard wire up to Ø 2.2 mm, medium-hard wire up to Ø 3.4 mm and multi-stranded Cu cable up to 16.0 mm². The cutting edges are induction-hardened to about 60 HRC, weight 254 g.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Anyone gripping, bending and cutting all day feels every gram and every edge in the handle. The 03 02 180 combination pliers spread the hand force across comfort handles made of three components and still cut hard wire up to Ø 2.2 mm and Cu cable up to 16.0 mm².
Benefits
- Long cutting edges for thicker cable, multi-stranded Cu cable up to 16.0 mm².
- Cutting edges for soft and hard wire, hard wire up to Ø 2.2 mm, medium-hard wire up to Ø 3.4 mm.
- Additionally induction-hardened edges at about 60 HRC stay sharp over a long service life.
- Gripping zones for flat and round material make the pliers versatile in use.

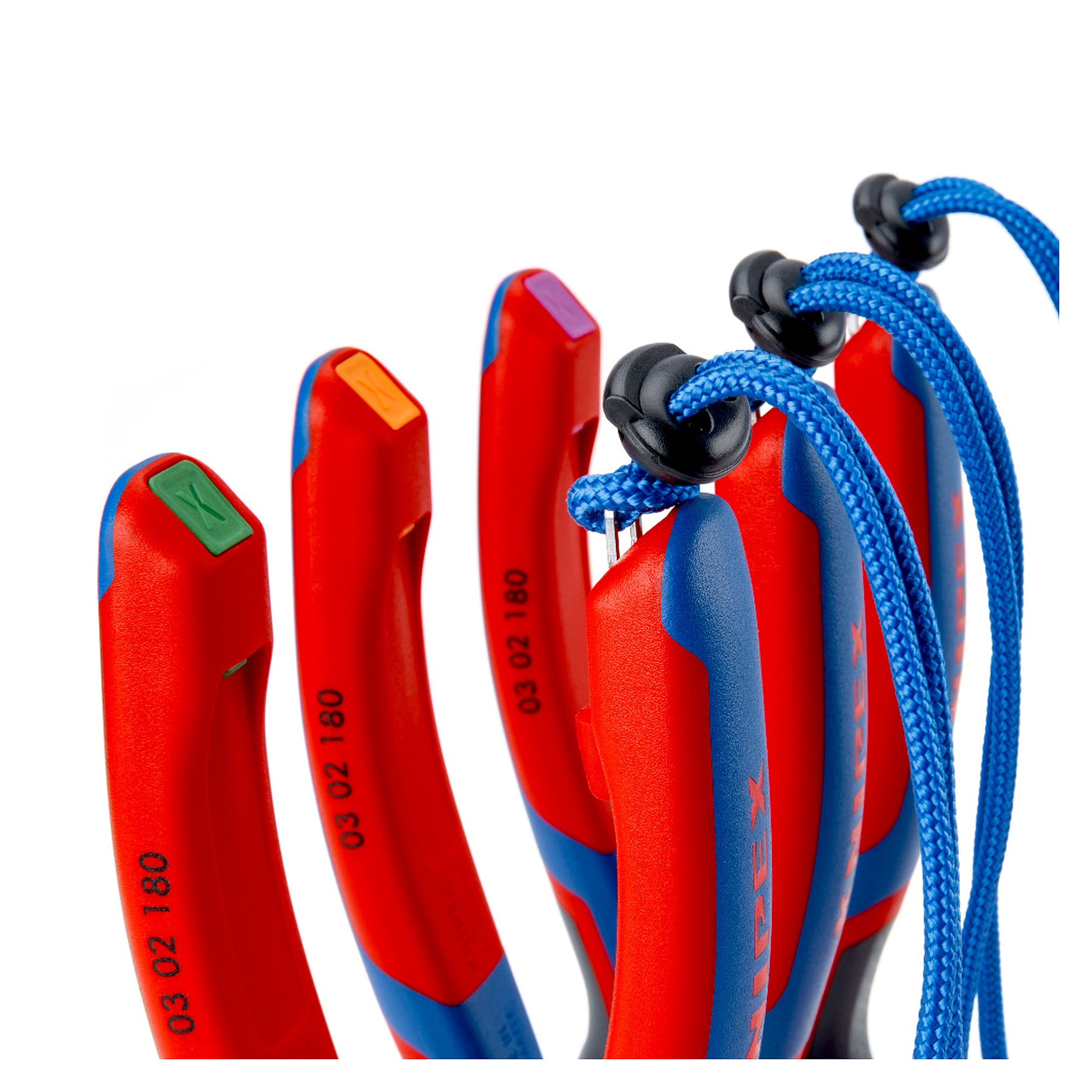

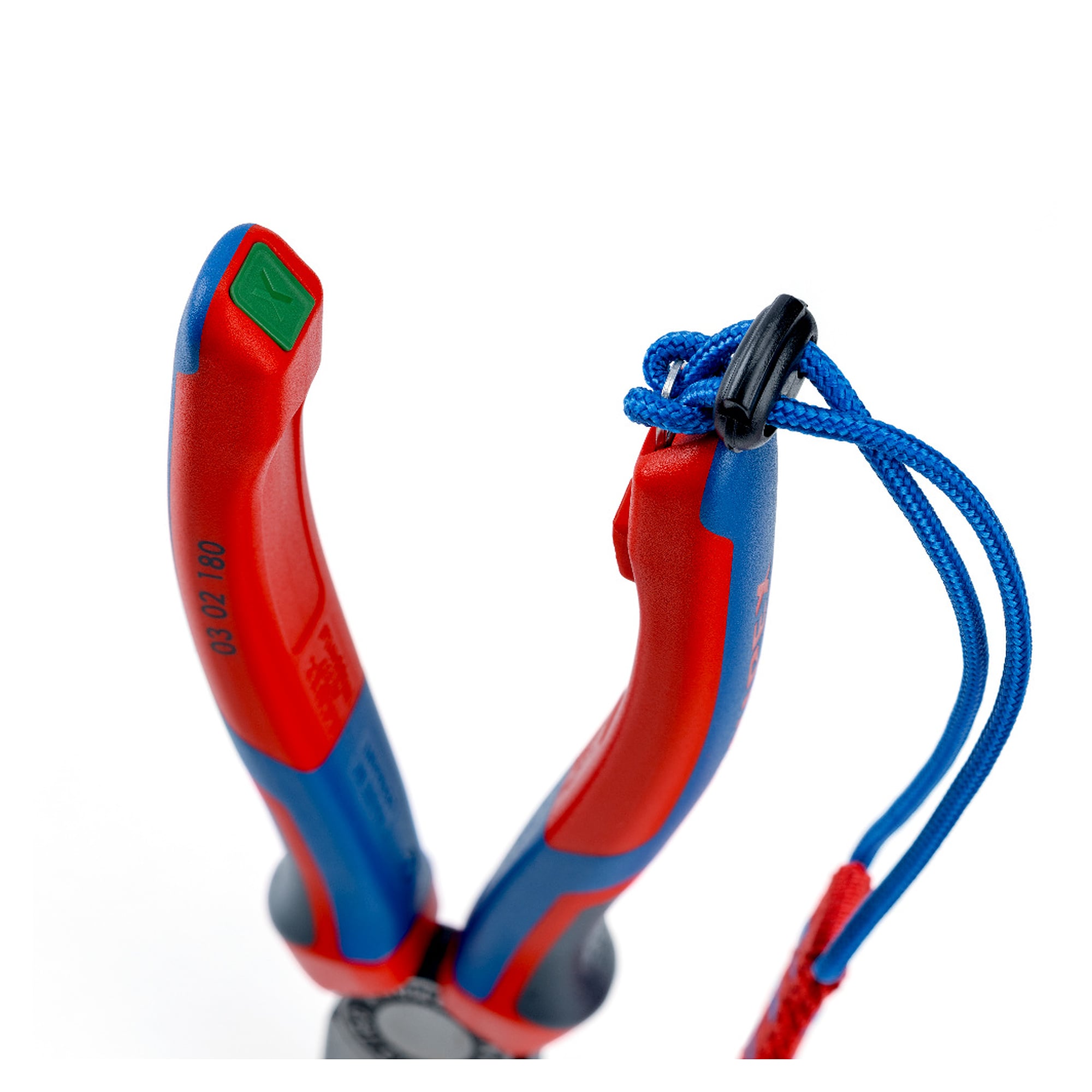

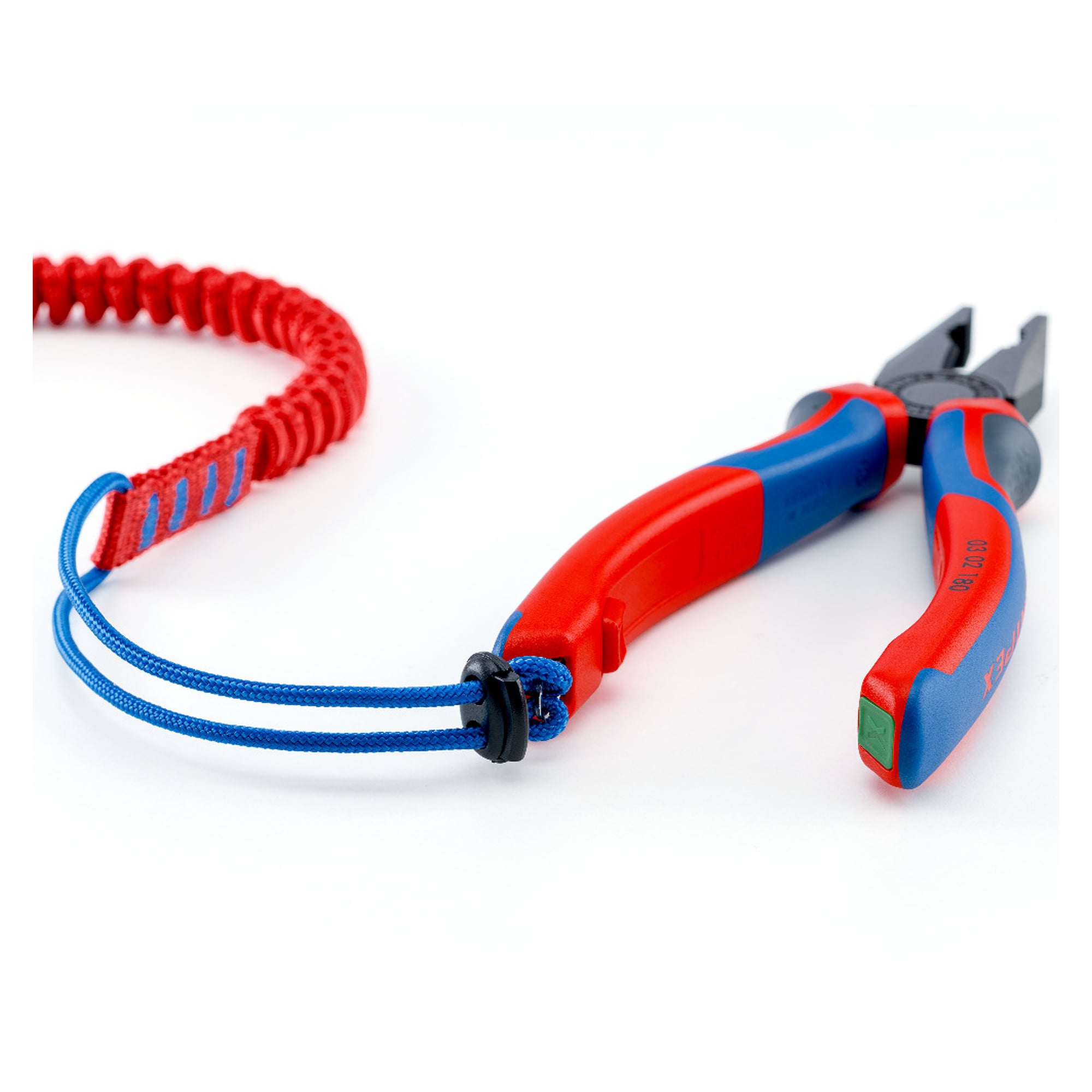

- Comfort handles made of three ergonomic components with two KNIPEXtend interfaces for extensions.
- Handy format at 180 mm and 254 g, easy to carry on the tool belt.
Areas of use
Electrical installation, assembly and maintenance, workshop and service vehicle. The 180 mm length is the usual size for work in which the pliers stay in the hand all day.
Standards and conformity
The pliers comply with DIN ISO 5746. According to the manufacturer they contain no substances of very high concern under REACH, and the RoHS directive does not apply.
Technical data
| EAN | 4003773023197 |
|---|---|
| Pliers | black atramentised |
| Head | polished |
| Handles | with comfort handles |
| Weight | 254 g |
| Dimensions | 180 x 52 x 21 mm |
| Standard | DIN ISO 5746 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Cutting capacity medium-hard wire (diameter) | Ø 3.4 mm |
| Cutting capacity hard wire (diameter) | Ø 2.2 mm |
| Cutting capacity Cu cable, multi-stranded | 16.0 mm² |
| Manufacturer | Knipex |
| Manufacturer Nr. | 03 02 180 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 21 mm |
| Width | 52 mm |
| Colour | Black |
| Farbe | schwarz |
| Norm | DIN ISO 5746 |
| Overall length [mm] | 180 |
