Insulated needle-nose combination pliers to DIN EN 60900 and IEC 60900 for work up to 1000 V. The slim head with pointed jaws reaches confined areas and the induction-hardened cutting edges take hard wire up to Ø 2.0 mm and copper cable up to 16.0 mm². 145 mm long at 145 g.

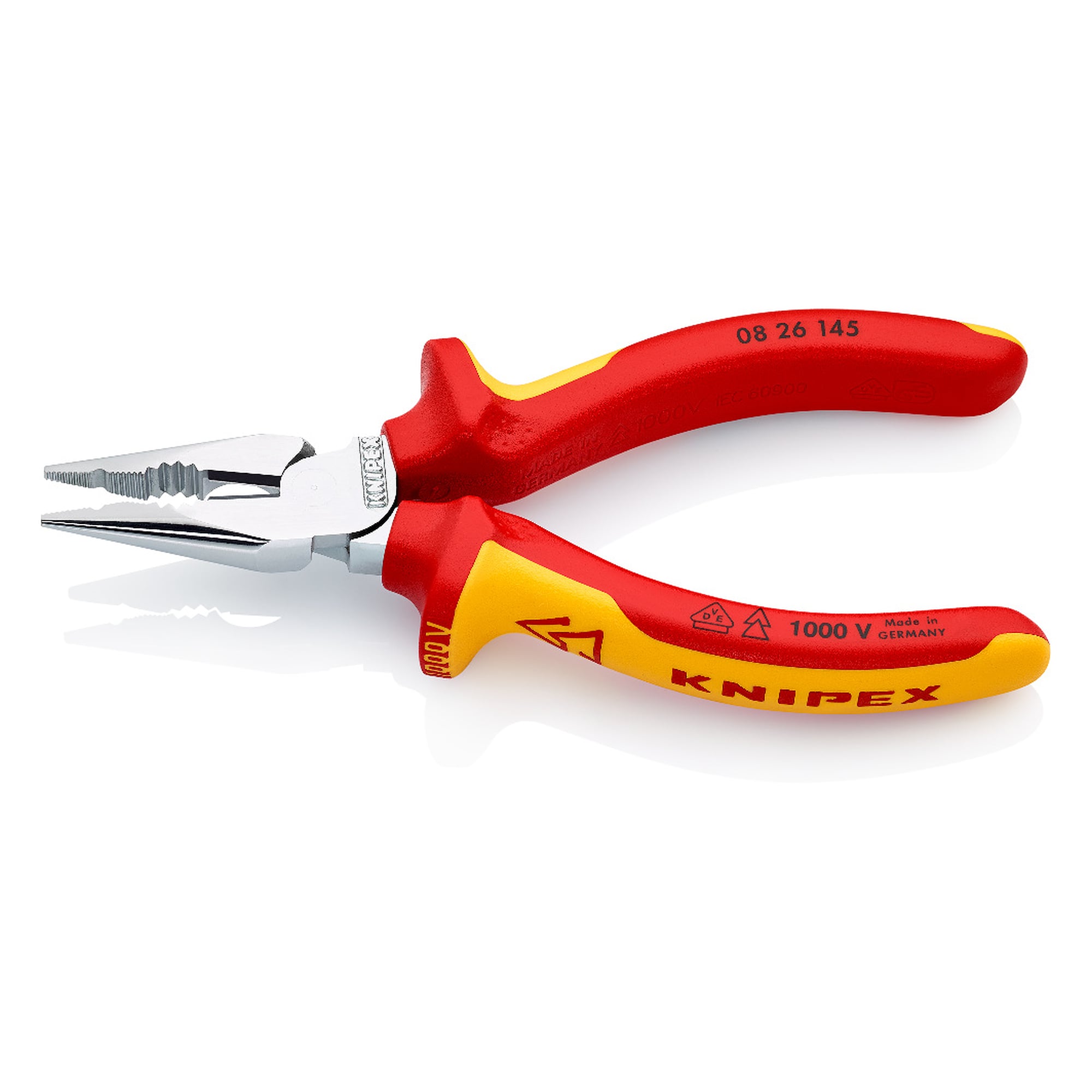

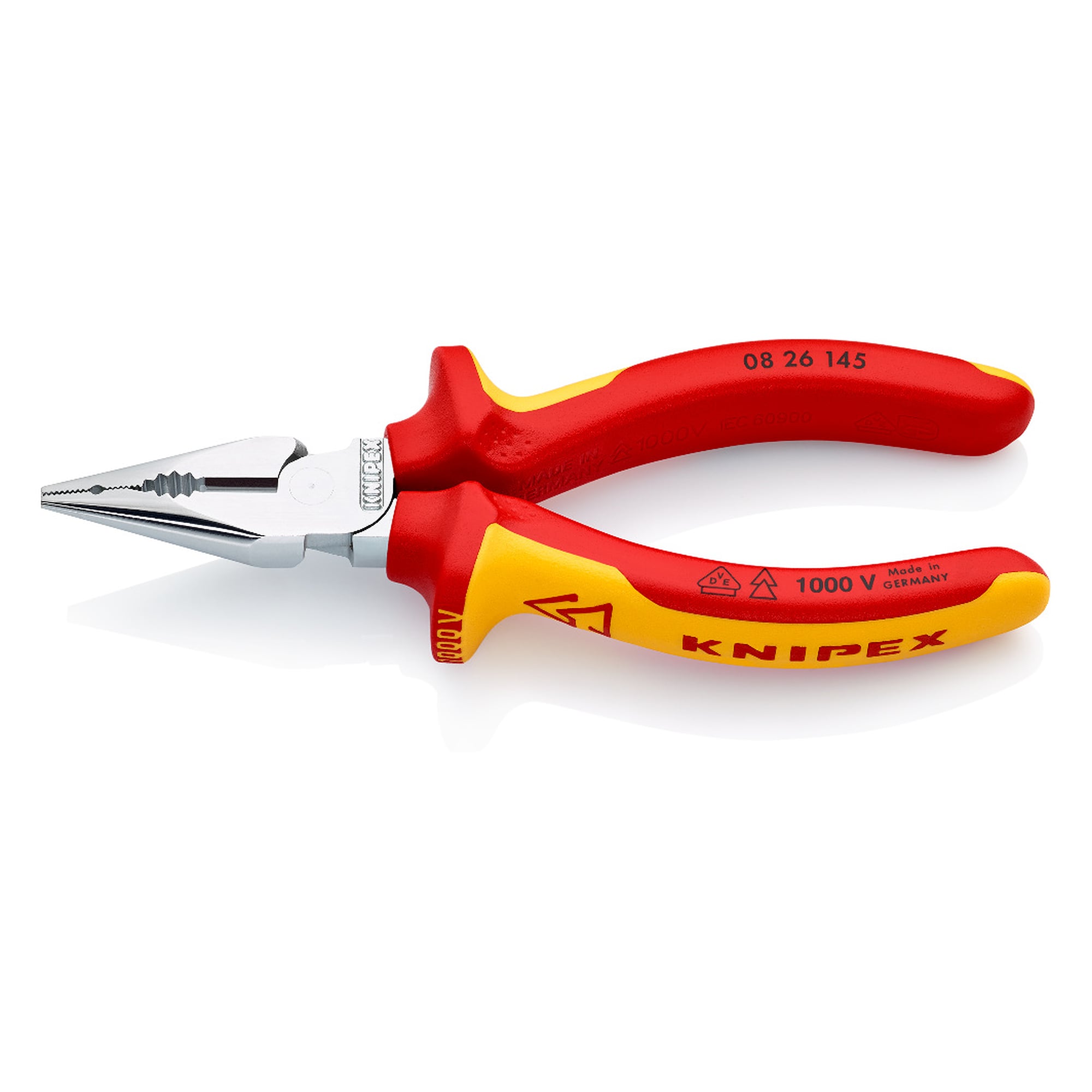

Needle-nose combination pliers, insulated VDE 1000 V, slim head, 145 mm - Knipex 08 26 145
KNIPEX
Original product
Net price (excl. VAT)
€26.78
Item
WL61303
Manufacturer no.
08 26 145
1000 V · IEC 60900
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.08 26 145
EAN4003773079361
ConditionNew
Article
WL61303
Frequently Bought Together
-
This Item:
€26.78
-
Combination pliers Classic DynamicJoint® OptiGrip extra long cutting edge 160 mm - Wiha 10334
€10.41
-
Bahco 2628 S-160. Combination pliers with insulated handles, 160 mm
€39.06
Total price
In distribution boards and terminal boxes the cores sit close together and often stay live. The needle-nose combination pliers 08 26 145 is tested to IEC 60900 for 1000 V and its slim head, only 18 mm high, reaches places where ordinary combination pliers already foul.
Benefits
- Insulated multi-component sleeves, VDE tested to DIN EN 60900 and IEC 60900 for work up to 1000 V.
- Slim head design with pointed jaws, highly resistant to twisting and made for confined working areas.
- Gripping surface with a convex contour on one side for flat parts, milled groove in the gripping area to hold and pull nails, pins and bolts.
- High leverage joint for easy cutting, medium-hard wire up to Ø 3.0 mm, hard wire up to Ø 2.0 mm, multi-stranded copper cable up to 16.0 mm².
- Cutting edges additionally induction-hardened to about 61 HRC, giving long service life and stable tips.
- Chrome-plated pliers and head, dimensions 145 x 58 x 18 mm at 145 g.
Technical data
| EAN | 4003773079361 |
|---|---|
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component sleeves, VDE tested |
| Weight | 145 g |
| Dimensions | 145 x 58 x 18 mm |
| Standard | DIN ISO 5746, DIN EN 60900, IEC 60900 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Cutting capacity medium-hard wire (diameter) | Ø 3.0 mm |
| Cutting capacity hard wire (diameter) | Ø 2.0 mm |
| Cutting capacity Cu cable, multi-stranded | 16.0 mm² |
| VDE tested | yes |
Areas of use
Electrical installation, control cabinet and distribution board building, maintenance on systems up to 1000 V and service work on luminaires and devices with a cramped connection space.
Standards and conformity
The pliers meet DIN ISO 5746 as well as DIN EN 60900 and IEC 60900 for insulated tools up to 1000 V. According to the manufacturer they contain no substances of very high concern under REACH, the RoHS directive does not apply.
| Weight | 0.145000 |
|---|---|
| Manufacturer | Knipex |
| Manufacturer Nr. | 08 26 145 |
| EAN | 4003773079361 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 18 mm |
| Width | 58 mm |
| Norm | DIN EN IEC 60900, DIN ISO 5746 |
| Certification | IEC 60900 |
| Overall length [mm] | 145.000000 |
