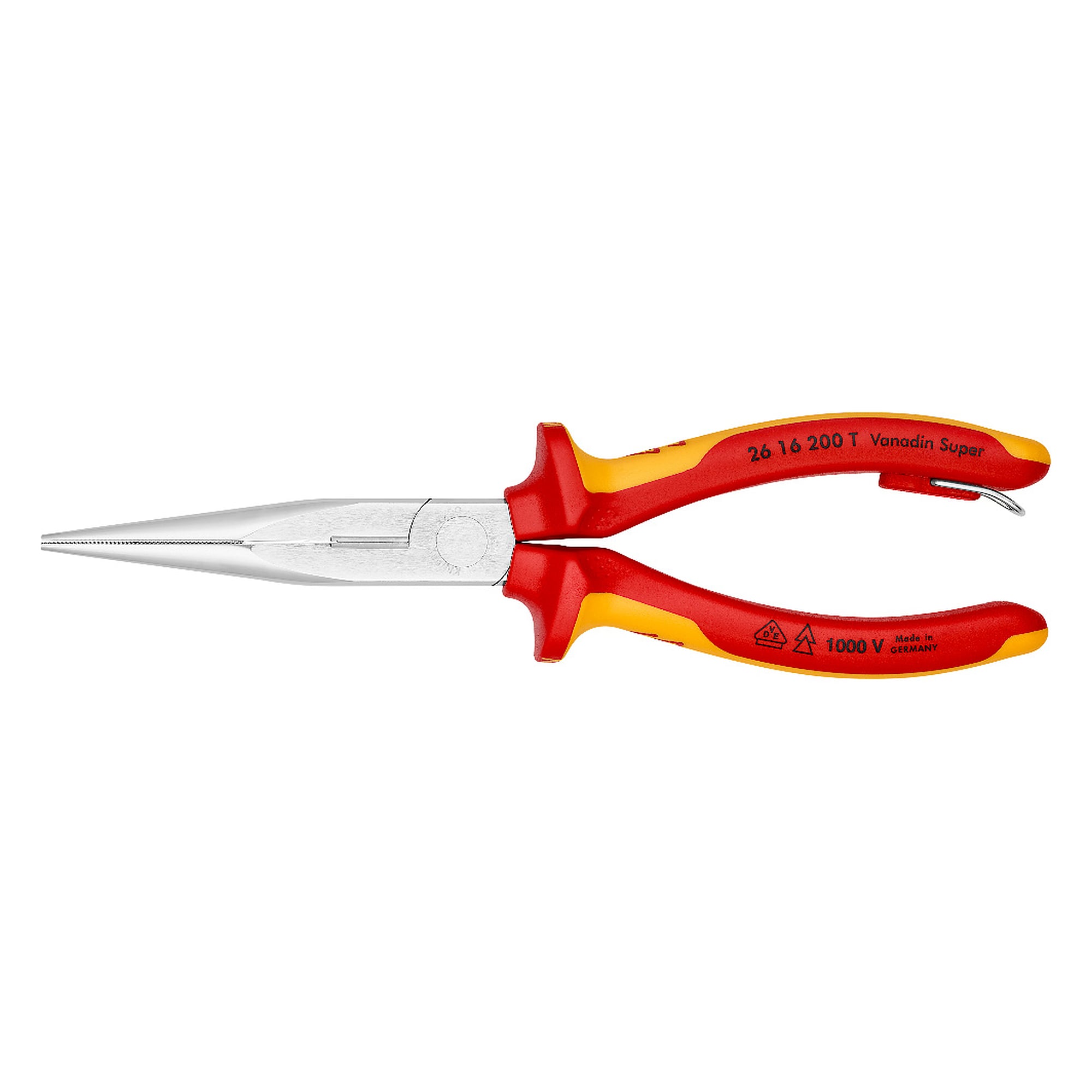

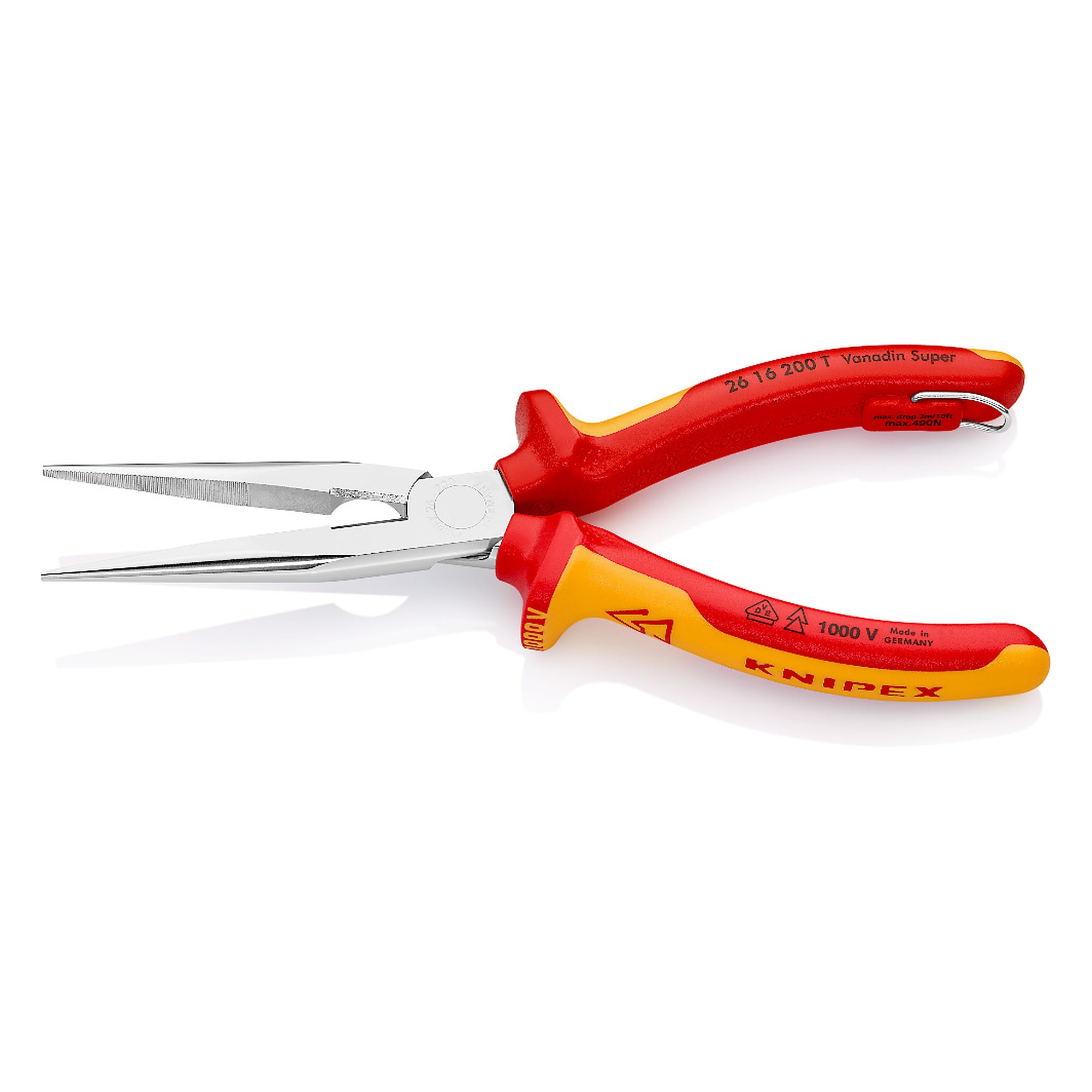

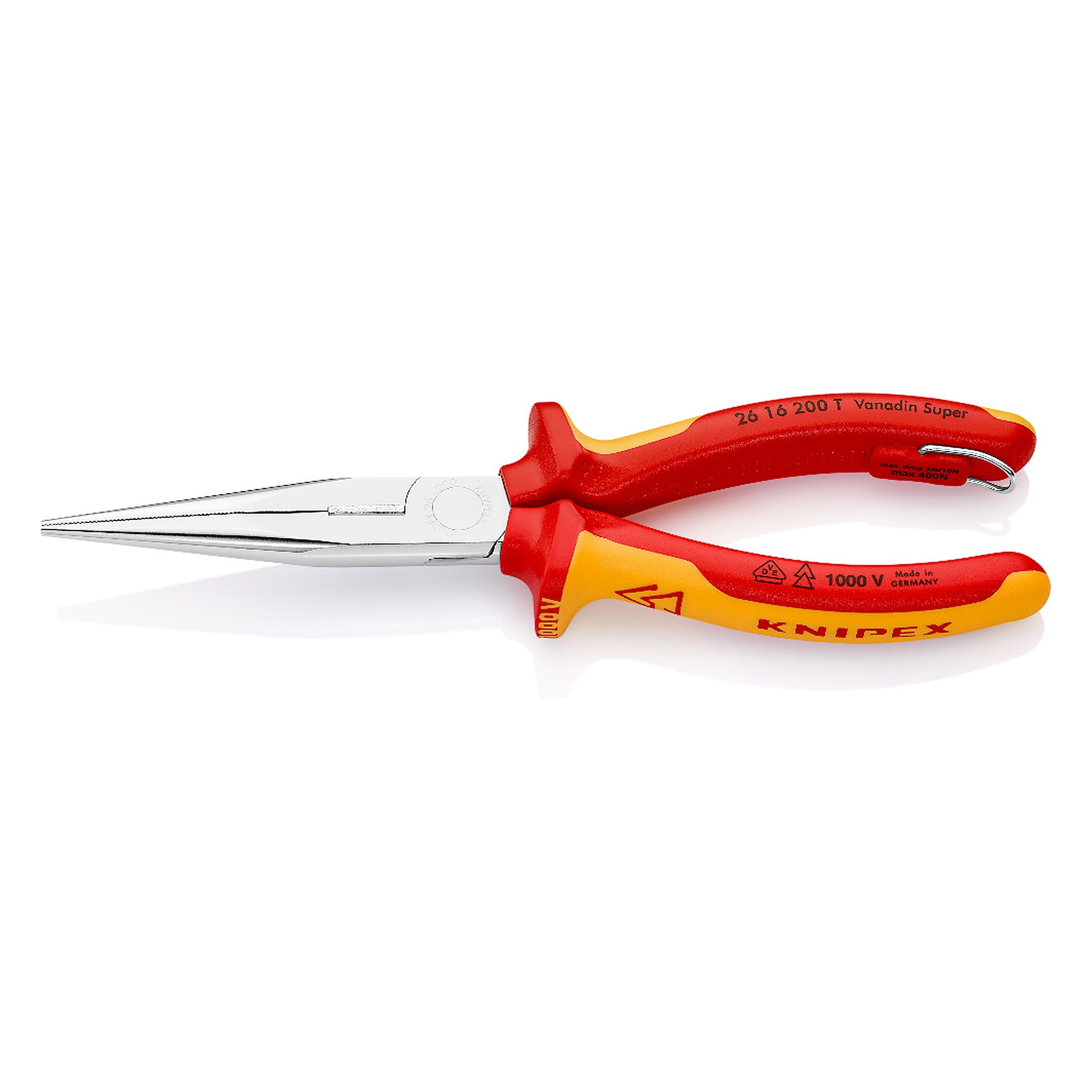

Snipe nose side cutting pliers (stork beak pliers), VDE insulated, tether point, 200 mm - Knipex 26 16 200 T
Snipe nose side cutting pliers with insulated multi-component grips, VDE tested for work up to 1000 V, and an integrated insulated attachment point for a tool tether. 200 mm long at 215 g, jaw length 73 mm, cutting edges of around 61 HRC for hard wire up to Ø 2.2 mm.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Working on live parts and working at height call for two separate safeguards on the same tool. The 26 16 200 T snipe nose side cutting pliers bring both, insulated multi-component grips to IEC 60900 and an integrated insulated attachment point, at 200 mm length and 215 g.
Benefits
- Half-round, long and tapered jaws reach components that sit deep inside an assembly.
- Distortion-tolerant, elastic precision tips spring back instead of bending out of shape.
- Made for finer gripping and cutting work in easily and moderately accessible areas.
- Cutting edges for soft, medium-hard and hard wire, medium-hard up to Ø 3.2 mm, hard up to Ø 2.2 mm.
- Additionally induction-hardened cutting edges of around 61 HRC stay sharp for a long time.
- Insulated multi-component grips, VDE tested for work on live parts up to 1000 V.
- Integrated insulated attachment point for a tool tether, leaving the insulation intact.
- Jaw length of 73 mm at a head width of 18 mm, so even deeply seated terminals are within reach.
- Pliers and head chrome-plated, a surface that protects against corrosion.
Areas of use
Overhead line and mast work, switchgear construction and maintenance on scaffolds and lifting platforms while parts remain live.
Standards and conformity
The manufacturer states the standards DIN ISO 5745, DIN EN 60900, IEC 60900 for this model. The pliers are VDE tested and intended for work on live parts up to 1000 V. According to the manufacturer they contain no substances of very high concern under REACH, and the RoHS directive does not apply.
Technical data
| EAN | 4003773081449 |
|---|---|
| Pliers | chrome-plated |
| Head | chrome-plated |
| Handles | insulated with multi-component grips, VDE tested, with an integrated insulated attachment point for a tool tether |
| Weight | 215 g |
| Dimensions | 200 x 55 x 28 mm |
| Standard | DIN ISO 5745, DIN EN 60900, IEC 60900 |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Cutting capacity medium-hard wire (diameter) | Ø 3.2 mm |
| Cutting capacity hard wire (diameter) | Ø 2.2 mm |

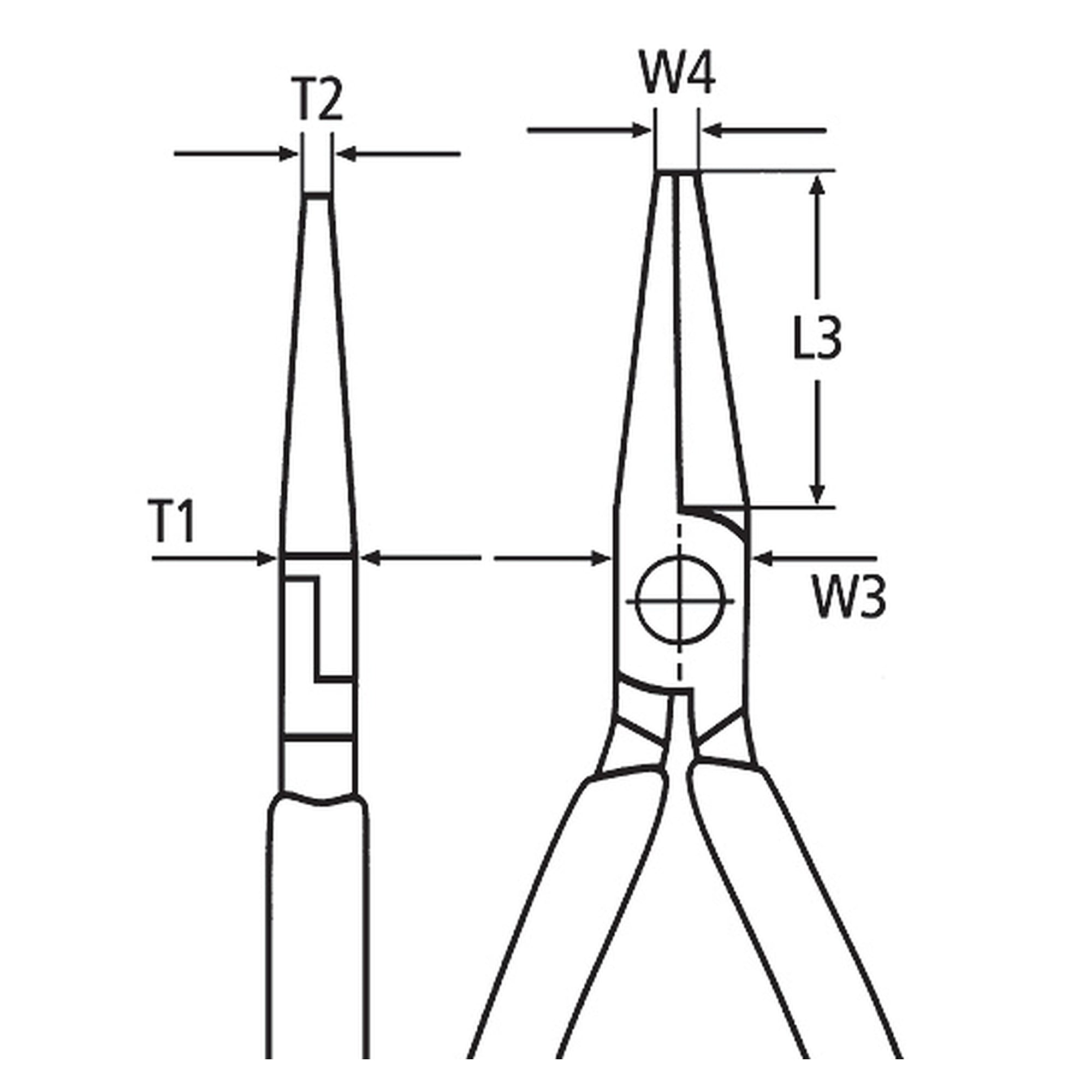

| Jaw thickness at the joint (T1) | 9.5 mm |
| Tip width (W4) | 3.0 mm |
| Tip thickness (T2) | 2.5 mm |
| Jaw length (L3) | 73.0 mm |
| Head width (W3) | 18 mm |
| Tool tethering | yes |
| VDE tested | yes |
| Manufacturer | Knipex |
| Manufacturer Nr. | 26 16 200 T |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 28 mm |
| Width | 55 mm |
| Norm | DIN EN IEC 60900, DIN ISO 5745 |
| Certification | IEC 60900 |
| Overall length [mm] | 200 |
