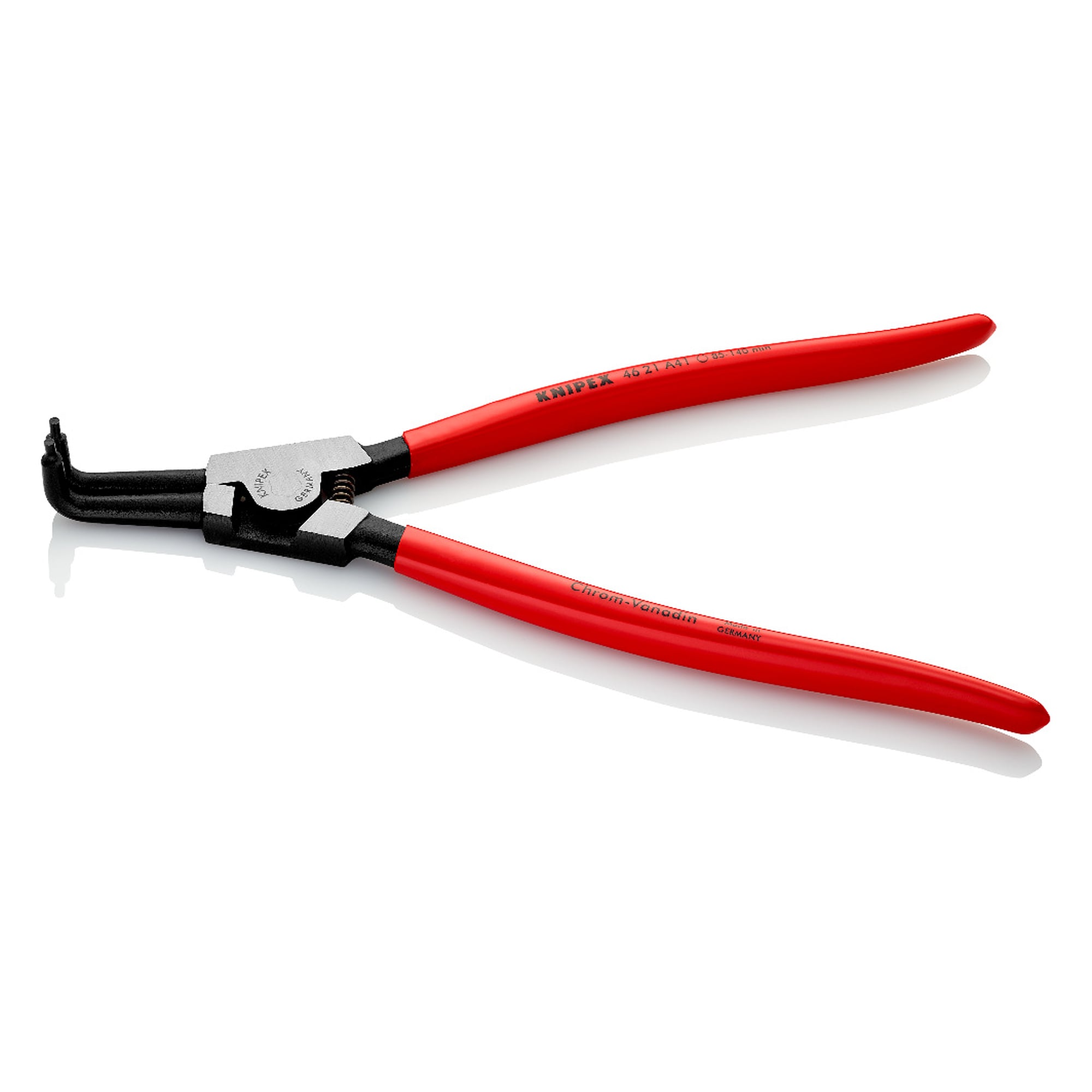

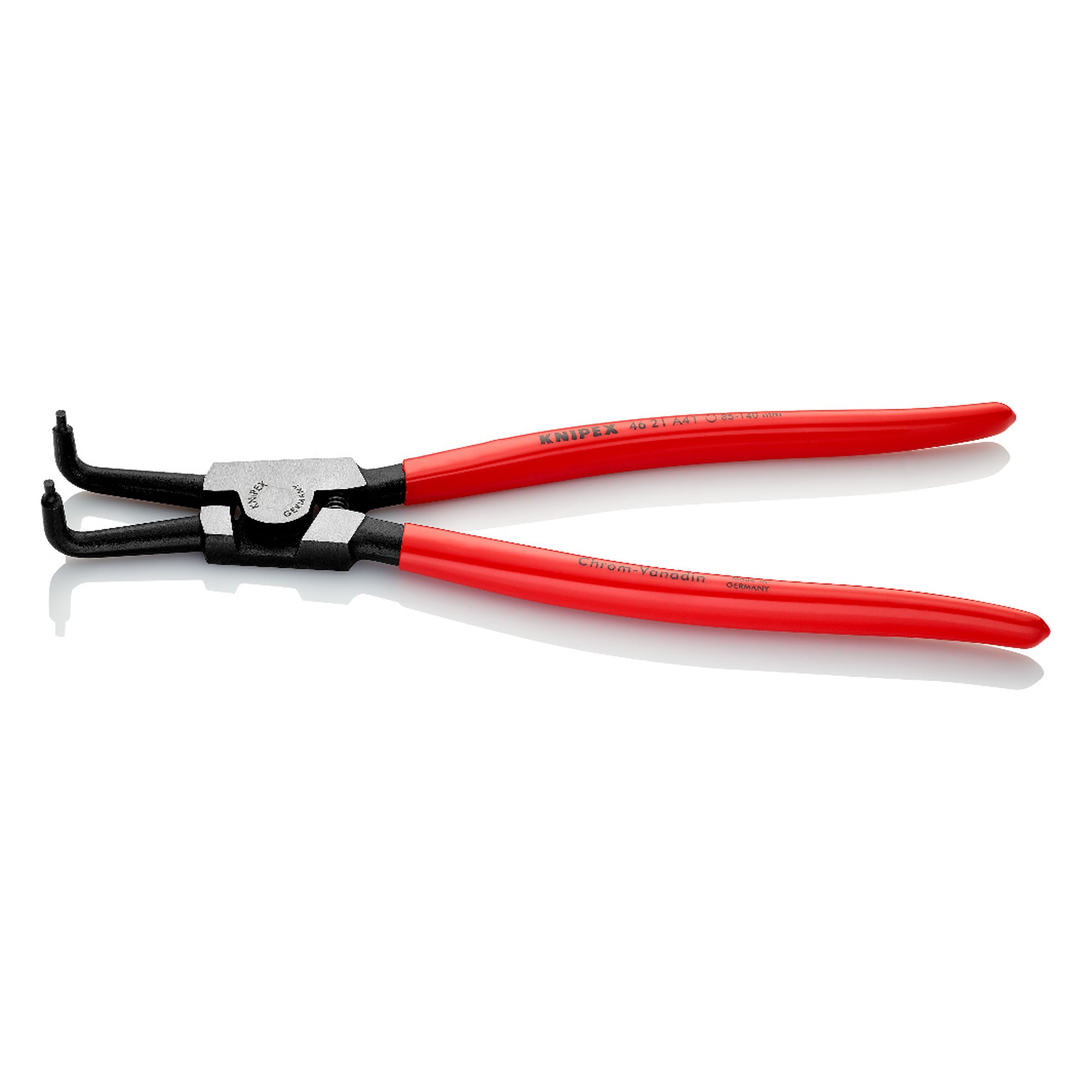

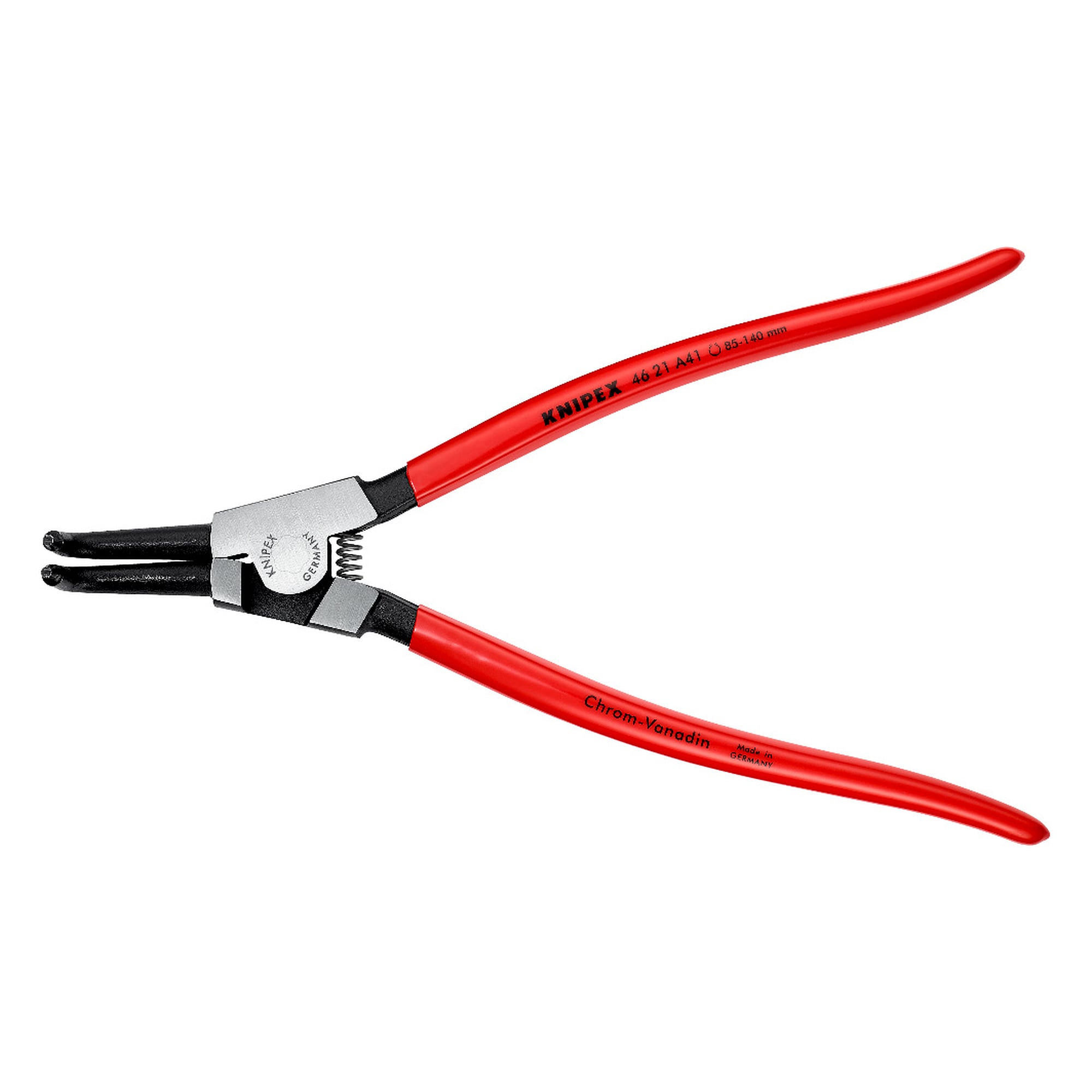

Circlip pliers for external circlips on shafts 85 - 140 mm dia., black atramentized, 300 mm - Knipex 46 21 A41
Forged circlip pliers for external circlips on shafts of 85 - 140 mm dia.. The non-slip, solid tips of 3.2 mm dia. hold the ring safely in its holes while it is spread open. Black atramentized pliers with polished head and plastic coated handles, 300 mm long, 510 g, to DIN 5254 B.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Circlips on shafts keep bearings and wheels in place, and both fitting and removing them depend on how firmly the tips sit in the holes of the ring. The 46 21 A41 circlip pliers cover shaft diameters of 85 - 140 mm dia., measure 300 mm and weigh 510 g.
Benefits
- Solid forged style that takes the load when large rings are spread open.
- Non-slip, solid tips of 3.2 mm dia. stay in the ring holes and protect the circlip.
- Capacity for shaft diameters of 85 - 140 mm dia., so the working range is clear before you pick up the tool.
- Pliers black atramentized, head polished, which protects the surface in daily workshop use.
- Plastic coated handles for a secure grip under heavy pull.
- Built to DIN 5254 B and therefore matched to standardised circlips.
Areas of use
Maintenance, machine, gearbox and vehicle construction, assembly and service. Wherever circlips for shafts of 85 - 140 mm dia. have to be fitted or removed.
Standards and conformity
The pliers are built to DIN 5254 B. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
Technical data
| EAN | 4003773039365 |
|---|---|
| Pliers | black atramentized |
| Head | polished |
| Handles | plastic coated |
| Weight | 510 g |
| Dimensions | 300 x 59 x 18 mm |
| Standard | DIN 5254 B |
| Capacity for shaft diameter | 85 - 140 mm dia. |
| Tips (diameter) | 3.2 mm dia. |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
| Weight | 0.510000 |
| Manufacturer | Knipex |
| Manufacturer Nr. | 46 21 A41 |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Height | 18 mm |
| Width | 59 mm |
| Colour | Black |
| Farbe | schwarz |
| Norm | DIN ISO 5254 |
| Overall length [mm] | 300.000000 |
