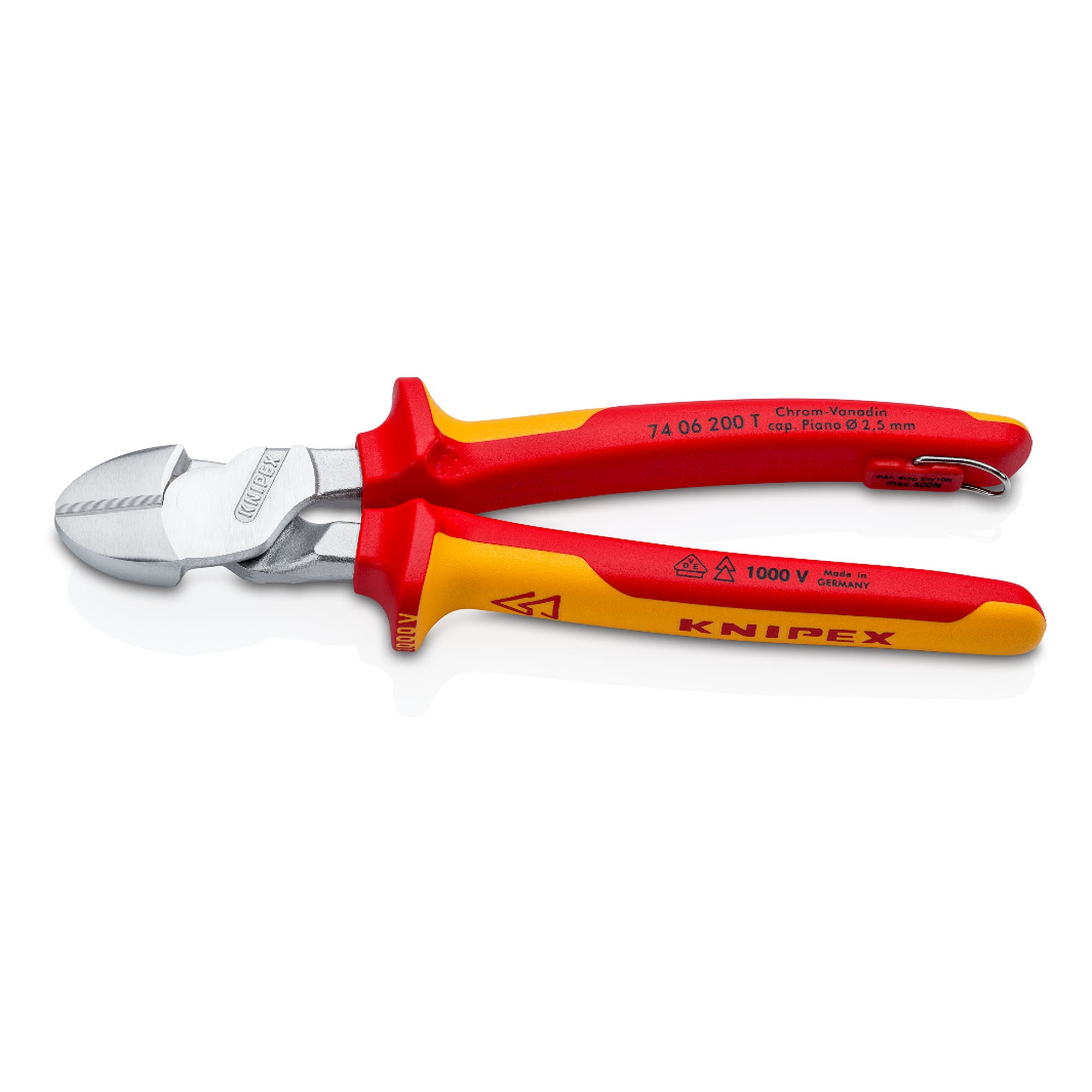

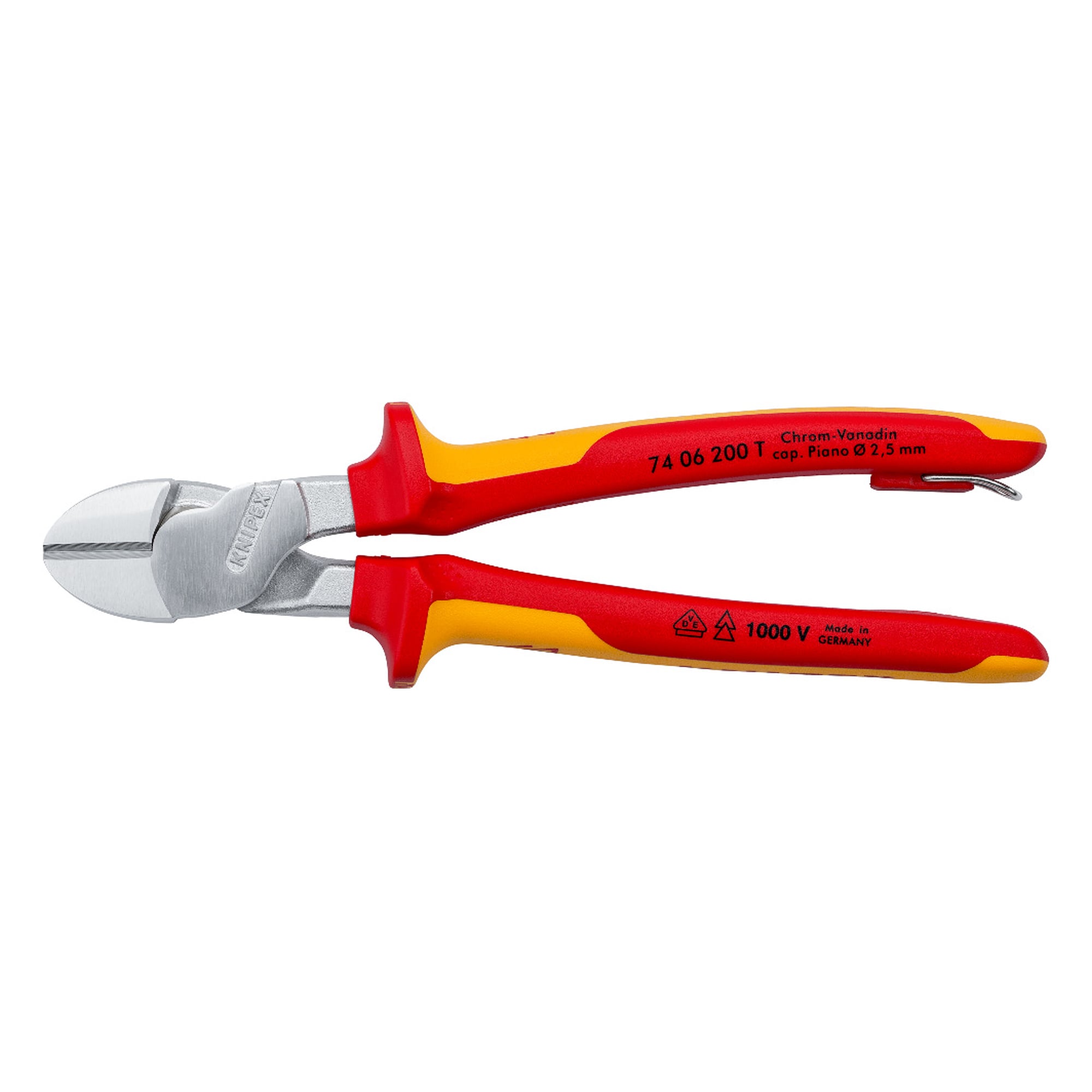

High leverage diagonal cutter insulated VDE with tether point, hard wire 3.0 mm dia., 200 mm - Knipex 74 06 200 T

On scaffolding and up a mast no tool may fall. The insulated 74 06 200 T high leverage diagonal cutter carries an integrated insulated attachment point for a tool tether, is tested for 1000 V and cuts hard wire up to 3.0 mm dia. at 200 mm length.

Benefits

• Integrated insulated attachment point for a tool tether, without interrupting the insulation.
• Insulated multi-component sleeves, VDE tested to DIN EN 60900 and IEC 60900 for work up to 1000 V.
• The high leverage joint cuts noticeably more easily than a conventional diagonal cutter of the same size, about 20% less effort than the previous model.
• The extreme proximity of the edges to the pivot point makes hard materials easy to cut, redesigned handle shape for better grip.
• Precision cutting edges additionally induction hardened to approx. 64 HRC, for all wire types including piano wire up to 2.5 mm dia.

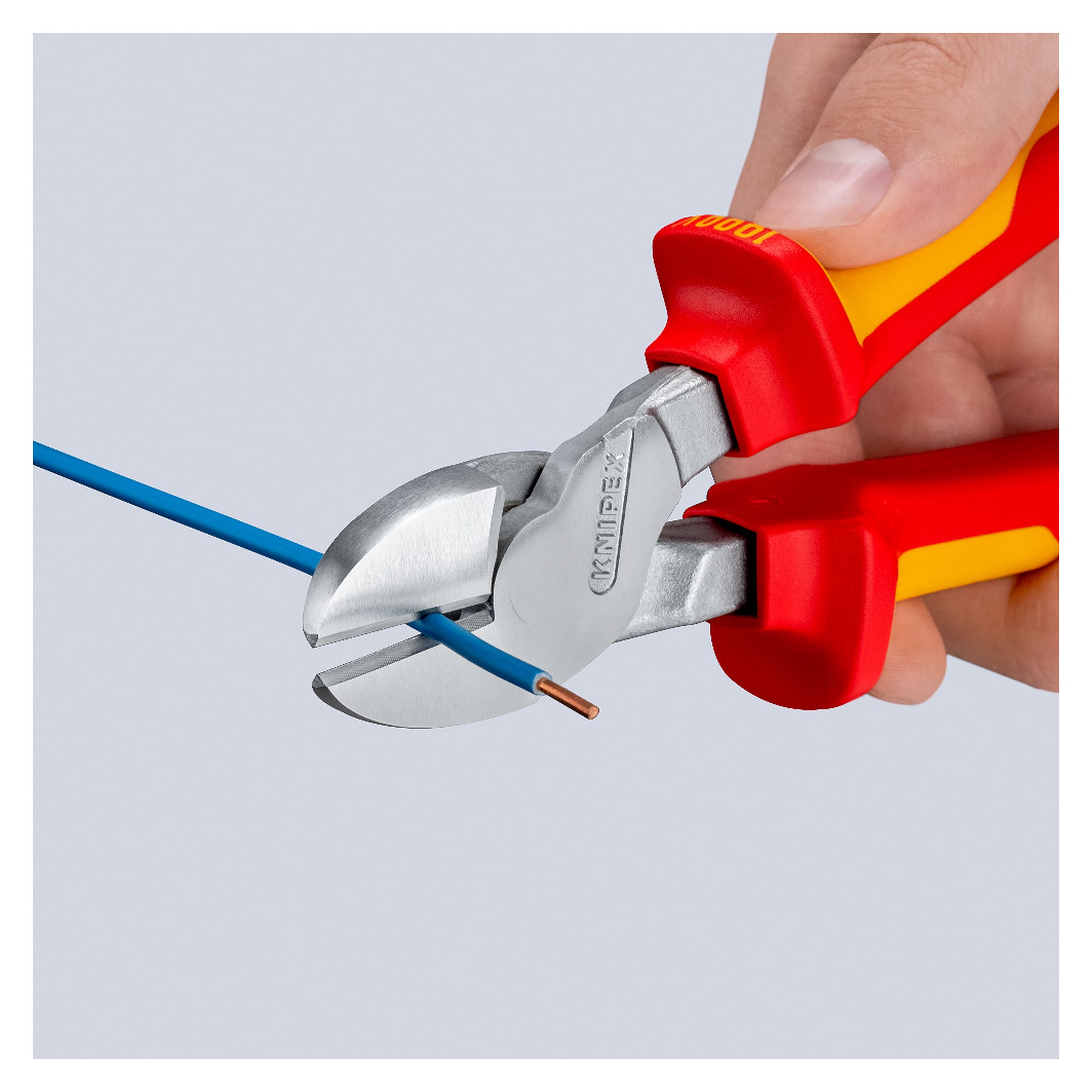

• Hard wire up to 3.0 mm dia. and medium hard wire up to 4.2 mm dia., weight 305 g.

Technical data

Areas of use

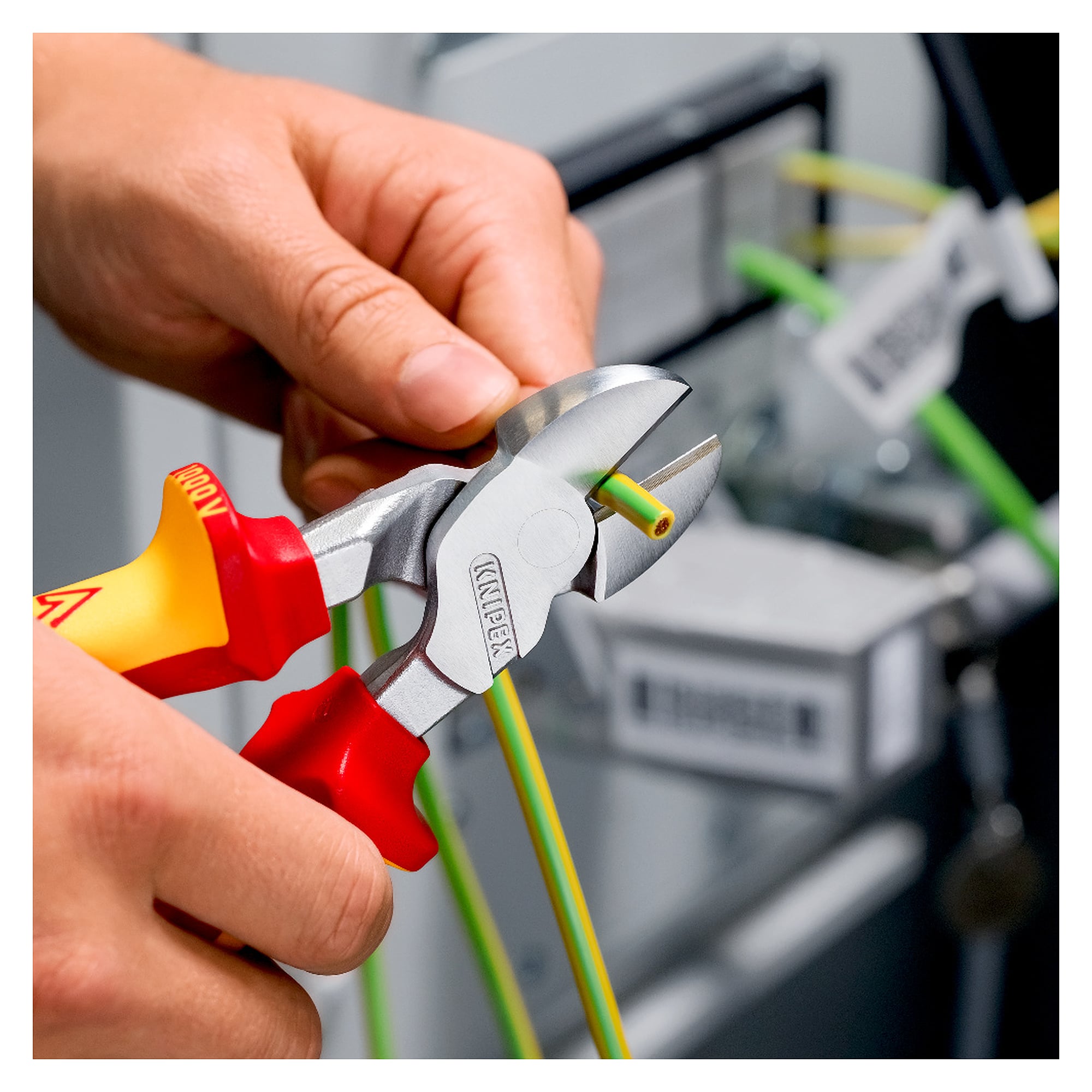

Work at height on masts, scaffolding and plant, electrical installation and maintenance. Wherever tool tethering is mandatory and work is carried out to IEC 60900 at the same time.

Standards and conformity

The pliers comply with DIN ISO 5749 for diagonal cutters and with DIN EN 60900 and IEC 60900 for insulated hand tools used for live working up to 1000 V. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
