Electronics diagonal cutter with a pointed head and no bevel for clean cuts close to the board. The laser hardened edges reach approx. 62 HRC and cut soft wire from 0.3 to 1.3 mm dia. and medium hard wire up to 0.8 mm dia. ESD compliant to DIN EN 61 340-5, 115 mm long at 70 g.

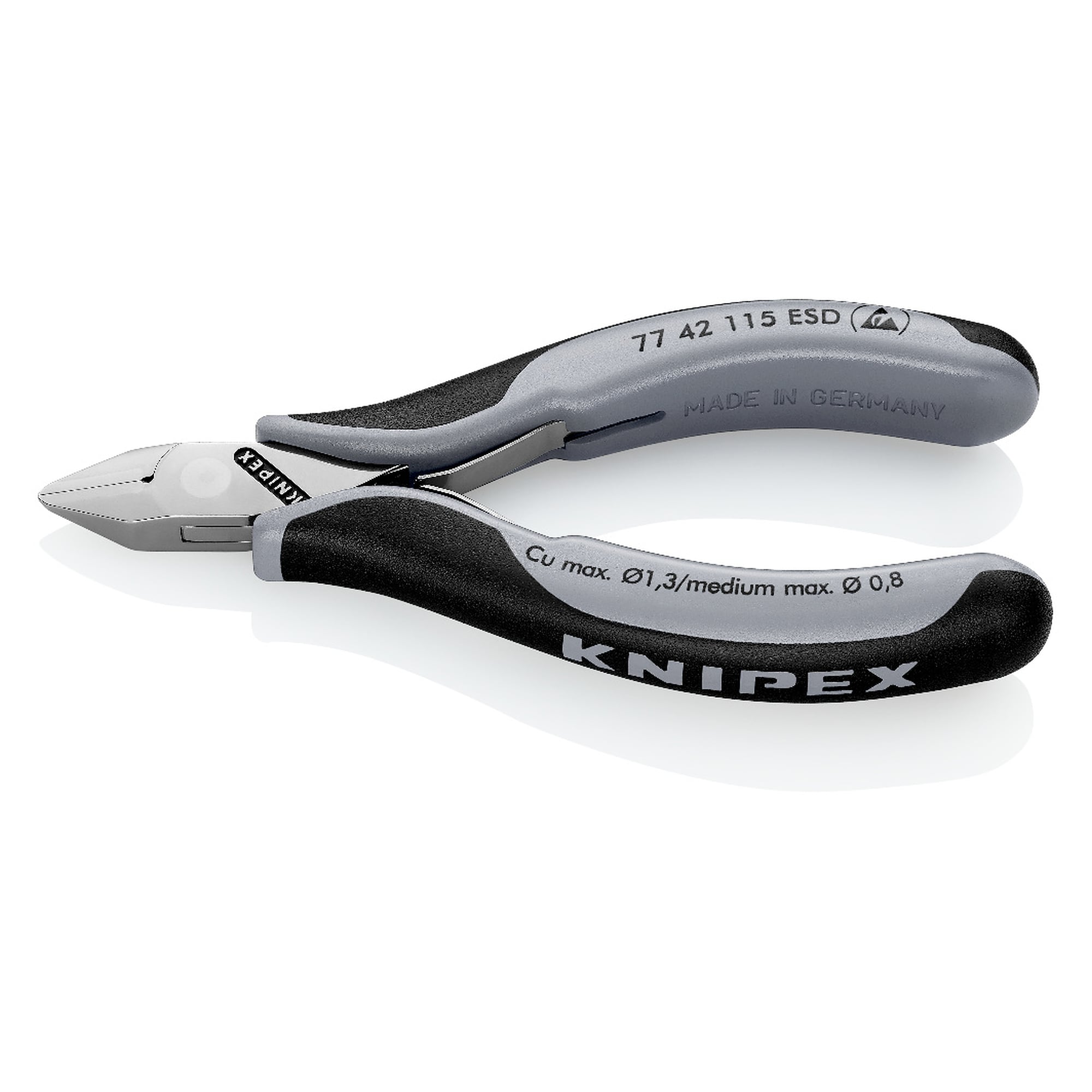

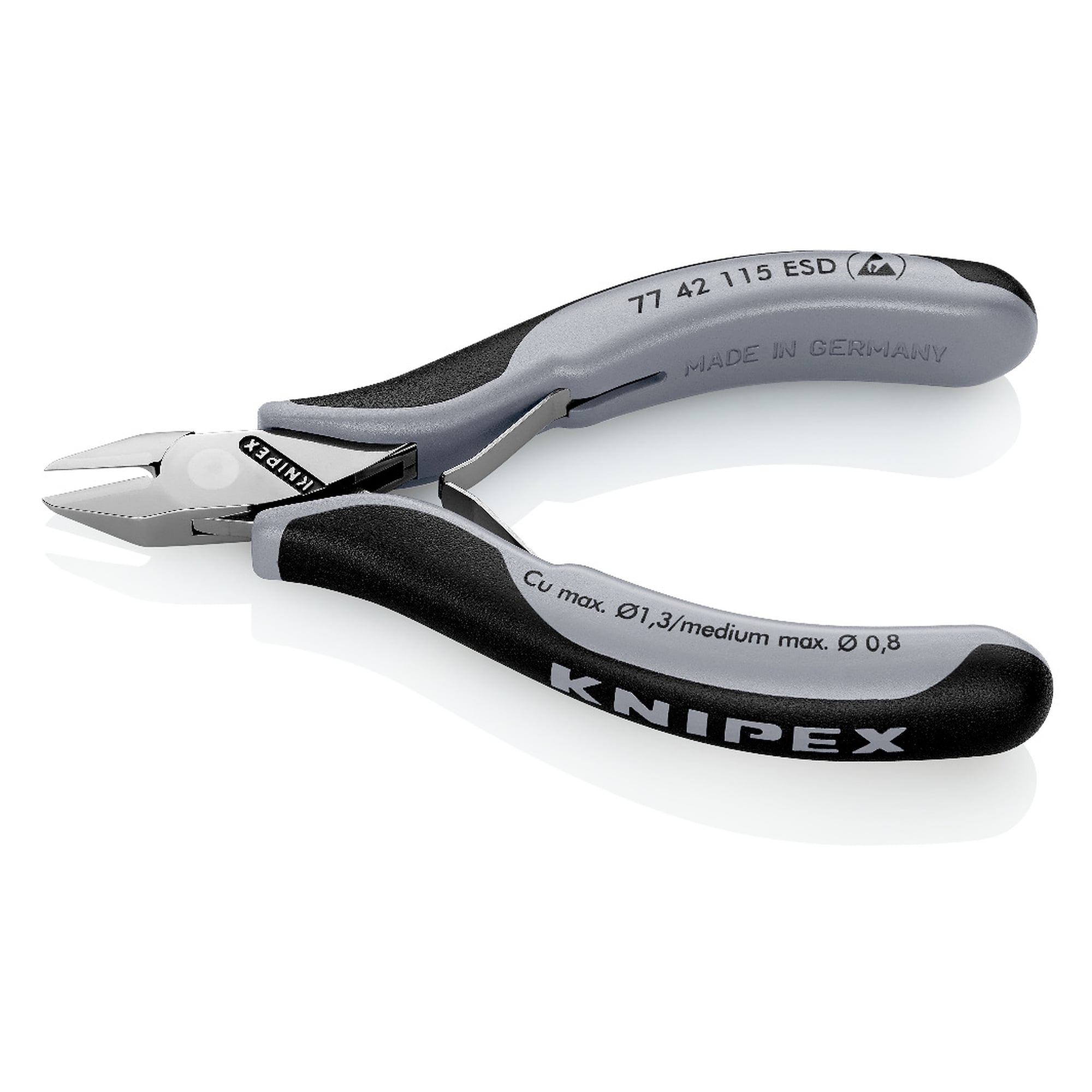

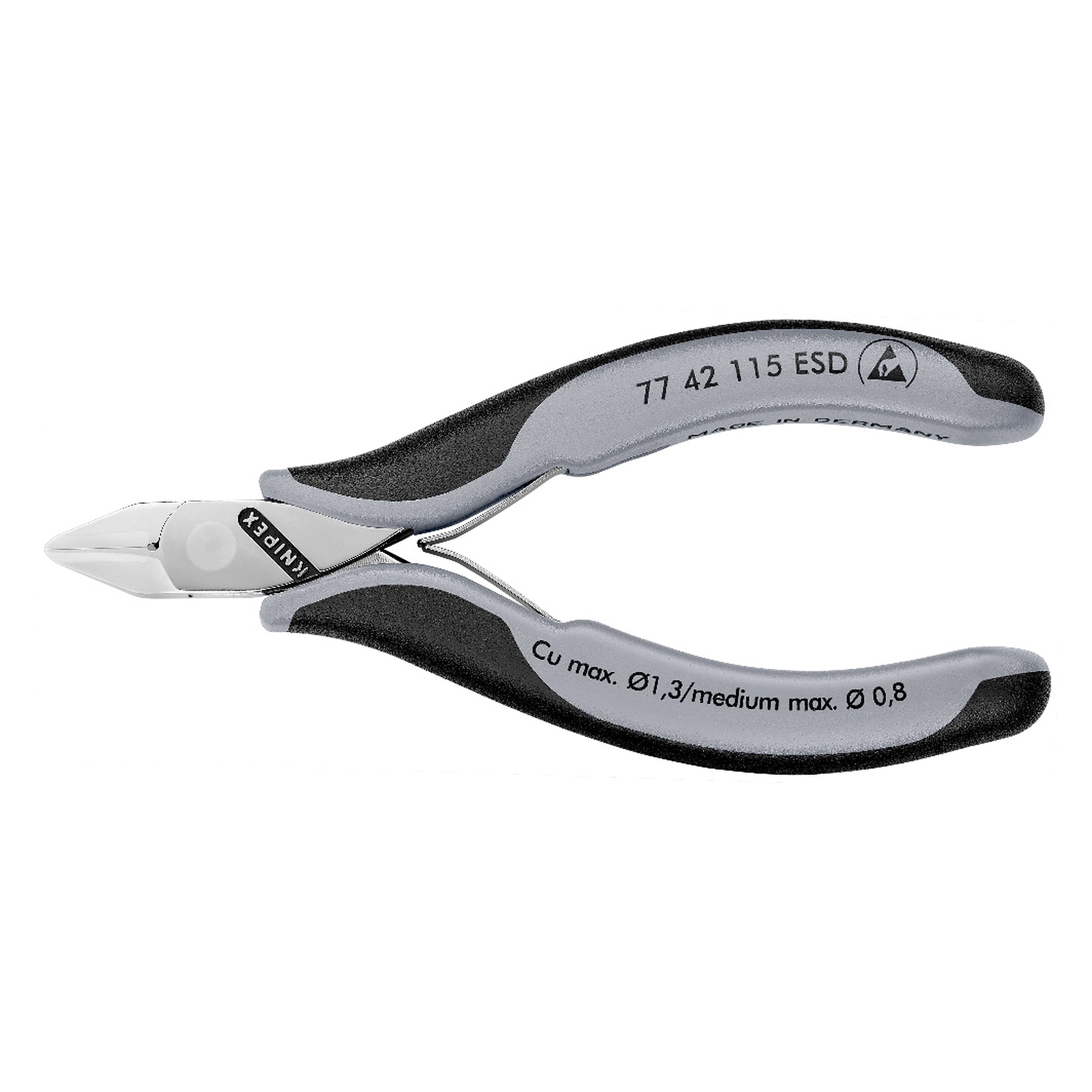

Electronics diagonal cutter ESD pointed without bevel, cutters 62 HRC, 115 mm - Knipex 77 42 115 ESD
KNIPEX
Original product
Net price (excl. VAT)
€39.62
Item
WL19486
Manufacturer no.
77 42 115 ESD
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.77 42 115 ESD
EAN4003773031901
ConditionNew
Article
WL19486
Frequently Bought Together
At ESD protected workstations the component lead has to be cut close to the board without leaving a stub. The 77 42 115 ESD electronics diagonal cutter has a pointed head without bevel and laser hardened edges of approx. 62 HRC that cut soft wire from 0.3 to 1.3 mm dia. cleanly.
Benefits
- ESD compliant to DIN EN 61 340-5 and therefore suitable for handling electrostatic sensitive devices.
- Durable, load-optimised design with a backlash-free box joint that gives a more direct feel when working.
- Pointed head without bevel, only 11 mm wide, reaches densely populated component areas.
- Slim sleeves drawn up towards the head allow fine and comfortable gripping between thumb and index finger.
- Less physical effort thanks to the high transmission ratio, plus a low-friction double spring for smooth and even opening.
- Mirror polish with a fine oil film protects against rust. No chrome flakes come loose that could cause circuit faults.
Technical data
| EAN | 4003773031901 |
|---|---|
| Head | mirror polished |
| Handles | with multi-component sleeves |
| Weight | 70 g |
| Dimensions | 115 x 54 x 17 mm |
| Standard | DIN ISO 9654, DIN EN 61 340-5 |
| Cutting capacity soft wire (diameter) | Ø 0.3 - 1.3 mm |
| Cutting capacity medium hard wire (diameter) | Ø 0.8 mm |
| Jaw length (B) | 14 mm |
| Jaw thickness at joint (D) | 7 mm |
| Head width (A) | 11 mm |
| ESD | yes |
| REACH conformity | contains no SVHC |
| RoHS conformity | not applicable |
Areas of use
Board assembly and repair, precision mechanics, laboratory work and prototyping inside EPA zones. The pointed head without bevel suits every job where leads should end flush with the board and access between components is tight.
Standards and conformity
The cutter complies with DIN ISO 9654 and DIN EN 61 340-5. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
| Norm | DIN ISO 9654, DIN EN 61340-5-1 |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | 77 42 115 ESD |
| Manufacturer | Knipex |
| EAN | 4003773031901 |
| Weight | 0.070000 |
| Height | 17 mm |
| Width | 54 mm |
| GPSR manufacturer information | KNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de |
| Article authenticity | Original product |
| Condition of article | New |
| Overall length [mm] | 115.000000 |
