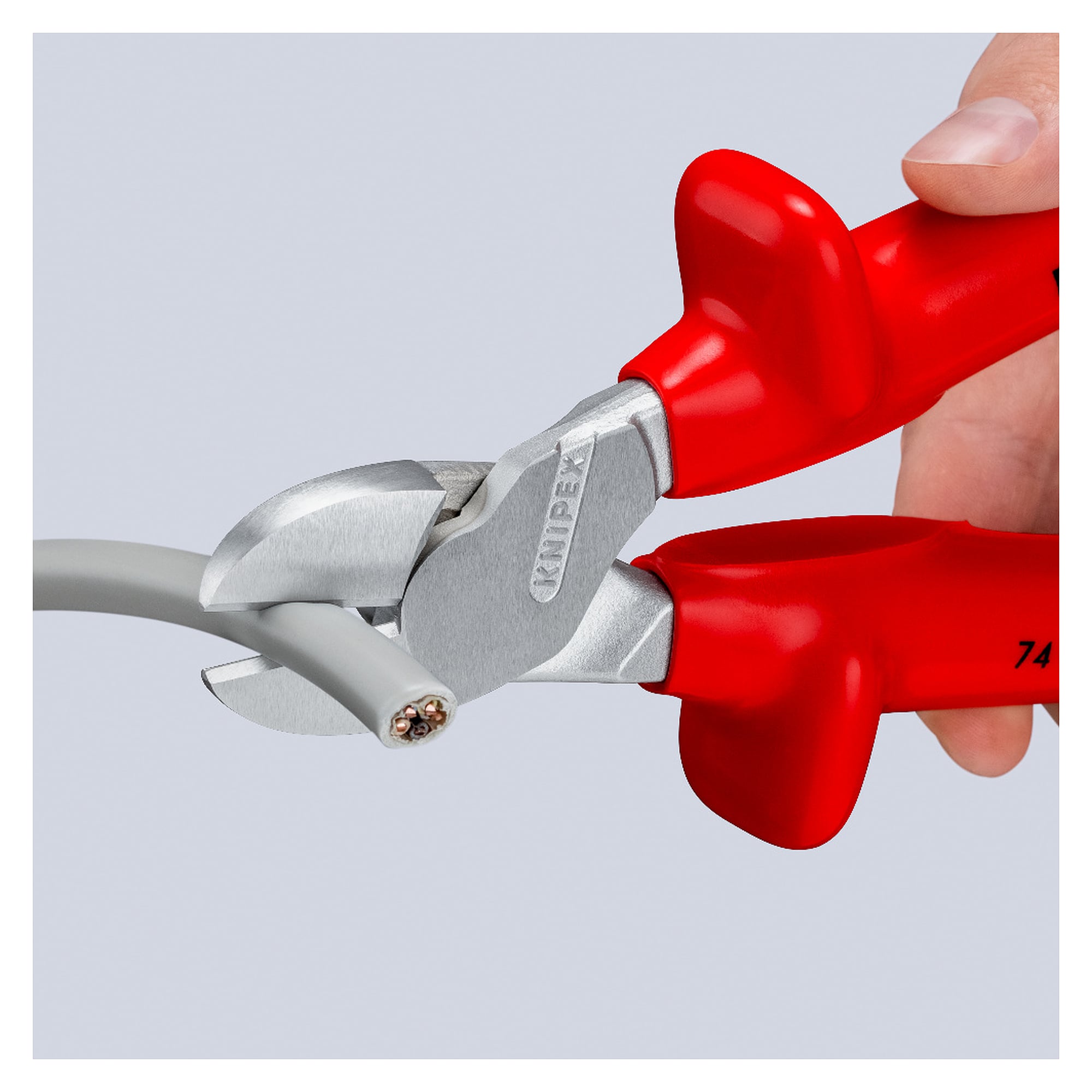

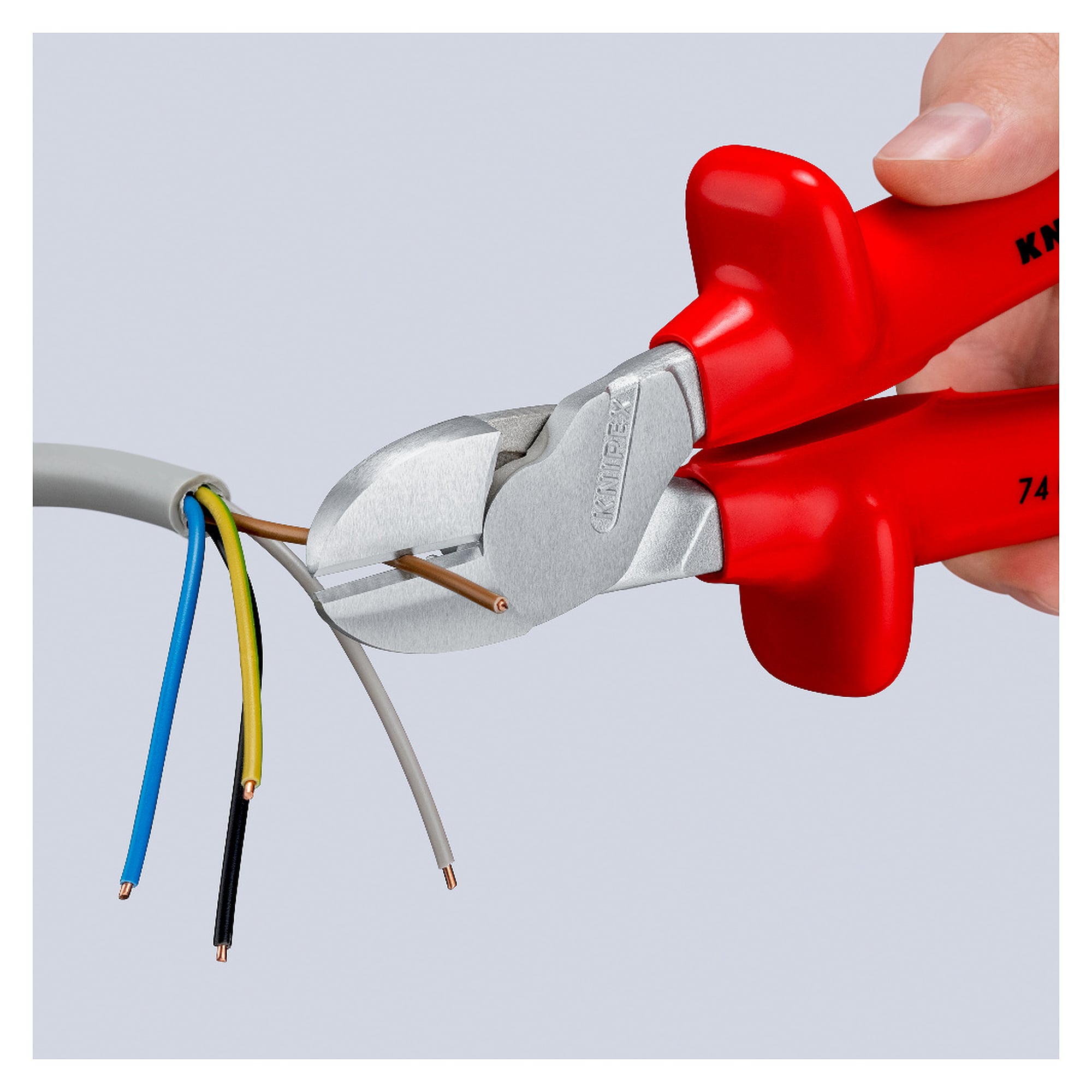

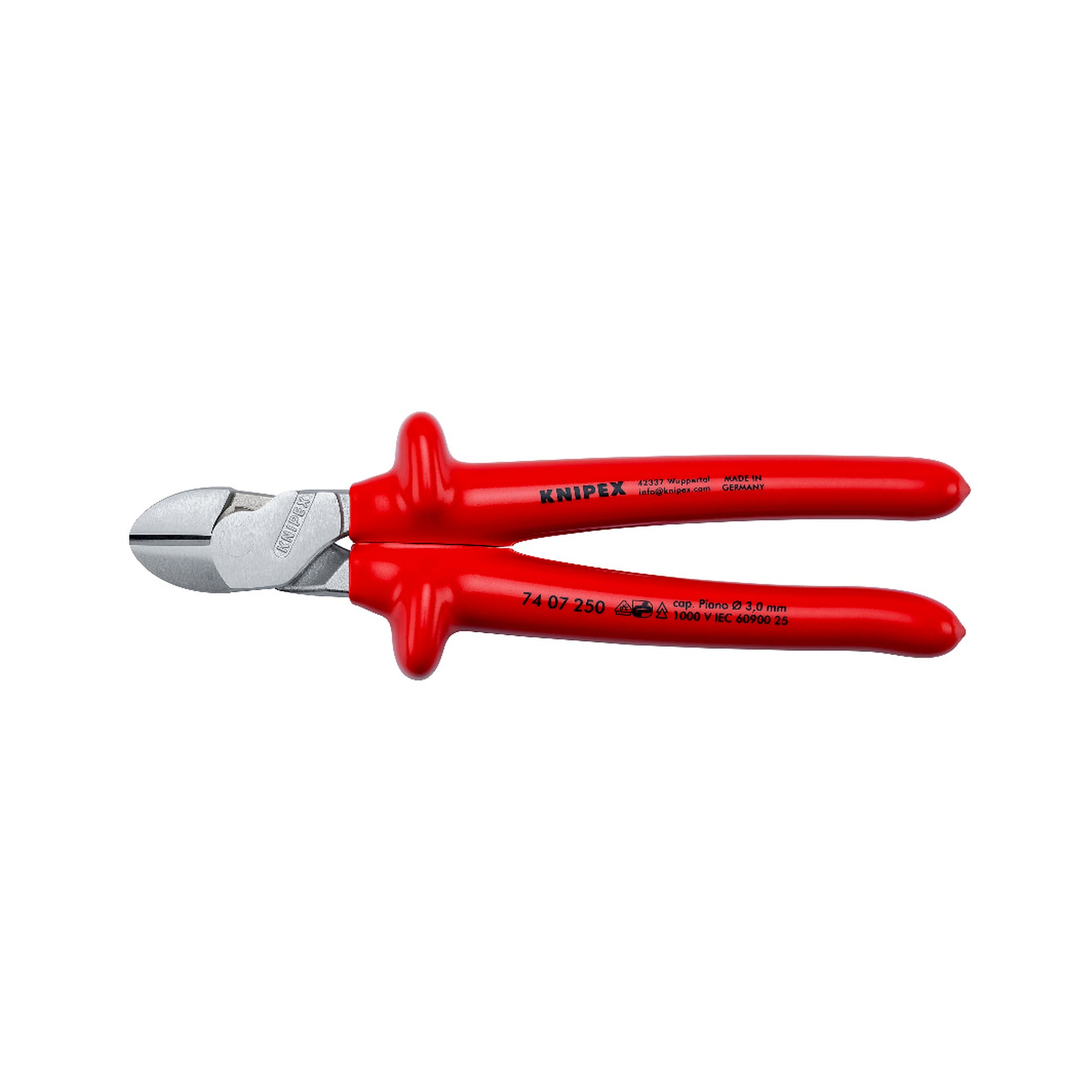

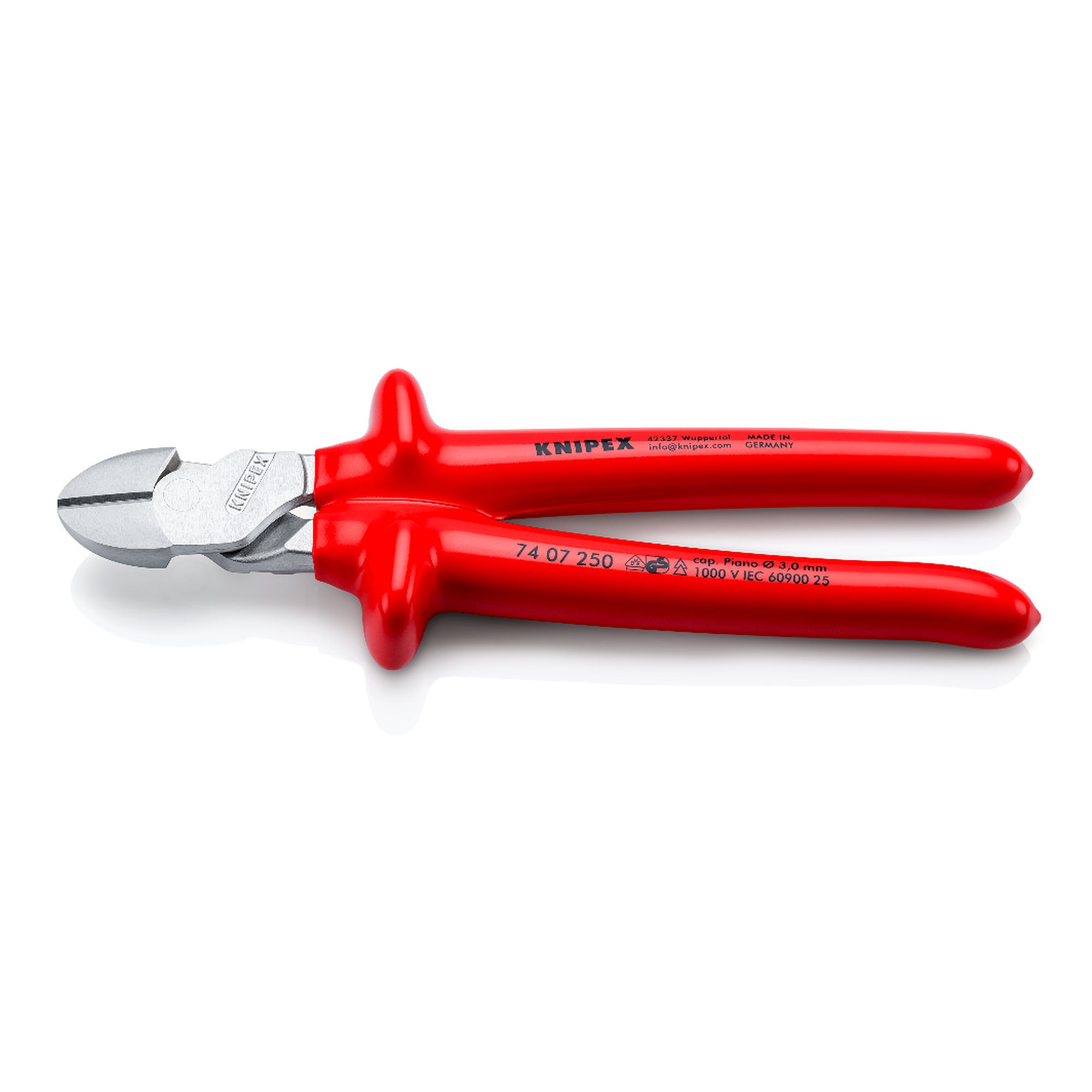

High leverage diagonal cutter VDE 1000 V, dip-insulated, hard wire up to 3.5 mm, 250 mm - Knipex 74 07 250

Binding wire, nails and heavy cores on an installation that is still live call for leverage and tested insulation at the same time. The 74 07 250 high leverage diagonal cutter offers 250 mm of length, cuts hard wire up to 3.5 mm and is dip-insulated to DIN EN 60900 up to 1000 V.

Benefits

• Designed for very tough, continuous use, pliers and head are chrome-plated.
• High cutting performance with little effort due to the matched cutting edge angle and transmission ratio.
• Cutting capacity up to 4.6 mm medium-hard wire and 3.0 mm piano wire, which covers spring steel in plant construction as well.
• Dip-insulated handles, VDE tested to DIN EN 60900 and IEC 60900 for work up to 1000 V.
• 250 mm overall length at 510 g, the long lever keeps the effort low even in continuous work.

Technical data

Areas of use

Plant construction, control cabinet building and maintenance. The 250 mm size is the choice where hard wire or spring steel is cut regularly close to live parts.

Standards and conformity

The tool is made to DIN ISO 5749 and tested to DIN EN 60900 and IEC 60900 for live working up to 1000 V. According to the manufacturer it contains no substances of very high concern under REACH, the RoHS directive does not apply.
