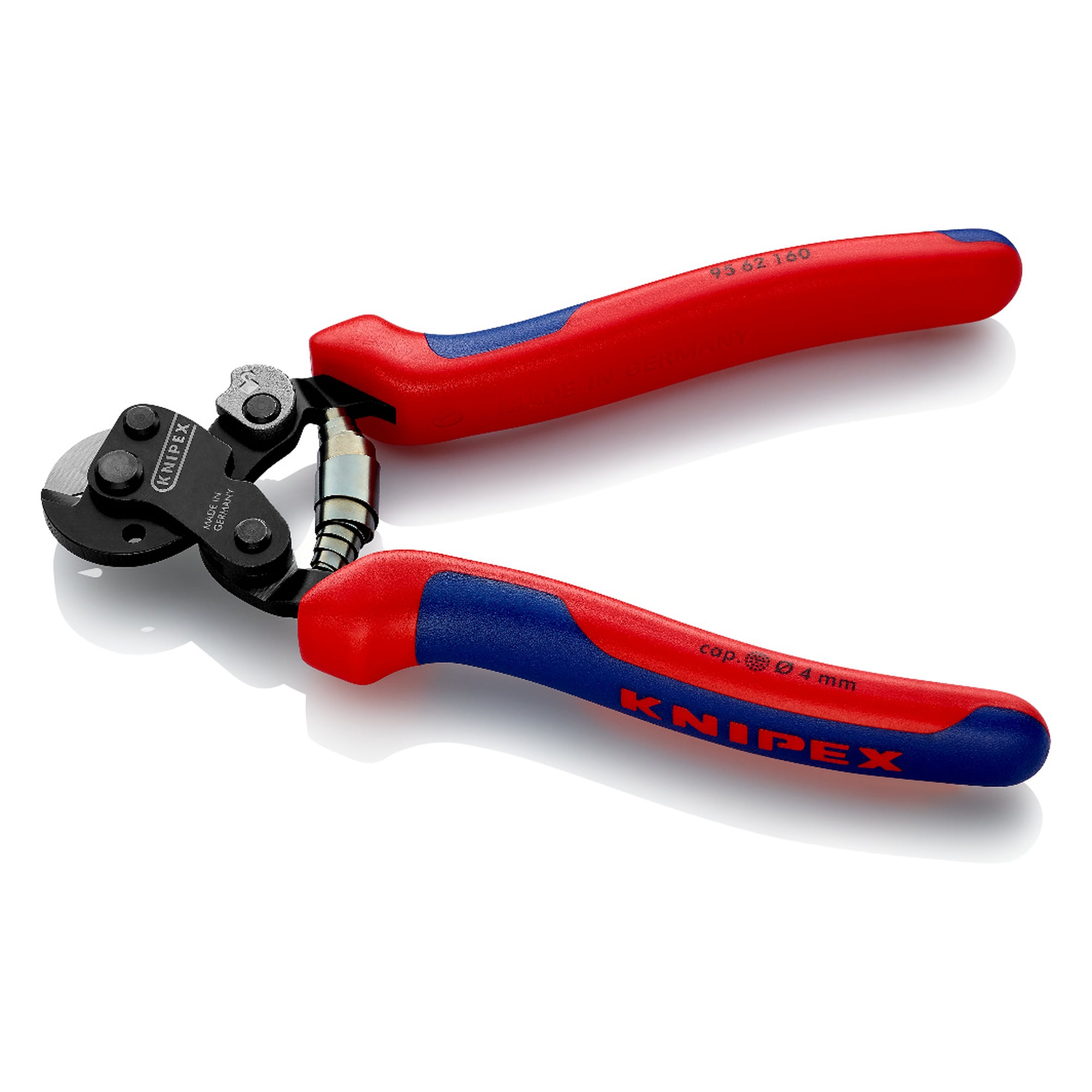

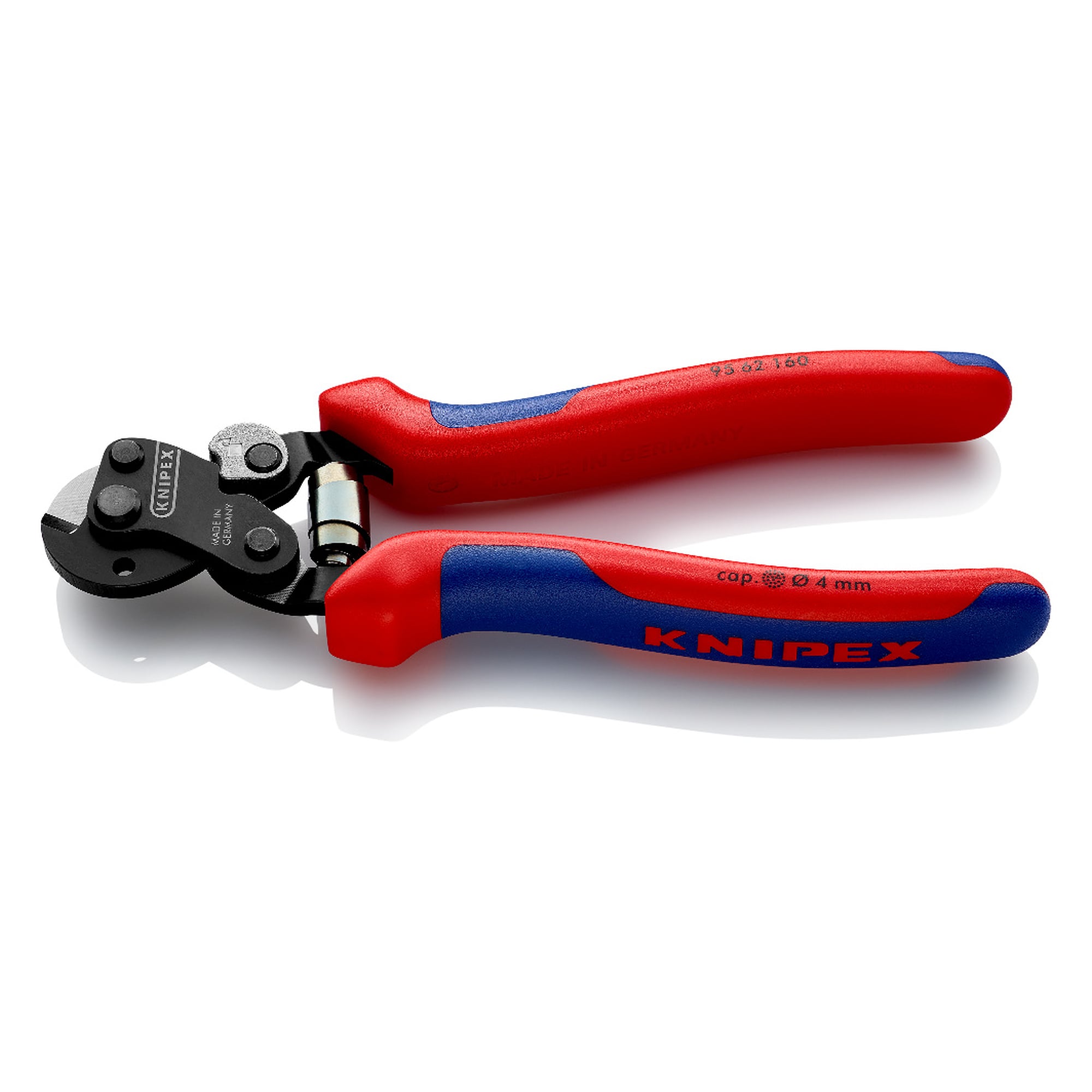

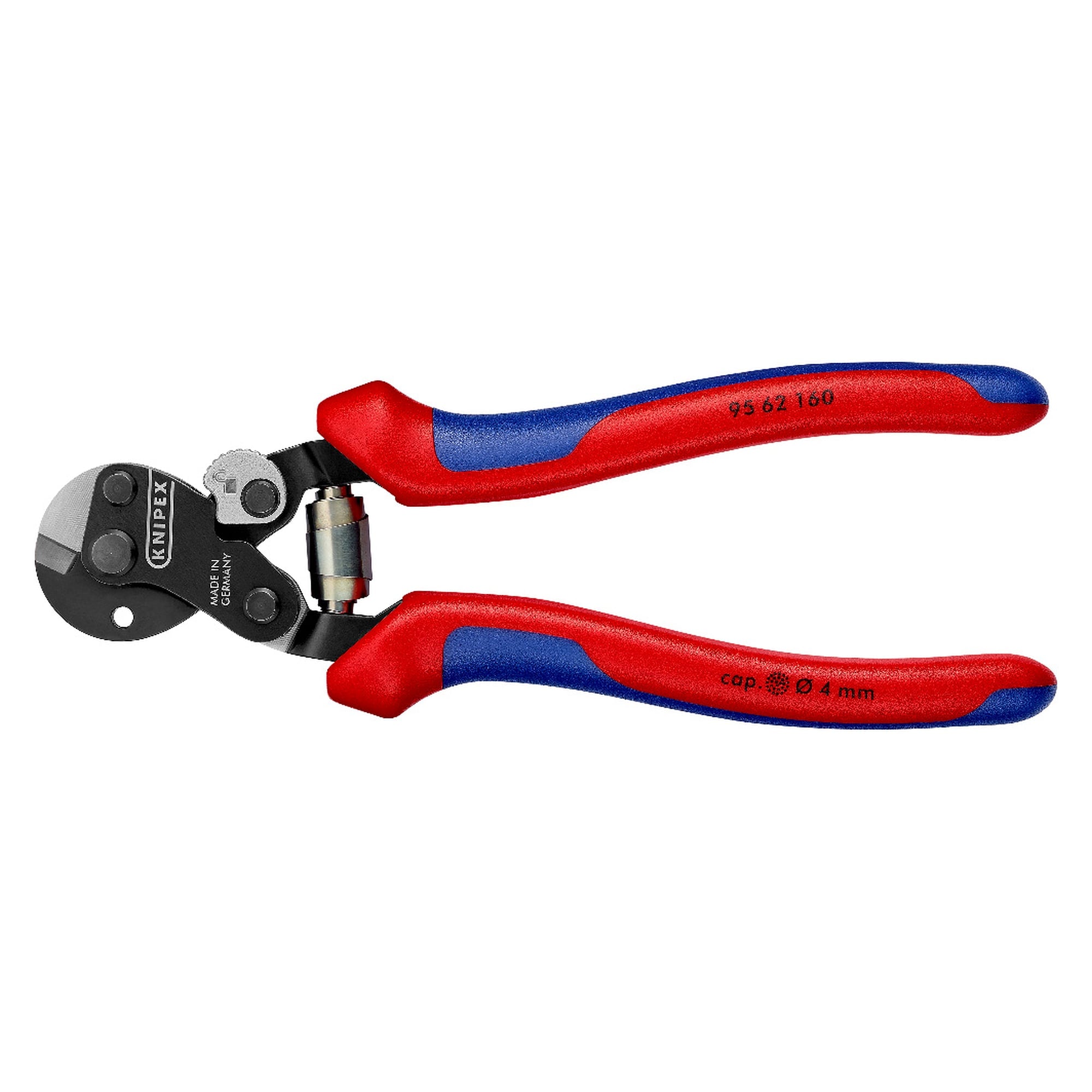

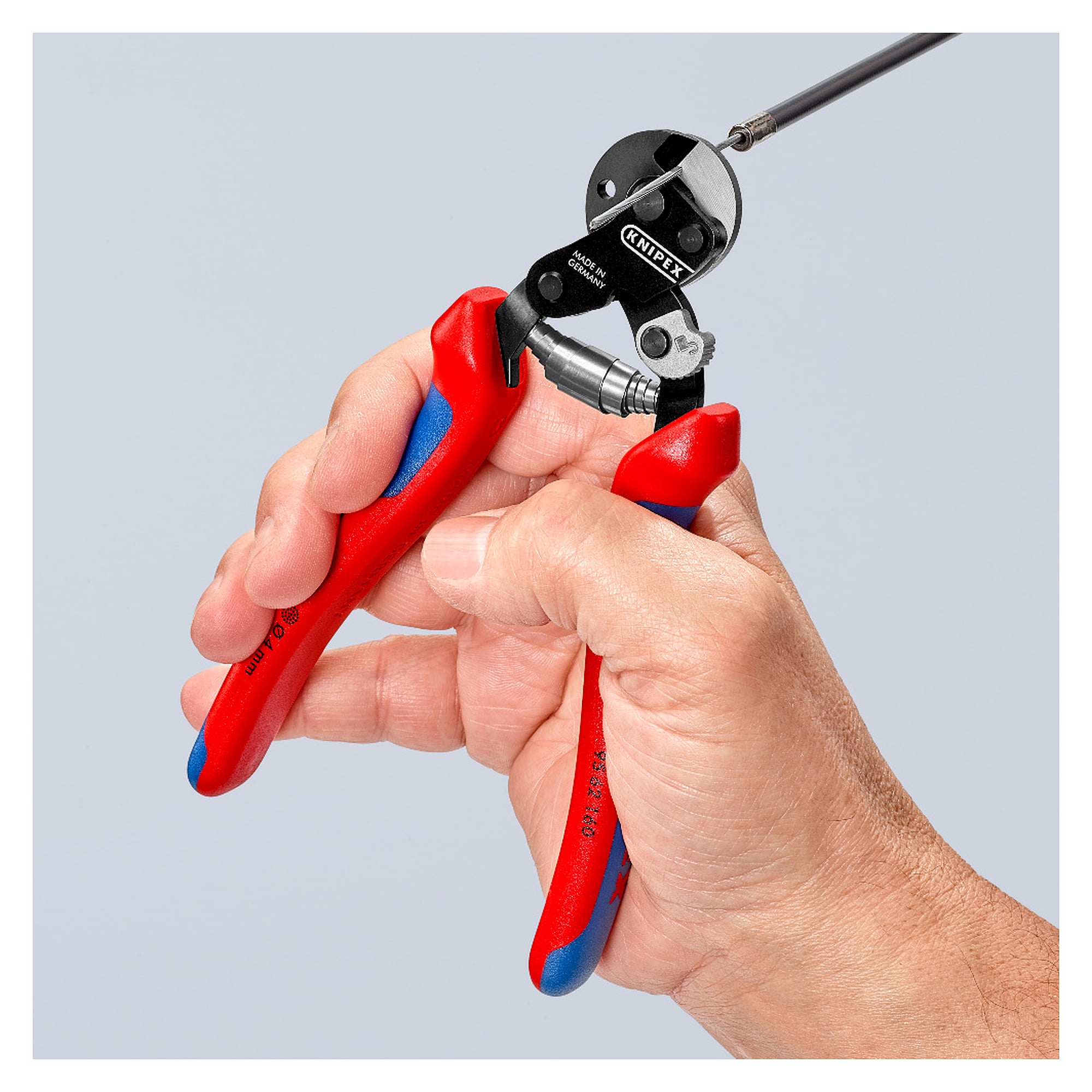

Wire rope cutter for high-strength wire ropes up to Ø 4 mm, burnished, 160 mm - Knipex 95 62 160

Knipex ✓ Original product Brand new

Forged wire rope cutter just 160 mm long that cuts high-strength wire ropes up to Ø 4 mm and multi-stranded copper cable up to Ø 6 mm. The high transmission joint design makes cutting 20 percent easier and the box joint with an additional stabilisation plate keeps the cutting edges precisely aligned. An opening spring and a locking catch make work and transport easier, weight 175 g.

Net
€32.87
excl. VAT
Item WL61929
Manufacturer no. 95 62 160
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

Anyone cutting wire rope in rigging and lifting work needs a clean cut with no splayed rope end. The 95 62 160 wire rope cutter severs high-strength wire ropes up to Ø 4 mm and multi-stranded copper cable up to Ø 6 mm, and at 160 mm and 175 g it still fits into any tool pouch.

Benefits

  • Compact 160 mm body with high cutting performance, considerably more powerful than many larger wire rope cutters.
  • High transmission joint design reduces the effort needed for the cut by 20 percent.
  • Box joint with an additional stabilisation plate keeps the cutting edges precisely guided.
  • Cutting edges made of ball bearing steel and additionally induction-hardened for a long service life.
  • Opening spring for comfortable work, locking catch secures the tool during transport.
  • Rated for wire rope of Ø 4.00 mm with a tensile strength of 1960 N/mm².

Areas of use

Rigging and lifting equipment, stage and event technology, boat and marine outfitting, fencing and netting work as well as electrical installation, where multi-stranded copper cable up to Ø 6 mm has to be cut alongside wire rope. The short body helps when cutting close to a component or overhead.

Standards and conformity

The manufacturer does not state a tool standard for these shears. According to the manufacturer they contain no substances of very high concern under REACH, and the RoHS directive does not apply.

Technical data

EAN4003773082354
Shearsburnished
Headburnished
Handleswith multi-component grips
Weight175 g
Dimensions160 x 61 x 21 mm
Cutting capacity copper cable, multi-strandedØ 6.0 mm
Cutting capacity copper cable, fine-strandedØ 4.0 mm
Cutting capacity wire ropeØ 4.0 mm
REACH conformitycontains no SVHC
RoHS conformitynot applicable
ManufacturerKnipex
Manufacturer Nr.95 62 160
GPSR manufacturer informationKNIPEX-Werk Oberkamper Strasse 13 DE-42349 Wuppertal-Cronenberg www.knipex.de
Condition of articleNew
Article authenticityOriginal product
Height21 mm
Width61 mm
Overall length [mm]160
