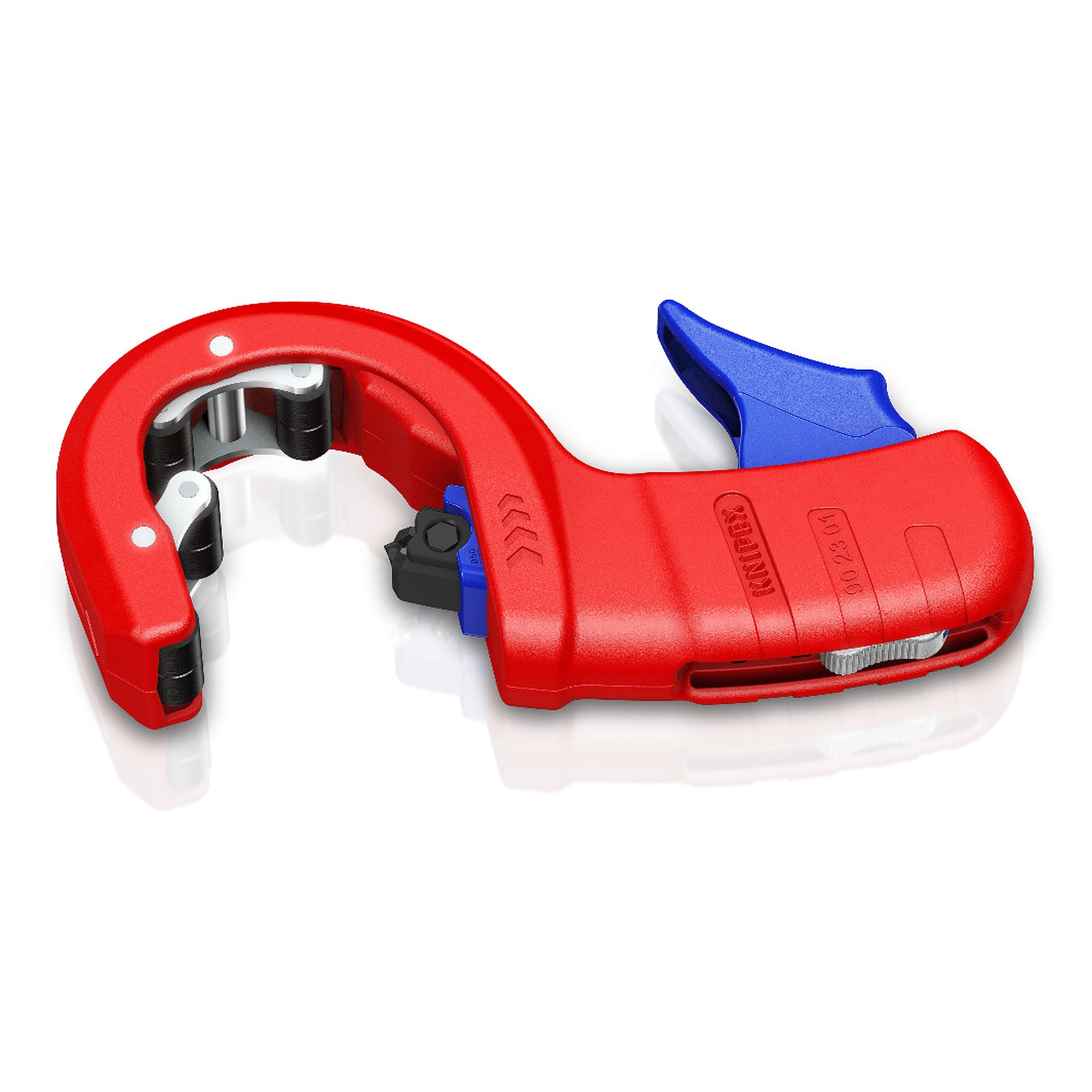

DP50 pipe cutter for plastic drain pipes Ø 32, 40 and 50 mm, 202 mm - Knipex 90 23 01 BK

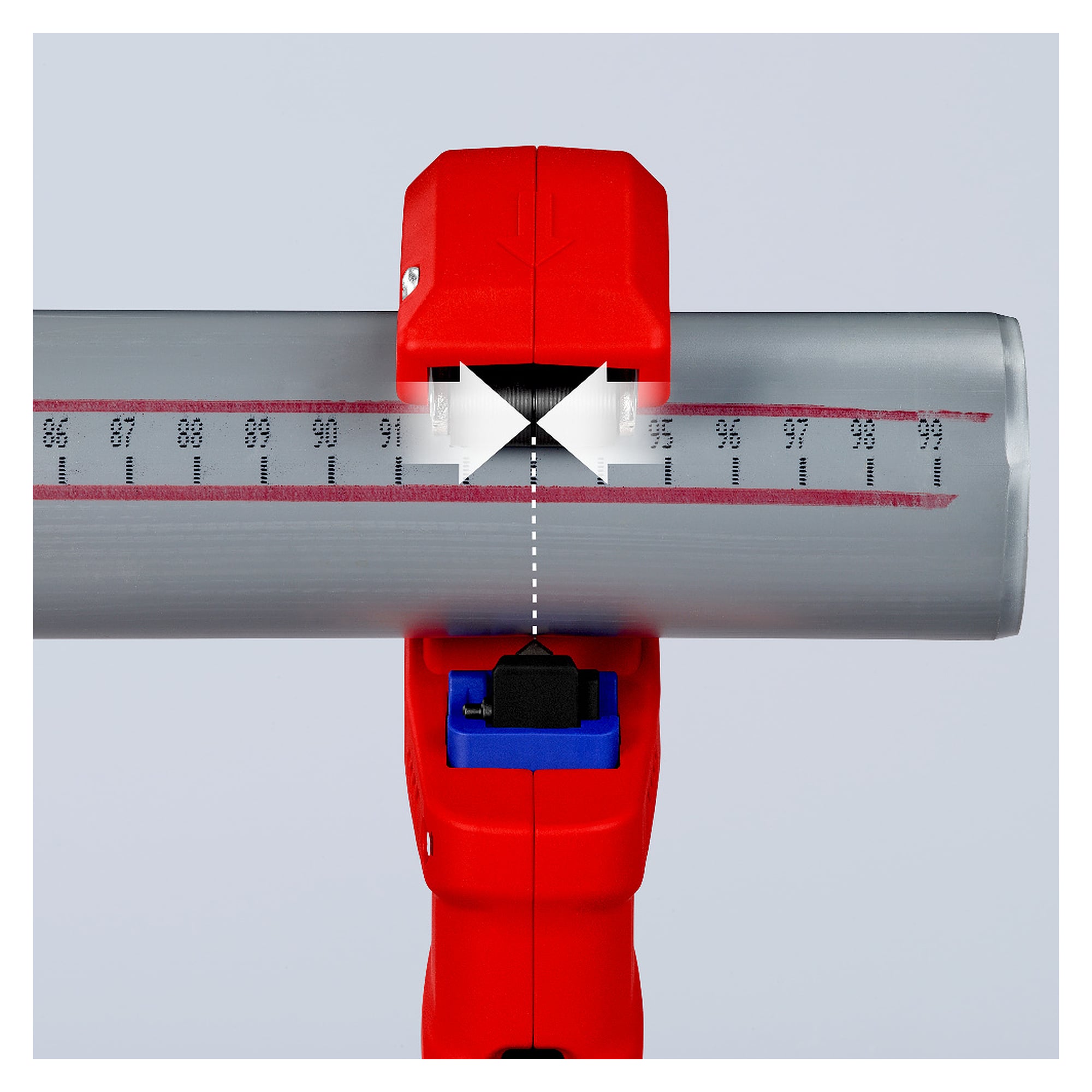

When shortening drain pipes, the burr decides whether the seal holds. The DP50 pipe cutter 90 23 01 BK cuts high temperature and many other plastic pipes of Ø 32, 40 or 50 mm with wall thicknesses up to 2.4 mm in one step and chamfers the cut edge at the same time, so no reworking is needed.

Benefits

• Cutting and chamfering in a single operation for all common domestic plastic drain pipes up to Ø 50 mm.
• Clean cut with no readjusting and no deburring, which reduces the risk of blockages and of damage to the seal.

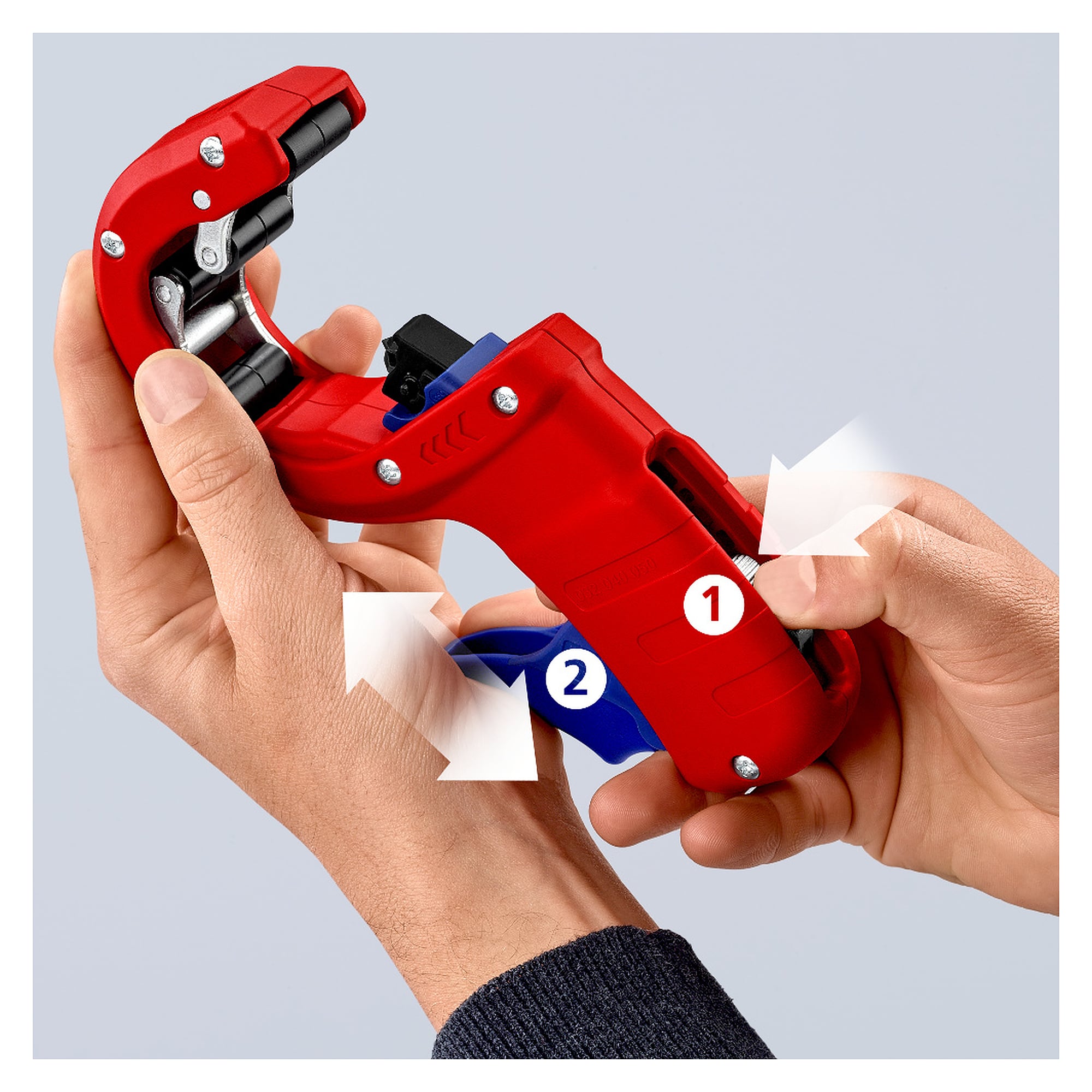

• Reversible blade with two cutting edges in high-quality ball-bearing steel, simply turn it around when worn and change it without tools.
• Spring-loaded cutting blade, so no adjustment is needed during the cut.
• Self-adjusting rollers with plain bearings guide the pipe precisely and make cutting easy.
• Clear view of the cutting point for easy positioning, trimming or fine cutting possible from a section length of about 10 mm.
• Body made of glass fibre reinforced plastic, 202 mm long and 317 g light.

Technical data

Areas of use

Plumbing and pipework on domestic waste water lines, conversion and renovation of drain pipes, service and emergency call-outs. It pays off wherever pipes are shortened close to a wall or inside a stud wall installation and there is no room for a saw.

Standards and conformity

The manufacturer does not state a tool standard for this product. According to the manufacturer the tool contains no substances of very high concern under REACH, and the RoHS directive does not apply.
