Blade rework tip 25 mm, 700 series, 412 °C, for MX systems - Metcal SMTC-1BL250
Wide 25 mm blade tip for the Metcal SMTC cartridge range, 700 series with 412 °C tip temperature. It spreads heat over a large contact area and suits soldering and rework on large pads and high-mass components.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Large pads, ground planes and heat-hungry components draw heat away quickly. The SMTC-1BL250 blade tip puts 25 mm of contact width on the joint, and the SmartHeat cartridge regulates itself to 412 °C.
Benefits
- 25 mm blade width for large-area soldering and solder removal
- 700 series with 412 °C tip temperature, no setting at the station
- SmartHeat heater integrated in the cartridge, tip and heater replaced together
- Suitable for lead-free soldering, RoHS compliant
Applications
Soldering large pads, heat-intensive components and high-mass joints, rework on power electronics and removing solder across wide areas.
Compatibility and scope of delivery
Fits Metcal MX soldering stations of the MX-500, MX-5000 and MX-5200 series with a handpiece for SMTC cartridges. Scope of delivery: one cartridge.
Standards and compliance
RoHS compliant, suitable for lead-free solders.

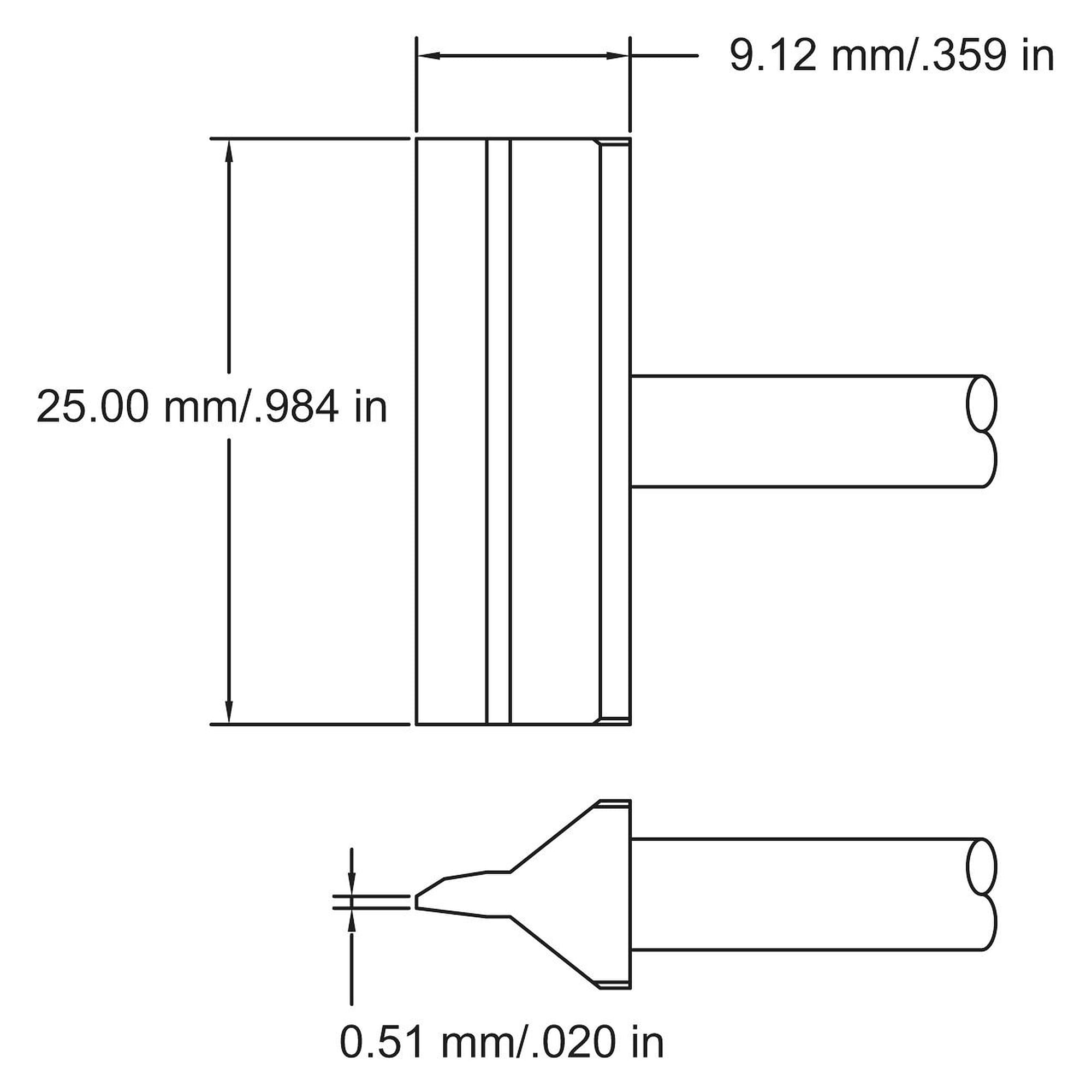

Technical data
| Tip series | SMTC |
|---|---|
| Temperature series | 700 (412 °C) |
| Tip shape | blade |
| Tip orientation | straight |
| Width | 25 mm |
| Height | 0.51 mm |
| Colour | silver |
| Compatible stations | MX-500, MX-5000, MX-5200 |
| Compatible handpiece | SMTC range handpieces |
| Heating principle | SmartHeat, heater in cartridge |
| ESD safe | no |
| Sales unit | 1 piece |
| Weight | 0.1 kg |
| Manufacturer | Metcal |
| Manufacturer Nr. | SMTC-1BL250 |
| HS-Code | 85159080 |
| GPSR manufacturer information | OK International Ltd, Eagle Close, Chandlers Ford, GB-SO53 4NF Hampshire, www.metcal.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | United States |
