Rework soldering tip blade 25 mm, 800 series, approx. 450 °C, SMTC for MX systems - Metcal SMTC-8BL250

Long connector strips, wide ground planes and solder residue on large pads call for a tip that heats a lot of area at once. The SMTC-8BL250 brings a 25 mm wide blade working at a nominal temperature of approx. 450 °C.

Benefits in use

• Blade 25 mm wide and 0.5 mm thick: heats a complete lead row in one pass.
• Nominal temperature approx. 450 °C for high-temperature rework of surface-mount parts.
• SmartHeat thermal self-regulation, power follows the heat demand.
• Flat blade shape, easy to clean from solder and residue.
• Replaceable cartridge, no separate heater.

Applications

Desoldering connector strips and multi-pin SMD parts, removing solder from pads and ground planes, rework on assemblies with high thermal mass.

Compatibility

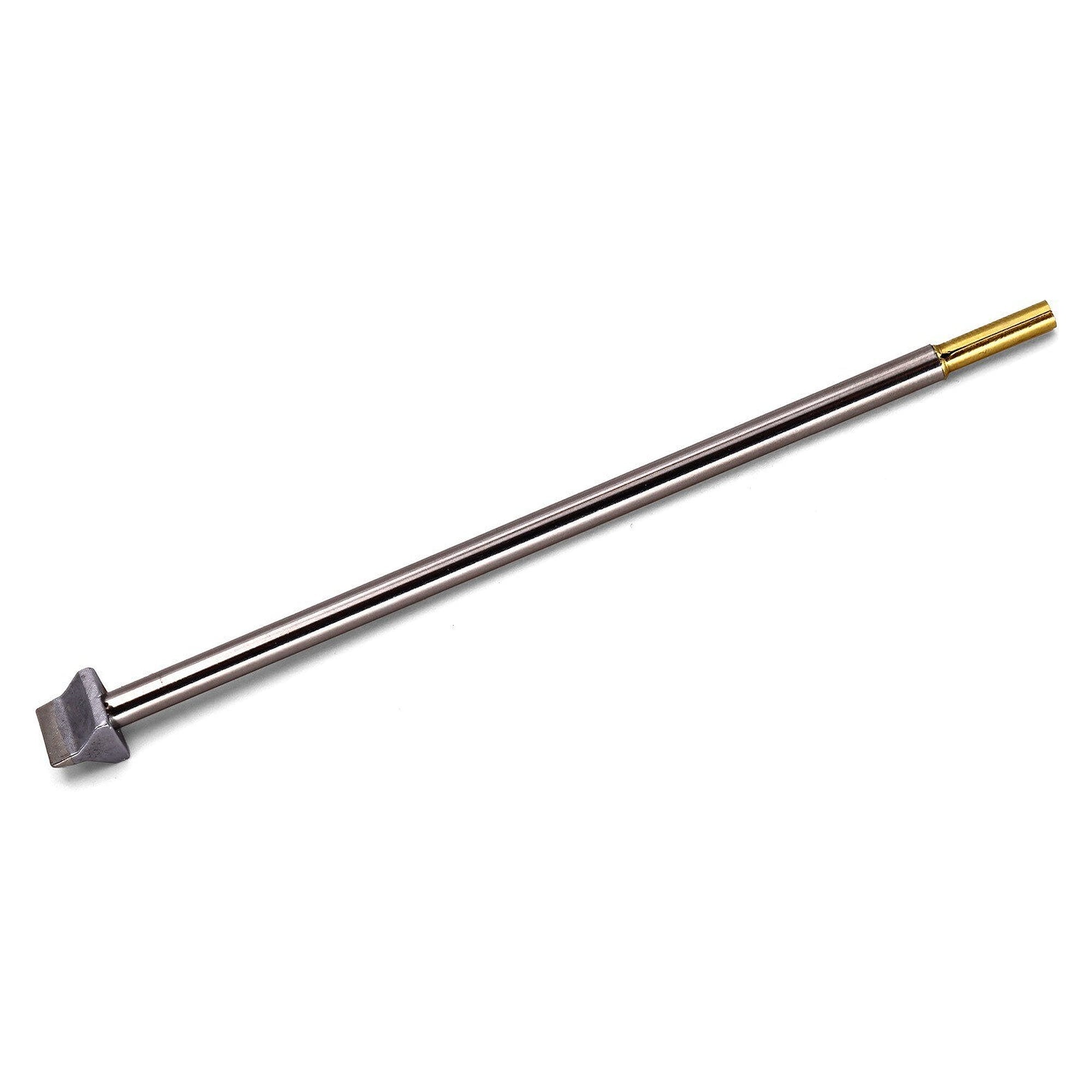

For the Metcal MX-500, MX-5000 and MX-5200 systems with the MX-H1-AV, MX-RM3E and MX-RM6E handpieces. Narrower version with 10 mm blade: SMTC-8BL100.
