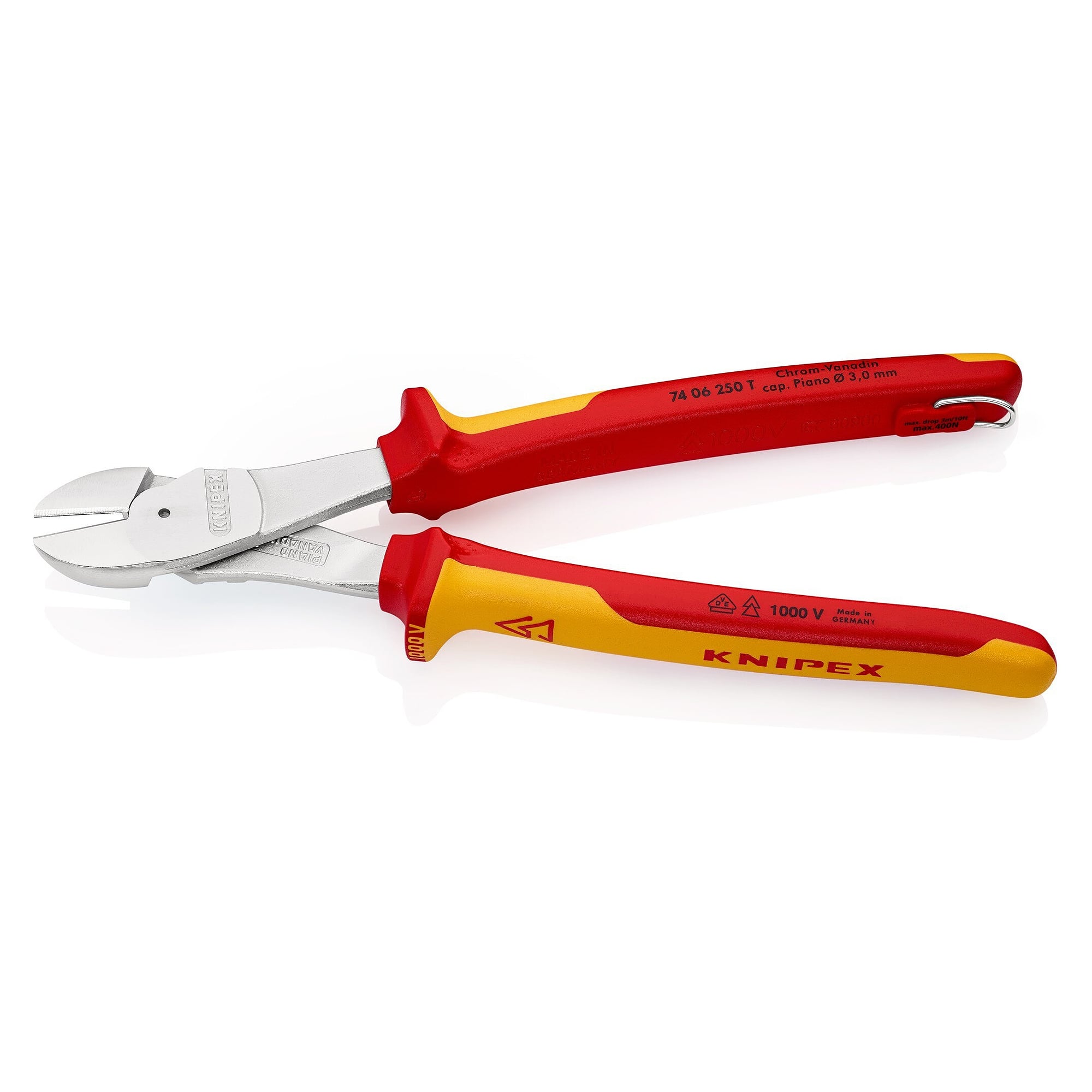

Power diagonal cutter, VDE insulated, with tethering eyelet, 64 HRC edges, 250 mm - Knipex 74 06 250 T BK
VDE tested power diagonal cutter to IEC 60900 for the toughest continuous use. Induction hardened edges of approx. 64 HRC cut all wire types including piano wire. The insulated eyelet takes a fall protection tether.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Hard wire, many cuts and work on live parts at height: the 74 06 250 T BK combines high cutting performance with VDE insulation and an eyelet for fall protection. Edge angle and leverage are matched so that little hand force is needed.
Benefits in use
- High cutting performance with low effort thanks to matched edge angle and leverage.
- Precision edges induction hardened to approx. 64 HRC, for all wire types including piano wire.
- Insulated and VDE tested to IEC 60900 for work on live parts.
- Integrated insulated eyelet for attaching a fall protection tether.
- Multi-component sleeves, tool length 250 mm, weight 505 g.
Applications
Electrical installation, power engineering and plant construction, work on ladders, scaffolds and aerial work platforms, maintenance.
Standards and compliance
Insulated tool to IEC 60900, VDE tested.
Technical data
| Manufacturer | Knipex |
|---|---|
| Pliers type | Power diagonal cutter |
| Tool length | 250 mm |
| Cutting edge | bevelled |
| Cutting edge hardness | approx. 64 HRC, induction hardened |
| Cutting range | all wire types including piano wire |
| Handle | multi-component sleeves |
| Finish | chrome-plated |
| Insulated | yes |
| VDE tested | yes |
| Standard | IEC 60900 |
| Tethering eyelet | yes, insulated eyelet |
| ESD-safe | no |
| Dimensions (L x W x H) | 254 x 61 x 29 mm |
| Dimensions with packaging (L x W x H) | 320 x 94 x 27 mm |
| Packaging | blister (SB card) |
| Net weight | 505 g |
| Sales unit | 1 piece |
| Weight | 0.505 kg |
| Manufacturer Nr. | 74 06 250 T BK |
| HS-Code | 82032000 |
| GPSR manufacturer information | KNIPEX-Werk, Oberkamper Strasse 13, DE-42349 Wuppertal-Cronenberg, www.knipex.de |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
Scope of delivery
One 74 06 250 T power diagonal cutter on SB card in blister.
