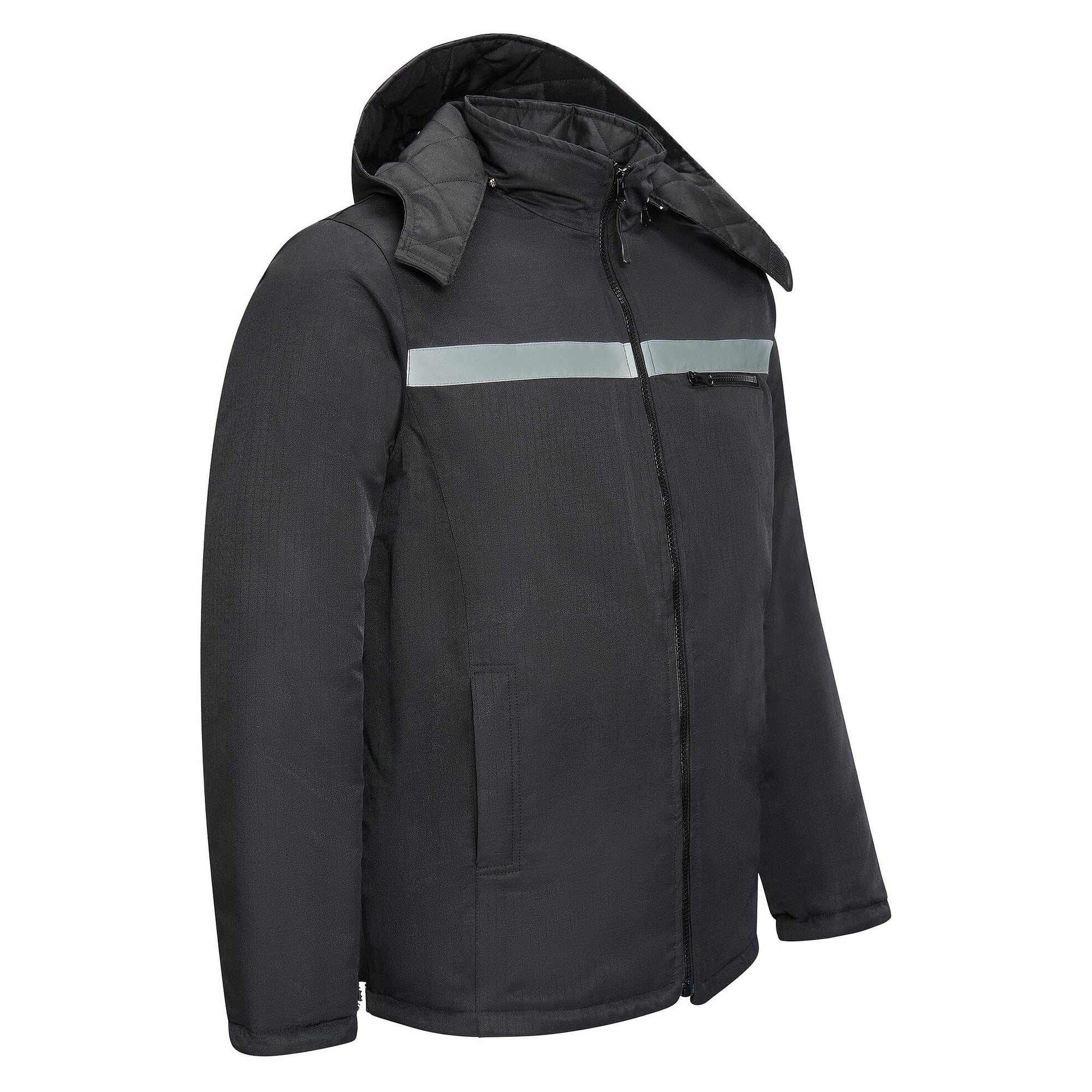

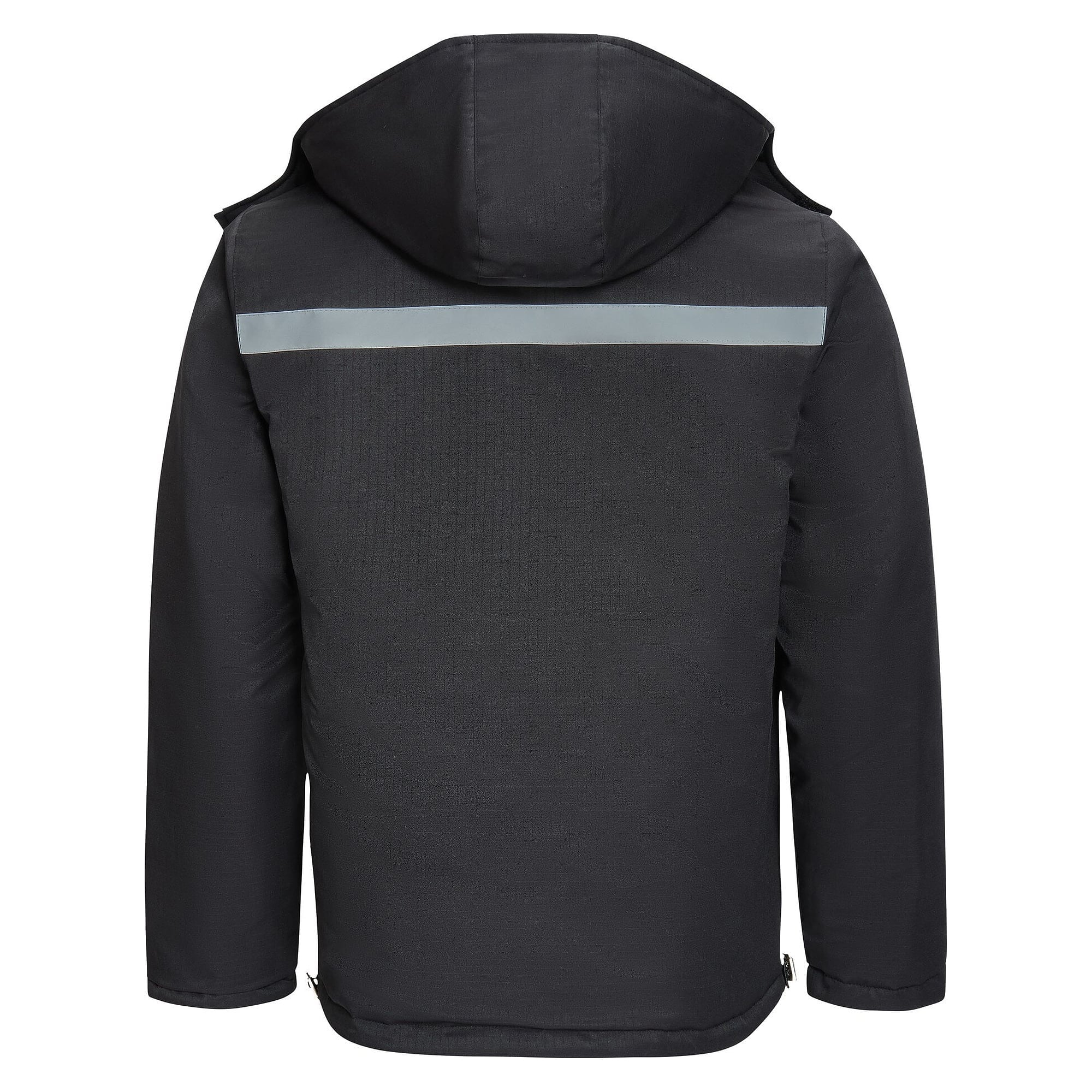

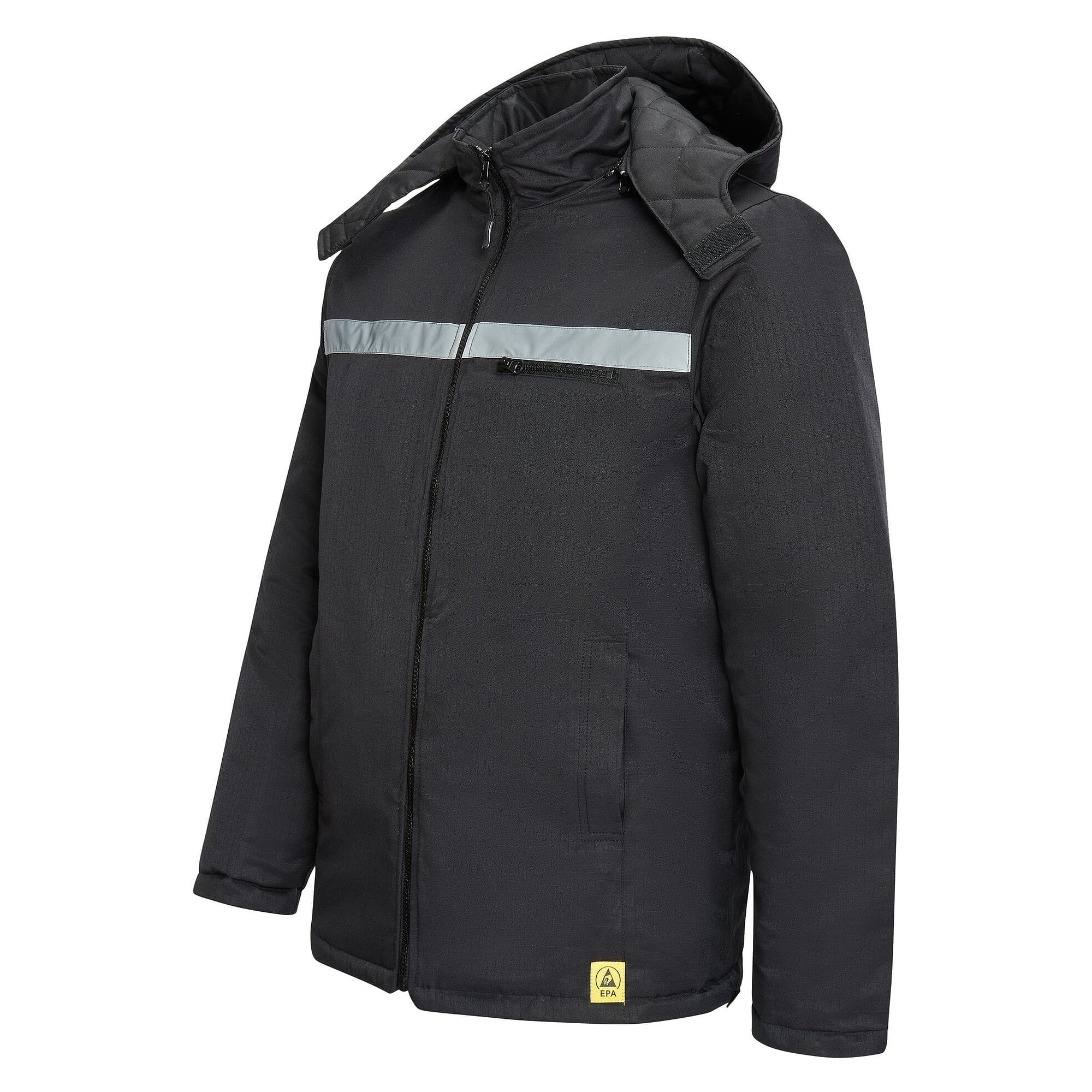

ESD winter jacket with detachable hood, 215 g/m², unisex, black, size XXL - Safeguard 802598
Lightweight ESD winter jacket with quilted lining in size XXL, conductive yarn in outer fabric and lining and a typical surface resistance of 10⁶ to 10⁷ ohms. Certified to IEC 61340-5-1, for cold halls, warehouses and walking between buildings.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
In cold halls, at loading bays or in goods receiving a coat is not enough. This winter jacket keeps you warm with its quilted lining and still dissipates charge: outer fabric and lining each contain 2 % conductive yarn, seams are sewn with carbon thread, and the typical surface resistance is 10⁶ to 10⁷ ohms.
Key benefits
- Dissipative throughout: conductive yarn outside and inside, carbon sewing thread, Rpp 10⁶ to 10⁷ ohms.
- Tested: ESD certification to IEC 61340-5-1.
- Weather flexible: detachable hood and zip.
- Visible: reflective stripes at chest height.
- Storage: two side pockets and a chest pocket next to the zip, washable up to 40 °C.
Applications
Warehouse, goods receiving and shipping of ESD goods, unheated halls, walkways between EPAs, field service.
Standards and compliance
Certified to IEC 61340-5-1. The jacket does not replace grounding of the wearer via ESD footwear or a wrist strap.
Technical data
| Model | SG-WJ-SW-215 |
|---|---|
| Design | ESD winter jacket with hood, lightweight, quilted lining |
| Gender | unisex |
| Colour | black |
| Size | XXL |
| Fabric weight | 215 g/m² |
| Outer fabric | 55 % cotton, 43 % polyester, 2 % conductive yarn |
| Lining | 98 % polyester, 2 % conductive yarn |
| Typical surface resistance (Rpp) | 10⁶ to 10⁷ ohms |
| Closure | zip |
| Hood | detachable |
| Features | 2 side pockets, chest pocket, reflective stripes at chest height, elastic, ESD logo, sewing thread with carbon filament |
| ESD certification to IEC 61340-5-1 | yes |
| Washing temperature | up to 40 °C |
| Sales unit | 1 piece |
| Weight | 1 kg |
| Manufacturer | Safeguard |
| Manufacturer Nr. | 802598 |
| HS-Code | 61033900 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Turkey |
| ESD version | ESD (antistatic) |
Downloads
Accessories
ESD version

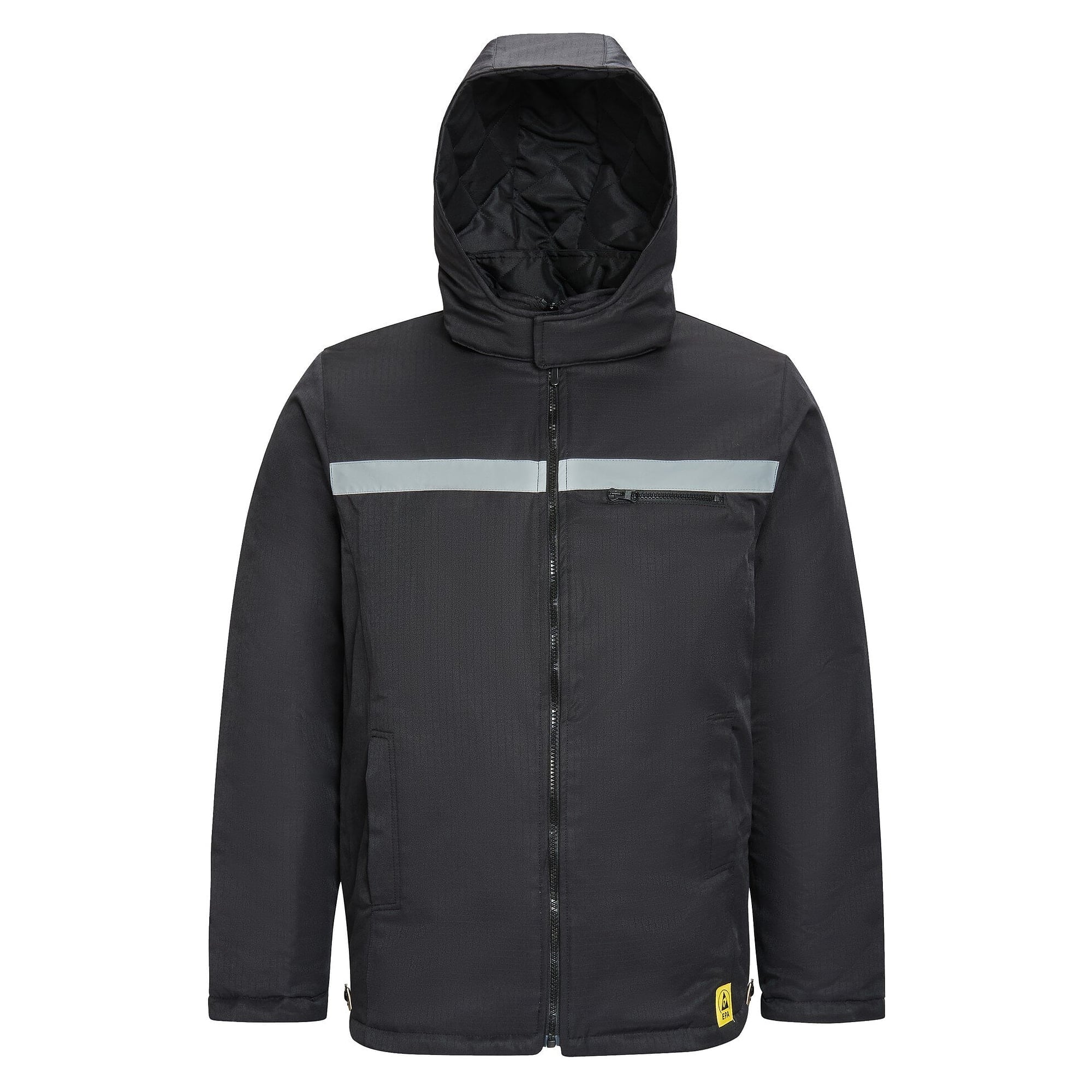

ESD winter jacket with detachable hood, 215 g/m², unisex, black, size 3XL - Safeguard 802599
