SMTC rework tip, concave hoof 2.88 x 11.6 mm, 600 series, bent - Metcal SMTC-0186

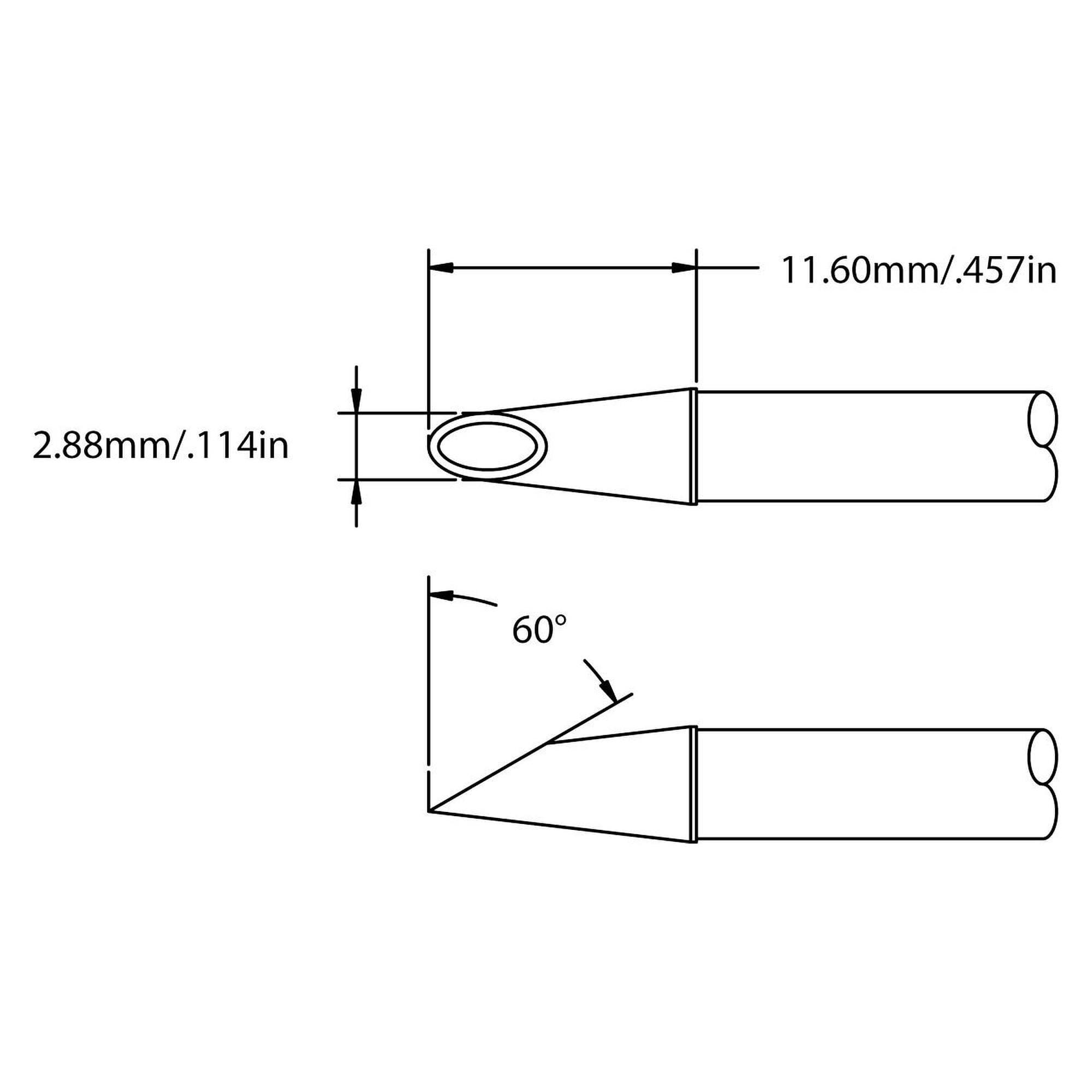

Drag soldering fine-pitch packages and clearing solder bridges is easier with a concave tip that carries a small solder reservoir. The Metcal SMTC-0186 has a hoof-shaped tip with a 2.88 mm wide groove and 11.6 mm length and belongs to the 600 series.

Key benefits

• Concave hoof shape, 2.88 mm wide: the groove carries solder across several pins and picks up excess solder
• Cartridge length 11.6 mm and bent orientation for good access on populated assemblies
• SmartHeat-capable heater core adjusts power on temperature-critical joints
• Replaceable cartridge, tip and heater are changed together
• RoHS-compliant and suitable for lead-free soldering

Applications

SMD rework, drag soldering on QFP and SOIC packages, repair and temperature-critical soldering in electronics production.

Compatibility and scope of delivery

For Metcal MX-500, MX-5000 and MX-5200 soldering stations with MX-H1-AV or MX-RM3E handpieces. Scope of delivery: 1 SMTC-0186 rework tip cartridge.

Standards and compliance

RoHS-compliant.
