Laser fume extraction system AD 2000 iQ, 2200 m³/h, dual filter system, 415 V - Donaldson Bofa 1U12795812006-1537-1

Several lasers, or one process with very heavy fume output, quickly overload single-station units. The AD 2000 iQ runs two filter trains, extracts 2200 m³/h at 96 mbar and brings double the filter area for long service life.

Benefits

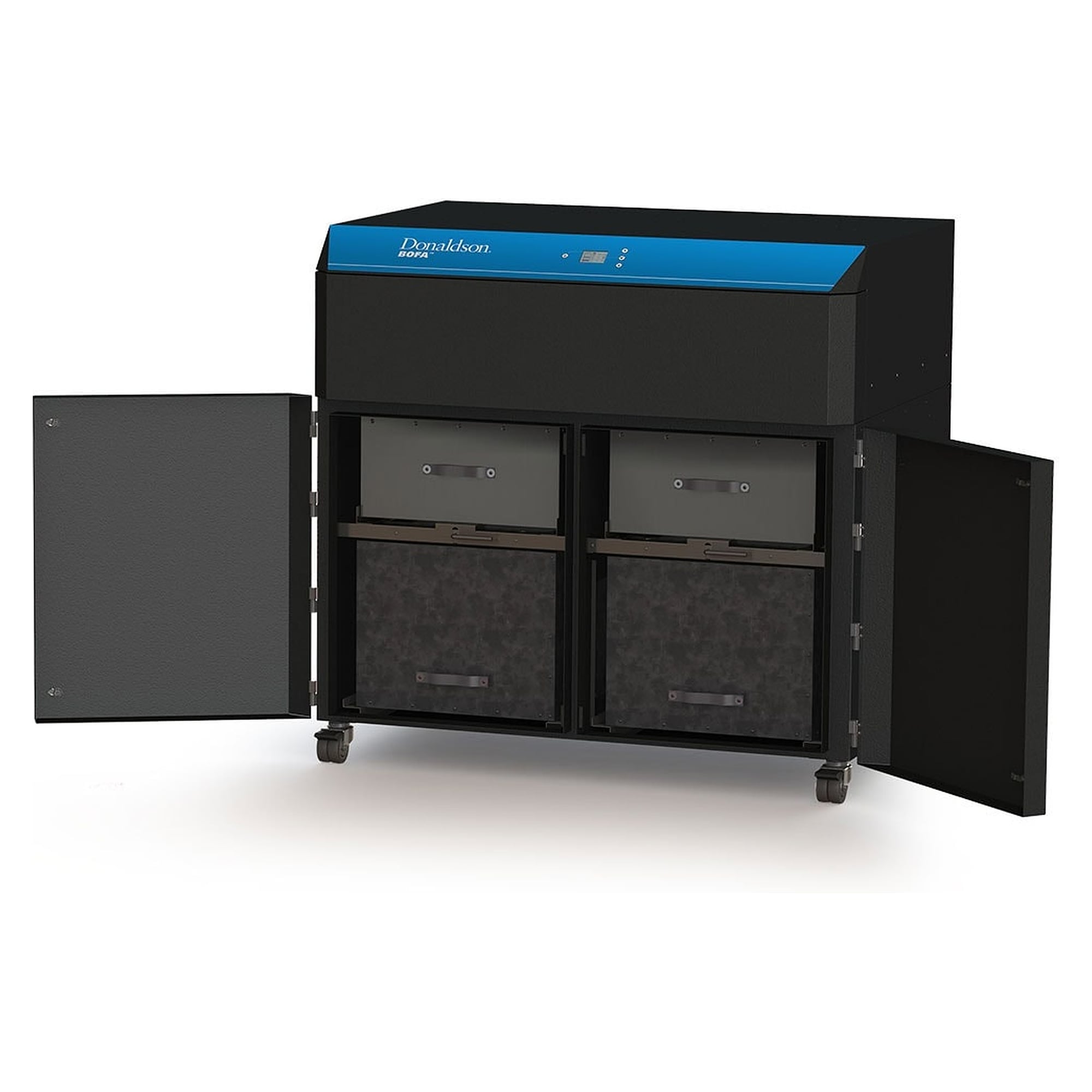

• Dual filter system: 2 x DeepPleat DUO pre-filters with approx. 60 m² in total and 2 x HEPA/gas combined filters with approx. 15 m² in total.
• 2200 m³/h at 96 mbar: reserve for complex installations and long duct runs.
• iQ Operating System: real-time airflow, set point, run time and separate status for pre and main filters.

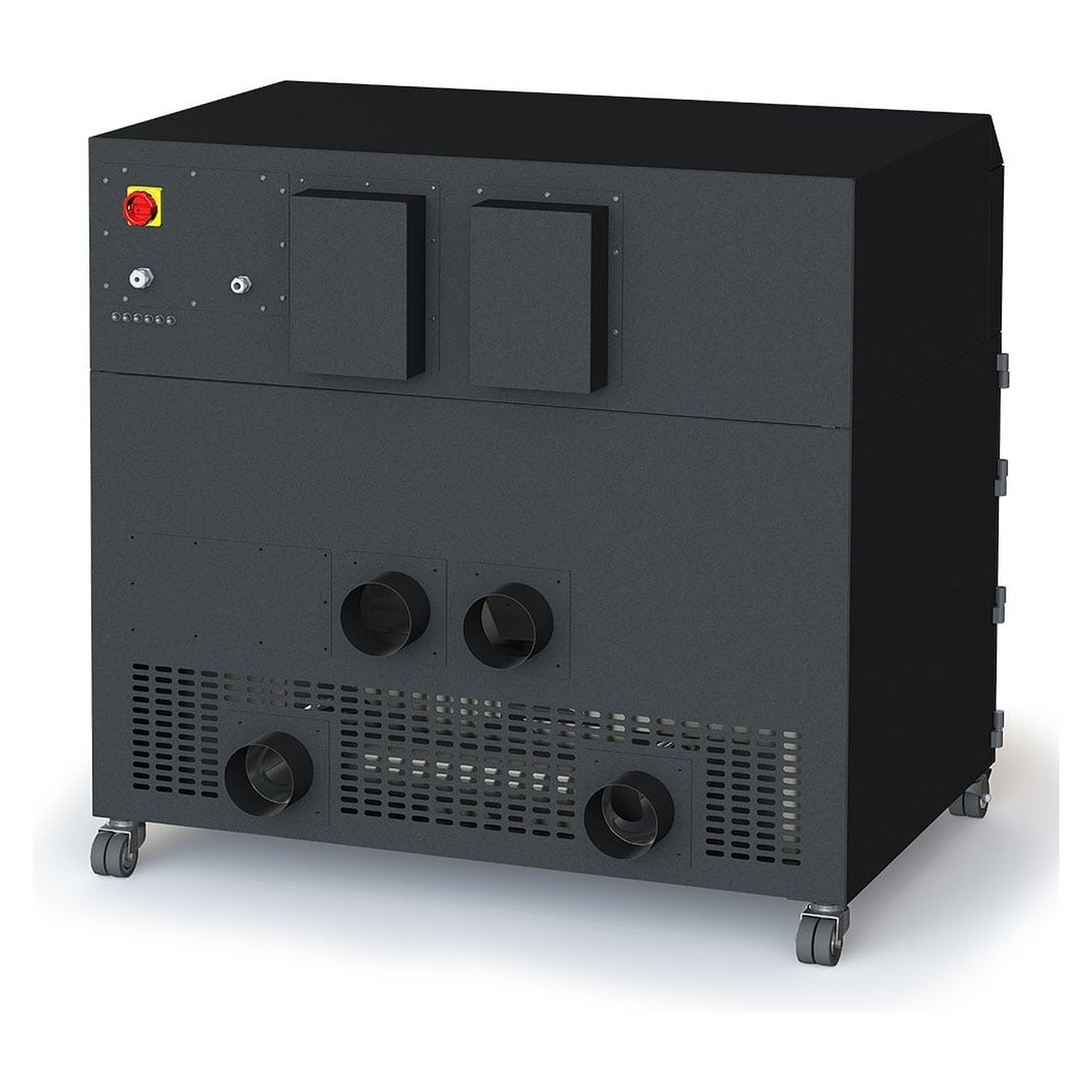

• Flexible exhaust: recirculation through the rear panel or venting outside via 125 mm outlets.
• Easy service: top-mounted controls, removable front panel and run-safe operation.

Applications

• Laser marking, engraving and cutting with heavy fume output
• Central extraction for several laser stations
• Electronics manufacturing and industry with high filtration demands

Configuration note

Part number 1U12795812006-1537-1 designates a configured version. Please confirm cabinet and signal options before ordering.
