Laser fume extractor Laser Line LL 400V, 645 m³/h, H13 - Weller FT91002699N

Laser workstations produce fume with a high particle load and a significant gas fraction. The Laser Line LL 400V extraction unit is built for that duty: up to 4 filter stages, 645 m³/h maximum volume flow and 3000 Pa maximum vacuum at a noise level of 53 dBA.

Benefits

• Up to 4 filter stages with an F7 fine dust prefilter of 2.5 m², an H13 particulate filter and a broadband gas filter of 50 percent activated carbon and 50 percent chemisorb
• Constant flow control CFC holds extraction performance regardless of filter contamination
• Electronic filter monitoring with optical and acoustic filter alarm for planned filter changes
• Volume flow up to 645 m³/h at 3000 Pa vacuum for large particle quantities

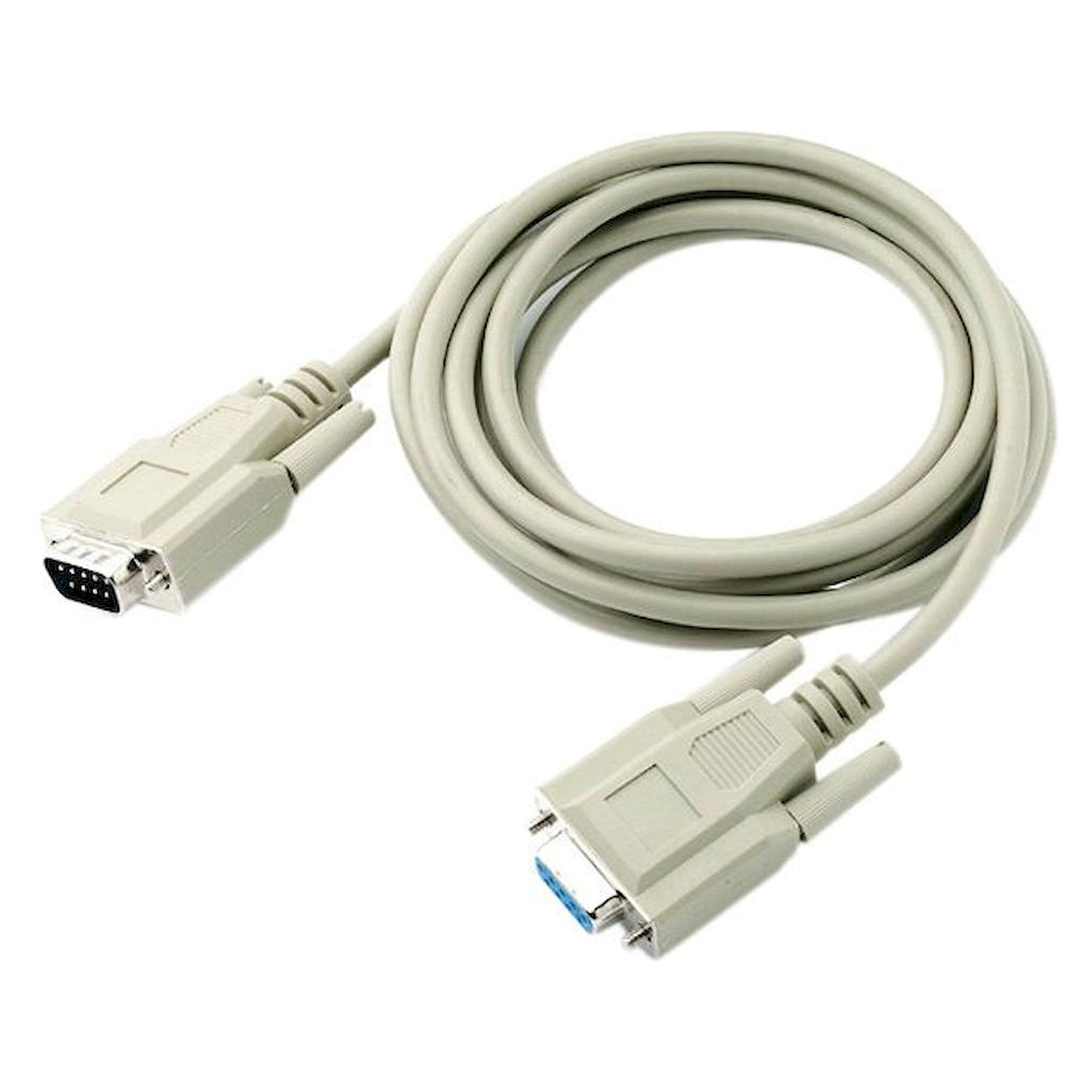

• RS232 interface for remote control and integration into the laser system
• Effectiveness check via USB port for documentation

Technical data

Applications

Laser marking, engraving, cutting and welding of metals and plastics as well as other processes with a heavy particle and gas load. The high volume flow also suits enclosed laser systems that need continuous extraction.

Compatibility and scope of delivery

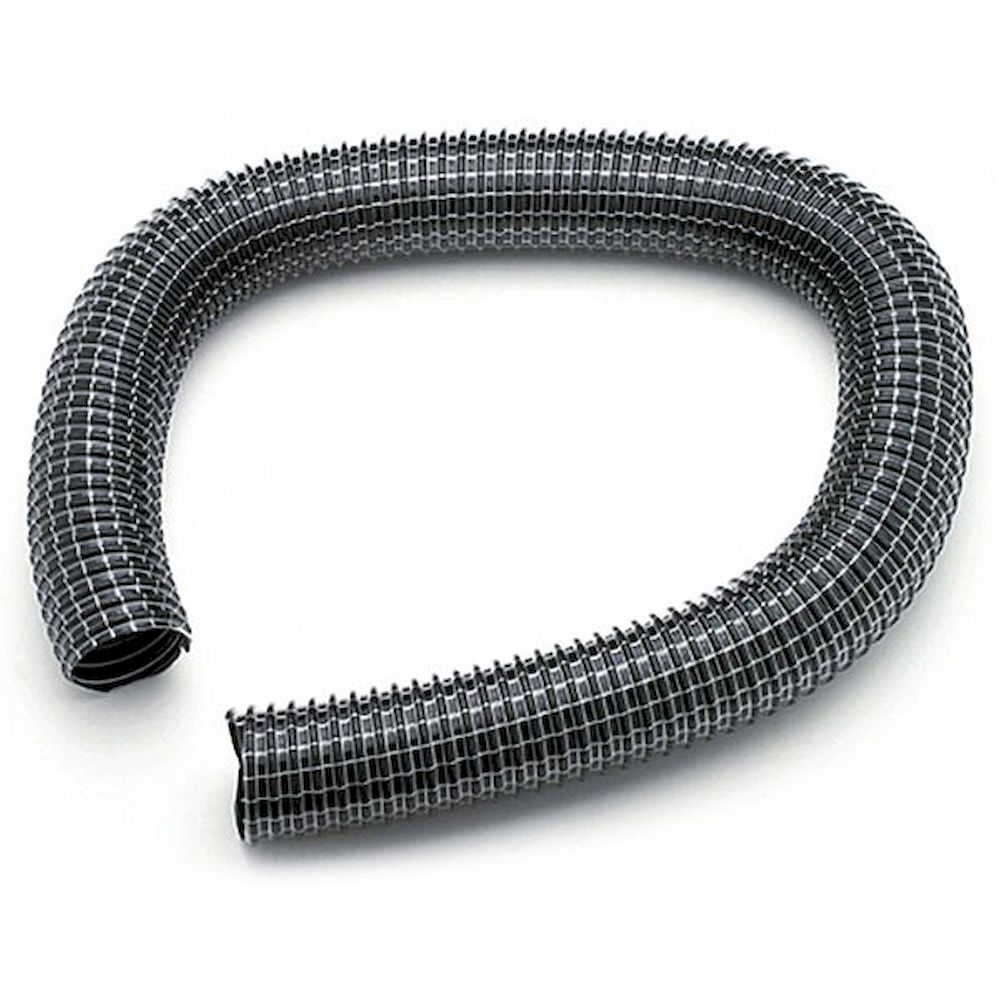

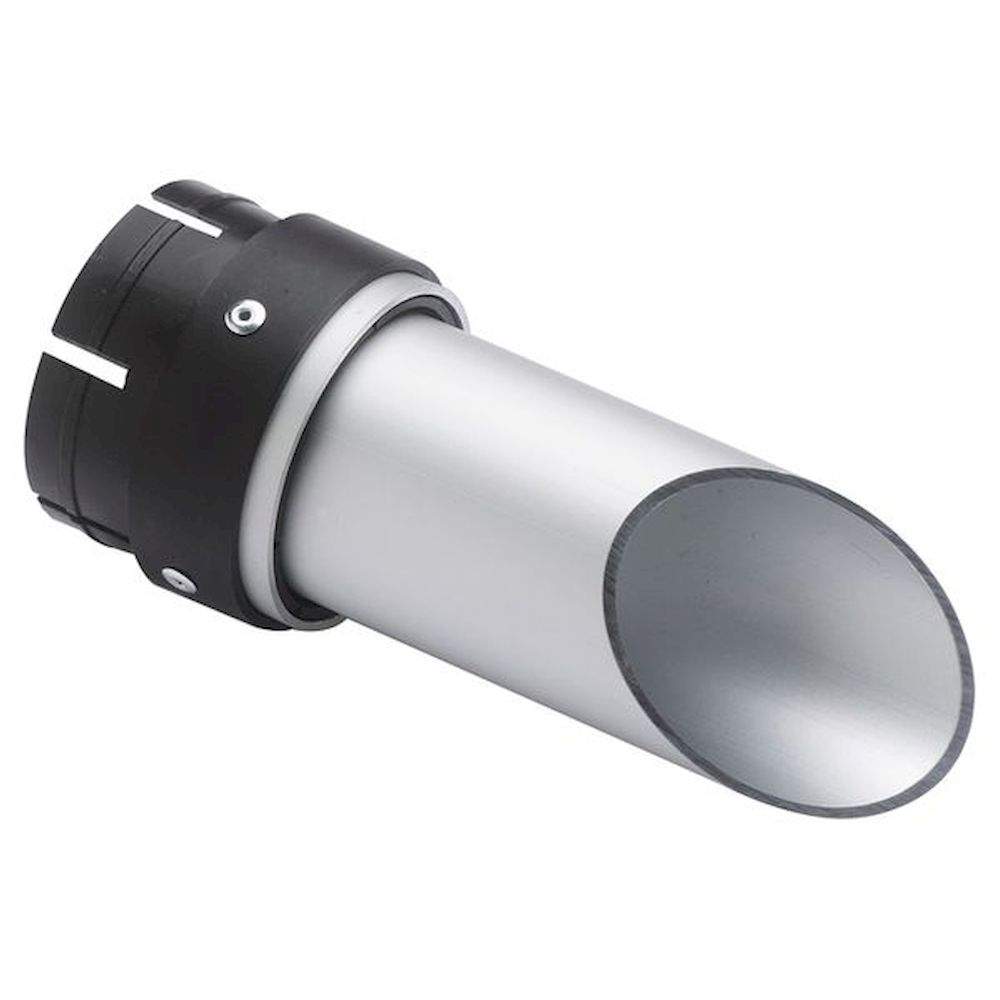

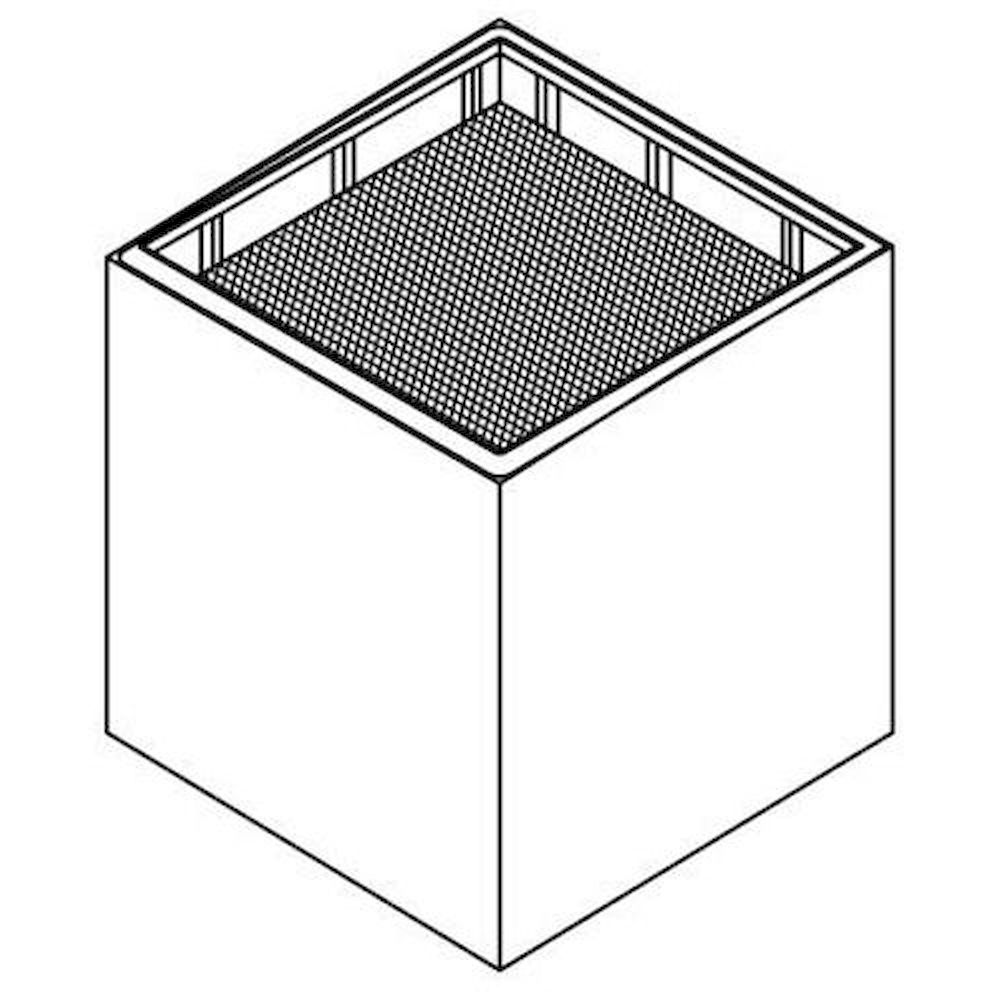

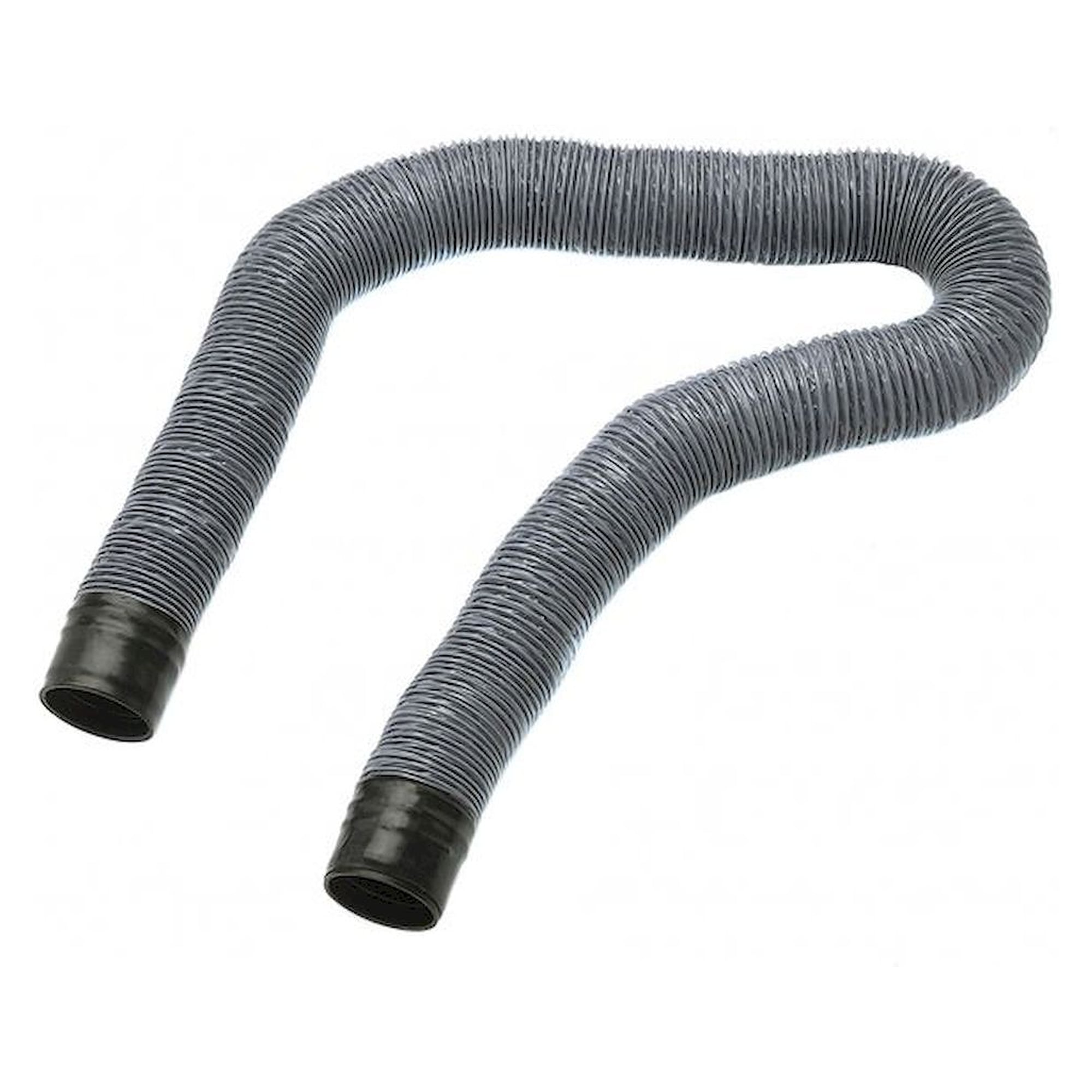

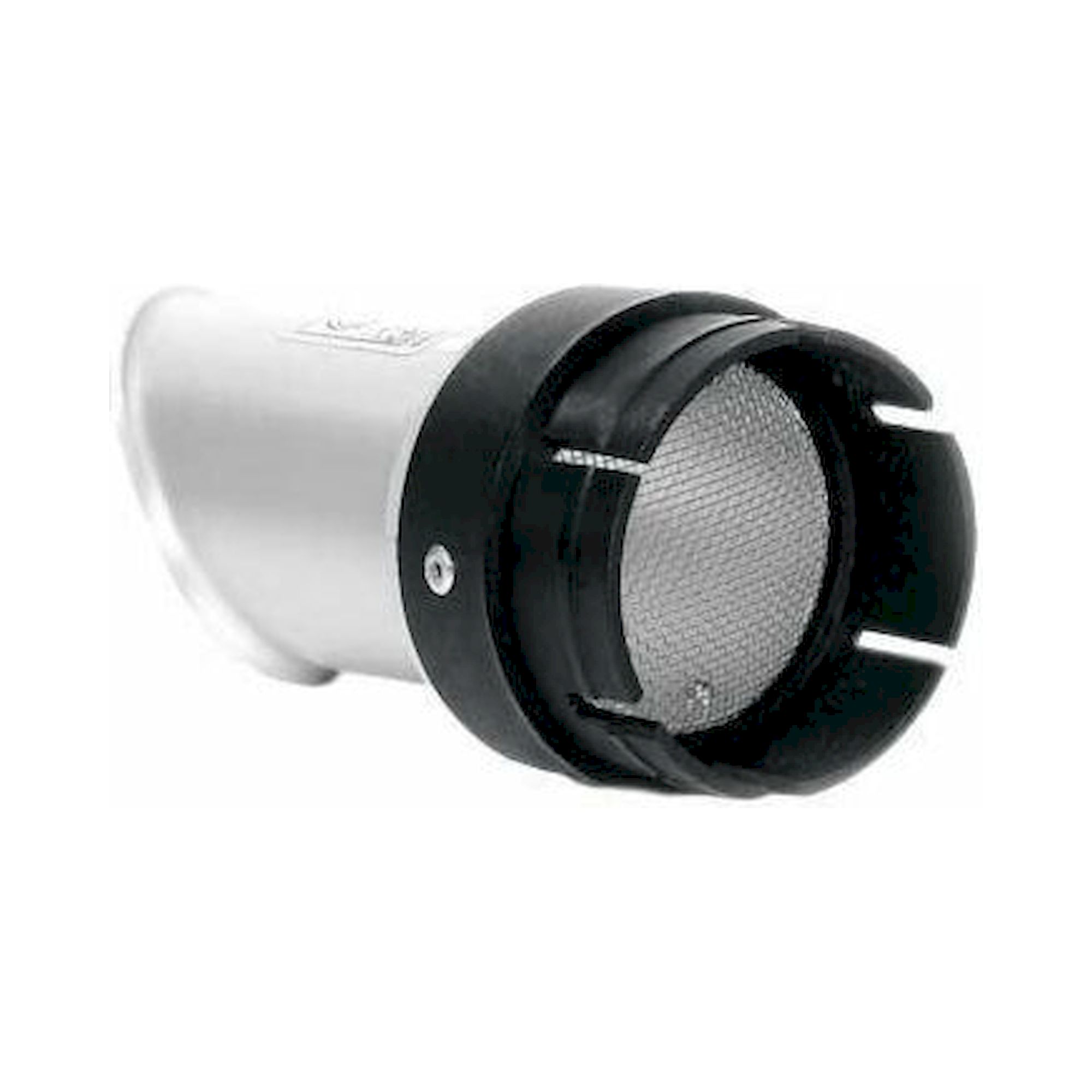

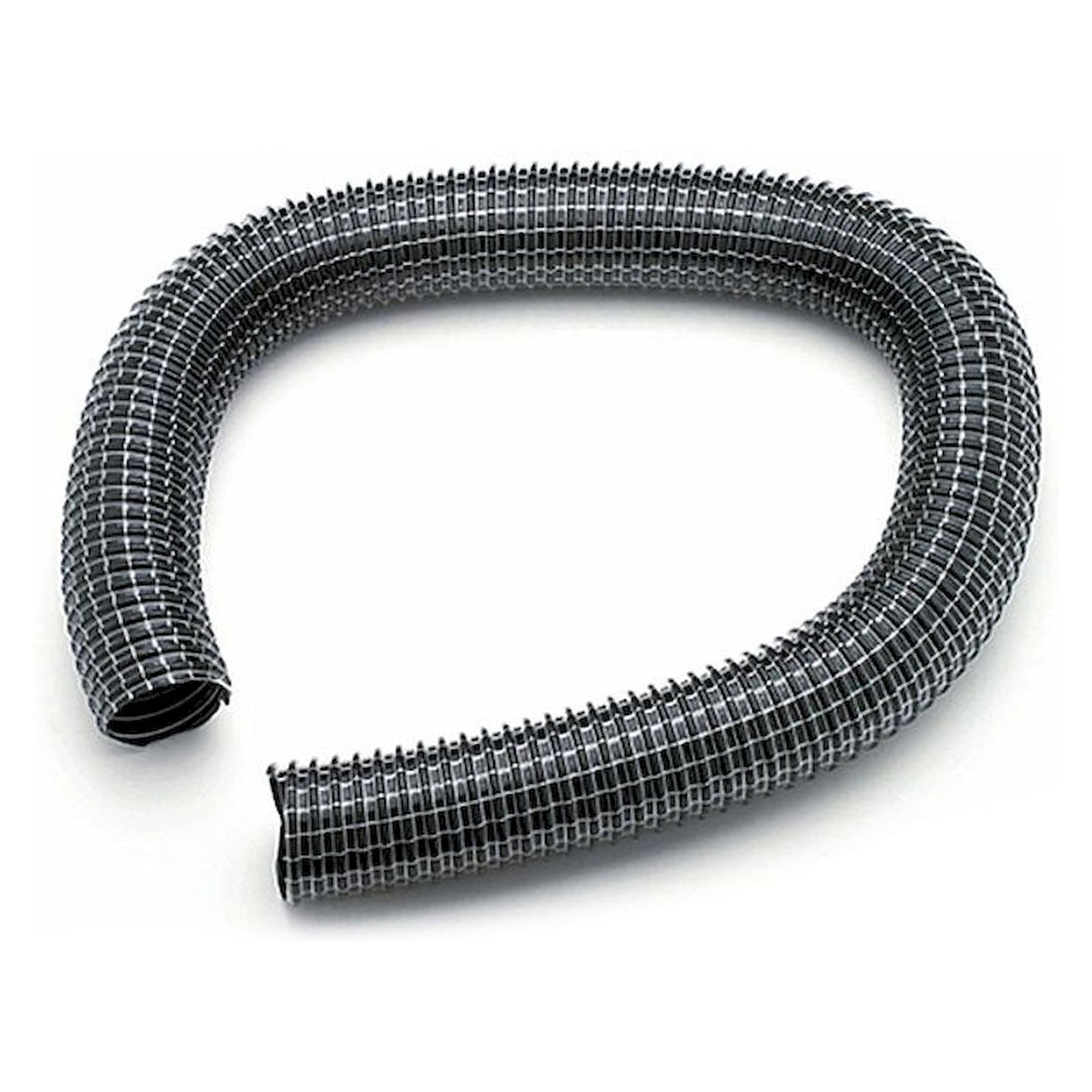

Supplied as the Laser Line LL 400V extraction unit with the filter set installed. Extraction hose, connection adapters and replacement filters are ordered separately. The RS232 interface lets the laser system start and monitor the unit.
