Festo DSL-40-50-270-P-A-S2-KF-B (556738) Swivel/Linear Unit
€212,039.00
Excl. 19% VAT ,
excl. Shipping Cost
Article
FES-556738
Manufacturer Nr.
DSL-40-50-270-P-A-S2-KF-B
Swivel/Linear Unit
Frequently Bought Together
-
This Item:
€212,039.00Excl. 19% VAT , excl. Shipping Cost
-

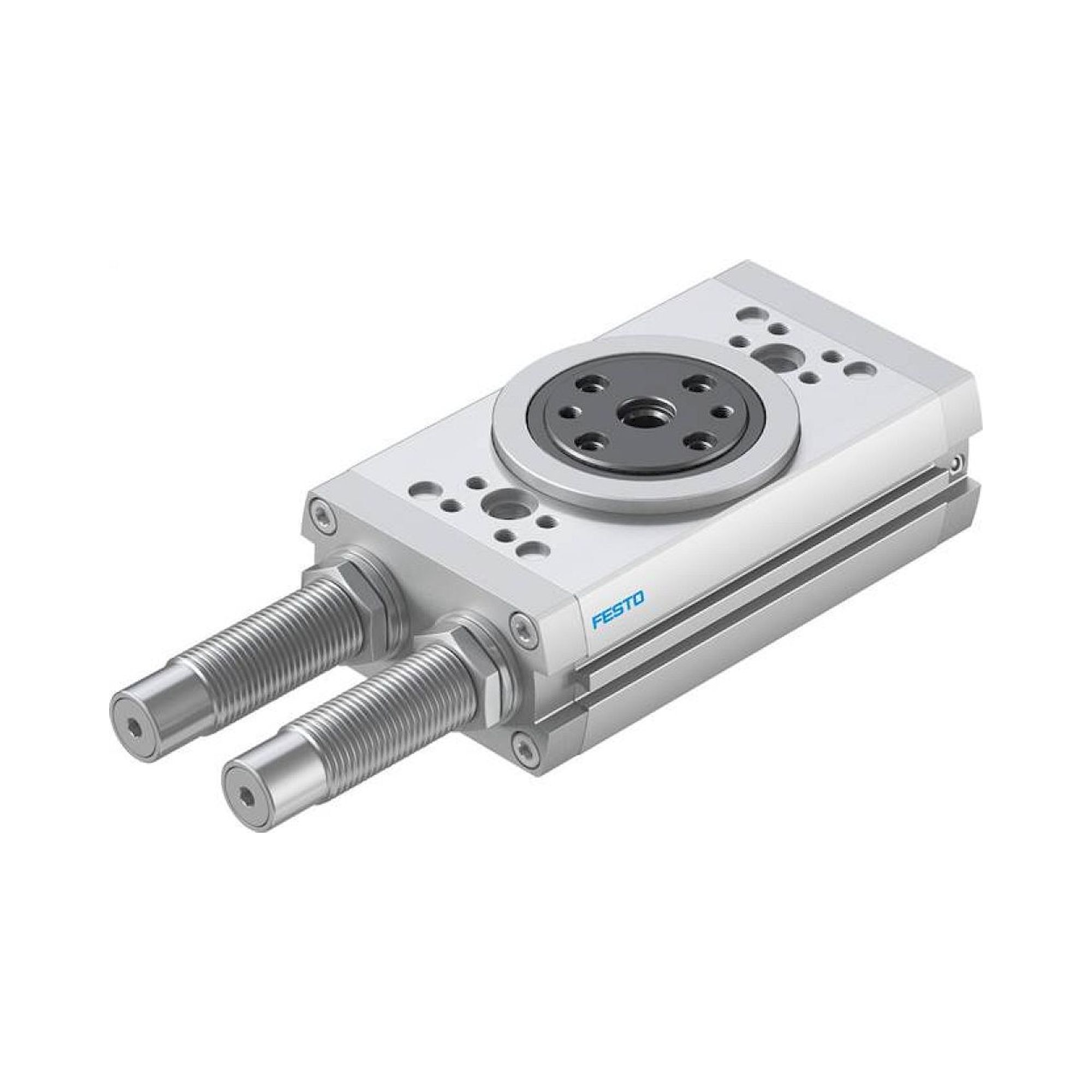

Festo DRRD-32-180-FH-Y9A (1578518) Semi-Rotary Drive
€94,731.00Excl. 19% VAT , excl. Shipping Cost
-
Festo DSL-32-80-270-P-A-S2-B (556516) Swivel/Linear Unit
€127,185.00Excl. 19% VAT , excl. Shipping Cost
Total price
| Settings range swivel angle [deg] | 0 to 270 |
| Stroke [mm] | 50 |
| Piston diameter | 40 mm |
| Swivel angle [deg] | 0 to 272 |
| Dampening | P: Elastic silencer rings / plates double-sided |
| installation position | arbitrary |
| Fine adjustment [deg] | -6 |
| Principle of operation | double acting |
| Construction set up | Rotary vane |
| Position detection | For proximity switch |
| Variants | continuous piston rod |
| Anti-twist lock / guide | Ball guided |
| Operating pressure [bar] | 2.5 to 8 |
| Max. impact speed [m/s] | 0,5 |
| Max. swivel frequency at 6 bar [Hz] | 2,0 |
| Swivel angle play [deg] | 0,05 |
| Repeatability [deg] | 1,0 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Information about operating and control medium | Oiled operation possible (required in further operations) |
| Corrosion resistant class KBK | 1 - low corrosion stress |
| ambient temperature [°C] | -10 to 60 |
| Dynamic load torque [Nm] | 5,40 |
| Theoretical force at 6 bar, Return flow [N] | 495,0 |
| Theoretical force at 6 bar, flow [N] | 603,0 |
| Theoretical torque at 6 bar [Nm] | 20,00 |
| Permitted mass moment of inertia [kg/m²] | 0,00024 |
| Weight supplement per 10 mm stroke [g] | 175 |
| Base weight at 0 mm stroke [g] | 5.200 |
| Product weight [g] | 5.200 |
| Fastening type | clamped in t-slot With Male thread Selectively: |
| Pneumatic connection | G1/8 |
| Cover material | Aluminium wrought alloy anodized |
| Seals material | TPE-U(PU) |
| Housing material | aluminium Smooth anodised |
| Piston rod material | Quenched and tempered steel |
| Manufacturer Nr. | DSL-40-50-270-P-A-S2-KF-B |
|---|---|
| Manufacturer | Festo |
| EAN | 4052568202217 |
| Weight | 7.000000 |
| HS-Code | 84123900 |
| GPSR manufacturer information | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Article authenticity | Original product |
| Condition of article | New |
Write Your Own Review
Customers Who Bought This Item Also Bought
Festo DSM-12-270-CC-HD-A-B (1369122) Semi-Rotary Drive
€6,718.00
Excl. 19% VAT ,
excl. Shipping Cost
Festo DSL-32-40-270-CC-A-S2-B (556505) Swivel/Linear Unit
€148,295.00
Excl. 19% VAT ,
excl. Shipping Cost

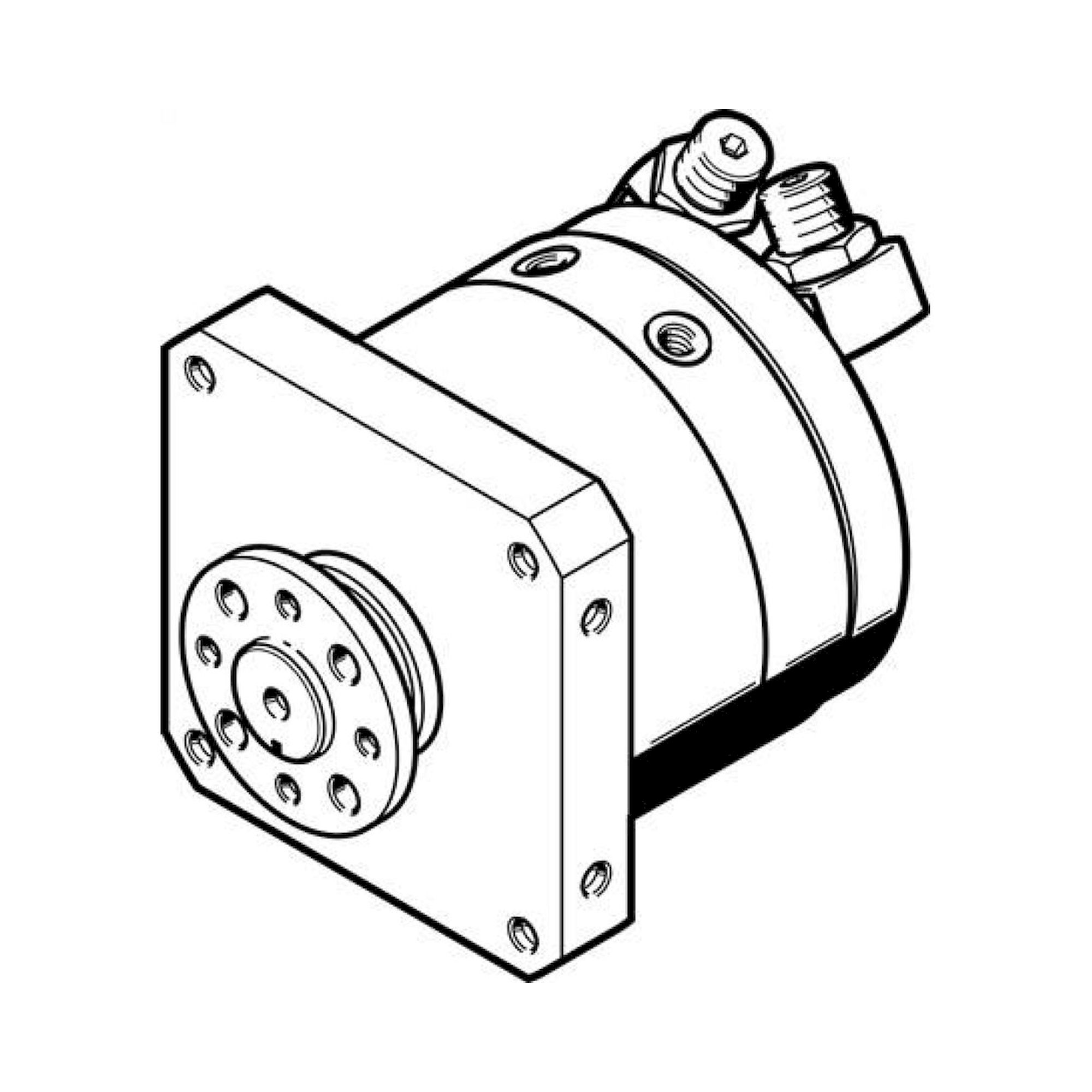

Festo DSM-T-63-270-P-FW-A-B (1145117) Semi-Rotary Drive
