Festo DSNU-50-320-PPS-A (559324) Round Cylinder

Name: Festo DSNU-50-320-PPS-A (559324) Round Cylinder
Brand: Festo
SKU: FES-559324
Price: 10352 EUR
Availability: InStock

€10,352.00

Excl. 19% VAT , excl. Shipping Cost

Article

FES-559324

Manufacturer Nr.

DSNU-50-320-PPS-A

Round Cylinder

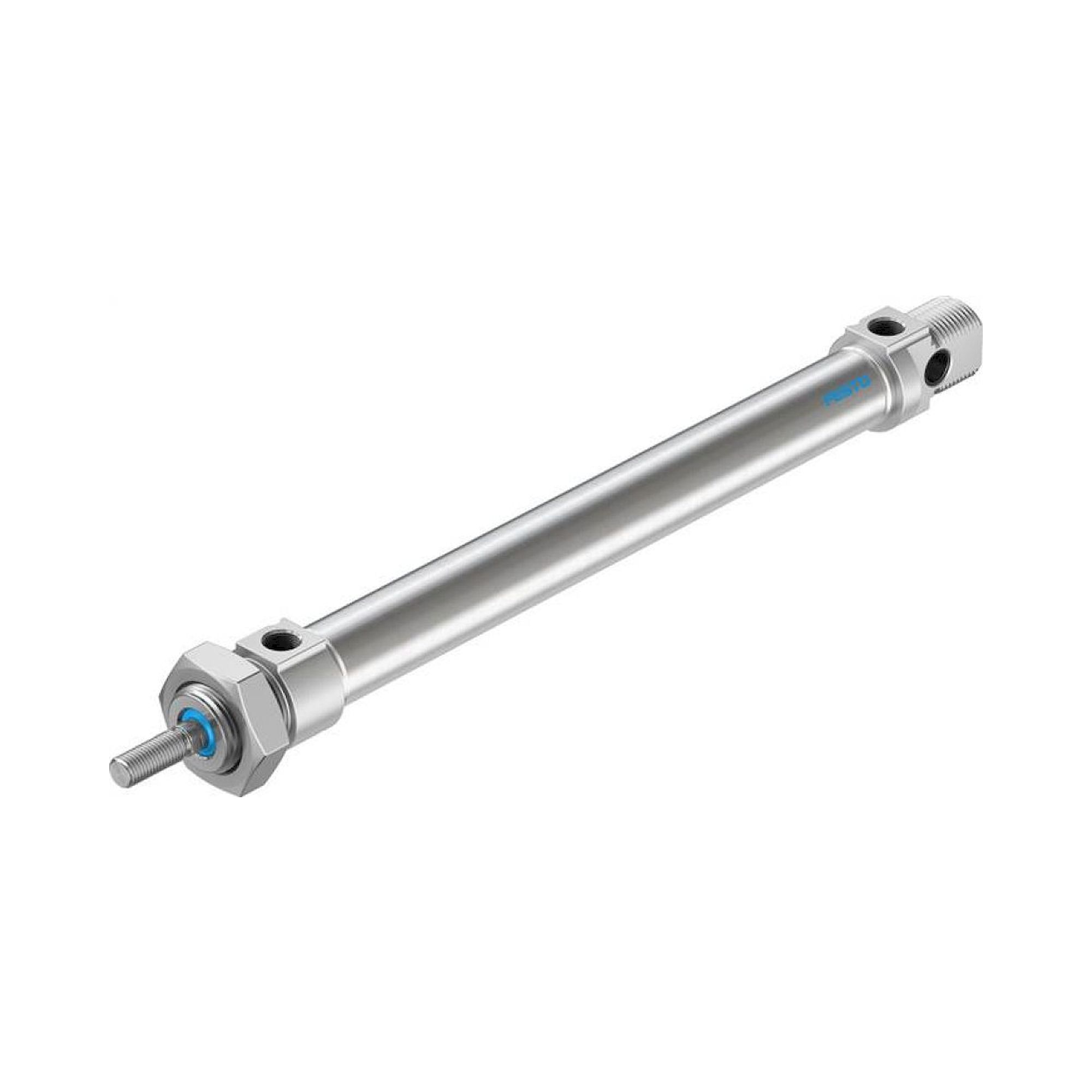

The product may differ from the illustration

Frequently Bought Together

This Item: Festo DSNU-50-320-PPS-A (559324) Round Cylinder
€10,352.00
Excl. 19% VAT , excl. Shipping Cost
Festo DSNU-50-25-PPS-A (559315) Round Cylinder
€8,635.00
Excl. 19% VAT , excl. Shipping Cost
Festo DSNU-20-125-PPS-A (559276) Standards-Based Cylin
€4,965.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Stroke [mm]	320
Piston diameter	50 mm
Piston rod thread	M16x1,5
Dampening	PPS: Self-setting pneumatic end position dampening
installation position	arbitrary
Construction set up	Piston piston rod cylinder tube
Position detection	For proximity switch
Operating pressure [bar]	1 to 10
Principle of operation	double acting
Operating medium	Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium	Oiled operation possible (required in further operations)
Corrosion resistant class KBK	2 - moderate corrosion stress
ambient temperature [°C]	-20 to 80
Theoretical force at 6 bar, Return flow [N]	989,6
Fastening type	With Accessories
Pneumatic connection	G1/4
Material information	RoHs compliant
Cover material	Aluminium wrought alloy
Seals material	NBR TPE-U(PU)
Piston rod material	High-alloyed steel
Cylinder tube material	High-alloyed stainless steels
Theoretical force at 6 bar, flow [N]	1.178,1
Dampening length [mm]	20
Moving mass [g]	1.213
Product weight [g]	2.367

More Information
Manufacturer Nr.	DSNU-50-320-PPS-A
Manufacturer	Festo
EAN	4052568206000
Weight	2.300000
HS-Code	84123100
GPSR manufacturer information	Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
Article authenticity	Original product
Condition of article	New
