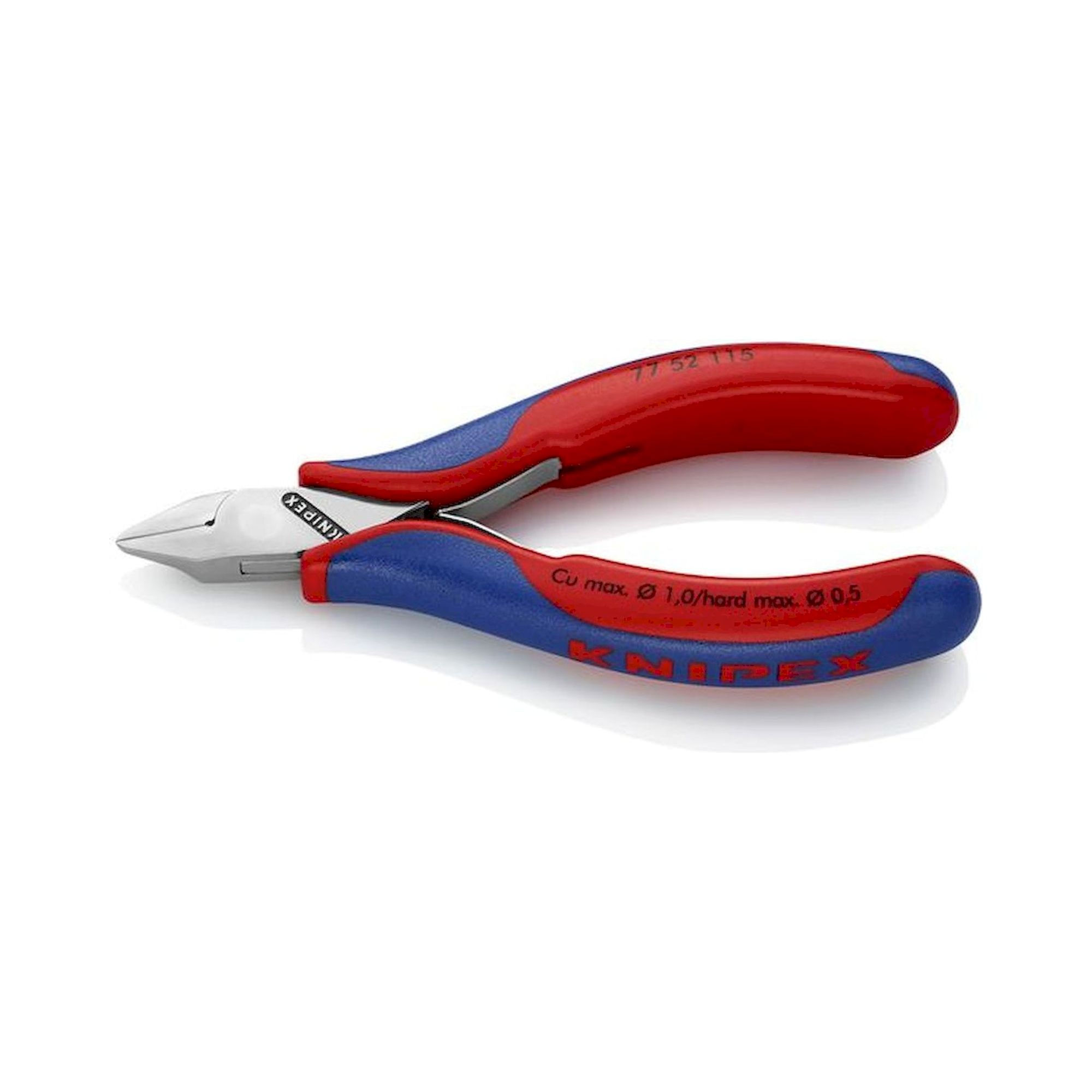

Electronics diagonal cutter pointed and flat head with small bevel, 115 mm - Knipex 77 52 115

Anyone working on populated boards needs a cutter that also copes with slightly stiffer wire. The 77 52 115 electronics diagonal cutter has a pointed, flat ground head with a small bevel and laser hardened edges of approx. 62 HRC. It cuts soft wire from 0.3 to 1 mm dia. and hard wire up to 0.5 mm dia.

Benefits

• The small bevel on the pointed, flat ground edge supports the cutting edge and allows hard wire up to 0.5 mm dia.
• Durable, load-optimised design with a backlash-free box joint that gives a more direct feel when working.
• Narrow head of only 11 mm width reaches densely populated component areas, jaw length is 14 mm.
• Slim sleeves drawn up towards the head allow fine and comfortable gripping between thumb and index finger.
• Less physical effort thanks to the high transmission ratio, plus a low-friction double spring for smooth and even opening.
• Mirror polish with a fine oil film protects against rust. No chrome flakes come loose that could cause circuit faults.

Areas of use

Board assembly and repair, precision mechanics, laboratory work and prototyping. The flat ground head with a small bevel suits jobs where medium hard and hard wire occur next to soft strands.

Standards and conformity

The cutter complies with DIN ISO 9654. According to the manufacturer it contains no substances of very high concern under REACH. The RoHS directive does not apply to this product.
