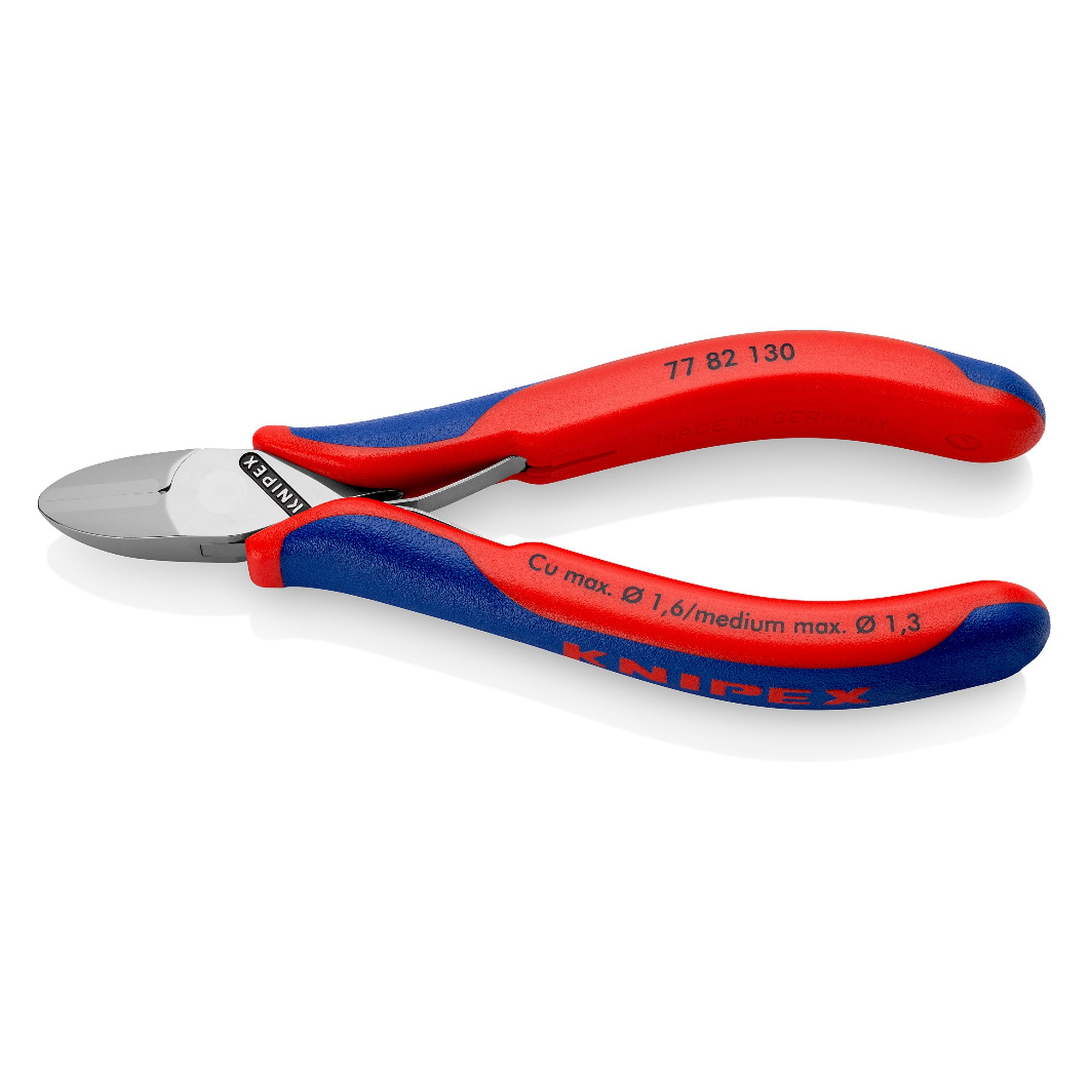

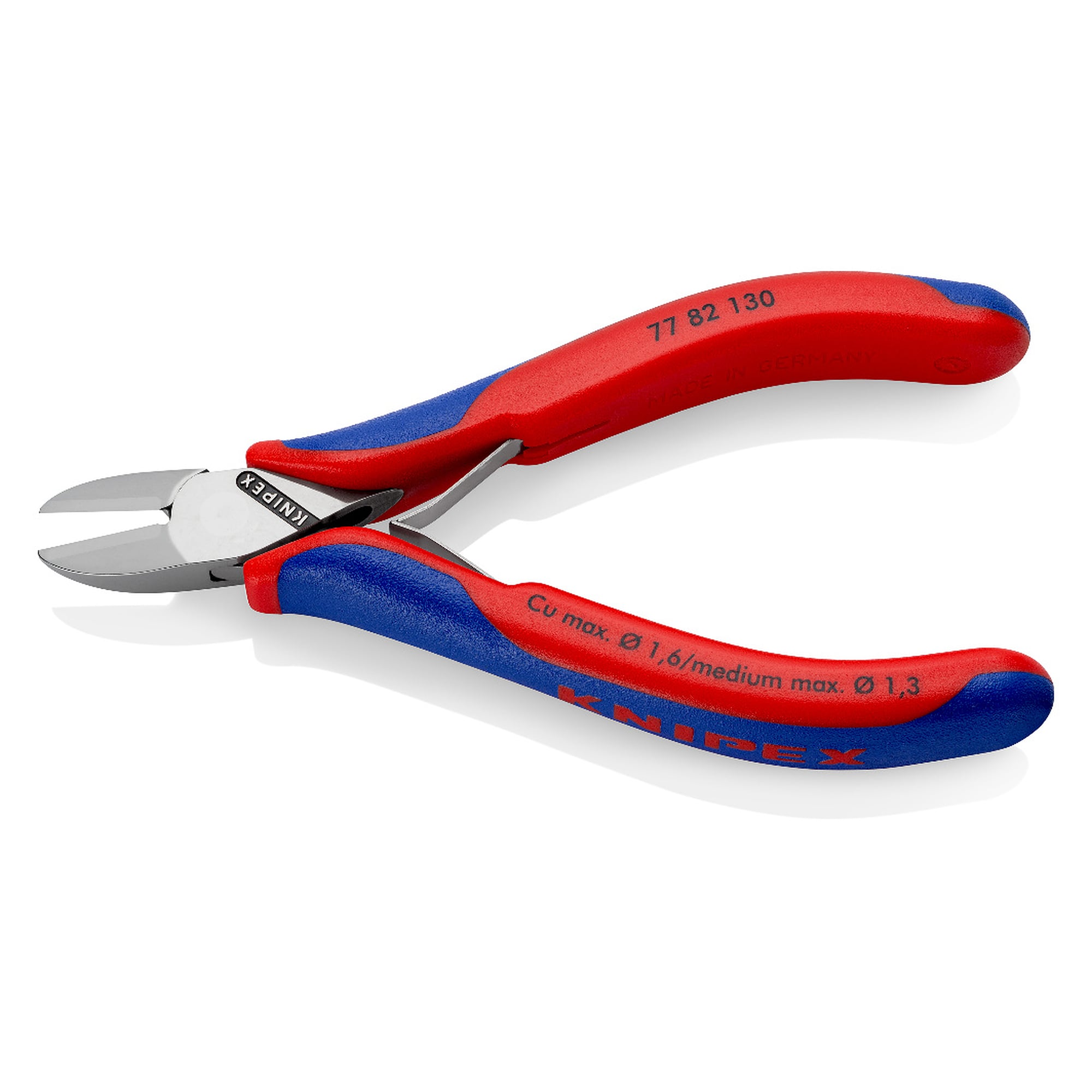

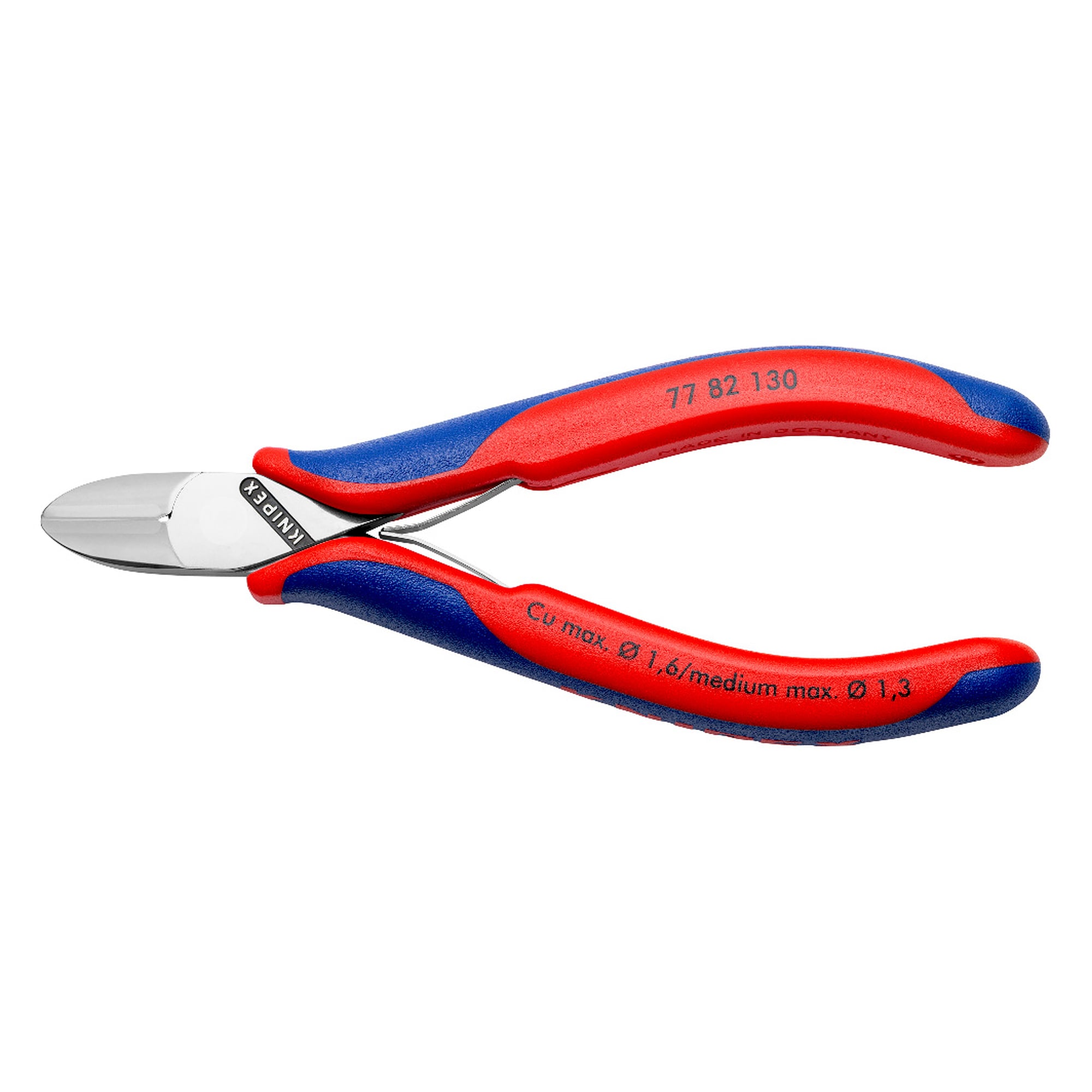

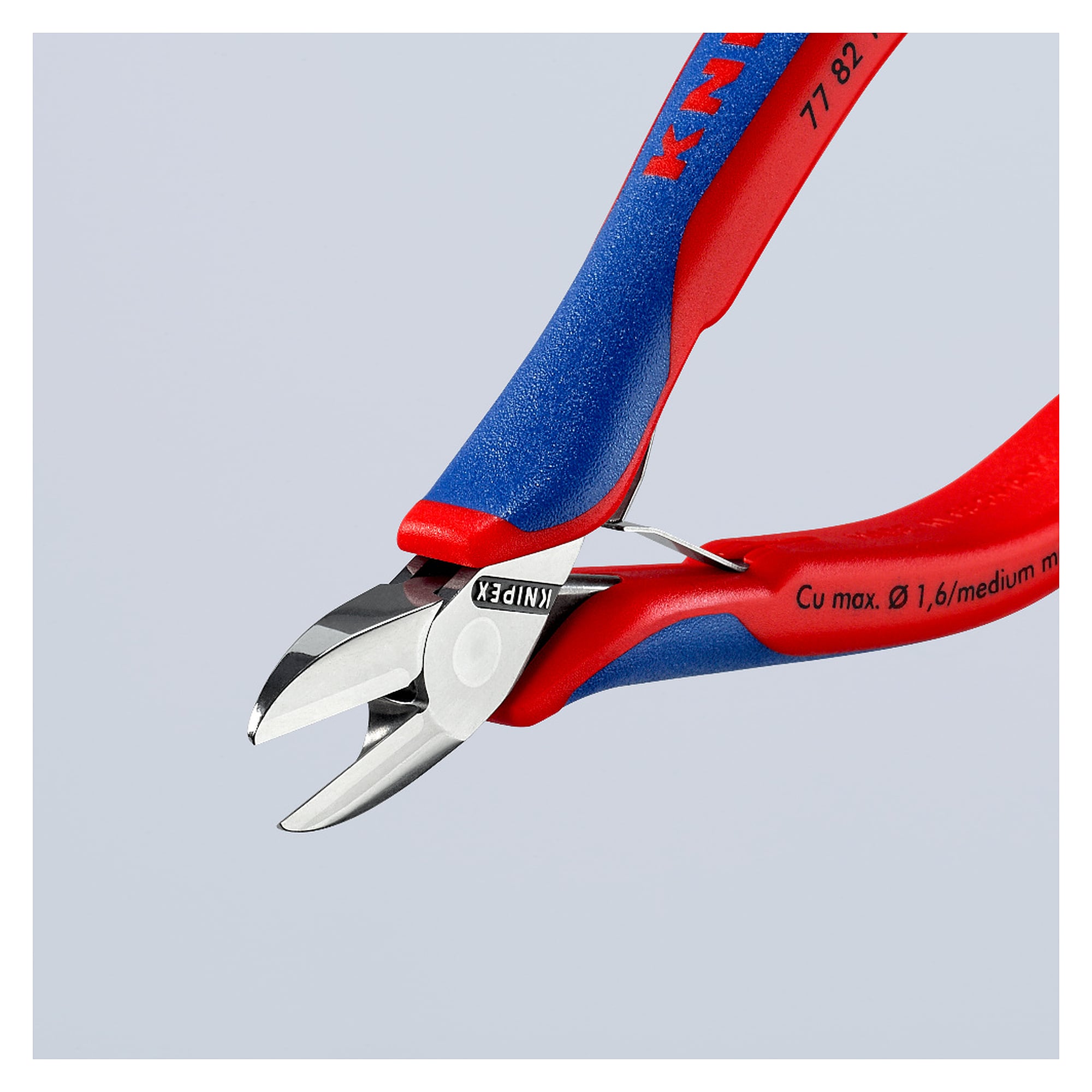

Electronics diagonal cutter with round head, without bevel, box joint, 130 mm - Knipex 77 82 130

Between sensitive components every edge on the tool counts. The 77 82 130 electronics diagonal cutter has a round head without sharp corners and cutting edges without bevel, cutting medium hard wire up to Ø 1.3 mm and soft wire from Ø 0.3 to 1.6 mm close to the workpiece.

Benefits

• Round head without sharp corners lowers the risk of touching neighbouring components and wires.
• Cutting edges without bevel, so the wire is cut close to the workpiece.
• Backlash-free box joint in a load-optimised design for a permanently clean cut.
• Cutting edges additionally laser hardened to approx. 62 HRC over a cutting edge length of 16.2 mm.
• A high transmission ratio keeps the effort low and the low-friction double spring opens the tool smoothly and evenly.
• Mirror polished head with a fine oil film protects against rust, no chrome flakes come loose that could cause faults in the circuit.

Areas of use

Electronics production, board assembly, repair and service work on modules, precision mechanics and laboratory work. The slim multi-component grips drawn up towards the head allow fine handling between thumb and index finger.

Standards and conformity

The tool complies with DIN ISO 9654. According to the manufacturer it contains no substances of very high concern under REACH, and the RoHS directive does not apply.
