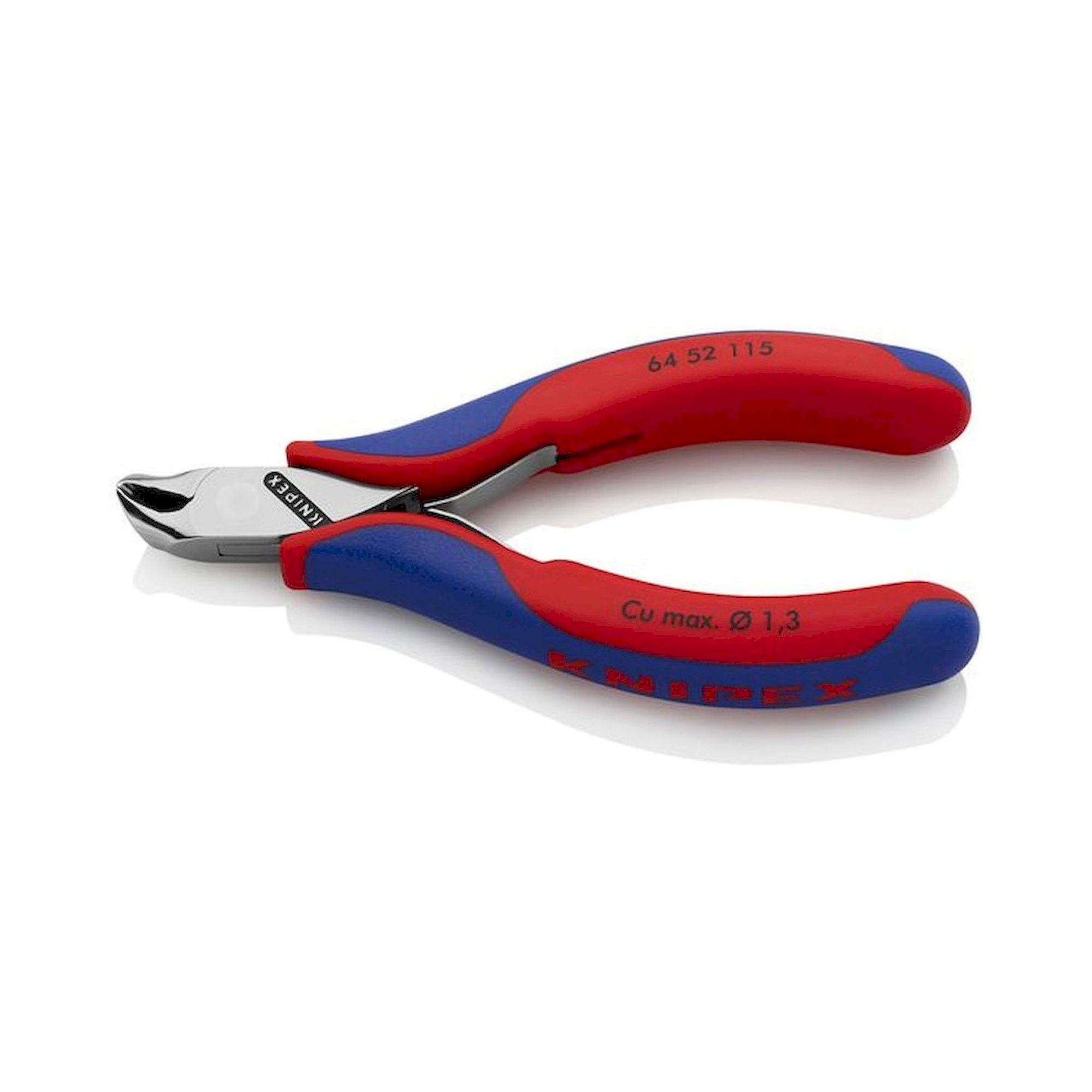

Electronics end cutting nippers with box joint, soft wire up to Ø 1.3 mm, 115 mm - Knipex 64 52 115

When populating and reworking printed circuit boards, wire ends have to be cut close to the component without touching its neighbours. The 64 52 115 electronics end cutting nippers cut soft wire up to Ø 1.3 mm and reach into densely packed areas with a head only 11 mm wide.

Benefits

• Precision pliers for the finest cutting work in electronics and precision mechanics, 115 mm long at only 70 g.
• Box joint keeps the cutting edges aligned over the long run and delivers a clean cut.
• Low-friction double leaf spring opens the nippers gently and evenly, which spares the hand during repetitive cutting.
• Mirror-polished head combined with a fine film of oil gives good corrosion protection, and no circuit faults are caused by peeling chrome.
• Cutting edges additionally laser-hardened to at least 56 HRC, so the sharpness lasts.
• Slim head with 11 mm width, 10 mm jaw length and 12 mm cutting edge length for work right at the board.

Technical data

Areas of use

Electronics manufacturing, prototype building, repair and service work on assemblies as well as precision mechanics and model making. Wherever component leads have to be trimmed flush and there is no room for a diagonal cutter.

Standards and conformity

The nippers comply with DIN ISO 9654. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply.
