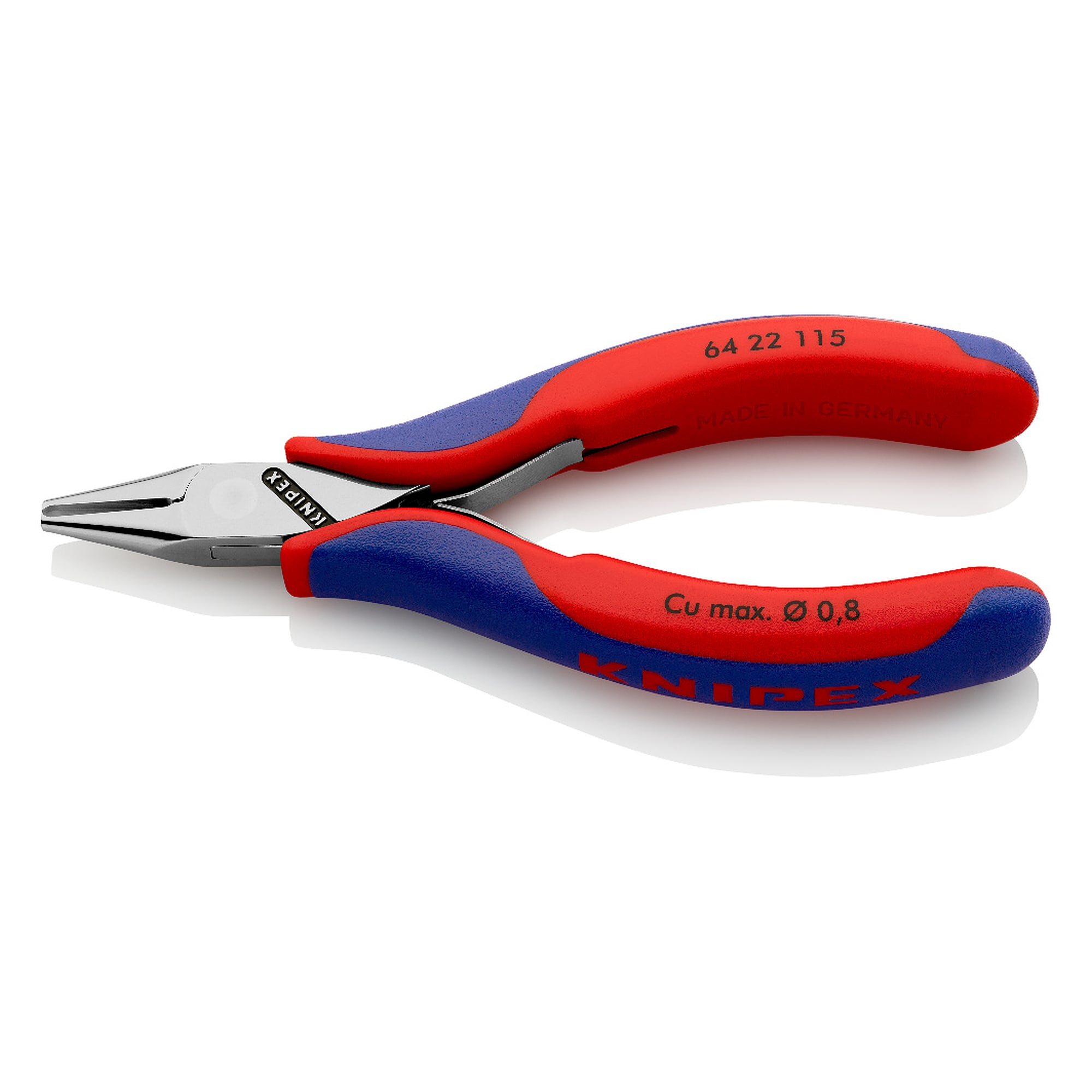

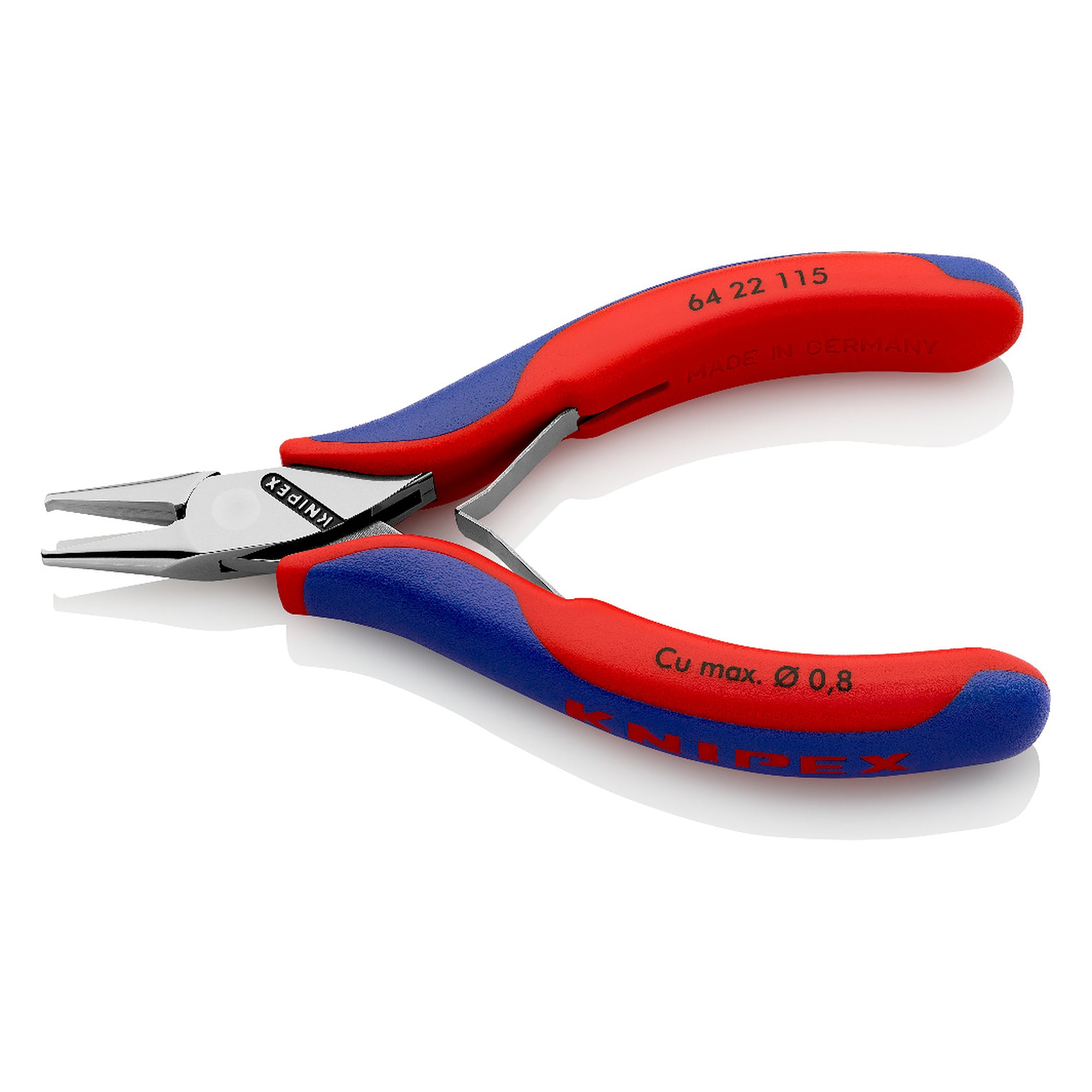

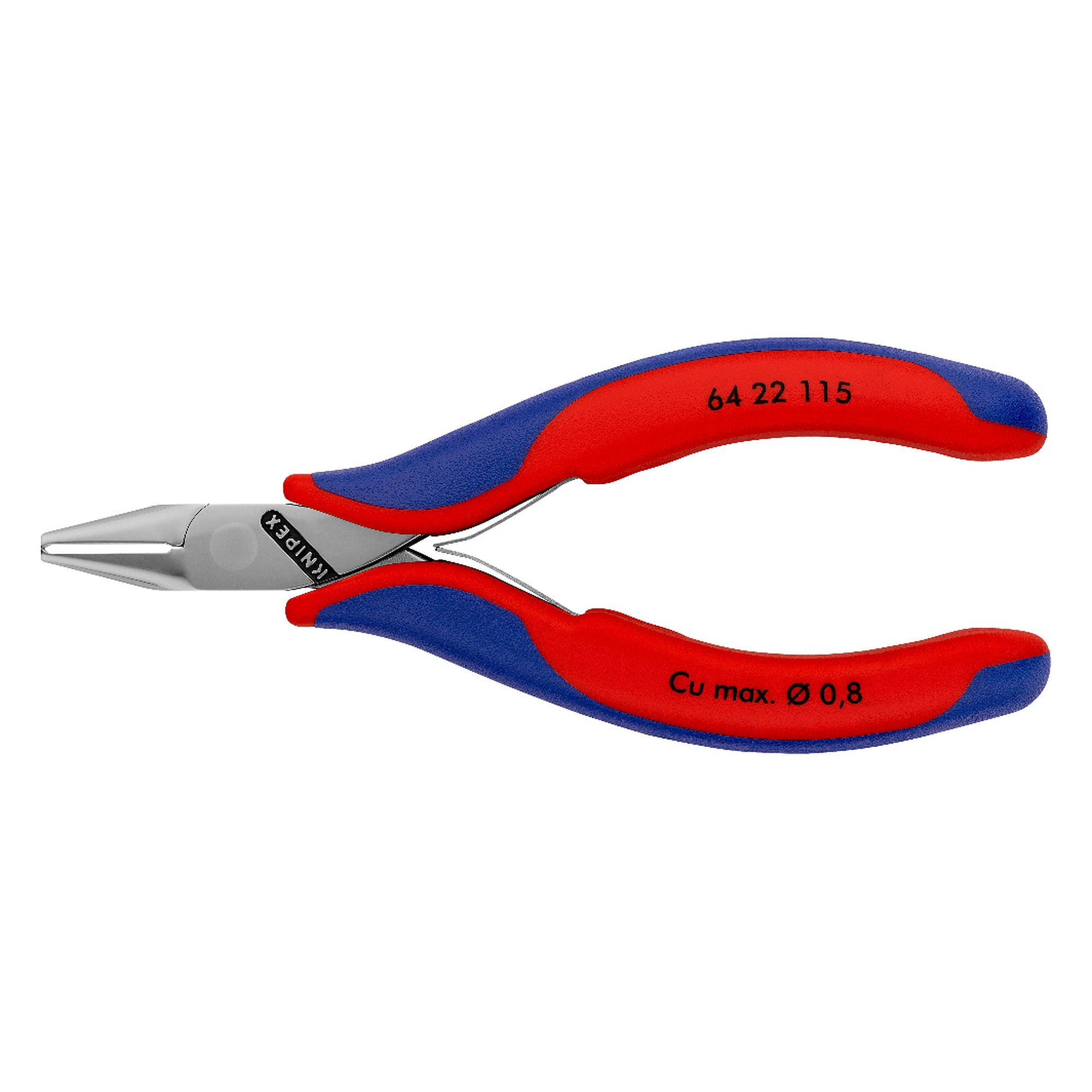

Electronics end cutting nippers with box joint, short 3 mm cutting edge, 115 mm - Knipex 64 22 115

Shortening single wire ends in awkward spots calls for slim jaws and a short cutting edge that can be placed exactly. The 64 22 115 electronics end cutting nippers offer 20 mm jaws with a cutting edge of only 3 mm and cut soft wire up to 0.8 mm dia., in a tool 115 mm long weighing 70 g.

Benefits

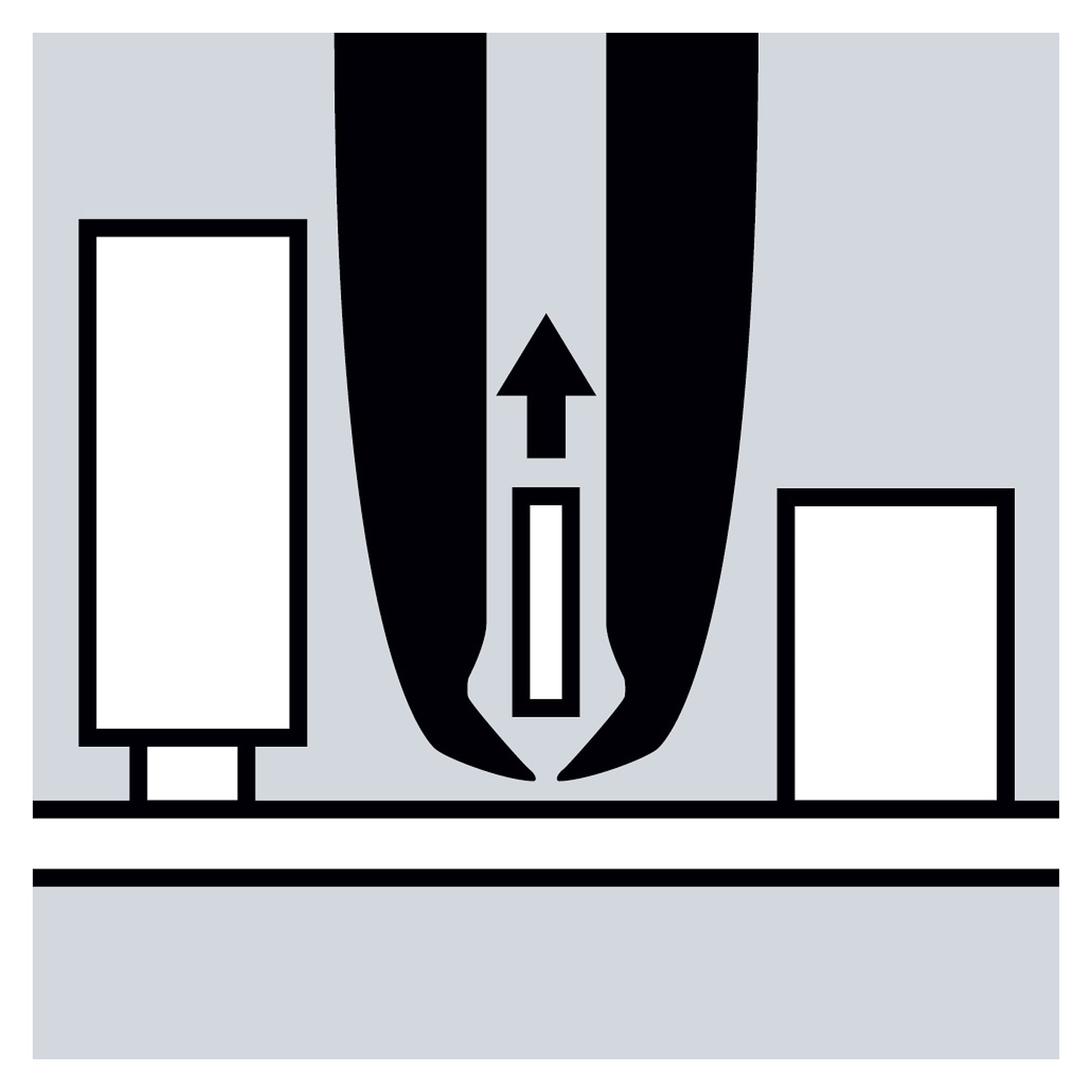

• Short 3 mm cutting edge on 20 mm jaws places the cut exactly, even deep inside an assembly.
• Precision pliers for ultra fine cutting work in electronics and fine mechanics, head width of only 11 mm.
• Sturdy box joint guides the cutting edges without play and keeps the cut clean over the life of the tool.
• Low friction double spring opens the pliers smoothly and evenly, which relieves the hand during long cutting sequences.
• Cutting edges additionally laser hardened to at least 56 HRC.
• Mirror polished head with a fine film of oil protects against rust, and no circuit faults are caused by peeling chrome from plated tools.

Technical data

Areas of use

Electronics manufacturing and PCB assembly, fine mechanics, watchmaking, model making and repair service. Wherever a single thin wire has to be cut at one exact point without touching neighbouring parts.

Standards and conformity

The pliers comply with DIN ISO 9654 for electronics pliers. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
