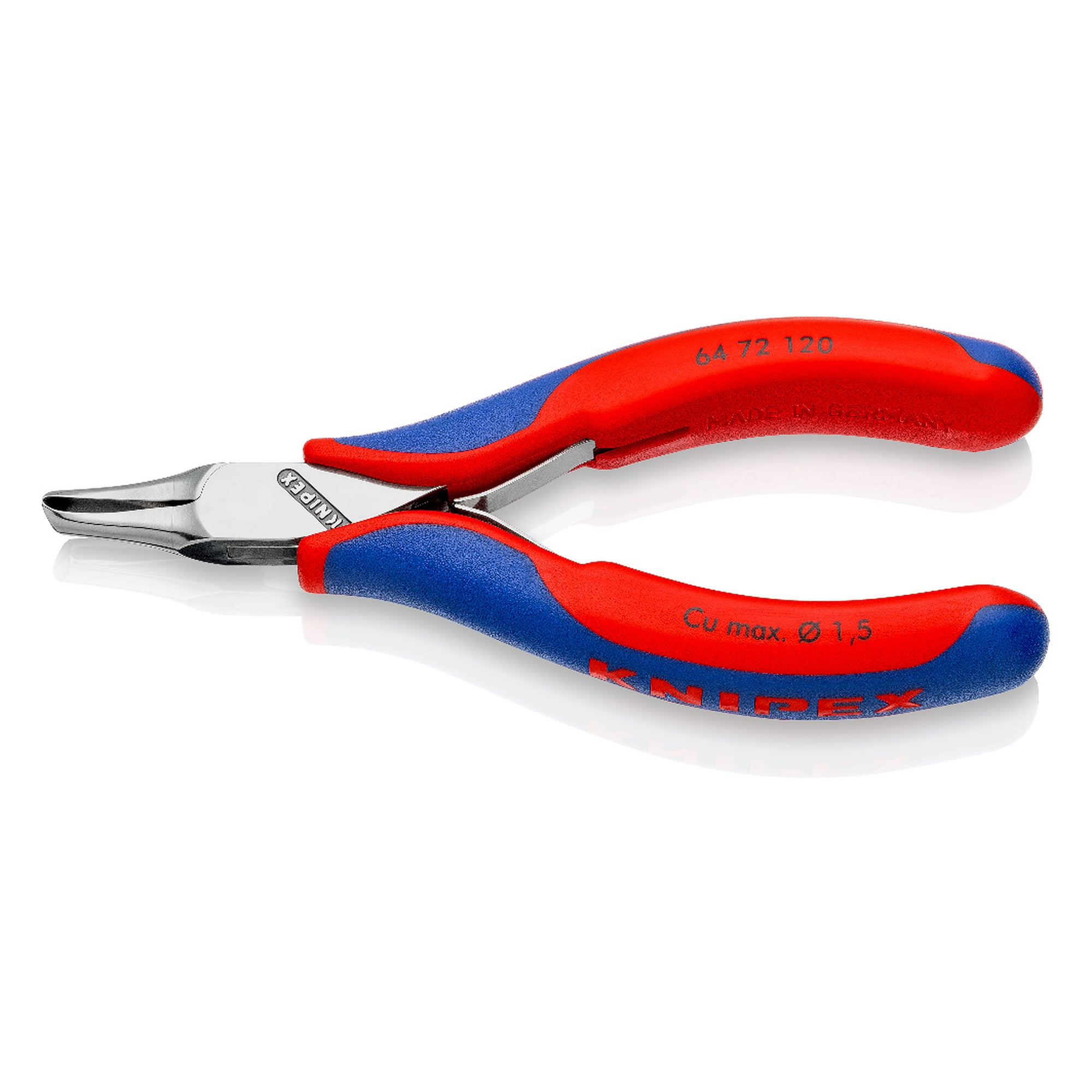

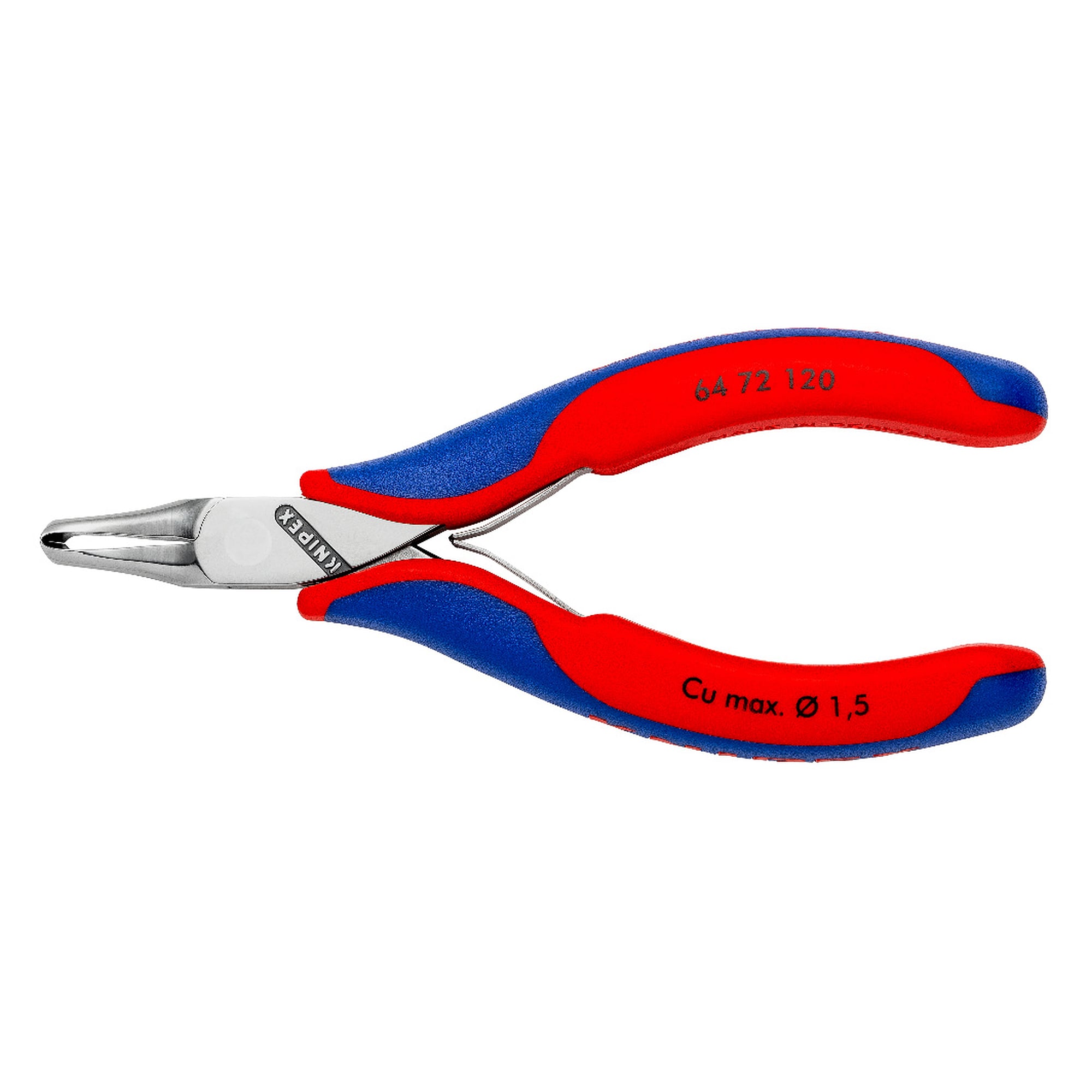

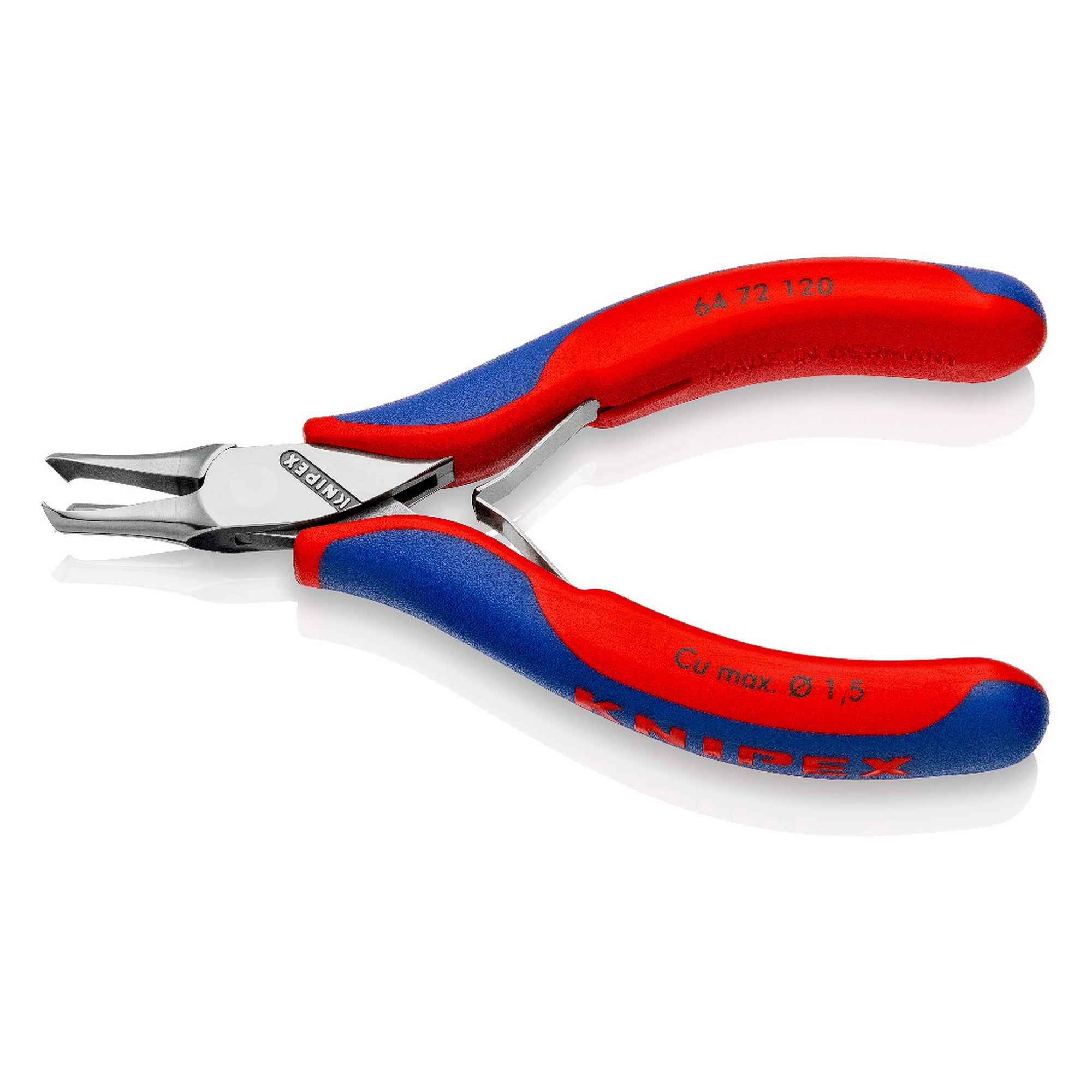

Electronics end cutting nippers with box joint, soft wire up to 1.5 mm dia., 120 mm - Knipex 64 72 120

Between densely packed components every millimetre counts, and the pliers still have to manage somewhat stronger wire. The 64 72 120 electronics end cutting nippers combine slim 20 mm jaws with a cutting edge of only 6 mm and cut soft wire up to 1.5 mm dia., in a tool 120 mm long weighing 70 g.

Benefits

• Slim 20 mm jaws with an 11 mm head width reach wire ends even between closely spaced components.
• Very short 6 mm cutting edge places the cut at a single point without catching neighbouring wires.
• Cutting capacity up to 1.5 mm dia. soft wire, clearly stronger than the fine sister models of the range.
• Sturdy box joint guides the cutting edges without play and keeps the cut clean over the life of the tool.
• Low friction double spring opens the pliers smoothly and evenly, which relieves the hand during long cutting sequences.
• Cutting edges additionally laser hardened to at least 56 HRC. The mirror polished head with a fine film of oil protects against rust, and no circuit faults are caused by peeling chrome from plated tools.

Technical data

Areas of use

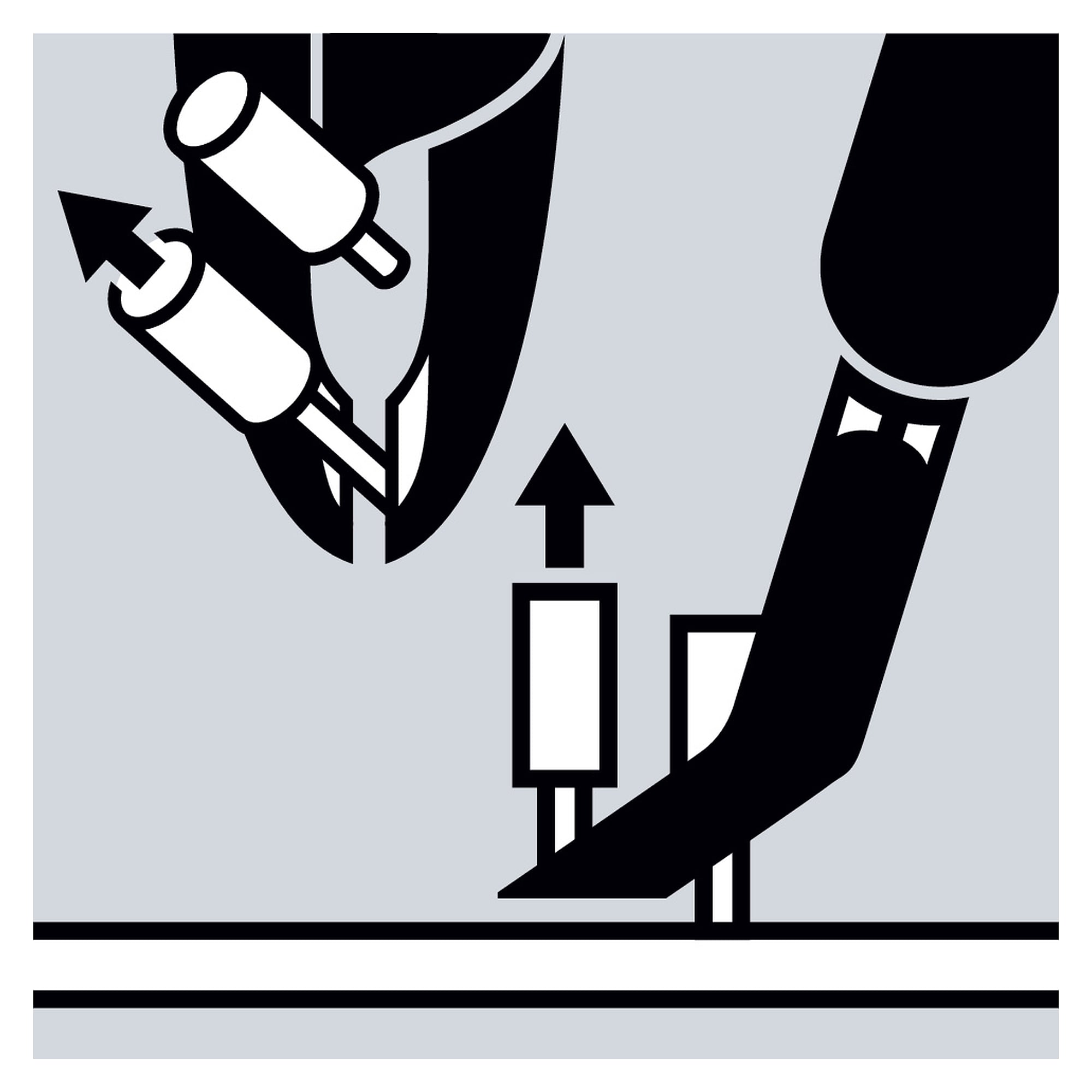

Electronics manufacturing and PCB assembly, fine mechanics, model making, laboratory and repair service. Wherever single wire ends have to be shortened between closely spaced components.

Standards and conformity

The pliers comply with DIN ISO 9654 for electronics pliers. According to the manufacturer they contain no substances of very high concern under REACH. The RoHS directive does not apply to this product.
