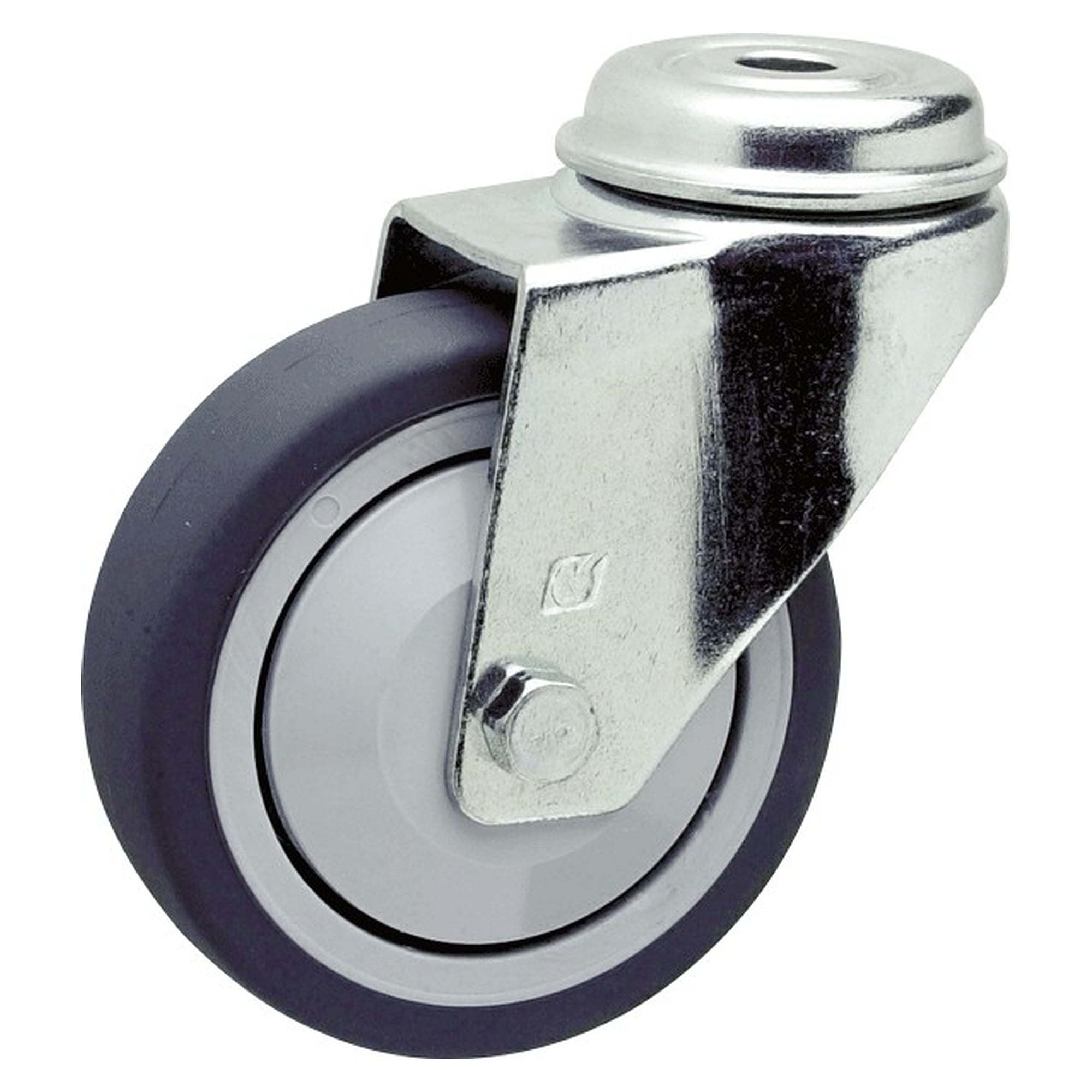

ESD Swivel Castor 100 mm with 11 mm Bolt Hole and Total Lock Brake, Polyurethane Tread

Trolleys, racks and frames that are moved through an EPA must not hold the charge that builds up while rolling, they have to lead it down to the floor. The 100 mm wheel diameter keeps the build height compact and rolls easily on smooth industrial floors. The 11 mm bolt hole takes a back bolt or a stem, so the castor mounts on tubular and profile frames.

The trailing total lock brake blocks wheel and swivel head in one step, so the trolley neither rolls away nor twists while parts are loaded or tested.

Advantages

• Polyamide wheel centre, electrically conductive, leads the charge generated while rolling into the floor
• Injection-moulded polyurethane tread with thread guard, quiet in operation and without marks on light floors
• Swivel head with double ball race for accurate tracking through the full rotation
• Precision ball bearing in the wheel, therefore low rolling resistance even with a loaded trolley
• Trailing total lock brake blocks wheel and swivel head in one step
• 11 mm bolt hole for mounting with a back bolt or a stem
• Wheel diameter 100 mm as the distinguishing feature of this version within the series

Application

The castor is used under assembly and workshop trolleys, shelving units, transport frames and test bench understructures on which populated boards and assemblies travel between workstations. Dissipation only works as a closed path, that is together with a dissipative floor inside the EPA.

The series covers further wheel diameters. This version is fixed at 100 mm.

On request the castor is also available with a grey brake pedal.
