ESD safety sandal SL 36 red S1, SportLine upper, width 12, black/red - Atlas 57612

Halls get warm in summer, the ESD obligation stays. The SL 36 red is the ventilated sandal version with full class S1 to EN ISO 20345:2022. Resistance stays below 100 MOhm to DIN EN 61340-5-1 and the toe cap withstands 200 joules.

What the shoe delivers

• Body-shoe-floor resistance below 100 MOhm to DIN EN 61340-5-1. The footwear standard alone only calls for the antistatic range from 100 kOhm to 1,000 MOhm, so the ESD proof sits below that and protects the component, not just the wearer.
• Class S1 means a closed seat region, antistatic construction and an energy absorbing heel area, plus the protective toe cap.
• alu-tec aluminium toe cap, tested to EN ISO 20345 for 200 joules of impact energy and 15 kN of compression. Aluminium weighs less than steel, shifts the centre of gravity towards the midfoot and creates no cold bridge inside the shoe.

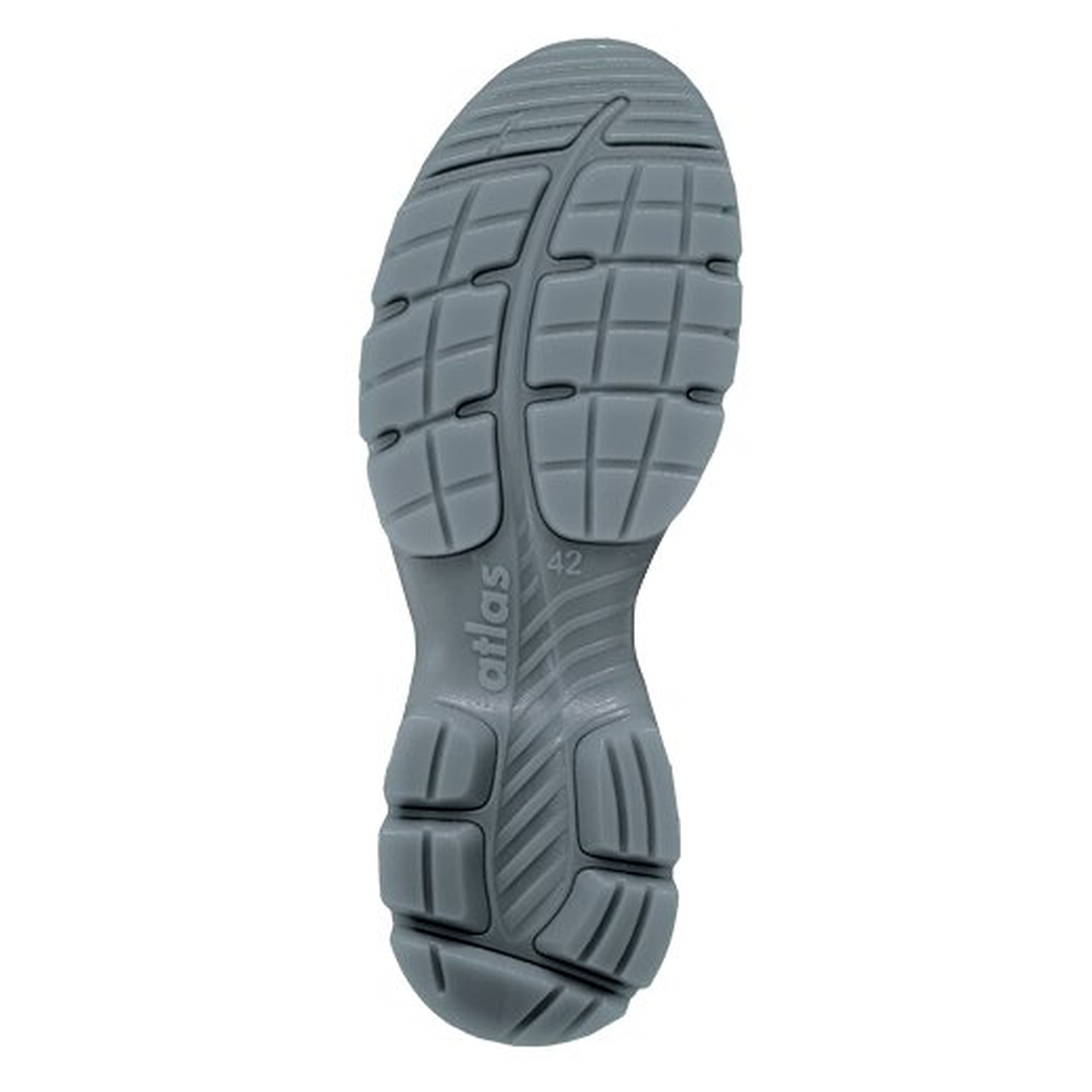

• MPU INNOFLEX outsole system. The CLOUDZONE in the heel absorbs impact forces, the MPU midsole cushions across the full surface and returns energy into the push-off.
• SportLine textile upper, air permeable, breathable and hydrophobic, therefore water repellent and quick drying. clima-stream concept combining a breathable upper, thermoregulating lining and Klima Komfort insole. Atlas puts the comfort temperature inside the shoe at 32 degrees Celsius, and a deviation of only 1 to 2 degrees already makes the day uncomfortable.
• Width 12 is the extra wide step of the Atlas multi-width system, meant for feet that find standard width 10 too tight.

Technical data

Fields of use

• ESD protected areas in warm halls and during the summer months
• Assembly, test bench and rework
• Warehouse and order picking
• Areas next to clean rooms where ventilated footwear is permitted

Standards and conformity

The shoe is built to EN ISO 20345:2022 in class S1 SR and carries the ESD marking to DIN EN 61340-5-1. Atlas guarantees a body-shoe-floor resistance below 100 MOhm for it. The footwear standard alone only defines the antistatic range from 100 kOhm to 1,000 MOhm. DGUV 112-191 names 100 kOhm as the lower limit so that limited protection against dangerous body current is retained for work up to 230 volts. Personal protective equipment of risk category II under the PPE Regulation. The manufacturer is ATLAS-Schuhfabrik GmbH und Co. KG in Dortmund.

Sizes

Available in EU sizes 36-49 in width 12. This item covers the whole size range, you pick the size when ordering.
