ESD safety low shoe SL 32 red 2.0 S1 SR, SportLine textile, width 10, black/red - Atlas 59500

At the test bench and on the assembly line every gram carried all day counts. The SL 32 red 2.0 is a light low shoe with a textile SportLine upper, listed under EN ISO 20345:2022 in class S1 with the additional requirement SR. ESD dissipation stays below 100 megohms to DIN EN 61340-5-1 and the alu-tec cap withstands 200 joules of impact energy and 15 kN of compression. Standard width 10, EU 36 to 49.

What this model delivers on the floor

• The wearer's static charge drains in a controlled way through lining, sole and floor instead of discharging into a component. For its ESD models ATLAS states a resistance below 100 megohms, measured by the person-shoe-floor method of DIN EN 61340-5-1. The footwear standard EN ISO 20345 only requires antistatic shoes to sit between 100 kilohms and 1000 megohms, and that wide band is not enough for an EPA. In daily use the tighter figure means no assembly lost because someone walked from the test bench to the machine.
• S1 in plain words: closed heel area, antistatic build, 20 joules of energy absorption in the heel and a fuel-resistant outsole. Since the 2022 edition the additional requirement SR stands for the passed slip test on ceramic tile with glycerine.
• The toe cap is aluminium rather than steel. The alu-tec cap passes the same EN ISO 20345 test at 200 joules of impact energy and 15 kN of compression, weighs noticeably less and moves the centre of gravity towards the middle of the foot, which makes trips caused by imbalance rarer. Aluminium behaves thermally neutral and forms no cold bridge inside the shoe.
• The SportLine upper is a textile fabric that is particularly air permeable and makes the shoe noticeably lighter than a leather build. On top of that the clima-stream concept balances the moisture inside the shoe and regulates the temperature, so the foot climate stays bearable even in a heated hall.

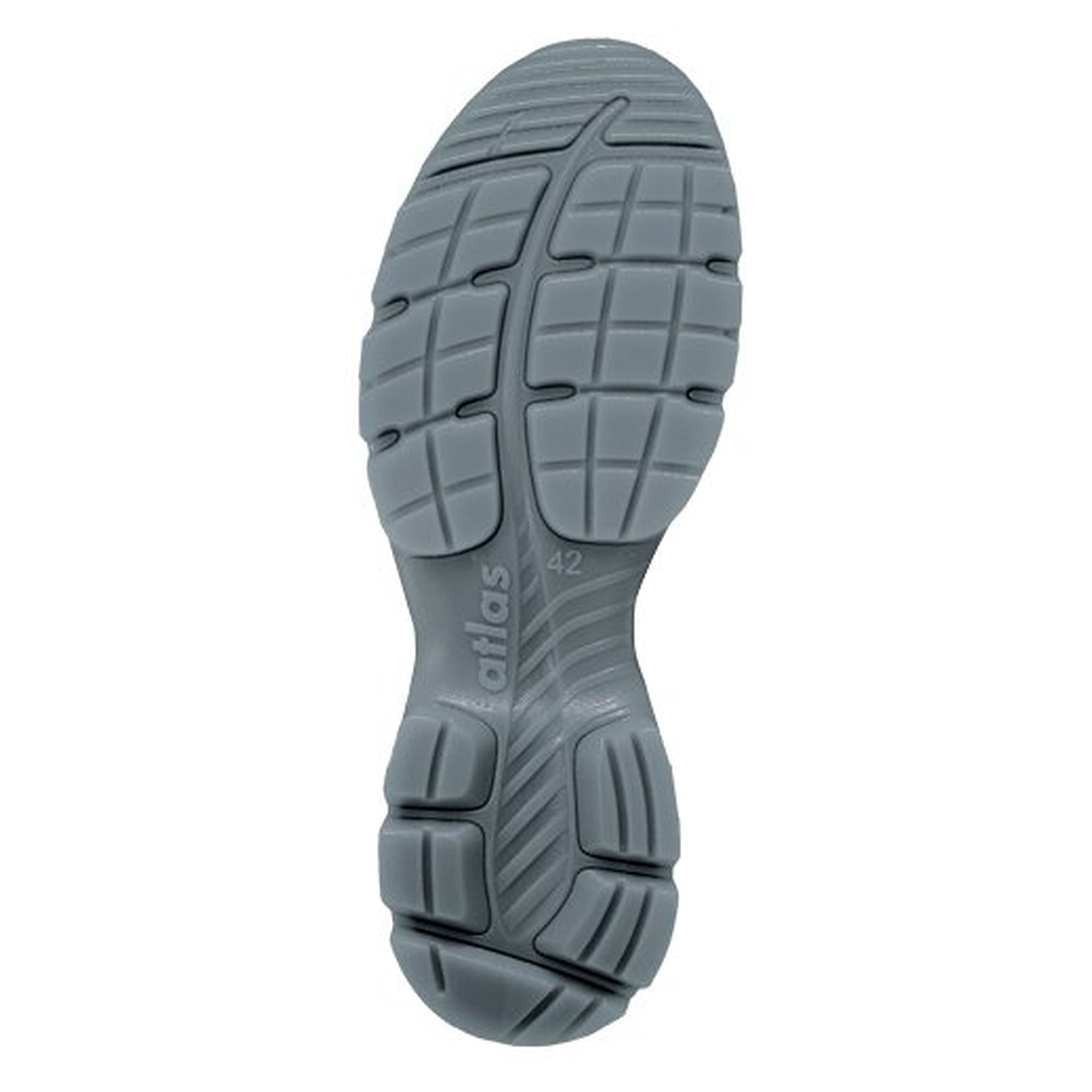

• Cushioning for eight hours on your feet. The MPU INNOFLEX outsole guides the force along the INNOFLEX LINE from heel to toe, and the MPU REBOUND SYSTEM takes the energy up in large tread areas and returns it into the next step. Behind it works the aktiv-X functional lining, which moves moisture away, does not stain and stays abrasion resistant.
• Width 10 is the ATLAS standard width and already cut wider than a common safety shoe last. It fits most of a workforce, which keeps procurement for a whole department simple.

Technical data

Areas of use

Electronics production, test and measurement benches, cleanroom preparation zones, assembly lines in dry surroundings, storage and indoor transport. For workplaces with a penetration risk choose a version with an XP insert instead.

Standards and conformity

EN ISO 20345:2022, protection class S1 with the additional requirement SR. The 2022 edition replaced the former markings SRA, SRB and SRC. Slip resistance on tile with detergent has become a basic requirement, and SR denotes the additionally passed test on tile with glycerine. ESD compliant in the sense of DIN EN 61340-5-1, the standard for the electrostatic protected area, with a resistance below 100 megohms by the person-shoe-floor method. Personal protective equipment of risk category II under Regulation (EU) 2016/425, CE marked, the EU declaration of conformity is available from the manufacturer. Approved for orthopaedic insoles under DGUV rule 112-191, where the marking inside the shoe is what counts. The manufacturer is the ATLAS shoe factory in Dortmund.

Sizes

This item covers EU sizes 36 to 49. The width is fixed at Width 10 (standard), the size is selected when ordering. One pair is supplied.
