Mini Zero Volt Ionizer 2, stainless steel benchtop ionizer - Desco 50642

The Mini Zero Volt Ionizer 2 neutralizes electrostatic charges on insulators and ungrounded conductors across a coverage area of roughly 15 x 60 cm. Its compact stainless steel housing with multi-mount stand suits confined environments such as environmental chambers, automation cells or the standard ESD workstation.

Benefits

• Fast discharge in under 3 seconds at about 30 cm
• Offset voltage of ±5 V, exceeding the limits of ANSI/ESD S20.20, tested per ESD TR53
• Two-speed fan from 33 to 51 CFM, low speed for small moving parts
• Steady-state DC solid tungsten emitters, widely spaced against ion recombination
• Stainless steel housing and shielded bearings against contamination in clean areas
• NIST calibrated with certificate

Technical data

• Offset voltage (ion balance): ±5 V
• Discharge time: under 3 seconds at 30 cm
• Airflow: 33 to 51 CFM (two-speed)
• Coverage area: approx. 15 x 60 cm
• Dimensions with stand: approx. 14 cm H x 9 cm W x 4 cm D
• Supply: 100 to 240 VAC adapter with interchangeable plugs, 24 VDC input
• Emitters: solid tungsten, steady-state DC

Applications

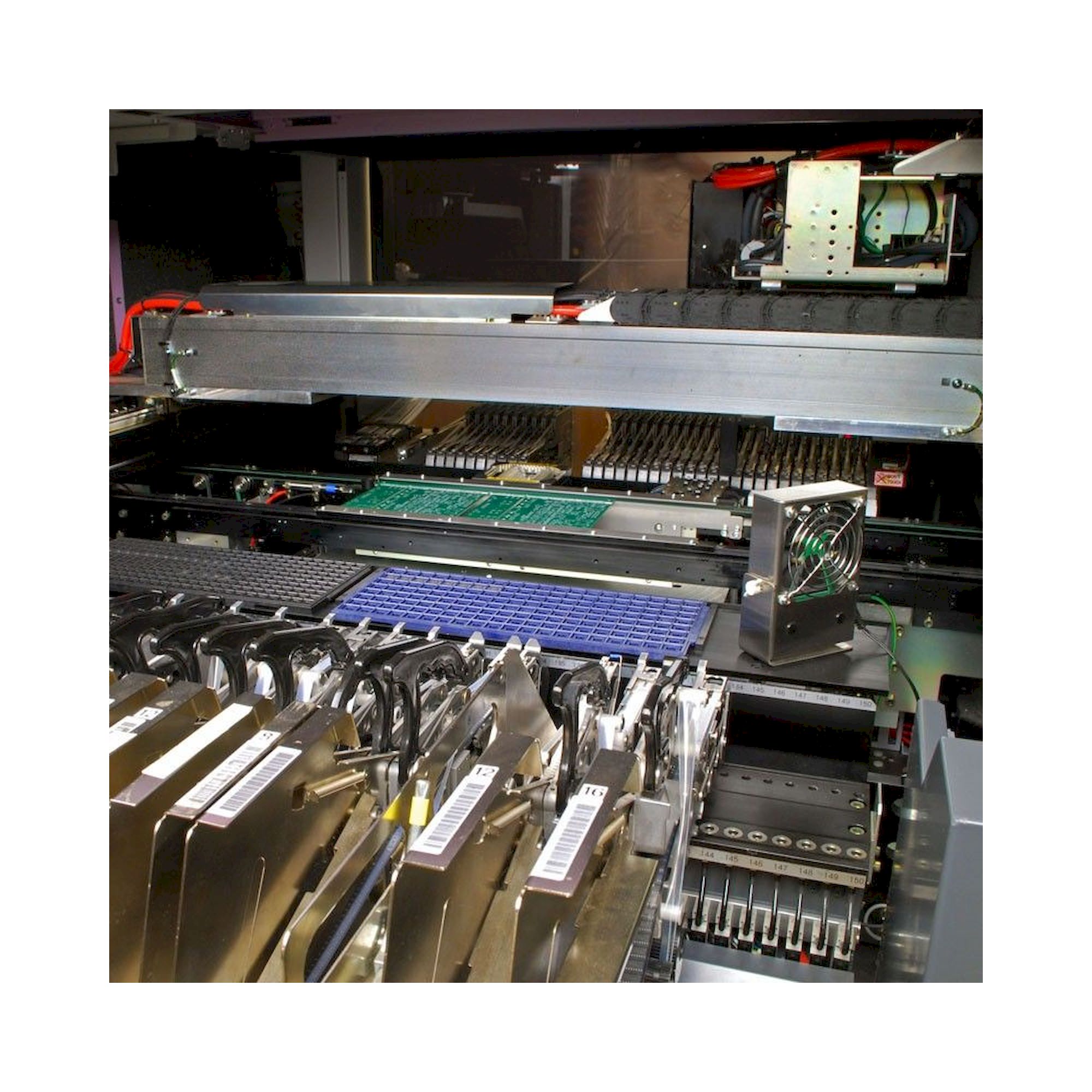

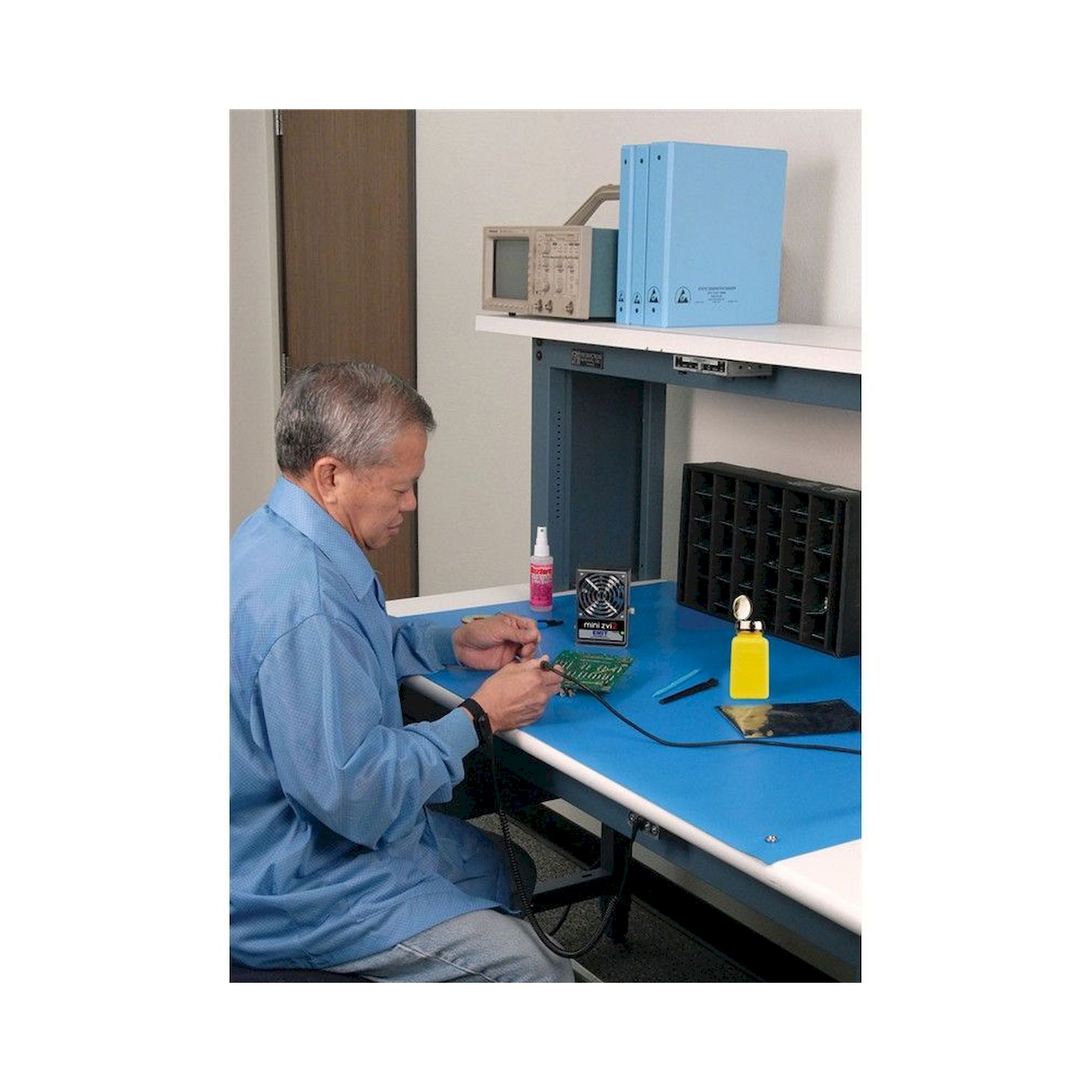

Charge neutralization at ESD workstations, in environmental chambers and around automated equipment where space is limited.

Standards and compliance

Meets the ionization requirements of ANSI/ESD S20.20 and supports an ESD control program to IEC 61340-5-1. CE compliant.
