For fine structures beyond standard magnification the Dino-Lite AM4113ZT4 works in the 430-470x range. The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards. Two year manufacturer warranty, shipped from Germany.
USB Handheld Microscope 1.3 MP 430-470x with Polarizer - Dino-Lite AM4113ZT4
DINO-LITE
Original product
Net price (excl. VAT)
€358.80
Item
AM4113ZT4
Manufacturer no.
AM4113ZT4
RoHS 2011/65/EU
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.AM4113ZT4
EAN4712805478149
Country of originTaiwan
Customs tariff number90118000
ConditionNew
Article
AM4113ZT4
Frequently Bought Together
-
This Item:
€358.80
-
Wireless-ready USB handheld microscope 1.3 MP 10-330x with polarizer - Dino-Lite AF4135ZTE
€534.00
-
USB handheld microscope 1.3 MP 10-55x - Dino-Lite AM4115TW
€481.20
Total price
For fine structures beyond standard magnification the Dino-Lite AM4113ZT4 works in the 430-470x range.
What it does for you
- A 1.3 MP sensor and a 430-470x magnification range, so overview and detail come from the same device.
- The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards.
- Measurement function with calibration via the supplied calibration target.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
- Wireless ready: with the WF-10 adapter the microscope runs cable free on tablet and phone.
Technical data
| Property | Value |
|---|---|
| Magnification | 430x ~ 470x |
| Working distance | Standard |
| Macro zoom | No |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | 1.3 Megapixel (1280x1024) |
| Frame rate | 30 fps |
| Illumination | White |
| Number of LEDs | 8 |
| LEDs switchable | Yes |
| Polarizer | Yes, linear |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | No |
| Diffuser cap | No |
| Measurement | Yes |
| Calibration | Yes |
| MicroTouch sensor | Yes |
| Magnification lock | Yes |
| Interface | USB 2.0 |
| Imaging standards | DirectShow, UVC |
| Wi-Fi | Wireless-ready, requires the WF-10 WiFi streamer (optional) |
| Operating system | Windows 7,8,10 & 11, MacOS 10.9 and up |

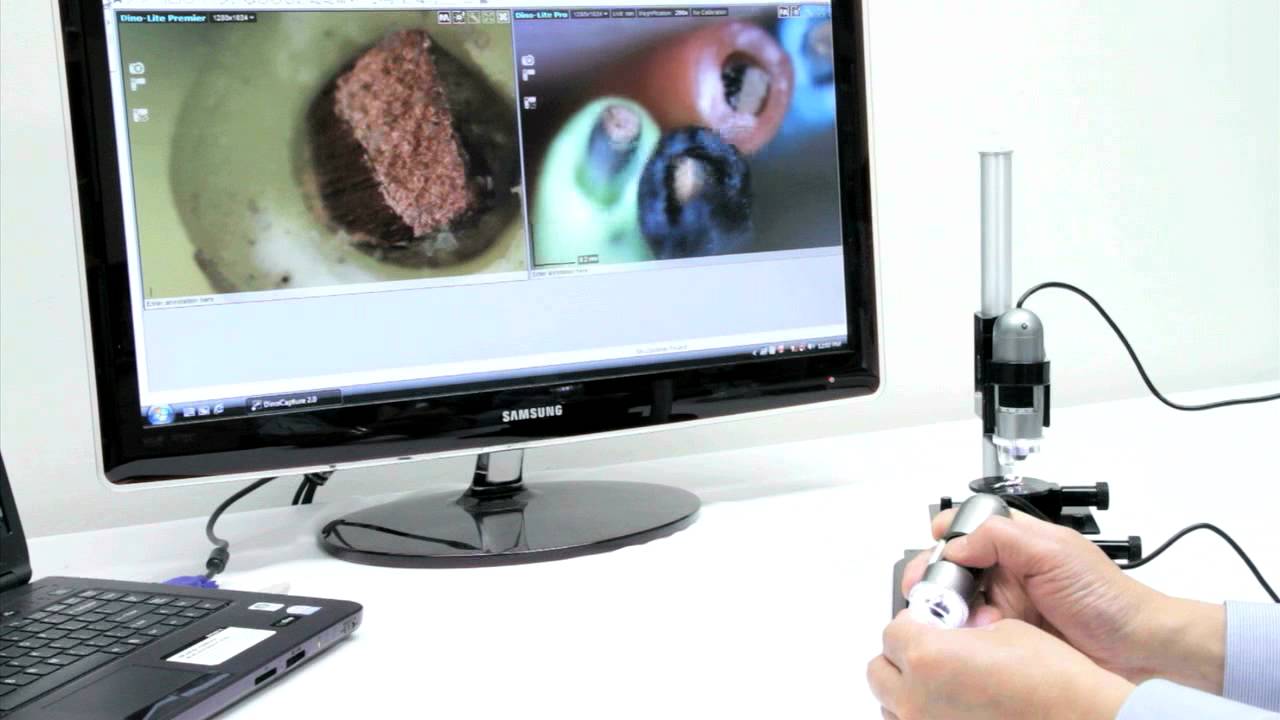

| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Housing | Composite/ plastic housing |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 100g |
| Cable length | 1.8m |
| ESD safe | No |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Package contents | Microscope, carry pouch, software CD, calibration target, ZT-Z-CC1 cap closure, user manual |
Magnification, working distance and field of view
| Magnification | Working distance (mm) | Field of view X (mm) | Field of view Y (mm) | Depth of field (mm) |
|---|---|---|---|---|
| 430 | -0.45 | 0.91 | 0.73 | 0.1 |
| 440 | 0.4 | 0.89 | 0.71 | 0.1 |
| 450 | 1.35 | 0.87 | 0.7 | 0.1 |
| 460 | 2.3 | 0.85 | 0.68 | 0.1 |
| 470 | 3.15 | 0.83 | 0.67 | 0.1 |
Values without front cap, as published by the manufacturer.
Typical uses
- Electronics manufacturing and repair: solder joints, BGA edges, tracks, placement errors.
- Materials testing: fracture surfaces, welds, corrosion, microstructure.
- Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
| Certification | RoHS 2011/65/EU |
|---|---|
| ESD version | TEC |
| Manufacturer Nr. | AM4113ZT4 |
| Manufacturer | Dino-Lite |
| Country of Manufacture | Taiwan |
| EAN | 4712805478149 |
| ESD equipment | USB Mikroskop |
| Weight | 0.100000 |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Warranty | 2 years |
| Material | ABS plastic |
| Polarizer | Ja |
| Long Working Distance | No |
| Interface | USB 2.0 |
| Position sensing | No |
