Dino-Lite AM4515ZT

Name: Dino-Lite AM4515ZT
Brand: Dino-Lite
SKU: AM4515ZT
Price: 679 EUR
Availability: InStock

Lead time

1 week

€679.00

Excl. 19% VAT , excl. Shipping Cost

Article

AM4515ZT

Manufacturer Nr.

AM4515ZT

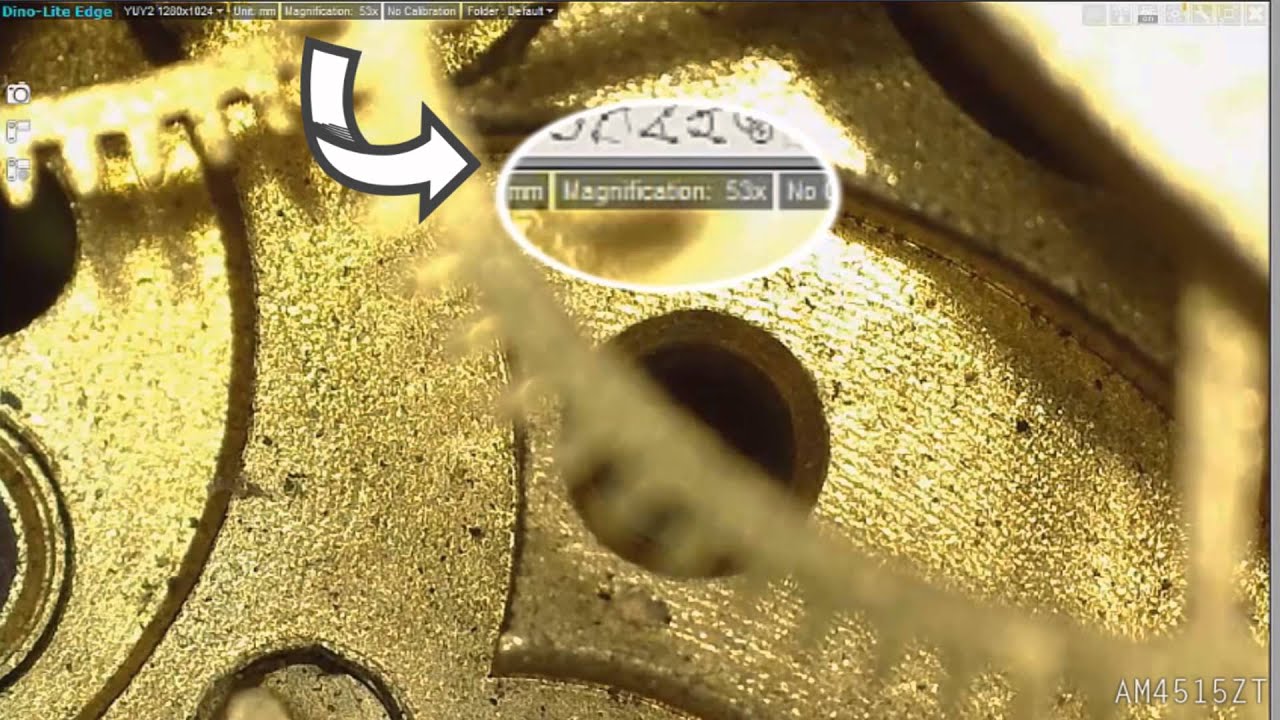

The Dino-Lite Edge models provide superior image quality and a high level of flexibility due to the adaptable cap design. The built-in adjustable polarizer reduces glare and reflection on shiny objects. With the built-in automatic magnification reading, measurements can be performed easily and quickly. Different caps are supplied with the microscope making the Dino-Lite Edge the perfect choice for any professional application. » Also available: AM4515T - Edge without Polarizer

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Dino-Lite AM4515ZT
€679.00
Excl. 19% VAT , excl. Shipping Cost
Dino-Lite CapillaryScope 500 Pro
€1,168.83
Excl. 19% VAT , excl. Shipping Cost
Dino-Lite RK-06A
€229.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Additional Info

Dino-Lite range:	Dino-Lite Universal

Lighting

Light/ LED type:	White
Number of LEDs:	8
LED on/off switchable:	Yes
Infrared filter:	IR cut-filter >650 nm
Diffuser available:	Yes (N3C-D included)
Emission filter:	No
Polarizer:	Yes, linear

Optics

Magnification:	20-220x
Macro zoom:	No
Working distance:	Standard
Lens type:	Glass with anti-reflection coating

Sensor

Sensor type:	CMOS
Resolution:	1.3 Megapixel (1280x1024)
Maximum frame rate:	30 fps

Compatibility

Interface:	USB 2.0
Operating system:	Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software:	DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows):	BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows):	WMV, FLV, SWF
Supported image formats (MacOS):	-
Supported video formats (MacOS):	-
Imaging standards:	DirectShow, UVC

Housing

Housing material:	Composite/ plastic housing
Magnification lock:	Yes
Dimensions:	10.5cm (L) x 3.2cm (D)
Weight:	105g
Cable length:	1.8m

Features

Special feature:	Aut. Magn. reading
Measurement:	Yes
Calibration:	Yes
Microtouch sensor:	Yes
ESD safe:	No

Information

Package contents:

Microscope, Carry pouch, Software CD, Calibration target, User manual, N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-Extension cap, N3C-L- Long cap, N3C-S- Side light cap

Warranty information:

2 years European warranty

Regulatory approval:

CE, FCC, ROHS

Price range:

€350,00 - €550,00

Working distance/ field of view/ depth of field:

Magnification Rate	Working Distance 1	Working Distance 2*	Field of View(x)	Field of View(y)	Depth of Field
Listed values may differ slightly		* Without front cap			Unit = mm
20	52.7	60.2	19.5	15.6	2.5
30	26.0	33.5	13.0	10.4	1.8
40	13.4	20.9	9.8	7.8	1.5
50	6.4	13.9	7.8	6.3	-
60	2.2	9.7	6.5	5.2	-
70	-	7.1	5.6	4.5	1.0
80	-	5.5	4.9	3.9	-
90	-	4.5	4.3	3.5	-
100	-	4.1	3.9	3.1	-
110	-	4.0	3.6	2.8	-
120	-	4.1	3.3	2.6	-
130	-	4.5	3.0	2.4	-
140	-	5.0	2.8	2.2	-
150	-	5.6	2.6	2.1	-
160	-	6.3	2.4	2.0	-
170	-	7.1	2.3	1.8	-
180	0.5	8.0	2.2	1.7	-
190	1.4	8.9	2.1	1.6	-
200	2.4	9.9	2.0	1.6	-
210	3.4	10.9	1.9	1.5	-
220	4.4	11.9	1.8	1.4	0.1

Information

More Information
Execution	TEC
Manufacturer Nr.	AM4515ZT
Manufacturer	Dino-Lite
Country of Manufacture	Taiwan, Province of China
EAN	4712805474462
ESD equipment	USB Mikroskop
Lead time	1 week
Weight	0.105000
HS-Code	90119090
GPSR manufacturer information	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Article authenticity	Original product
Condition of article	New
