USB Handheld Microscope 720p 60 fps 20-220x with Polarizer - Dino-Lite AM5216ZT
At 60 frames per second the Dino-Lite AM5216ZT follows moving objects without smearing. The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards. Two year manufacturer warranty, shipped from Germany.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
At 60 frames per second the Dino-Lite AM5216ZT follows moving objects without smearing.
What it does for you
- A VGA sensor and a 20-220x magnification range, so overview and detail come from the same device.

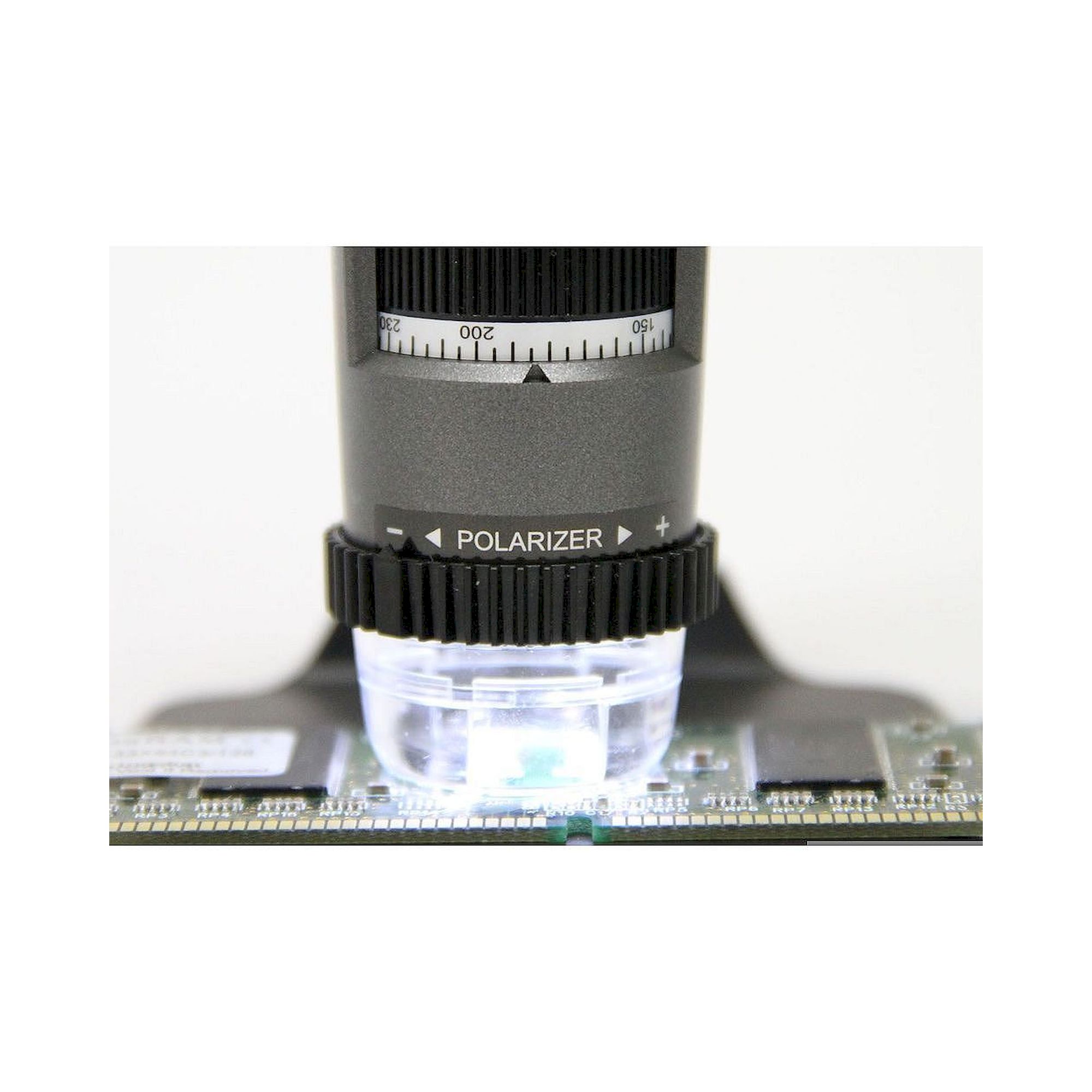

- The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
Magnification, working distance and field of view
| Magnification | Working distance (mm) | Field of view X (mm) | Field of view Y (mm) | Depth of field (mm) |
|---|---|---|---|---|
| 20 | 60.2 | 19.5 | 15.6 | 2.5 |
| 30 | 33.5 | 13.0 | 10.4 | 1.8 |
| 40 | 20.9 | 9.8 | 7.8 | 1.5 |
| 50 | 13.9 | 7.8 | 6.3 | - |
| 60 | 9.7 | 6.5 | 5.2 | - |
| 70 | 7.1 | 5.6 | 4.5 | 1.0 |
| 80 | 5.5 | 4.9 | 3.9 | - |
| 90 | 4.5 | 4.3 | 3.5 | - |
| 100 | 4.1 | 3.9 | 3.1 | - |
| 110 | 4 | 3.6 | 2.8 | - |
| 120 | 4.1 | 3.3 | 2.6 | - |
| 130 | 4.5 | 3 | 2.4 | - |
| 140 | 5 | 2.8 | 2.2 | - |
| 150 | 5.6 | 2.6 | 2.1 | - |
| 160 | 6.3 | 2.4 | 2 | - |
| 170 | 7.1 | 2.3 | 1.8 | - |
| 180 | 8 | 2.2 | 1.7 | - |
| 190 | 8.9 | 2.1 | 1.6 | - |
| 200 | 9.9 | 2.0 | 1.6 | - |
| 210 | 10.9 | 1.9 | 1.5 | - |
| 220 | 11.9 | 1.8 | 1.4 | 0.1 |
Values without front cap, as published by the manufacturer.
Typical uses
- Electronics manufacturing and repair: solder joints, BGA edges, tracks, placement errors.
- Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
- Materials testing: fracture surfaces, welds, corrosion, microstructure.
- Print and textiles: halftone dots, fibre orientation, ink build-up.
Technical data
| Property | Value |
|---|---|
| Magnification | 20x ~ 220x |
| Working distance | Standard |
| Macro zoom | No |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | HD 720p |
| Frame rate | 60 fps |
| Illumination | White |
| Number of LEDs | 8 |
| LEDs switchable | Yes |
| Polarizer | Yes, linear |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | No |
| Diffuser cap | Yes (N3C-D included) |
| Calibration | No |
| MicroTouch sensor | Yes |
| Magnification lock | Yes |

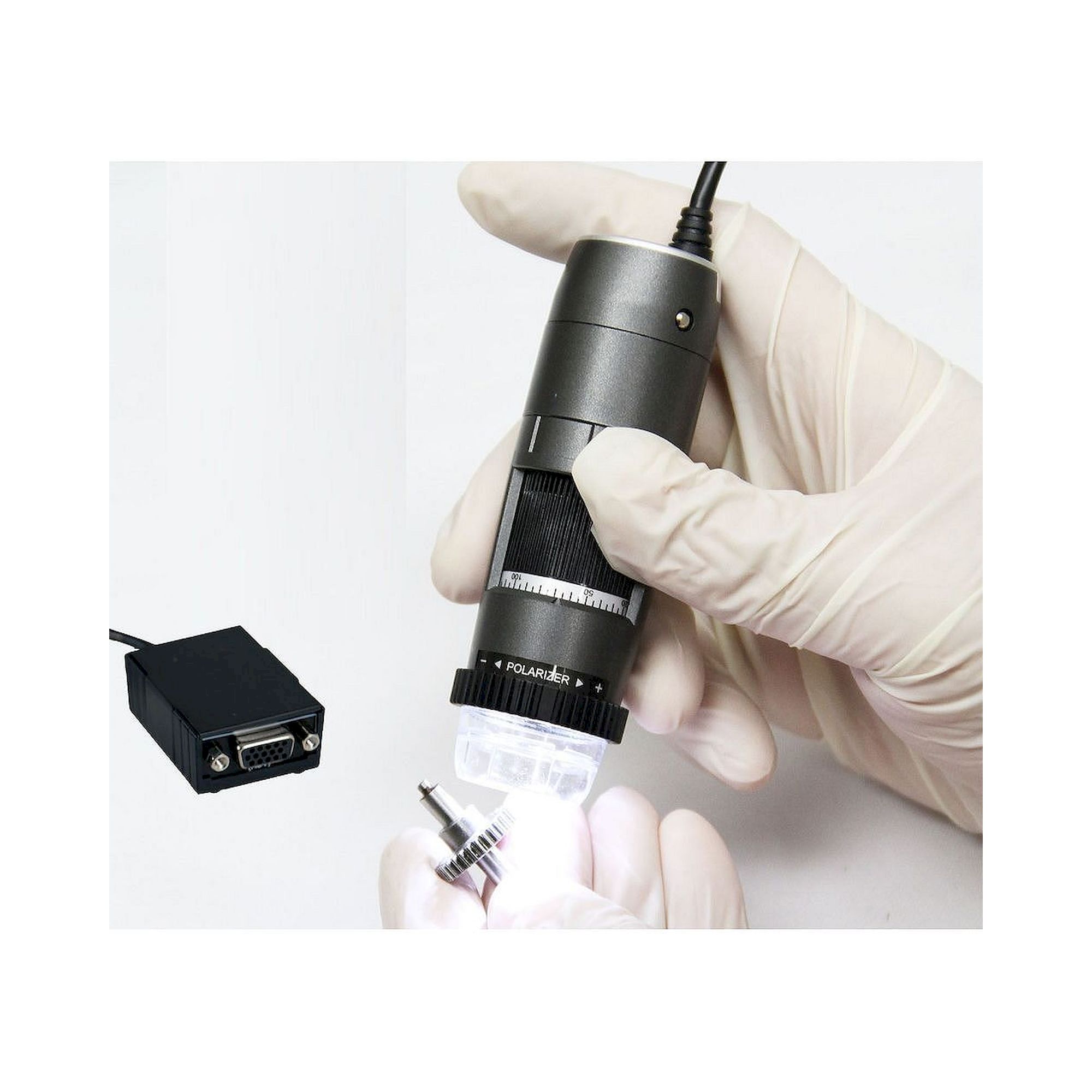

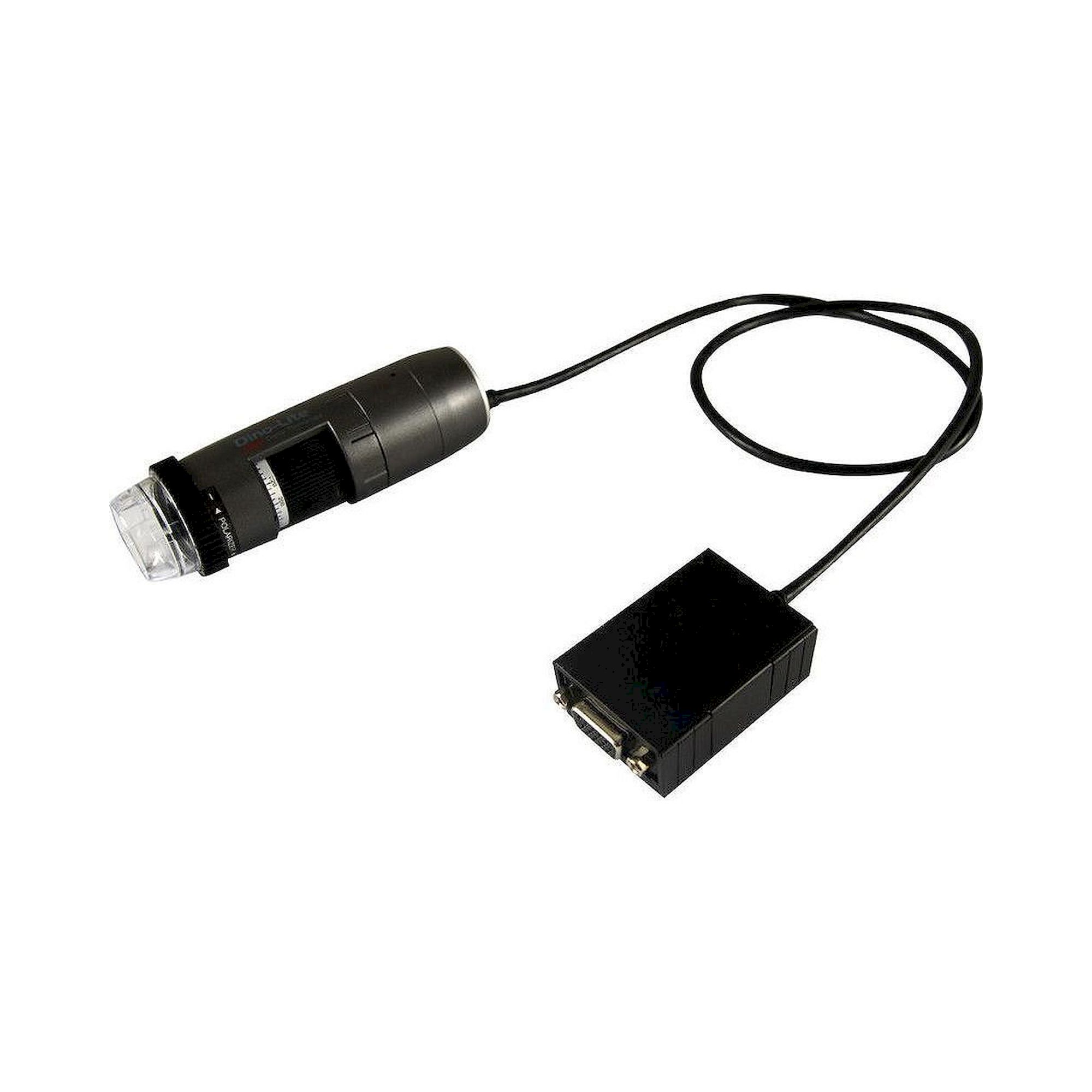

| Interface | VGA (D-Sub) |
| Wi-Fi | No |
| Housing | Composite/ plastic housing |
| Dimensions | 10.5cm (L) x 3.2cm (D) |
| Weight | 105g |
| Cable length | 0.6m |
| ESD safe | No |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Package contents | Microscope, carry pouch, power adapter, front cover box, user manual |
| Manufacturer | Dino-Lite |
| Manufacturer Nr. | AM5216ZT |
| EAN | 4712805476057 |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Taiwan |
| Material | ABS plastic |
| ESD version | TEC |
| ESD equipment | USB Mikroskop |
| Certification | RoHS 2011/65/EU |
| Magnification max (x) | 220 |
| Long Working Distance | No |
Downloads
Datasheet
User Manual
Brochure
Accessories
Dino-Lite
Calibration standard sheets, 50 pieces, for Dino-Lite microscopes - Dino-Lite CS-21
Item CS-21
€69.60
Dino-Lite
Table top stand with fine focus for all Dino-Lite microscopes - Dino-Lite RK-06F
Item RK-06F
€236.40
Show 7 more items
Dino-Lite
High-precision stand with fine focus and quick release - Dino-Lite RK-10A
Item RK-10A
€282.00
Dino-Lite
Precision stand with quick release and anti backlash focus - Dino-Lite RK-10F
Item RK-10F
€306.00
Dino-Lite
Compact lightweight portable stand for all Dino-Lite microscopes - Dino-Lite RK-04
Item RK-04
€106.80
Dino-Lite
Backlight pad with removable polarizer for bright and dark field - Dino-Lite BL-ZW2
Item BL-ZW2
€252.00
Dino-Lite
USB Handheld Microscope 720p 60 fps 10-140x LWD with Polarizer - Dino-Lite AM5216ZTL
Item AM5216ZTL
€505.20
ESD version
Dino-Lite
High-speed digital microscope 10-50x with polarizer, ESD safe - Dino-Lite AM5218MZTW
Item AM5218MZTW
€750.00
Dino-Lite
USB Handheld Microscope 720p 60 fps 10-140x LWD with Polarizer - Dino-Lite AM5216ZTL
Item AM5216ZTL
€505.20
Dino-Lite
High-speed digital microscope 10-70x with polarizer and LWD - Dino-Lite AM5218MZTF
Item AM5218MZTF
€855.60

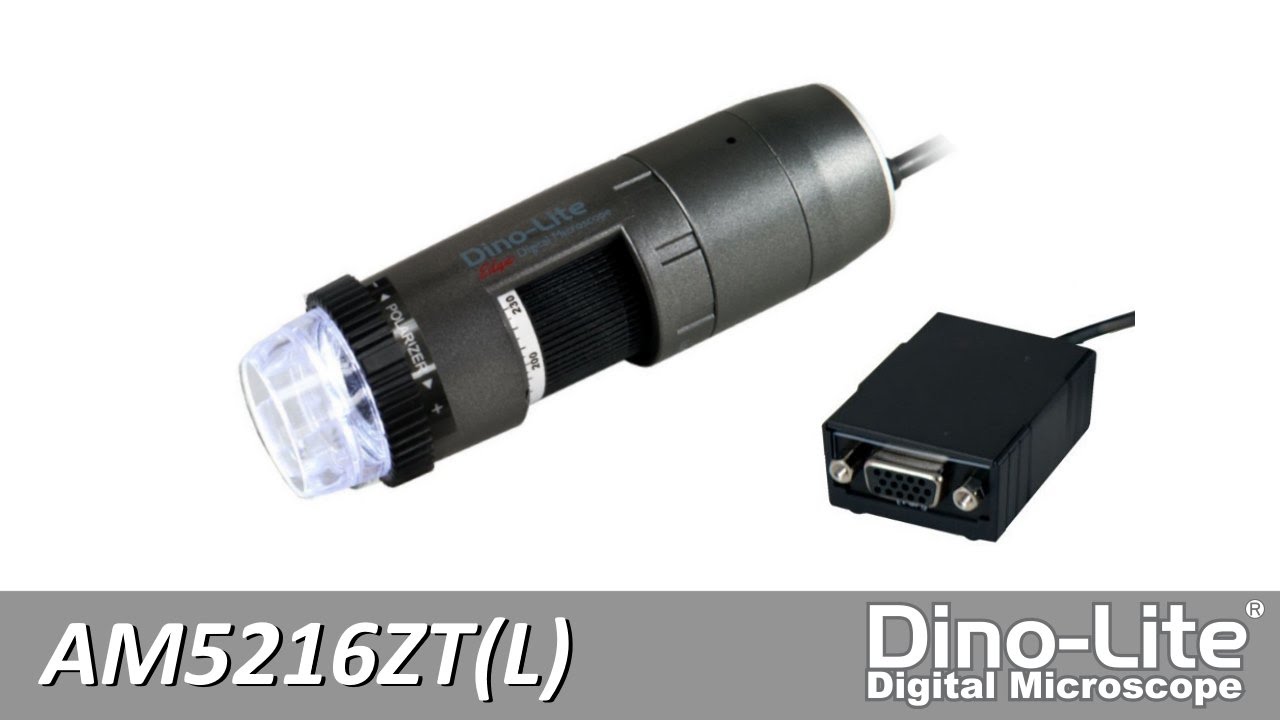

Videos
