Dino-Lite AM4115T-DFRW

Name: Dino-Lite AM4115T-DFRW
Brand: Dino-Lite
SKU: AM4115T-DFRW
Price: 779 EUR
Availability: InStock

Lead time

1 week

€779.00

Excl. 19% VAT , excl. Shipping Cost

Article

AM4115T-DFRW

Manufacturer Nr.

AM4115T-DFRW

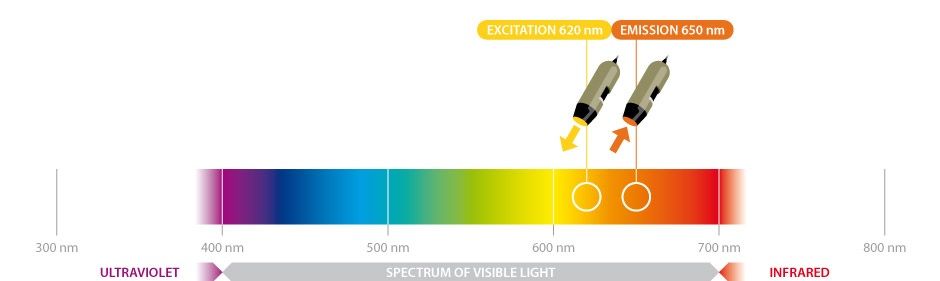

The Dino-Lite AM4115T-DFRW digital microscope is optimized for research and viewing fluorescent objects by using 620nm excitation LEDs. It has a long-pass type 650nm emission filter that is designed to observe a wide range of fluorophores with applications in developmental biology, pathology, and anatomy. The AM4115T-DFRW has the capability of switching the light source from the 620nm excitation LEDs to the white LED, which is convenient for locating the object and obtaining an easy focus. All of these factors make the AM4115T-DFRW the smallest fluorescence microscope in the world, capable of many applications and visualizing a vast range of fluorescence. » Special models available on request.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

The product may differ from the illustration

Frequently Bought Together

This Item: Dino-Lite AM4115T-DFRW
€779.00
Excl. 19% VAT , excl. Shipping Cost

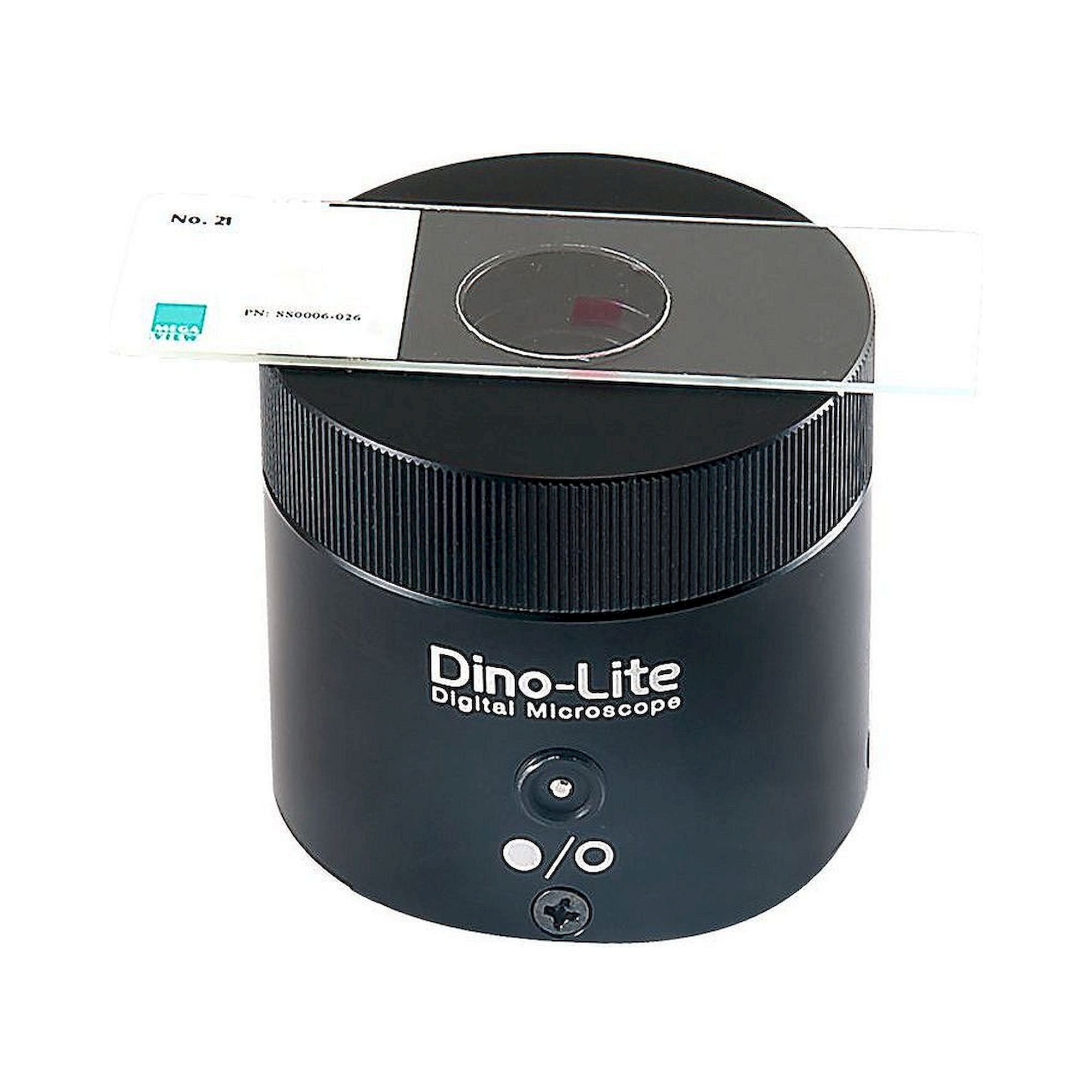

Dino-Lite BL-CDW
€299.00
Excl. 19% VAT , excl. Shipping Cost
Dino-Lite AM4013MZT
€589.00
Excl. 19% VAT , excl. Shipping Cost

Total price

Details

Additional Info

Dino-Lite range:	Dino-Lite Special lighting

Lighting

Light/ LED type:	620nm excitation + white
Number of LEDs:	7 FL + 1 White
LED on/off switchable:	Yes
Infrared filter:	No
Diffuser available:	No
Emission filter:	650nm, LP
Fluorophores:	Cy5
Polarizer:	No

Optics

Magnification:	20-220x
Macro zoom:	No
Working distance:	Standard
Lens type:	Glass with anti-reflection coating

Sensor

Sensor type:	CMOS
Resolution:	1.3 Megapixel (1280x1024)
Maximum frame rate:	30 fps

Compatibility

Interface:	USB 2.0
Operating system:	Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software:	DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows):	BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows):	WMV, FLV, SWF
Supported image formats (MacOS):	JPEG, PNG
Supported video formats (MacOS):	MOV
Imaging standards:	DirectShow, UVC

Housing

Housing material:	Composite/ plastic housing
Magnification lock:	Yes
Dimensions:	10.5cm (L) x 3.2cm (D)
Weight:	105g
Cable length:	1.8m

Features

Special feature:	No
Measurement:	Yes
Calibration:	Yes
Microtouch sensor:	Yes
ESD safe:	No

Information

Package contents:

Microscope, Carry pouch, Software CD, Calibration target, User manual

Warranty information:

2 years European warranty

Regulatory approval:

CE, FCC, ROHS

Price range:

€550,00 - €750,00

Working distance/ field of view/ depth of field:

Magnification Rate	Working Distance 1	Working Distance 2*	Field of View(x)	Field of View(y)	Depth of Field
Listed values may differ slightly		* Without front cap			Unit = mm
20	52.7	60.2	19.5	15.6	2.5
30	26.0	33.5	13.0	10.4	1.8
40	13.4	20.9	9.8	7.8	1.5
50	6.4	13.9	7.8	6.3	-
60	2.2	9.7	6.5	5.2	-
70	-	7.1	5.6	4.5	1.0
80	-	5.5	4.9	3.9	-
90	-	4.5	4.3	3.5	-
100	-	4.1	3.9	3.1	-
110	-	4.0	3.6	2.8	-
120	-	4.1	3.3	2.6	-
130	-	4.5	3.0	2.4	-
140	-	5.0	2.8	2.2	-
150	-	5.6	2.6	2.1	-
160	-	6.3	2.4	2.0	-
170	-	7.1	2.3	1.8	-
180	-	8.0	2.2	1.7	-
190	-	8.9	2.1	1.6	-
200	-	9.9	2.0	1.6	-
210	-	10.9	1.9	1.5	-
220	-	11.9	1.8	1.4	0.1

Special Light:

Information

More Information
Execution	TEC
Manufacturer Nr.	AM4115T-DFRW
Manufacturer	Dino-Lite
Country of Manufacture	Taiwan, Province of China
EAN	4712805474271
ESD equipment	USB Mikroskop
Lead time	1 week
Weight	0.009900
HS-Code	90119090
GPSR manufacturer information	A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment
Article authenticity	Original product
Condition of article	New
