USB Edge Microscope 1.3 MP 400-470x Fluorescence 480 nm GFP - Dino-Lite AM4515T4-GFBW

High magnification for GFP fluorescence

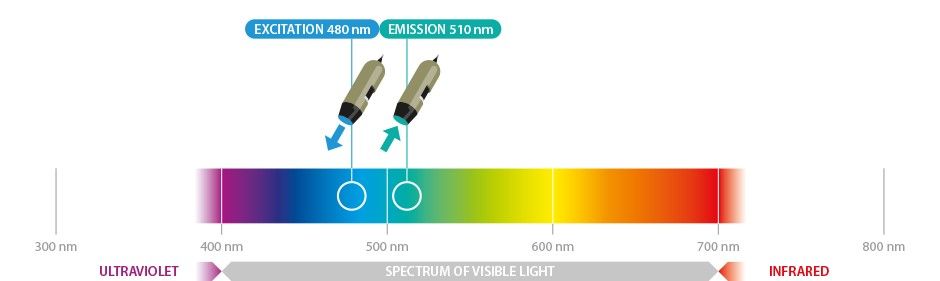

The AM4515T4-GFBW is an Edge microscope with a high magnification range of 400x to 470x. Blue LEDs excite at 480 nm, and a long-pass blocking filter from 510 nm passes the fluorescence signal. This tunes the model to green fluorescent samples such as GFP. The switchable white light is used first to find and focus the object.

Key features

• High 400x to 470x magnification for fine structures
• 480 nm excitation with a 510 nm long-pass blocking filter for GFP and green fluorophores
• Switchable white light for locating and focusing
• 1.3 MP sensor at 1280 x 1024 pixels and up to 30 frames per second
• Automatic magnification readout (AMR) plus measurement and calibration through DinoCapture and DinoXcope

Technical data

• Sensor: 1.3 MP, 1280 x 1024
• Magnification: 400x to 470x (maximum 470x)
• Illumination: 480 nm blue excitation, 510 nm long-pass blocking filter, switchable white light
• Interface: USB 2.0
• Polarizer: no
• Weight: approx. 0.105 kg

Applications

• Developmental biology, pathology and anatomy
• Observation of GFP-labelled samples at high magnification
• Switching between white-light search and fluorescence assessment with measurement

Compatibility and contents

Works with Dino-Lite MS-W1, RK-02 and MS08B stands. DinoCapture and DinoXcope software included. Related Edge fluorescence models cover further excitation wavelengths, such as AM4115T-RFYW for red fluorophores.

Standards and origin

Made in Taiwan by AnMo Electronics. Customs code 90118000.
