Over USB 3.0 the Dino-Lite AM73115MZT delivers the live image without stutter and at full sensor resolution. The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards. Two year manufacturer warranty, shipped from Germany.

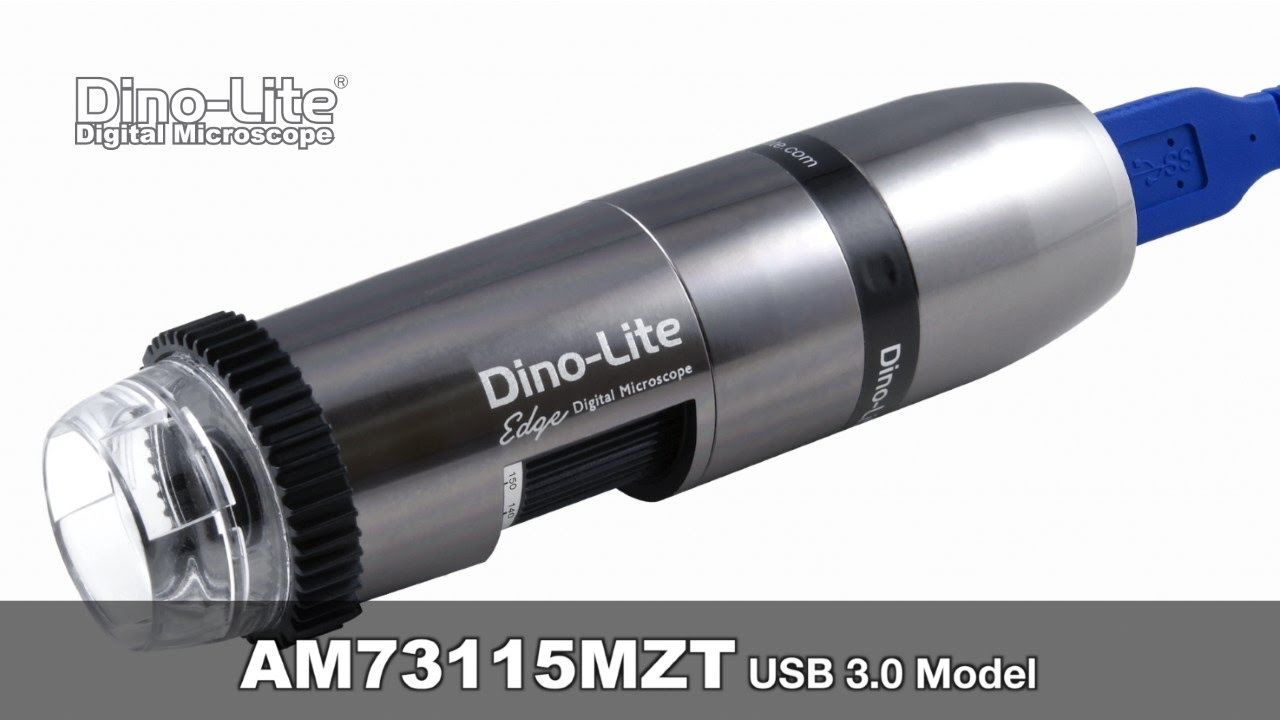

USB 3.0 Edge Microscope 5 MP 10-220x with Polarizer and FLC - Dino-Lite AM73115MZT
DINO-LITE
Original product
Net price (excl. VAT)
€896.40
Item
AM73115MZT
Manufacturer no.
AM73115MZT
RoHS 2011/65/EU
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
Manufacturer no.AM73115MZT
EAN4712805476442
Country of originTaiwan
Customs tariff number90118000
ConditionNew
Article
AM73115MZT
Frequently Bought Together
-
This Item:
€896.40
-
USB handheld microscope 5 MP 70-140x with AMR, ESD safe - Dino-Lite AM7515MT1A
€872.40
-
USB UV digital microscope 1.3 MP 20-200x - Dino-Lite AM4013MT-VW
€488.40
Total price
Over USB 3.0 the Dino-Lite AM73115MZT delivers the live image without stutter and at full sensor resolution.
What it does for you
- A 5 MP sensor and a 10-220x magnification range, so overview and detail come from the same device.
- The built-in polarizer suppresses reflections on metal, glass, plastic and circuit boards.
- Measurement function with calibration via the supplied calibration target.
- Flexible LED Control switches individual LED segments to take out cast shadows and hot spots.
- ESD safe housing for use at EPA workstations to IEC 61340-5-1.
- The MicroTouch trigger on the housing captures the image without shaking the camera.
Technical data
| Property | Value |
|---|---|
| Magnification | 10x ~ 220x |
| Working distance | Standard |
| Macro zoom | No |
| Lens type | Glass with anti-reflection coating |
| Sensor type | CMOS |
| Resolution | 5.0 Megapixel (2560x1920) |
| Frame rate | 45fps (max 20fps video recording) |
| Illumination | White |
| Number of LEDs | 8 |
| LEDs switchable | Yes |
| Flexible LED Control | Yes |
| Polarizer | Yes, linear |
| Infrared filter | IR cut-filter >650 nm |
| Emission filter | No |
| Diffuser cap | Yes (N3C-D included) |
| Measurement | Yes |
| Calibration | Yes |
| MicroTouch sensor | Yes |
| Magnification lock | Yes |
| Interface | USB 3.0, Cable included** |
| Imaging standards | DirectShow, UVC |
| Wi-Fi | No |
| Operating system | Windows7, 8, 10 & 11, MacOS 10.9 and up |
| Software | DinoCapture 2.0 (Windows), DinoXcope (Mac OS) |
| Housing | Metal housing |
| Dimensions | 11.9cm (L) x 3.3cm (H) |
| Weight | 110g |
| Cable length | 1.8m |
| ESD safe | Yes |
| Country of origin | Taiwan |
| Warranty | 2 years European warranty |
| Regulatory approval | CE, FCC, ROHS |
| Package contents | Microscope, carry pouch, software CD, user manual, quick guide, calibration target, front cover N3C-O- Open cap, N3C-C- Closed cap, N3C-D- Diffuser cap, N3C-E- Extension cap, N3C-L- Long cap, N3C-S- Side light cap |
Magnification, working distance and field of view
| Magnification | Working distance (mm) | Field of view X (mm) | Field of view Y (mm) | Depth of field (mm) |
|---|---|---|---|---|
| 10 | 142.4 | 37.8 | 28.3 | 19.7 |
| 20 | 59.5 | 19.5 | 14.6 | 5.4 |
| 30 | 32.9 | 13.0 | 9.7 | 2.6 |
| 40 | 20.2 | 9.8 | 7.3 | 1.6 |
| 50 | 13.2 | 7.8 | 5.8 | 1.1 |
| 60 | 9.0 | 6.5 | 4.8 | 0.8 |
| 70 | 6.4 | 5.6 | 4.2 | 0.6 |
| 80 | 4.8 | 4.9 | 3.6 | 0.5 |
| 90 | 3.9 | 4.3 | 3.2 | 0.42 |
| 100 | 3.5 | 3.9 | 2.9 | 0.36 |
| 110 | 3.3 | 3.6 | 2.7 | 0.31 |
| 120 | 3.5 | 3.3 | 2.4 | 0.27 |
| 130 | 3.8 | 3.0 | 2.2 | 0.24 |
| 140 | 4.3 | 2.8 | 2.1 | 0.22 |
| 150 | 4.9 | 2.6 | 1.9 | 0.2 |
| 160 | 5.6 | 2.4 | 1.8 | 0.18 |
| 170 | 6.4 | 2.3 | 1.7 | 0.17 |
| 180 | 7.3 | 2.2 | 1.6 | 0.15 |
| 190 | 8.2 | 2.1 | 1.5 | 0.14 |
| 200 | 9.2 | 2.0 | 1.5 | 0.13 |
| 210 | 10.2 | 1.9 | 1.4 | 0.13 |
| 220 | 11.3 | 1.8 | 1.3 | 0.12 |
Values without front cap, as published by the manufacturer.
Typical uses
- Electronics manufacturing and repair: solder joints, BGA edges, tracks, placement errors.
- Quality control and incoming inspection: surface defects, burrs, coatings, dimensional checks.
- Materials testing: fracture surfaces, welds, corrosion, microstructure.
- Print and textiles: halftone dots, fibre orientation, ink build-up.
| Certification | RoHS 2011/65/EU |
|---|---|
| ESD version | ESD (antistatic) |
| Manufacturer Nr. | AM73115MZT |
| Manufacturer | Dino-Lite |
| Country of Manufacture | Taiwan |
| EAN | 4712805476442 |
| ESD equipment | USB Mikroskop |
| Weight | 0.110000 |
| HS-Code | 90118000 |
| GPSR manufacturer information | A1-ESD equipment GmbH. Keldersstr. 15, DE-42697 Solingen, www.esd.equipment, info@esd.equipment |
| Article authenticity | Original product |
| Condition of article | New |
| Warranty | 2 years |
| Material | Metal |
| Polarizer | Ja |
| Long Working Distance | No |
| Interface | USB 3.0 |
