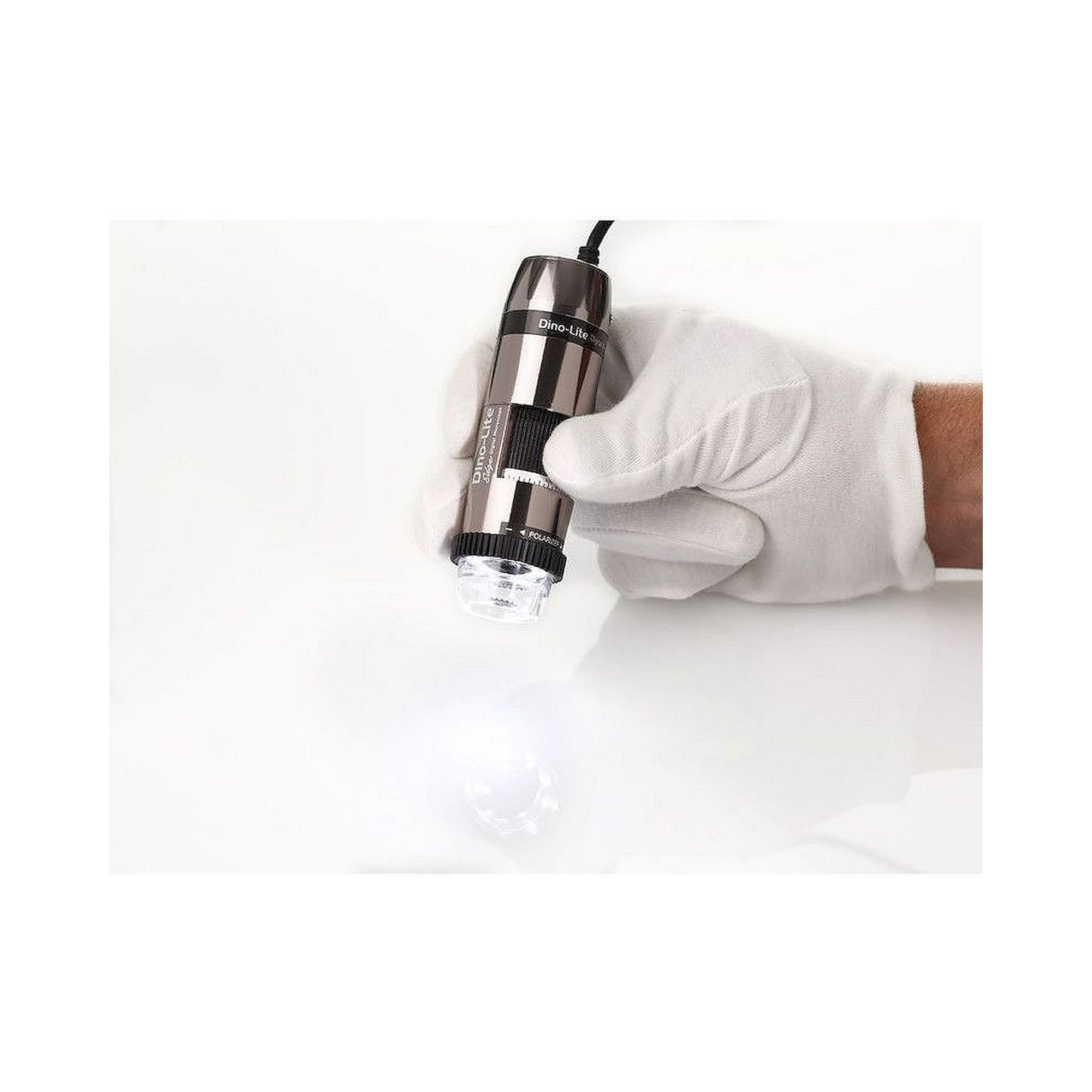

Dino-Lite AM7915MZTL

Lead time
1 week
€1,169.00
Excl. 19% VAT , excl. Shipping Cost
Article
AM7915MZTL

Manufacturer Nr.
AM7915MZTL
The AM7915MZTL is part of the Long Working Distance (LWD) range and with its Long Working Distance and magnification range from 10 - 140x, it is suitable for a wide range of applications where extra distance to the object or a larger field of view is required. With the Extended Dynamic Range (EDR) feature, the details of darker or brighter areas within the object can be revealed by stacking images at different exposure levels. The Extended Depth of Field (EDOF) feature automatically stacks images at different focus level to improve the depth of field on rough or uneven surfaces. The AMR function is of particular importance when the measurement functions are frequently used. Because of the built-in polarization filter this model is ideal when working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc. The main features of the AM7915MZTL are:• 5 Megapixel Edge sensor• Extended Depth of Field (EDOF)• Extended Dynamic Range (EDR)• 10-140x Magnification & Long working distance• Automatic Magnification Reading (AMR)• Adjustable polarizer• Flexible LED Control (FLC)• And more...(*EDOF only functions under Windows OS)

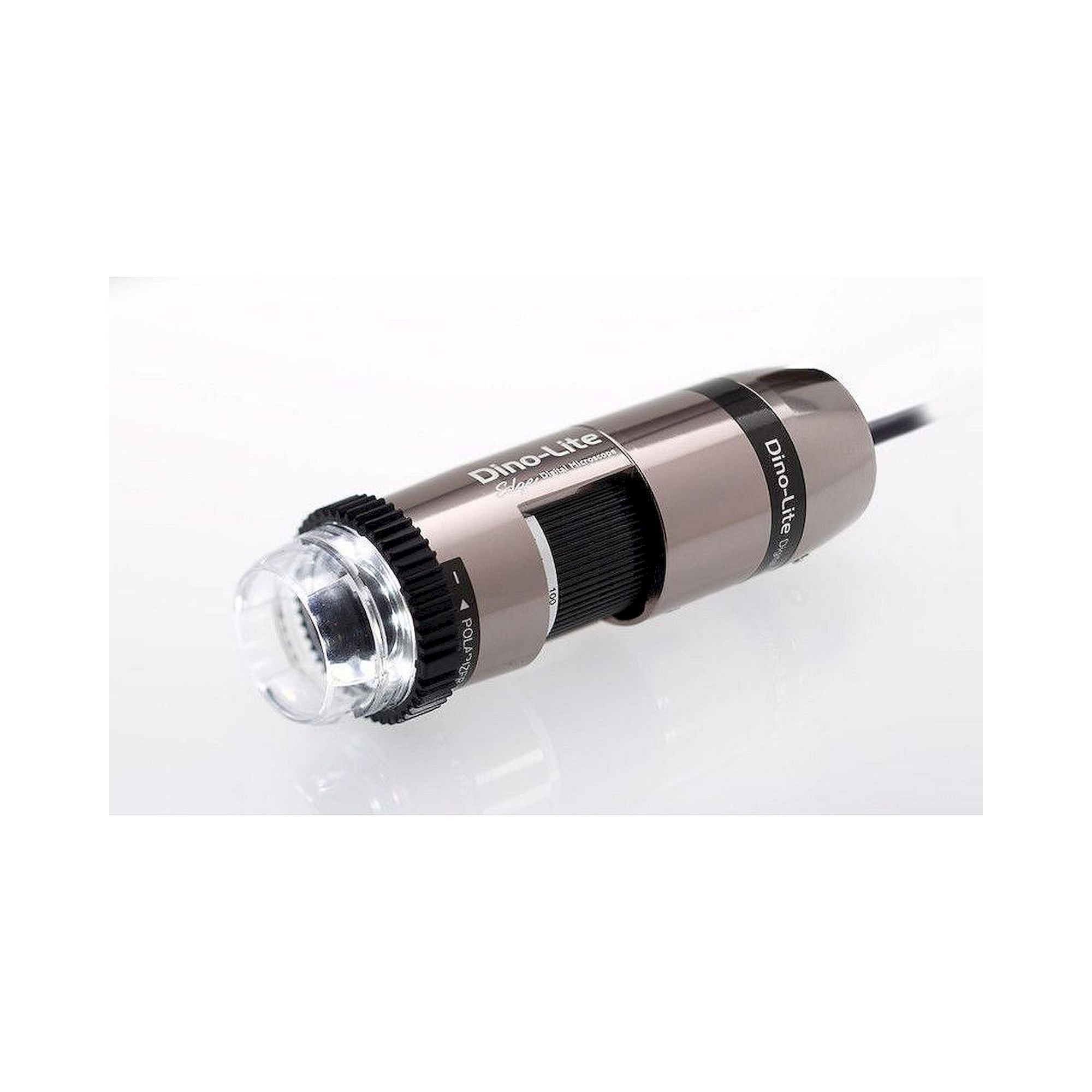

The product may differ from the illustration
Frequently Bought Together
Total price
USBMag 10 1405 megapixelEDOFEDRAMRPolariserFLCexch-cap
Additional Info
Dino-Lite range: Dino-Lite Long Working Distance
Lighting
Light/ LED type: White
Number of LEDs: 8
LED on/off switchable: Yes
Infrared filter: IR cut-filter >650 nm
Diffuser available: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear
Optics
Magnification: 10-140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflection coating
Sensor
Sensor type: CMOS
Resolution: 5 Megapixel (2592x1944)
Maximum frame rate: 30 fps
Compatibility
Interface: USB 2.0
Operating system: Windows XP, Vista, 7, 8 & 10, MacOS 10.9 and up
Included software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): -
Supported video formats (MacOS): -
Imaging standards: DirectShow, UVC
Housing
Housing material: Metal housing
Magnification lock: Yes
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 137g
Cable length: 1.8m
Features
Special feature: Aut. Magn. reading, Ext. Dynamic Range (EDR), Ext. Depth of Field (EDOF), Flexible LED Control (FLC)
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: Yes
Information
Package contents:
Microscope, Carry pouch, Software CD, User manual, Quick guide, Calibration target, Front cover box
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
Price range: €750,00 - €1000,00
Working distance/ field of view/ depth of field:

Magnification RateWorking Distance * Field of View(x) Field of View(y) Depth of Field
Listed values may differ slightly
* Without front cap Unit = mm
10 234.5 39.0 29.2 12.0
20 112.5 19.5 14.6 4.5
30 72.5 13.0 9.7 3.1
40 54.5 9.8 7.3 1.8
50 43.5 7.8 5.8 1.2
60 37.5 6.5 4.8 0.9
70 33.7 5.6 4.2 0.6
80 31.3 4.9 3.6 0.5
90 29.9 4.3 3.2 0.37
100 29.2 3.9 2.9 0.28
110 29.1 3.5 2.6 0.22
120 29.3 3.3 2.4 0.17
130 29.8 3.0 2.2 0.12
140 30.5 2.8 2.1 0.09
More Information
Execution TEC
Manufacturer Nr. AM7915MZTL
Manufacturer Dino-Lite
Country of Manufacture Taiwan, Province of China
EAN 4712805476855
ESD equipment USB Mikroskop
Lead time 1 week
Weight 0.137000
HS-Code 90119090
Article authenticity Original product
Condition of article New
