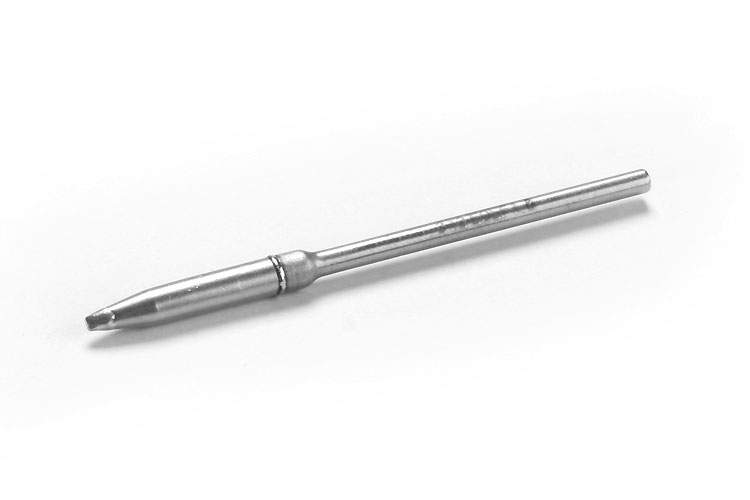

Ersadur Soldering Tip, straight, chisel-shaped, 1.8 mm - Ersa 0212EDLF
Straight, chisel-shaped Ersadur permanent soldering tip, 1.8 mm wide, with Ersadur-LF coating for lead-free soldering and a long service life. Fits the Micro-Tool soldering iron and many Ersa stations such as TWIN, SMD 8000 and DIGITAL 2000 A.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Permanent soldering tip, straight, chisel-shaped, 1.8 mm wide, with Ersadur-LF coating for lead-free soldering and extended service life. Suitable for the TWIN 40 A/AS, TWIN 80, SMT UNIT 60 A/AS, SMD 8000, REWORK 80, MICRO-CON 60 iA, ANALOG 20 A and DIGITAL 2000 A soldering stations as well as the Micro-Tool soldering iron.
Ersadur soldering tips are produced to a high standard and built for continuous use. In a special process they are galvanically plated with an iron layer and protected against corrosion and oxidation by an additional chromium layer. Perfect heat transfer protects the heating element of the soldering iron from overheating and premature wear.
Technical data
| RoHS compliant | Yes |
|---|---|
| Version | straight |
| Tip coating | Permanent soldering tip |
| Tip shape | chisel-shaped |
| Tip diameter/width | 1.80 mm |
| Shaft outer diameter | 3.00 mm |
| Overall length | 72 mm |
| Tip series | 212 |
| Weight | 0.01 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0212EDLF |
| EAN | 4003008076561 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 1.8 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | meißelförmig |
| Overall length [mm] | 72 |
| Shank outer diameter [mm] | 3 |
| Series | 212 |
