Multitip C25 Soldering Iron, 25 W / 230 V - Ersa 0920BD
Fine ERSA Multitip soldering iron with 25 W output for the finest to medium-sized solder joints. The internally heated Ersadur long-life tip and durable PTC heating element deliver high efficiency and fast heat recovery. Supplied with a 1.1 mm pencil-point tip (0172BD) and holder (0A18).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The ERSA Multitip C25 fine soldering iron combines a wide range of applications with low weight and a compact design. The short distance between the soldering tip and the front of the grip, together with a handle that stays comparatively cool, makes precise work easier. With 25 W it suits the finest solder joints as well as medium-sized work such as on distribution strips. Internally heated tips and a durable, industry-proven PTC heating element ensure high efficiency and fast heat recovery. Supplied with a 1.1 mm pencil-point Ersadur long-life soldering tip (0172BD) and holder (0A18).
Technical data
| Specification | Value |
|---|---|
| Rated power | 25 W |
| Voltage | 230 V |
| Heat-up time | 60 s |
| Max. tip temperature | 450 °C |
| Heating element | PTC |
| Tip design | straight |
| Tip shape | pencil point |
| Tip diameter | 1.10 mm |
| Tip coating | Ersadur long-life tip |
| Tip series | 172 series |
| Supplied tip | 0172BD |
| Holder | 0A18 |
| Spare heating element | E092100 |
| Antistatic version | No |
| Operating mode | Mains operation |
| RoHS compliant | Yes |
| Weight | 0.29 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0920BD |
| EAN | 4003008048193 |
| HS-Code | 85151100 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Ausführung | gerade |
| ESD version | TEC |
| ESD equipment | ESD Lötstationen |
| Certification | RoHS 2011/65/EU |
| Tip diameter/width [mm] | 1.1 |
| Soldering tip coating | Dauerlötspitze |
| Soldering tip shape | bleistiftspitze |
| Heat-up time [s] | 60 |
| Operating voltage | 230 V |
| Temperature (max.) | up to 450 °C |
Downloads
Datasheet
Declaration of Conformity
Accessories

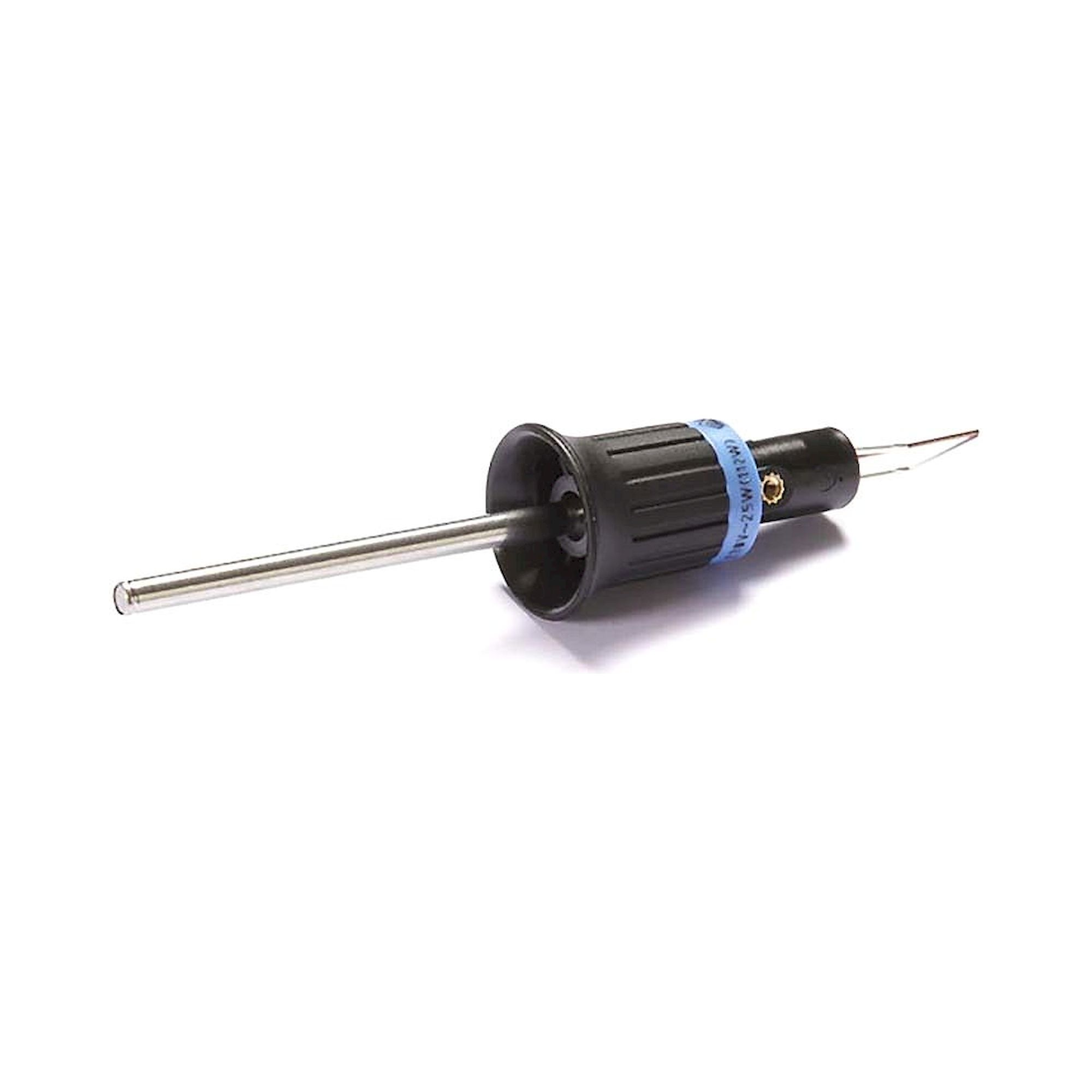

Replacement heating element for Multitip C 25 soldering iron, 25 W - Ersa E092100
Item ER-E092100Questions about this item
