A100 Lötstation - 80W, digital geregelt, mit i-TOOL A100 & Tip’n’Turn Lötspitze - Ersa 0A100

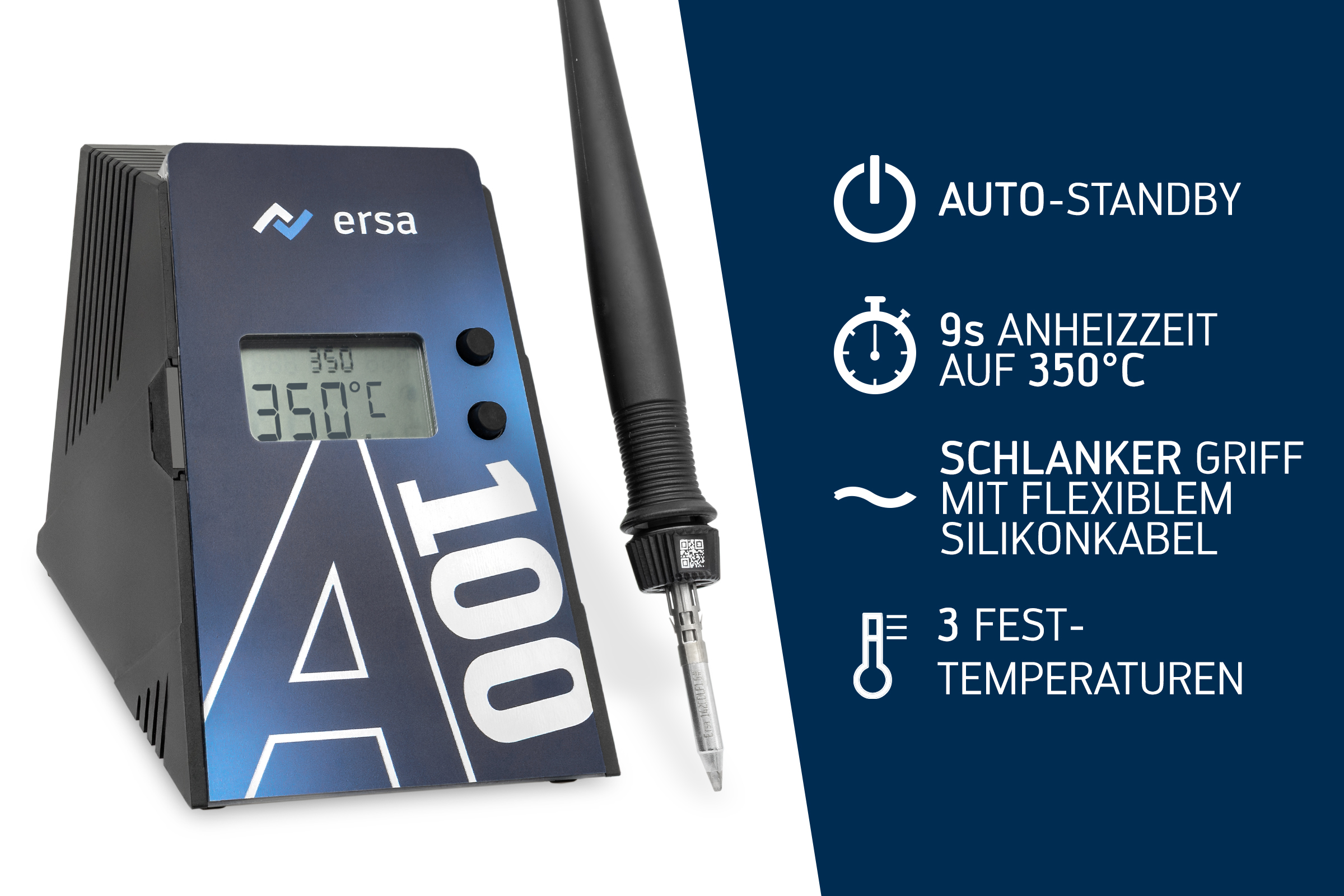

Switching between fine SMD joints and heavy ground planes costs time in re-setting the temperature. The Ersa A100 puts three freely selectable fixed temperatures between 150 and 450 °C on a keypress and reaches 350 °C in 9 seconds from 80 W of heating power.

Why the A100 works in a shop environment

• 80 W of heating power and a 9 second heat-up time to 350 °C, so the station is ready almost immediately.
• Three programmable fixed temperatures across 150 to 450 °C for fast switching between jobs.
• Automatic standby and automatic shutdown save energy and extend tip life.
• SD card slot for keylock, Celsius to Fahrenheit switching, temperature profiles and custom energy settings.
• Calibration function that keeps the reading accurate even as bench conditions change.

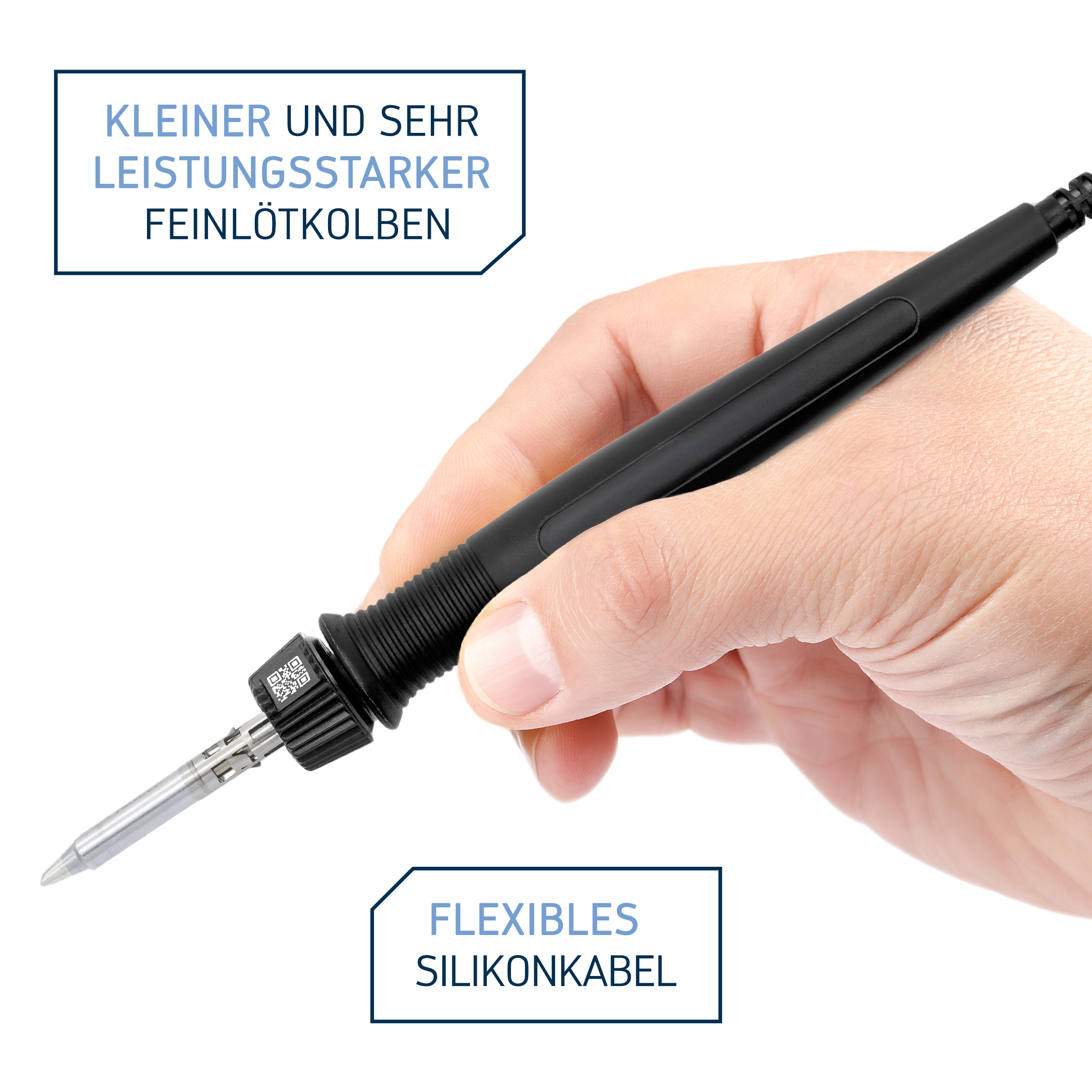

• i-TOOL A100 iron weighing 30 g on a 1.2 m silicone lead, with a Tip'n'Turn bayonet tip that changes without tools.

Technical data

Scope of delivery

• A100 digitally controlled soldering station, 80 W
• i-TOOL A100 iron with 1.2 m silicone lead
• Tip'n'Turn long-life chisel tip 1.6 mm, 0142CDLF16
• Stand with brass wool cleaner

Use and compatibility

The A100 is aimed at workshop, repair and small series production. Series 142 tips change in seconds without tools thanks to the bayonet mechanism, which matters when applications change often. The station is not built in an antistatic version, so for work on ESD sensitive assemblies an ESD model such as the i-CON range is the better choice.
