i-CON 1 MK2 ESD Profi-Lötstation mit i-TOOL MK2 150W und Tip’N’Turn Ablageständer 0A58 - Ersa 0IC1105A58

Lead free soldering needs a stable temperature and fast heat recovery at the joint. The Ersa i-CON 1 MK2 supplies 150 W in the i-TOOL MK2 iron and works from 50 to 450 °C, reaching 350 °C in 9 seconds.

What this combination offers

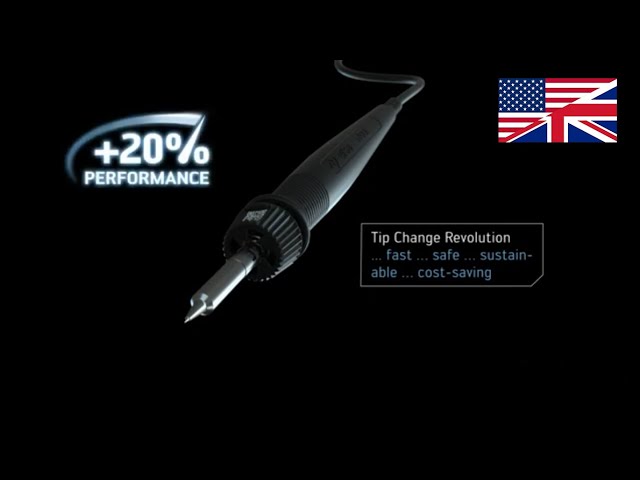

• i-TOOL MK2 with a 150 W micro high performance heating element, leaving reserve for ground planes and heavy terminals.
• Temperature range of 50 to 450 °C, developed for lead free work with a narrow process window.
• Standby and sleep are triggered by a sensor in the grip, so the tool does not cool down on a fixed timer.
• ESD safe construction for work on electrostatically sensitive assemblies.
• One Touch operation with a large multifunction display for quick adjustment and reliable monitoring.
• Tip'n'Turn stand 0A58 with holders for up to four tips, keeping the whole tip set within reach at the bench.

Technical data

Scope of delivery

• i-CON 1 MK2 control station
• i-TOOL MK2 iron, 150 W
• Long-life chisel tip 1.6 mm, 0142CDLF16
• Tip'n'Turn stand 0A58

Use and compatibility

The station is aimed at demanding soldering work in workshop, development and test departments. The 0A58 stand supports releasing and picking up series 142 tips right at the bench, so a change needs no tools and no cool down. Matching spare parts are the 0105CDJ iron and the 016100J heating element.
