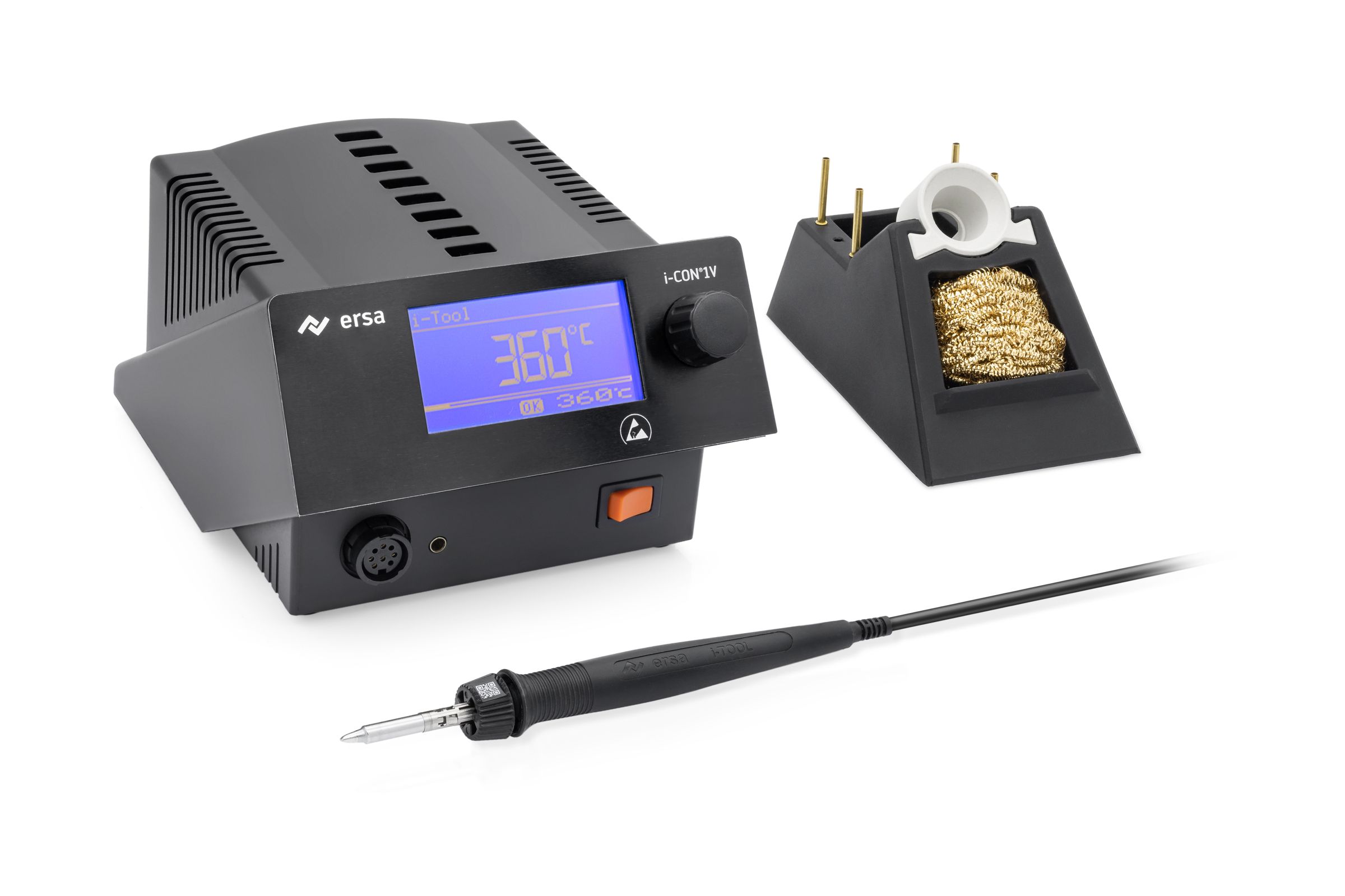

i-CON 1VC MK2 ESD Professional Soldering Station, i-Tool 150 W, Interface - Ersa 0IC1105V0C
Antistatic i-CON 1VC MK2 professional soldering station with 150 W i-Tool, auto standby and an interface to control a fume extractor or heating plate. Tip'N'Turn bayonet lock for fast tip changes; compatible with many other Ersa soldering tools.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Ersa i-CON 1VC MK2 is an antistatic professional soldering station for intelligent hand soldering. Designed for the higher working temperatures and tighter process windows of lead-free soldering, its lightweight, powerful i-Tool helps deliver high quality, productivity and low operating costs. The interface version (V0C) passes the standby signal to Ersa filter units (EA110 plus i, EA55, EA1&2) so they power down together with the station, and can also connect and control a heating plate (e.g. 0IRHP100A-03).
The integrated Tip'N'Turn bayonet lock allows simple, fast tip changes and delivers 20-25 % more performance than a screw connection.

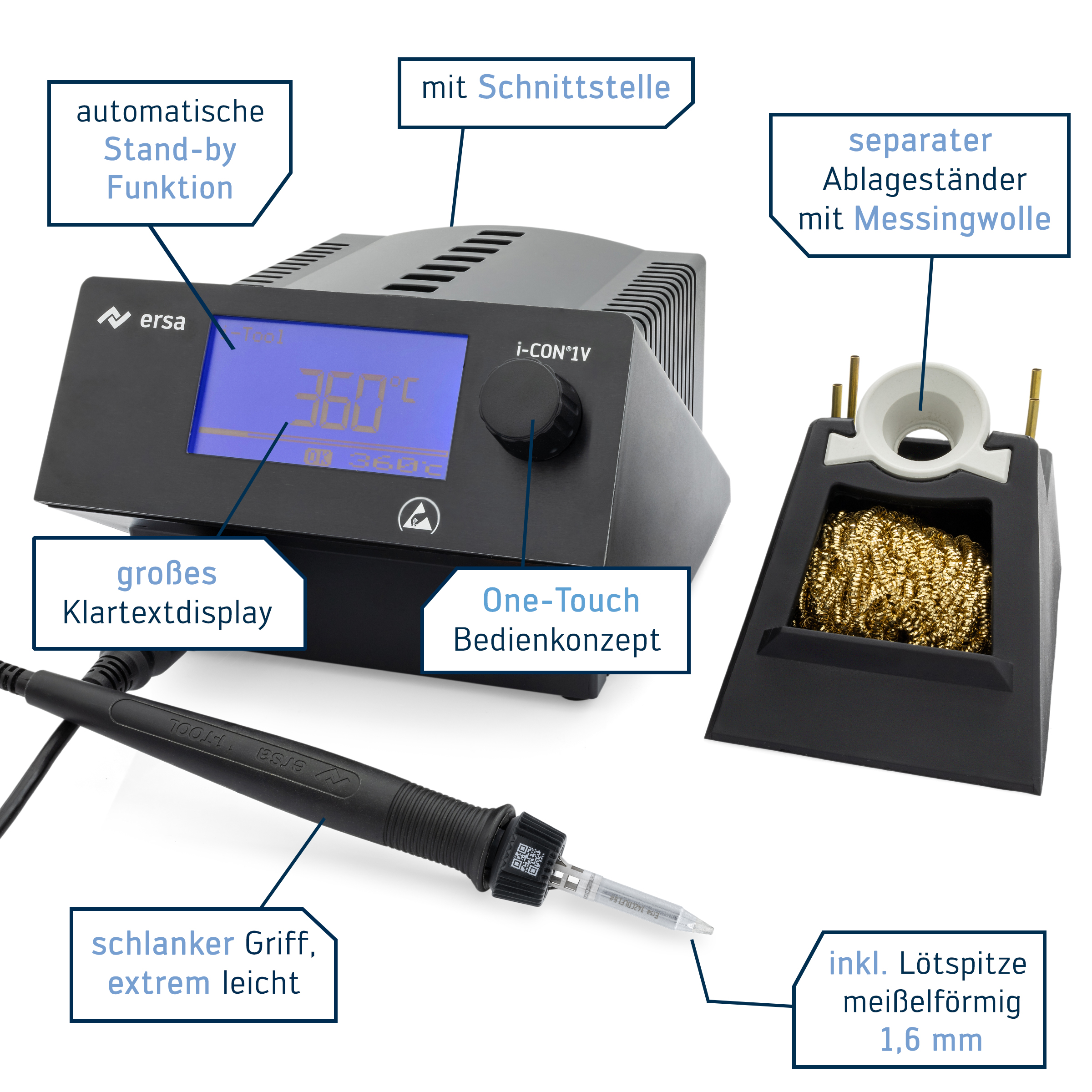

Highlights
- i-Tool with 150 W micro high-performance heating element
- User-friendly "One Touch" software
- Large multifunction display
- Three power levels
- Automatic standby sensor

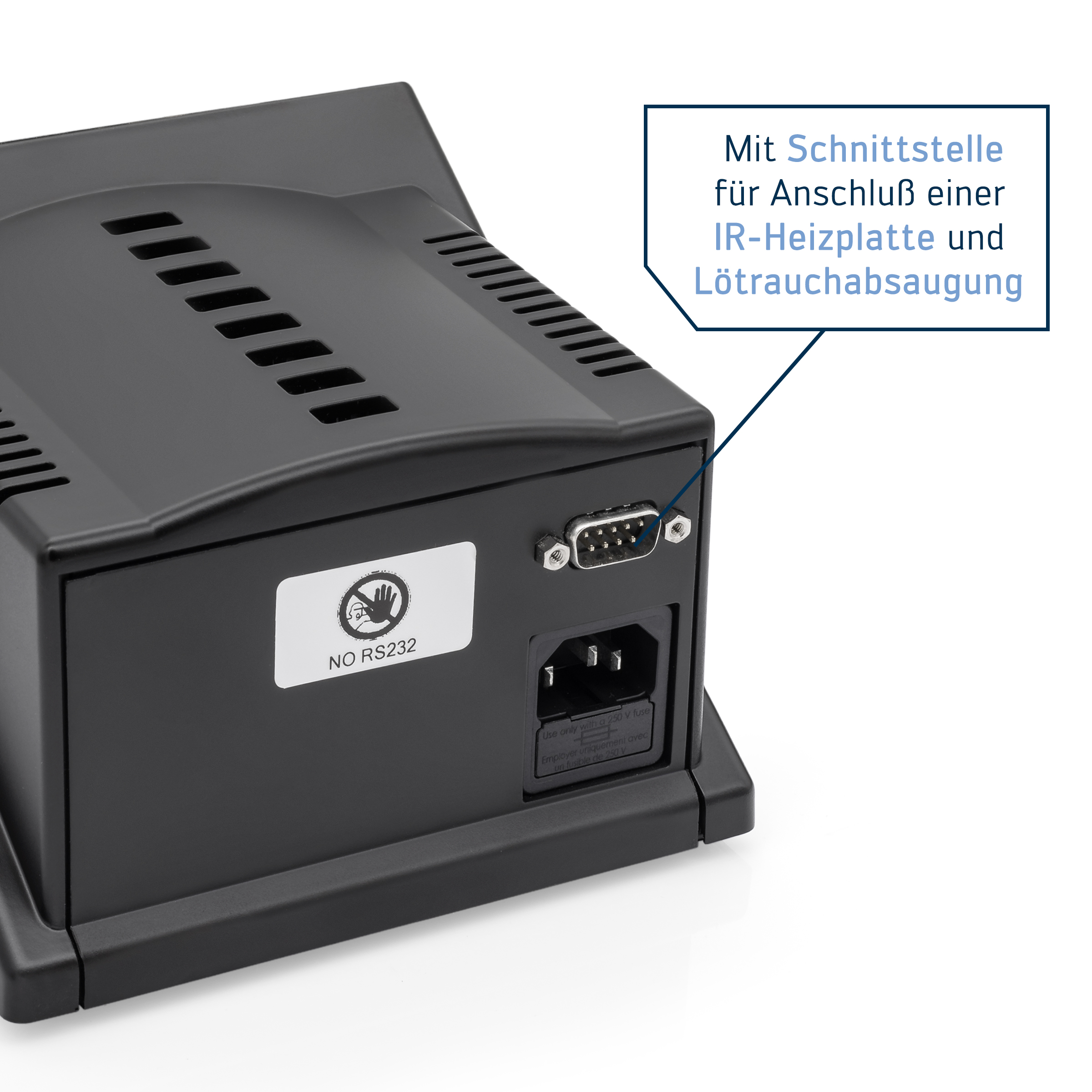

- Interface for fume extraction or heating plate
- Standby power consumption approx. 15 W
- Tip'N'Turn bayonet lock
Optionally connectable soldering tools
- i-Tool (0105CDJ), included as standard
- Chip-Tool Classic (0450MDJ)
- Chip-Tool Vario (0460MDJ)
- X-Tool Classic (0720EDJ), only with vacuum unit 0CU100
- X-Tool Vario (0740EDJ), only with vacuum unit 0CU100
- Micro-Tool (0270BDJ)
- Tech-Tool (0640ADJ)
- Power-Tool (0840CDJ)
Technical data
| Heat-up time | 9.00 s |
|---|---|
| Antistatic design | Yes |
| Digital display | Yes |
| Replacement heating element | 016100J |
| Replacement soldering/desoldering iron | 0105CDJ |
| Soldering/desoldering tip | Series 0142CDLF16 |
| Max. power | 80 W |
| Max. tip temperature | 450 °C |
| Tip diameter/width | 1.60 mm |
| Tip series | 142 |
| Temperature range | 150-450 °C |
| Weight | 3.06 kg |
| Manufacturer | Ersa |
| Manufacturer Nr. | 0IC1105V0C |
| EAN | 4003008153712 |
| GPSR manufacturer information | Ersa GmbH, Leonhard-Karl-Straße 24, DE-97877 Wertheim, www.kurtzersa.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| ESD version | ESD (antistatic) |
| Power (W) | 150 W |
| Tip diameter/width [mm] | 1.6 |
| Heat-up time [s] | 9 |
| Series | 142 |
| Temperature (max.) | up to 450 °C |

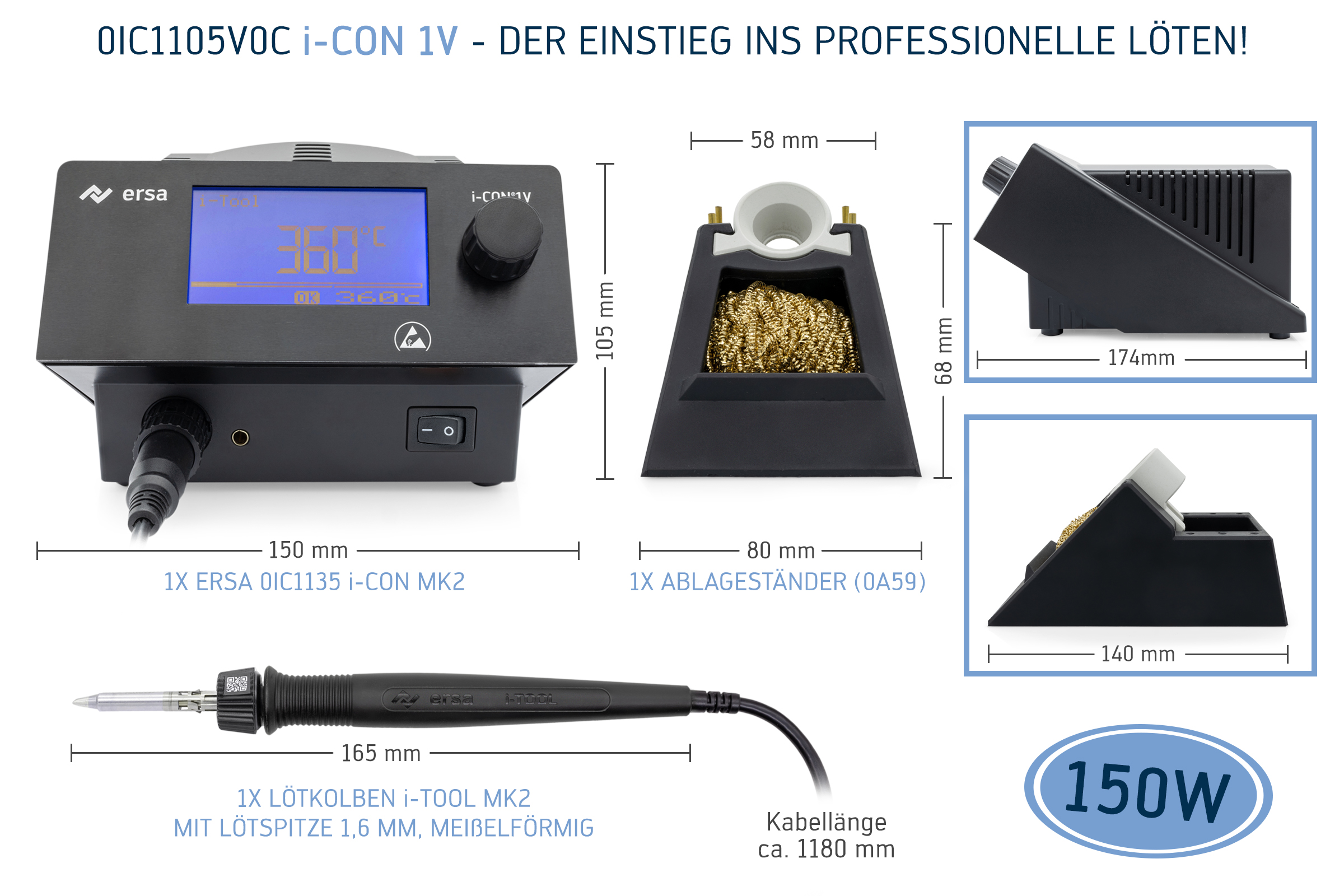

Scope of delivery
- Electronic station 80 W with interface (0IC1135V0C)
- i-Tool soldering iron 150 W (0105CDJ)
- Ersadur soldering tip 1.6 mm chisel-shaped (0142CDLF16)
- Holder/stand (0A59)
