ESD workstation leg Solo right, electric height adjustment 710-1210 mm, module depth 725 mm, crossbar 670 mm, 100 kg - Lista 90.805

This leg with a 670 mm crossbar for 725 mm module depth sits on the right-hand side of a deep Solo bench. The working height can be selected between 710 and 1210 mm at the push of a button, with a load capacity of 100 kg.

Benefits

• Electric height adjustment from 710 to 1210 mm: seated and standing work at the same station without conversion
• Load capacity 100 kg per leg for test set-ups, soldering stations and measuring equipment
• Crossbar depth 670 mm matched to the 725 mm module depth, same hole pattern as the Lista workbench leg
• Skids and levelling feet included to compensate for uneven floors
• Lista dissipative paint coating on all painted surfaces: charges are drained in a controlled way when the workstation system is earthed

Colours

This version is available in the following ESD colour, selected when you order:

• Anthracite grey RAL 7016

Use and combination

For height-adjustable workstations in EPA areas of electronics production, at test and repair stations and in the laboratory. A workbench is built from one left and one right Solo leg of the same module depth, completed with cross brace, worktop crossbars and an ESD worktop. Leg covers conceal the actuators, and finger guards are intended for workstations placed close together or flush.

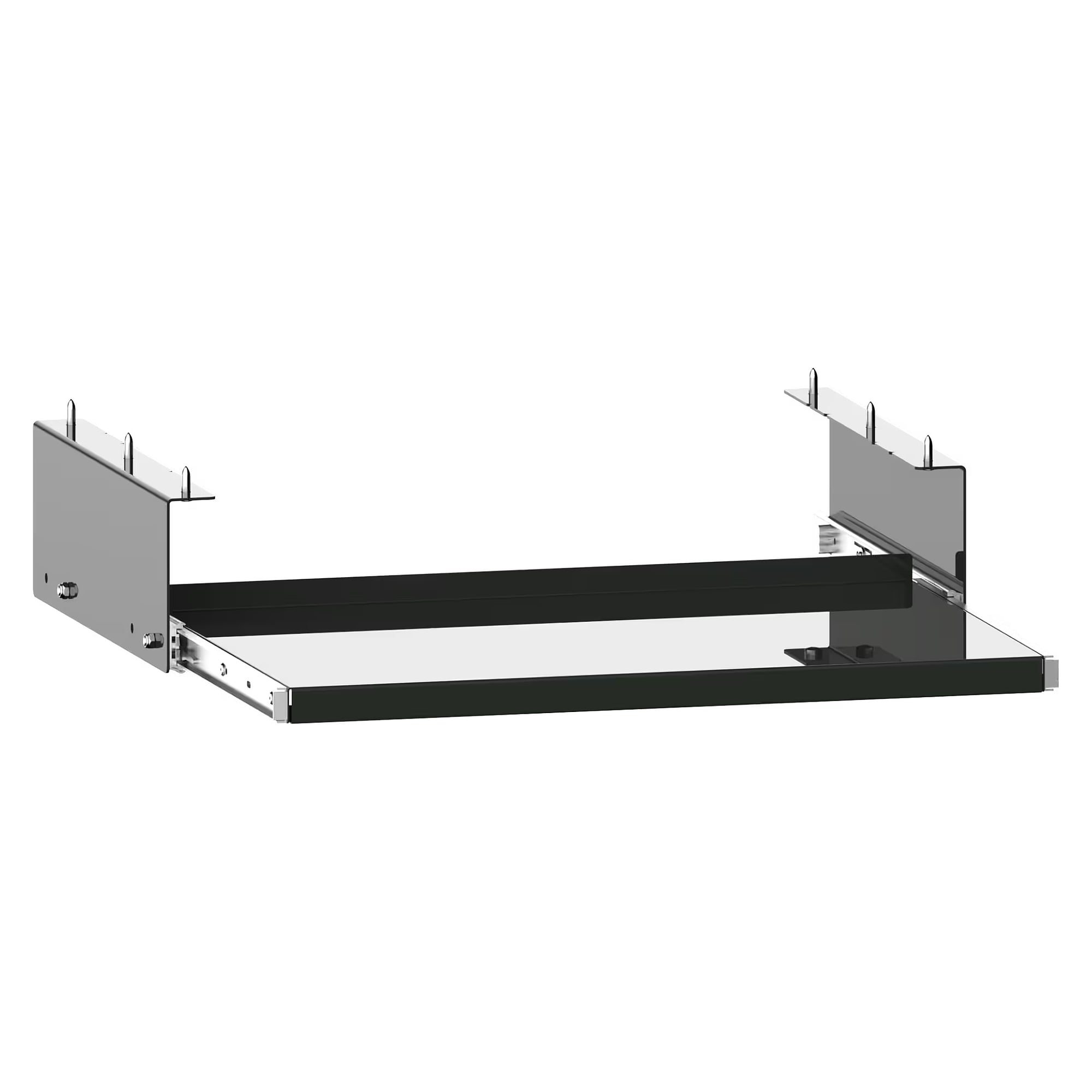

A CPU holder and a keyboard drawer can be mounted under the worktop.

Notes

• Module depth 725 mm for worktop depth 750 mm or 800 mm (with guide rail pair for universal superstructures or counter holder/counter plate).
• Connection cable and control unit set are not included and must be ordered separately.
• Note left and right versions: this leg is the right-hand version.
