INROLED_70 LED tube light borosilicate 1214 mm, IP69K, 24V DC - LED2WORK 115410-01

The INROLED_70 lights machines, technical plant and building services with 4342 lm from a slim tube just Ø 70 mm across. The light source is protected by a 4 mm borosilicate safety-glass tube (Ø 70 mm) with internal microprisms.

Key benefits

• IP67/IP69K rating: sealed against water, dust and moisture, including high-pressure washdown.
• Microprisms for bright, even surface illumination.
• Daisy-chainable: several luminaires connect on one supply via through-wiring, up to a total current draw of 4A DC at 40 °C.
• Heat dissipation: an extruded aluminium profile carries away electronics heat and supports the rated life of over 100,000 h (L80/B10).

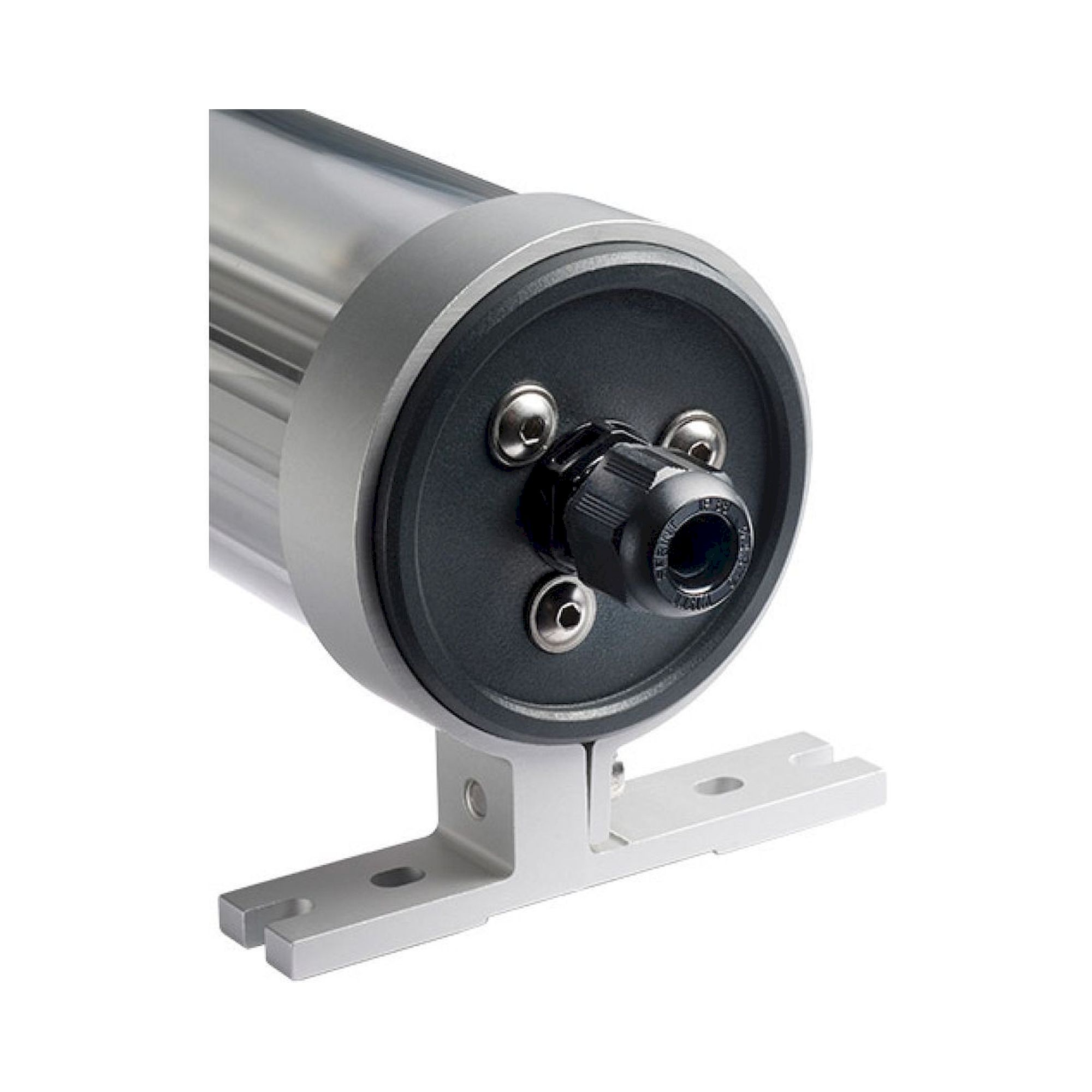

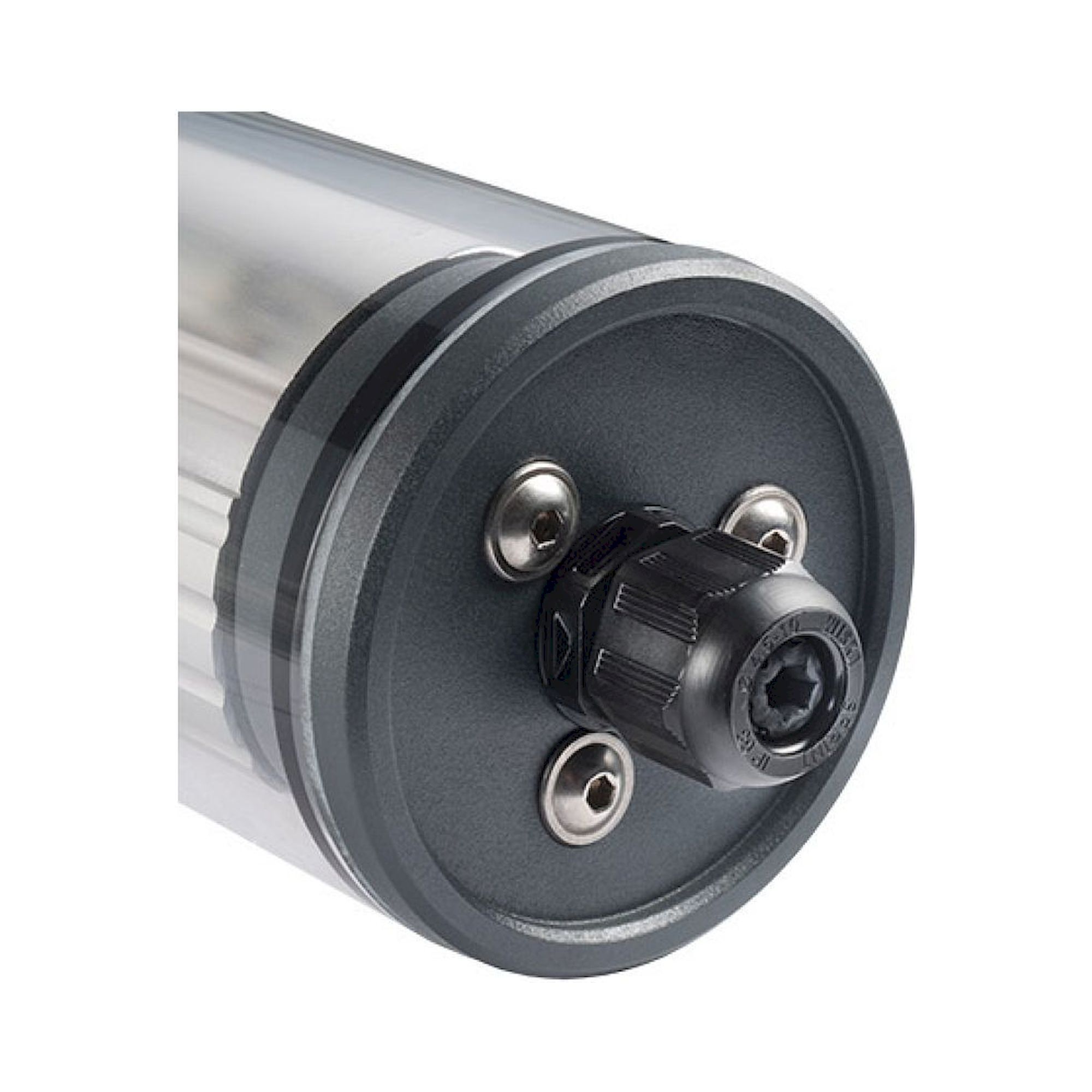

• Connection: via cable gland and internal WAGO terminals.
• 24V DC operation: easy to integrate into existing extra-low-voltage supplies.

Technical data

• Model: INROLED_70 mit borosilicate protective tube
• Design: surface-mounted LED tube light
• Light source: SMD LED
• Power: ~28 W
• Luminous flux: 4342 lm
• Luminous efficacy: ~155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Supply voltage: 24V DC ± 10%
• Connection: cable entry, internal terminal
• Protection rating: IP67/IP69K
• Protection class: III
• Glare control: microprism
• Beam angle: 125°
• Operating temperature: -10 °C - +45 °C
• Service life: > 100.000 h (L80/B10)
• Housing material: aluminium
• Cover material: safety glass, shatterproof
• Protective tube: Ø 70 mm
• Length: 1214 mm
• Weight: 2600 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

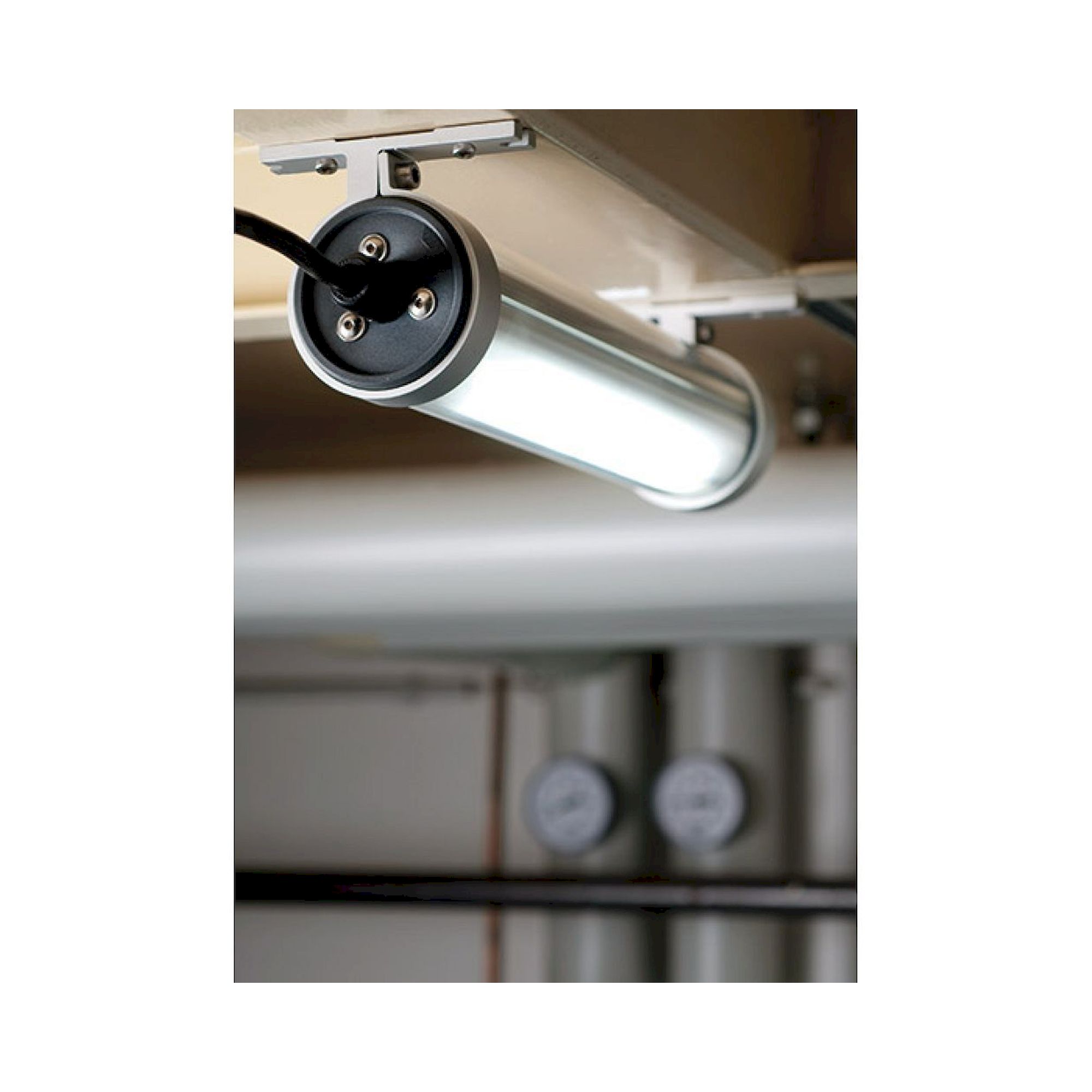

• Interior and work-area lighting on machines and technical plant
• Logistics, conveying and warehousing
• Building and facility services

Supply and standards

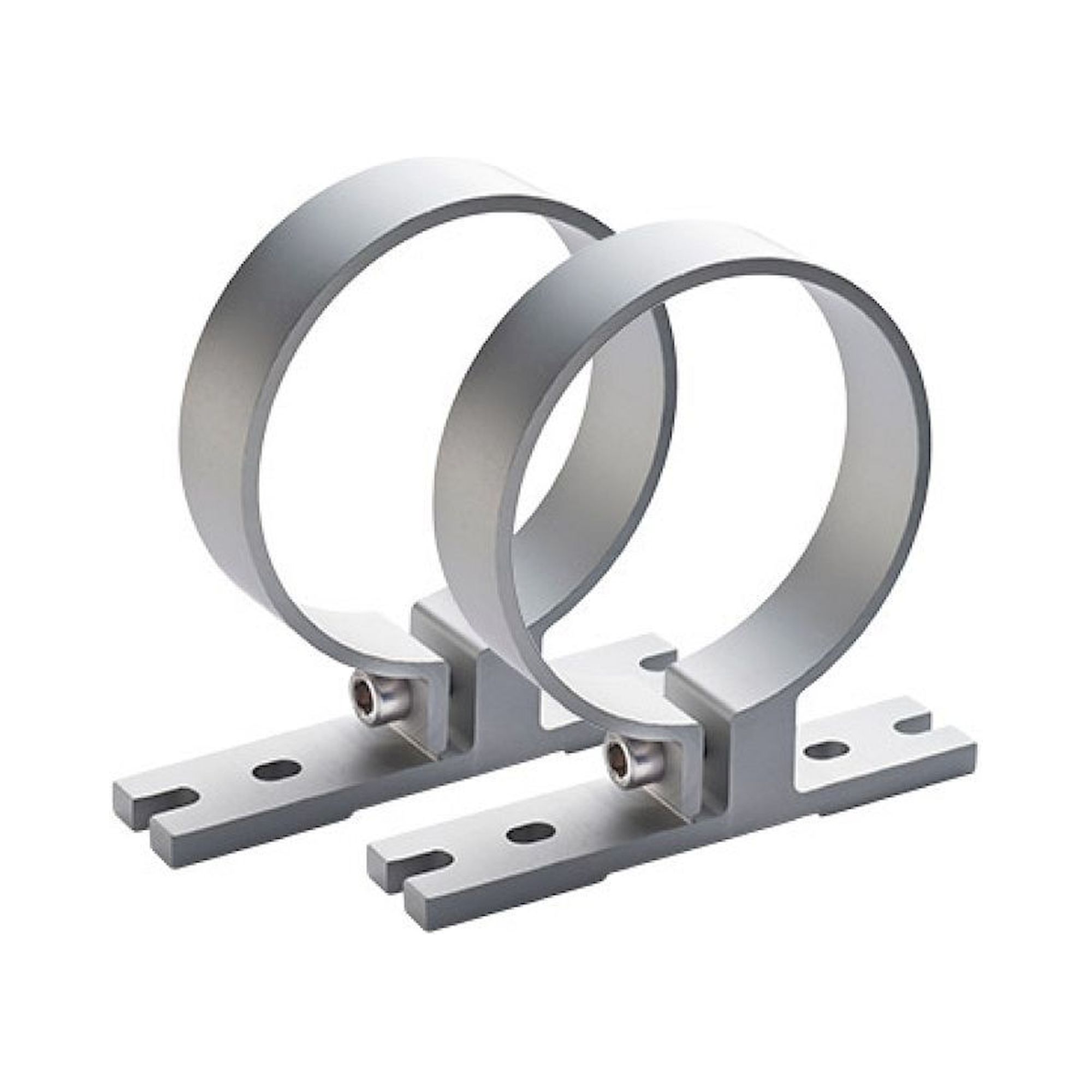

Made in Germany. Mounting and dimming accessories available as options. Certifications: CE, UKCA, ETL Listed (5003529). Exempt group per DIN EN 62471.
