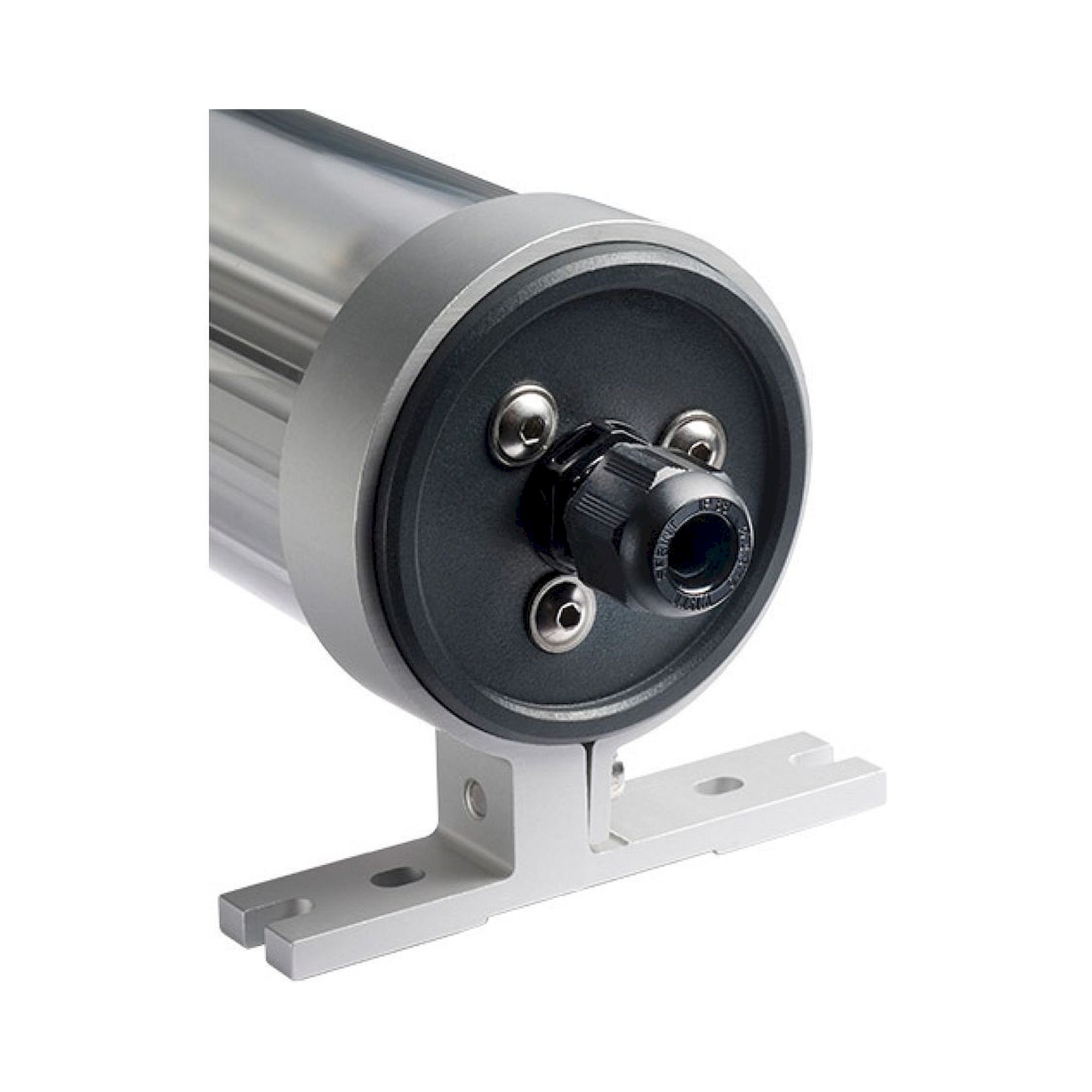

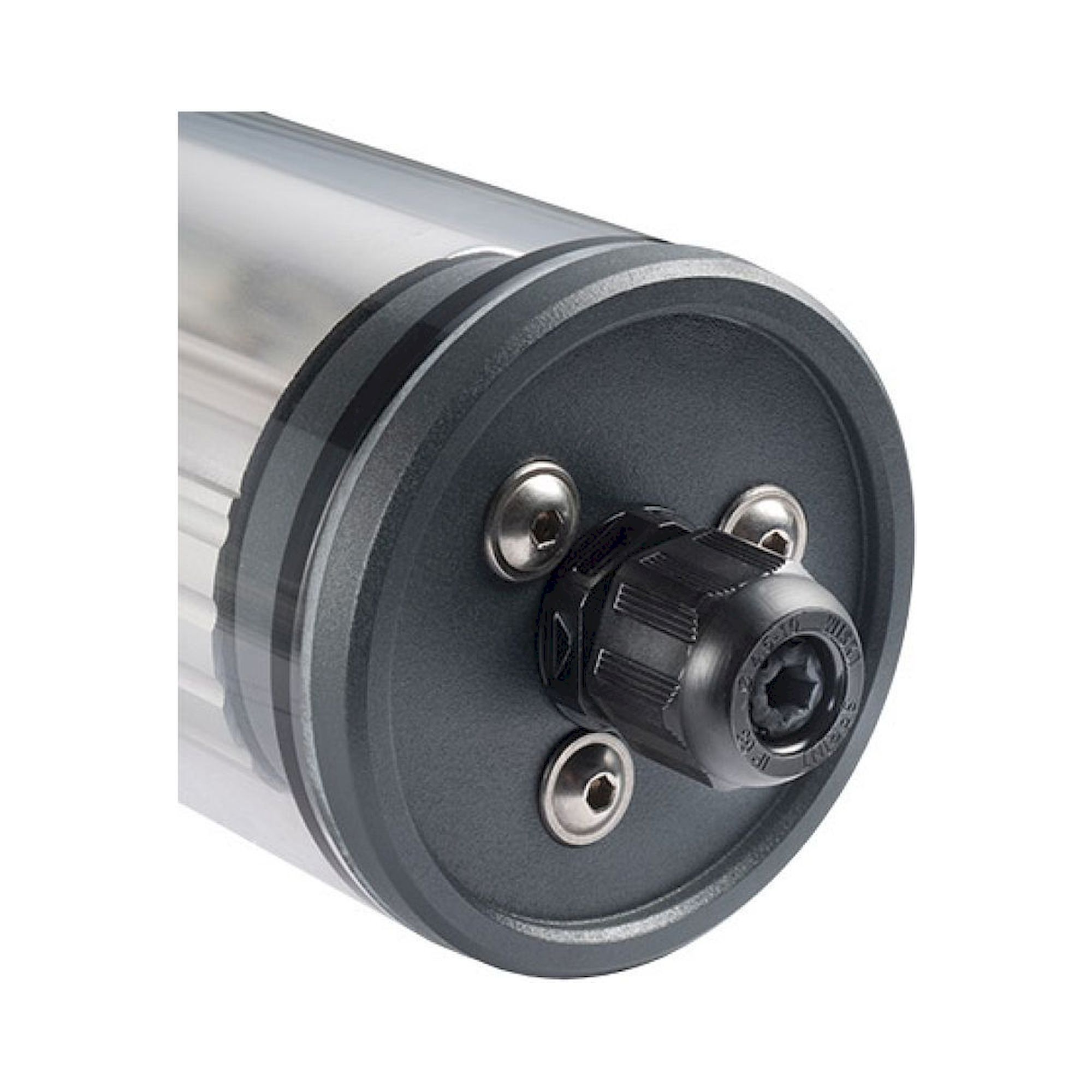

INROLED_70 LED tube light 513 mm 120-277V AC, Borosilikat protective tube, IP69K, cascadable - LED2WORK 115110-02

The INROLED_70 is a surface-mounted LED tube light with a borosilicate glass protective tube (Ø 70 mm) and micro-prisms glare control for bright, even illumination. At 513 mm in length it delivers 1670 lm and can be daisy-chained with further luminaires via pass-through wiring.

Key benefits

• Bright, even illumination thanks to micro-prisms glare control
• IP67/IP69K rated, suited to water, dust and humidity
• Extruded aluminium profile for excellent heat dissipation
• Daisy-chainable via WAGO terminals, up to 16 A AC total current draw at 40 °C
• Long service life of more than 100,000 h (L80/B10)

Technical data

• Model: INROLED_70
• Design: surface-mounted LED tube light
• Light source: SMD LED
• Total power incl. driver: ~14 W
• Power: ~11 W
• Luminous flux: 1670 lm
• Luminous efficacy: approx. 155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Supply voltage: 120-277V AC ± 10%, 50-60 Hz
• Driver: integrated
• Connection: cable entry, internal terminal
• Protection rating (IP): IP67/IP69K
• Protection class: I
• Glare control: micro-prisms
• Beam angle: 125°
• Operating temperature: -10 °C to +40 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: aluminium
• Cover material: safety glass (borosilicate), shatter-resistant
• Dimensions: Ø 70 mm, length 513 mm
• Weight: 1450 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA
• Made in: Germany

Applications

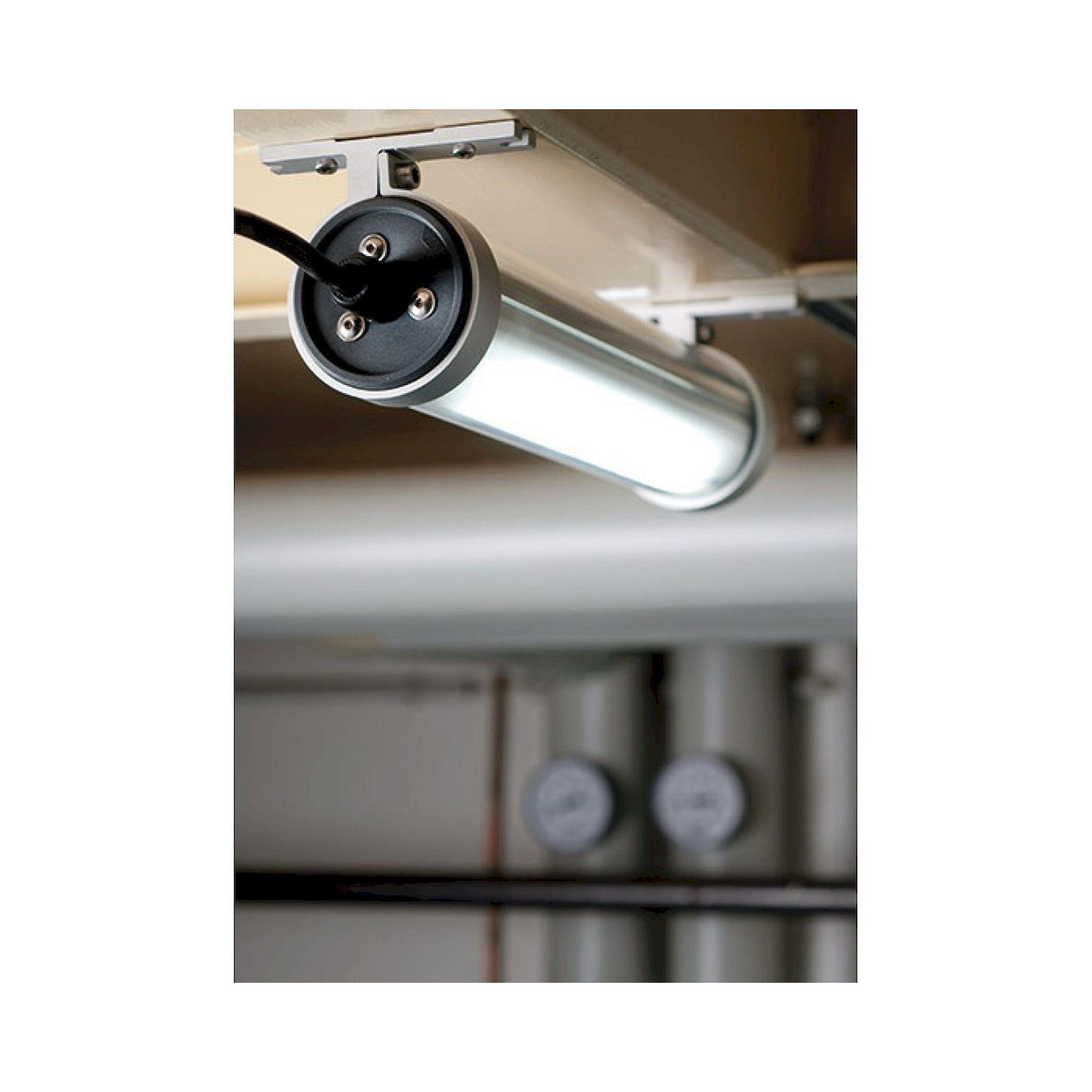

Lighting of machines and technical plant, logistics as well as building and facility services.
