TUBELED_70 EVO LED machine light 790 mm, 41W, 120-277V AC, IP67/IP69K - LED2WORK 156310-11
The 790 mm TUBELED_70 EVO with integrated driver runs directly on 120-277V AC and delivers 5697 lm. Its IP67/IP69K rating keeps it dust- and washdown-proof, and the aluminium housing runs from -20 °C to +60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
For mains-fed installations, the 790 mm TUBELED_70 EVO with built-in driver delivers 5697 lm at 41 W total power without any external power supply. At 155 lm/W, consumption stays low.
Your benefits
- Integrated driver: connects directly to 120-277V AC.
- High light output: 5697 lm, 155 lm/W efficacy.
- Fully sealed: IP67/IP69K rating, dust-tight and washdown-proof.
- Long service life: over 100,000 h (L80/B10), low maintenance.
- Good colour rendering: Ra > 85 at 5700K.
- Rugged: aluminium housing with single-pane safety glass.
Applications
For large-area machine and work-area lighting in installations with direct mains feed, including wet and cleaning-intensive areas. Fixing hardware optional.
Technical data
| Model | TUBELED_70 EVO AC |
|---|---|
| Light source | SMD LED |
| Total power incl. driver | 41 W |
| Lamp power | 37 W |
| Luminous flux | 5697 lm |
| Luminous efficacy | 155 lm/W |
| Light colour | 5700K 3-step MacAdam |
| Colour rendering (Ra) | > 85 |
| Supply voltage | 120-277V AC ± 10%, 50-60 Hz |
| Connection | M12 S-coded, 3-pin |
| Protection rating (IP) | IP67/IP69K |
| Protection class | I |
| Beam angle | 100° |
| Operating temperature | -20 °C to +60 °C |
| Service life | > 100,000 h (L80/B10) |
| Material | aluminium, glass |

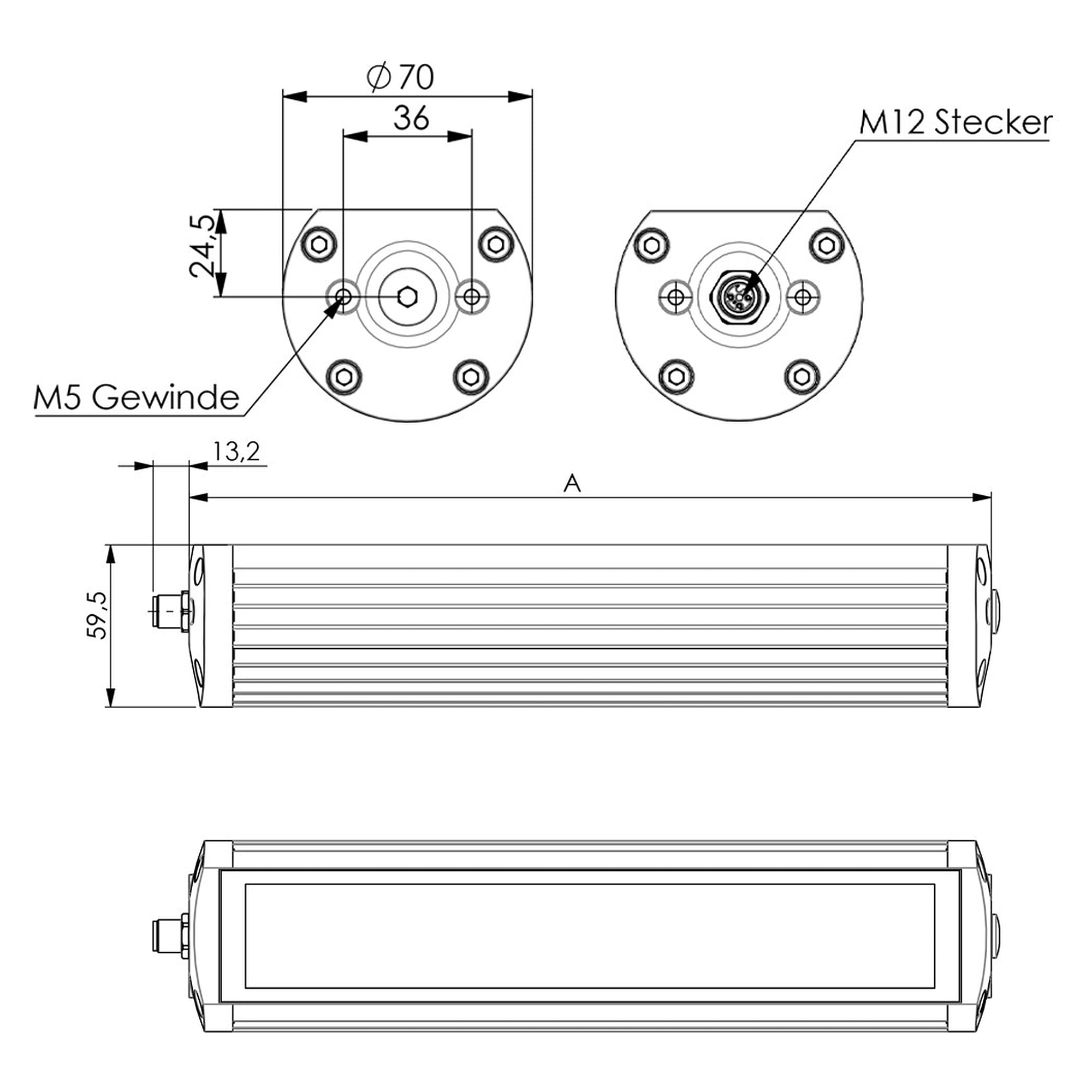

| Dimensions | 790 mm x 70 mm x 59.5 mm |
| Weight | 2350 g |
| Risk group (DIN EN 62471) | exempt group |
| Certifications | CE, UKCA, ETL Listed (5003529) |
| Made in | Germany |
| Manufacturer | LED2WORK |
| Manufacturer Nr. | 156310-11 |
| HS-Code | 94054257 |
| GPSR manufacturer information | LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com |
| Condition of article | New |
| Article authenticity | Original product |
| Country of Manufacture | Germany |
| Norm | DIN EN 62471 |
| Luminous flux (lumen) | 5697 lm |
| Power (W) | 41 W |
| Colour temperature | 5700K |
| Operating voltage | 120-277 V |
| Protection class (IP) | IP69K |
