TUBELED_25 LED machine light 205mm, 4.3W, 100°, IP67 - LED2WORK 154010-01

The TUBELED_25 lights work areas on CNC machines and automated equipment even where space is tight: at only 23 x 28 mm in cross-section and 205 mm long it mounts extremely flat while delivering 667 lm.

Key benefits

• Very slim aluminium housing (23 x 28 mm) for tight installations.
• High efficiency of 155 lm/W, 667 lm from just 4.3 W.
• 5700K light colour with 3-step MacAdam and Ra above 85 for uniform, true-to-life lighting.
• Shatterproof 4 mm safety glass and aluminium housing, IP67, dust- and watertight.
• Vibration- and shock-resistant up to 50 g, long service life over 100,000 h (L80/B10).
• M8-A sensor connector for fast cabling.

Technical data

• Model: TUBELED_25
• Design: surface-mounted LED light for machines and equipment
• Light source: SMD LED
• Power: approx. 4.3 W
• Luminous flux: 667 lm
• Luminous efficacy: 155 lm/W

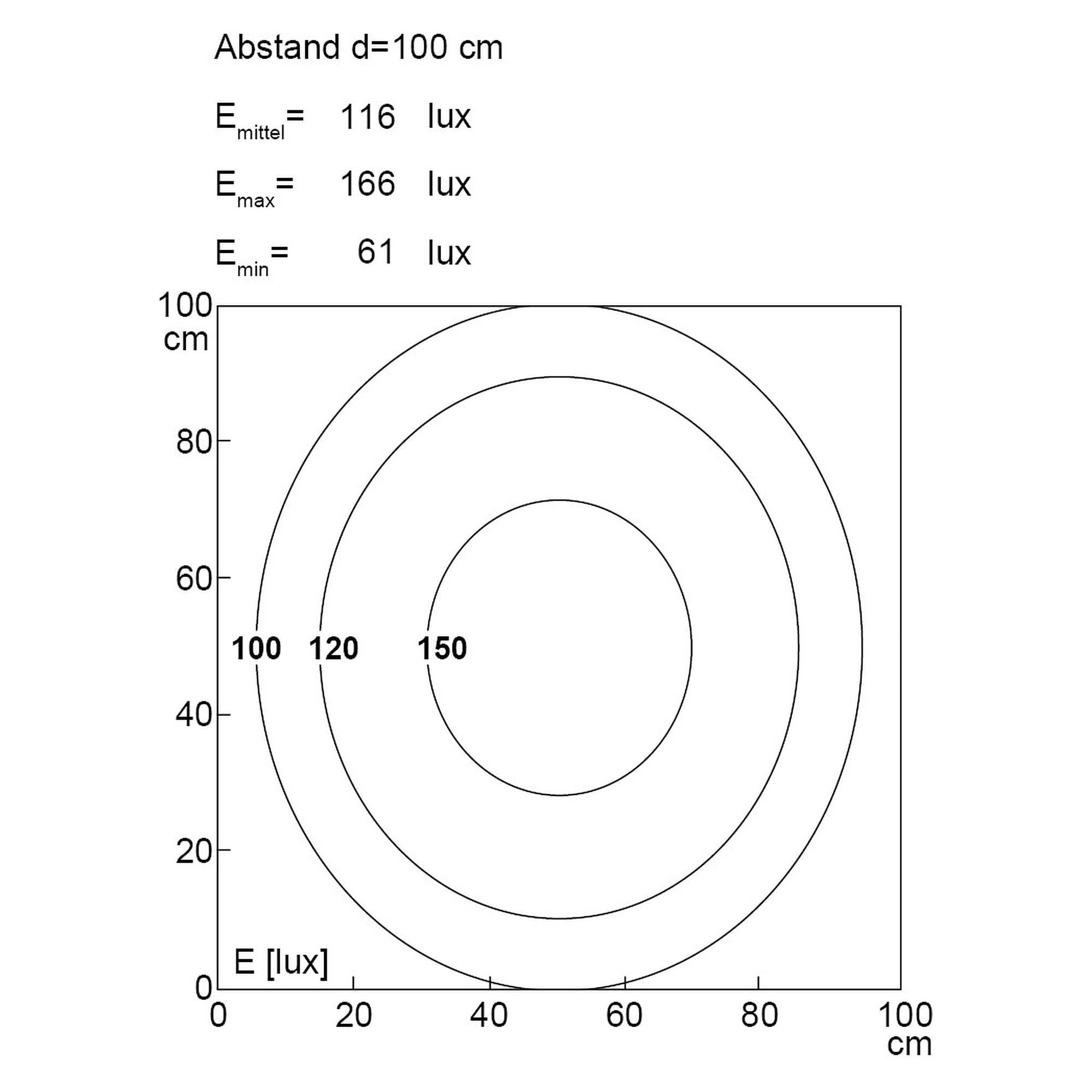

• Light distribution: Light Forming Technology
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): above 85

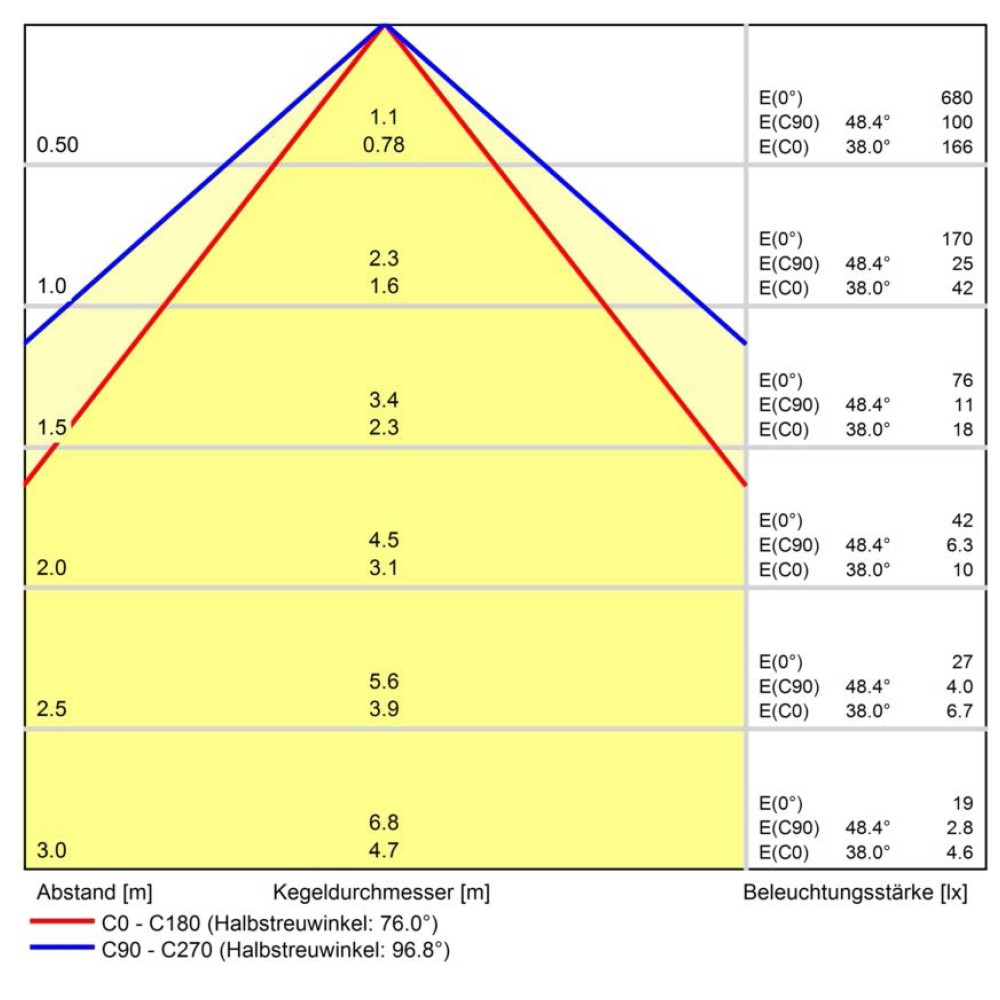

• Beam angle: 100°
• Supply voltage: 24V DC ± 10 %
• Connection: M8 A-coded
• Protection rating: IP67
• Protection class: III
• Operating temperature: -30 °C to +55 °C
• Service life: over 100,000 h (L80/B10)
• Housing material: aluminium
• Cover material: safety glass, 4 mm

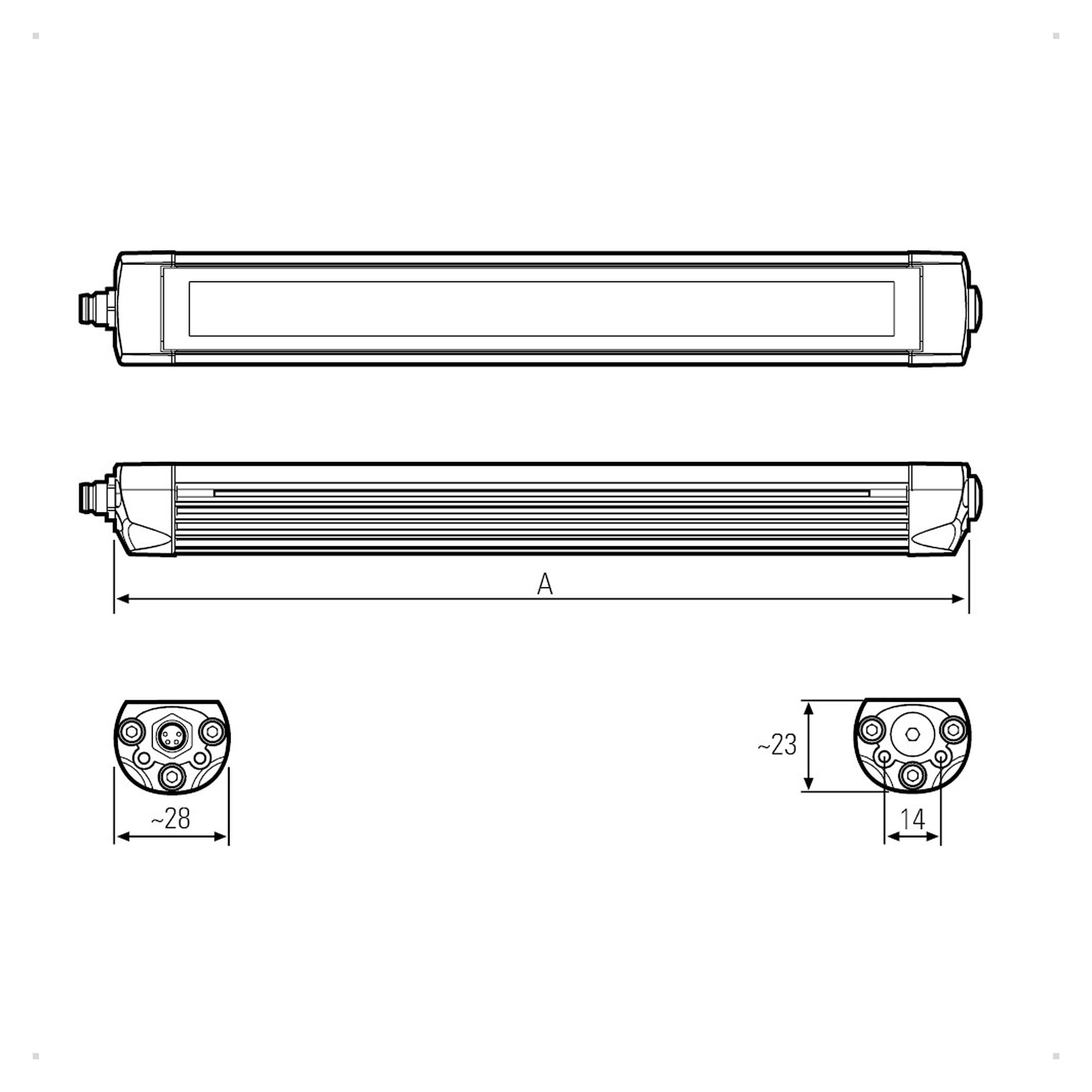

• Dimensions: 205 mm length, approx. 23 x 28 mm
• Weight: 30 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

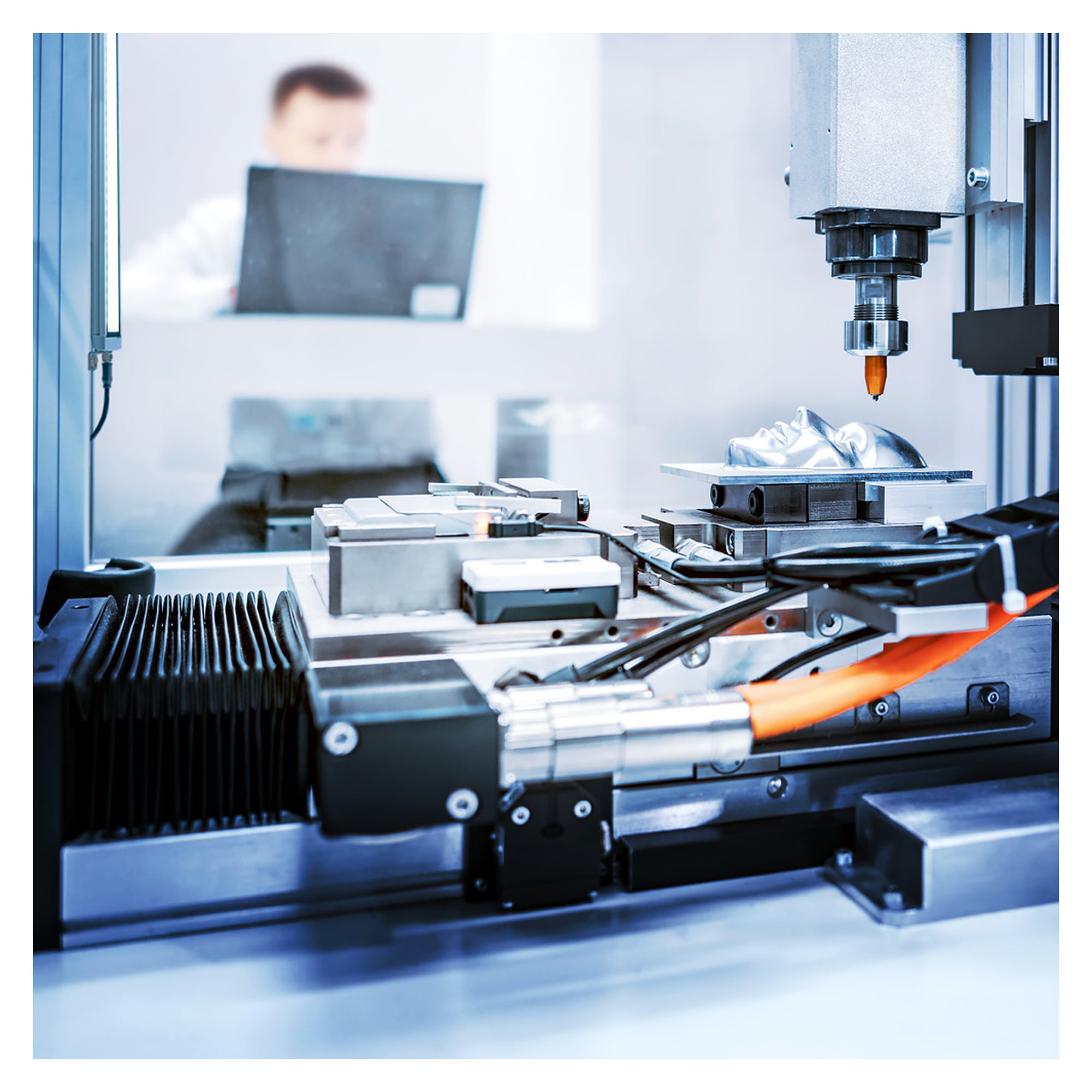

Lighting of work areas on CNC machine tools and automated equipment, both for original equipment and retrofitting in confined installation spaces.

Optionally dimmable via accessories, mounting accessories available as an option.
