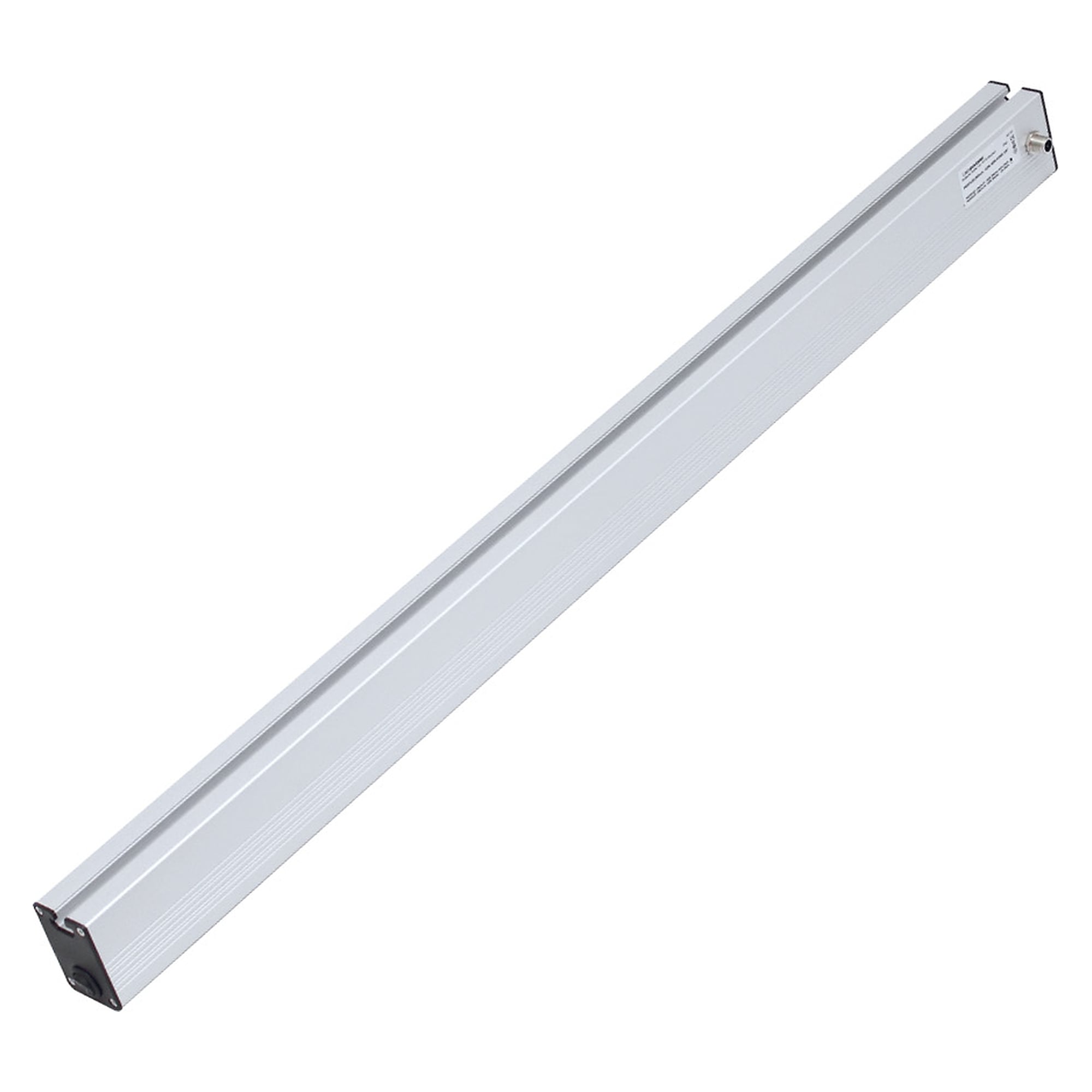

Profiled DC LED profile light 1000 mm dimmable, 3674 lm, 5700K, 100°, M12 A-coded - LED2WORK 150714-02

The PROFILED DC lights workshops, logistics areas and system workstations evenly and with low shadowing. Over 1000 mm it delivers 3674 lm at around ~23 W, while the microprism cover spreads the light softly across the work surface.

Benefits

• Continuously adjustable via the internal dimmer
• Even area lighting from a 100° beam angle and microprism optics
• Connection via M12 A-coded connector for 24V DC

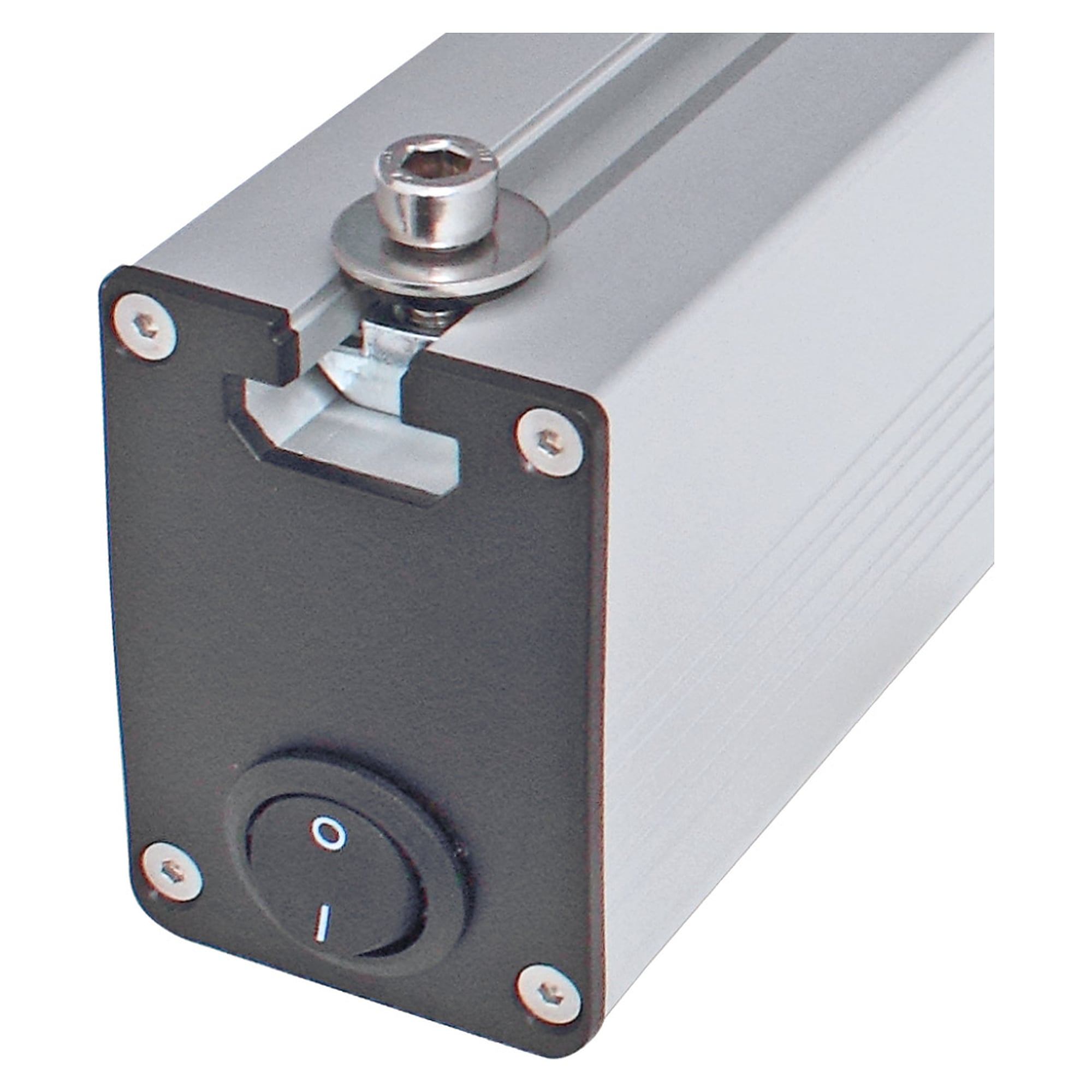

• Fast mounting via the rear T-slot profile
• 3674 lm at around ~23 W, roughly 155 lm/W luminous efficacy
• Long service life of over 100,000 h (L80/B10), maintenance-free
• Sturdy aluminium housing, neutral white 5700K light with Ra above 85

Technical data

• Model: PROFILED DC
• Design: profile light with rear T-slot
• Light source: SMD LED
• Power: ~23 W
• Luminous flux: 3674 lm
• Luminous efficacy: ~155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering (Ra): >85
• Supply voltage: 24V DC ± 10%

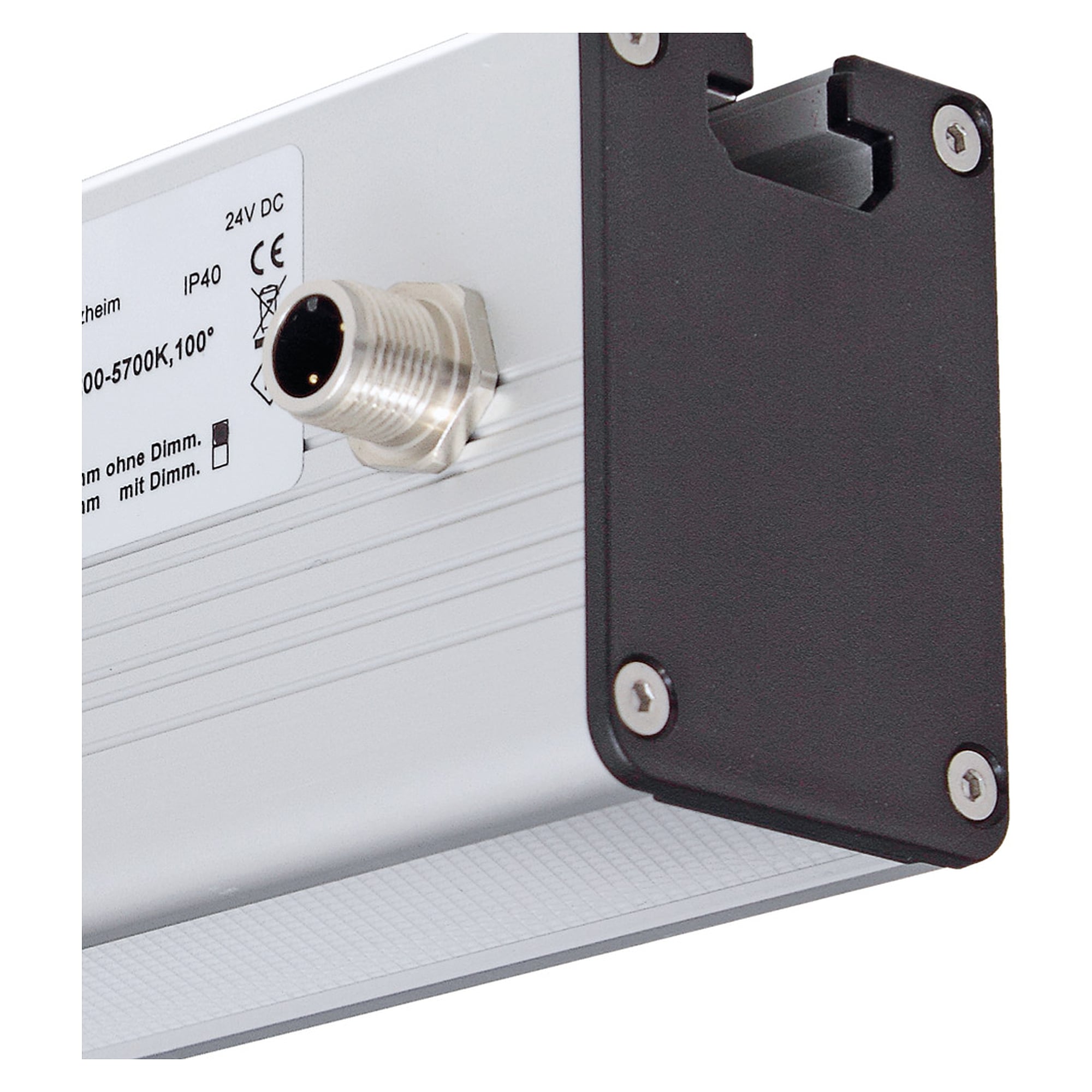

• Connection: M12 A-coded connector for 24V DC

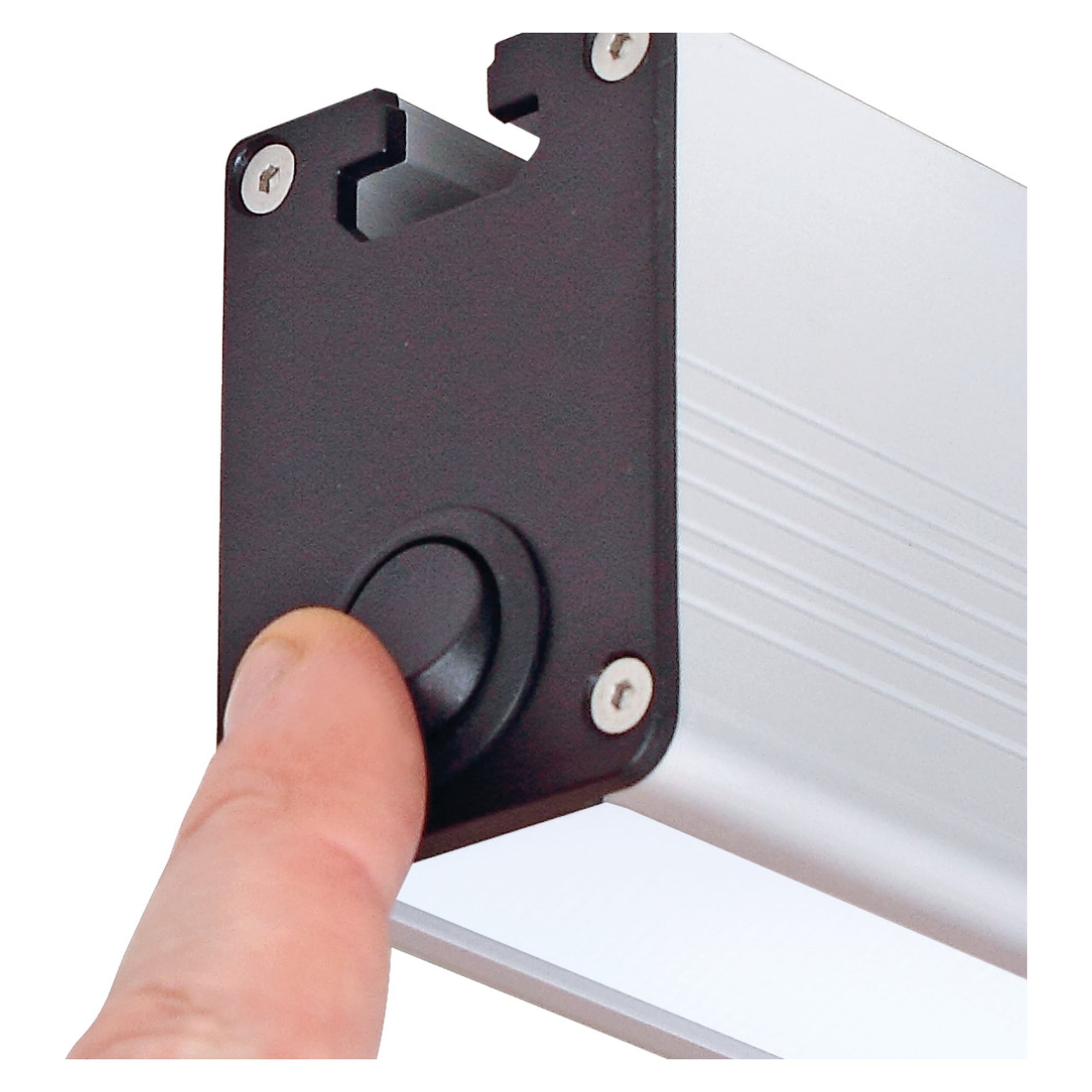

• Dimmable: internal dimmer
• Protection rating (IP): IP40
• Protection class: III

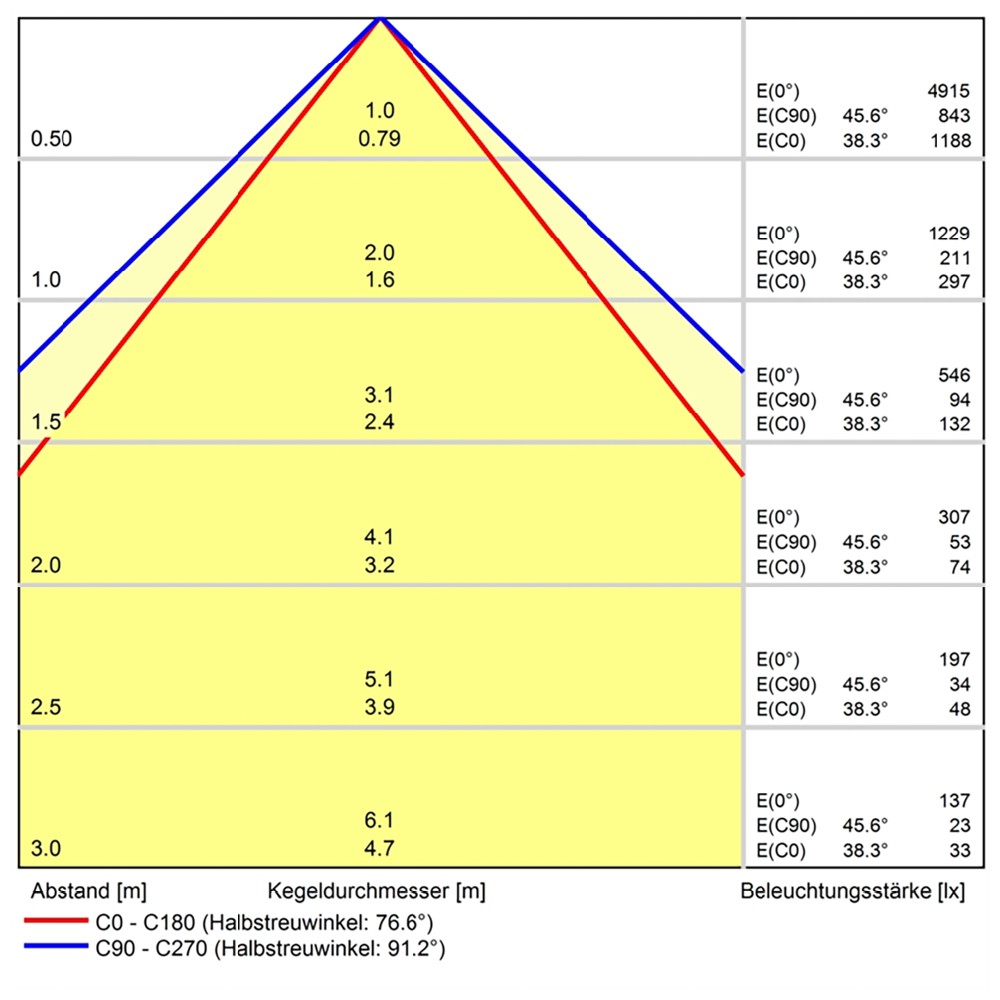

• Beam angle: 100°
• Operating temperature: -10 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Housing material: aluminium
• Cover material: plastic

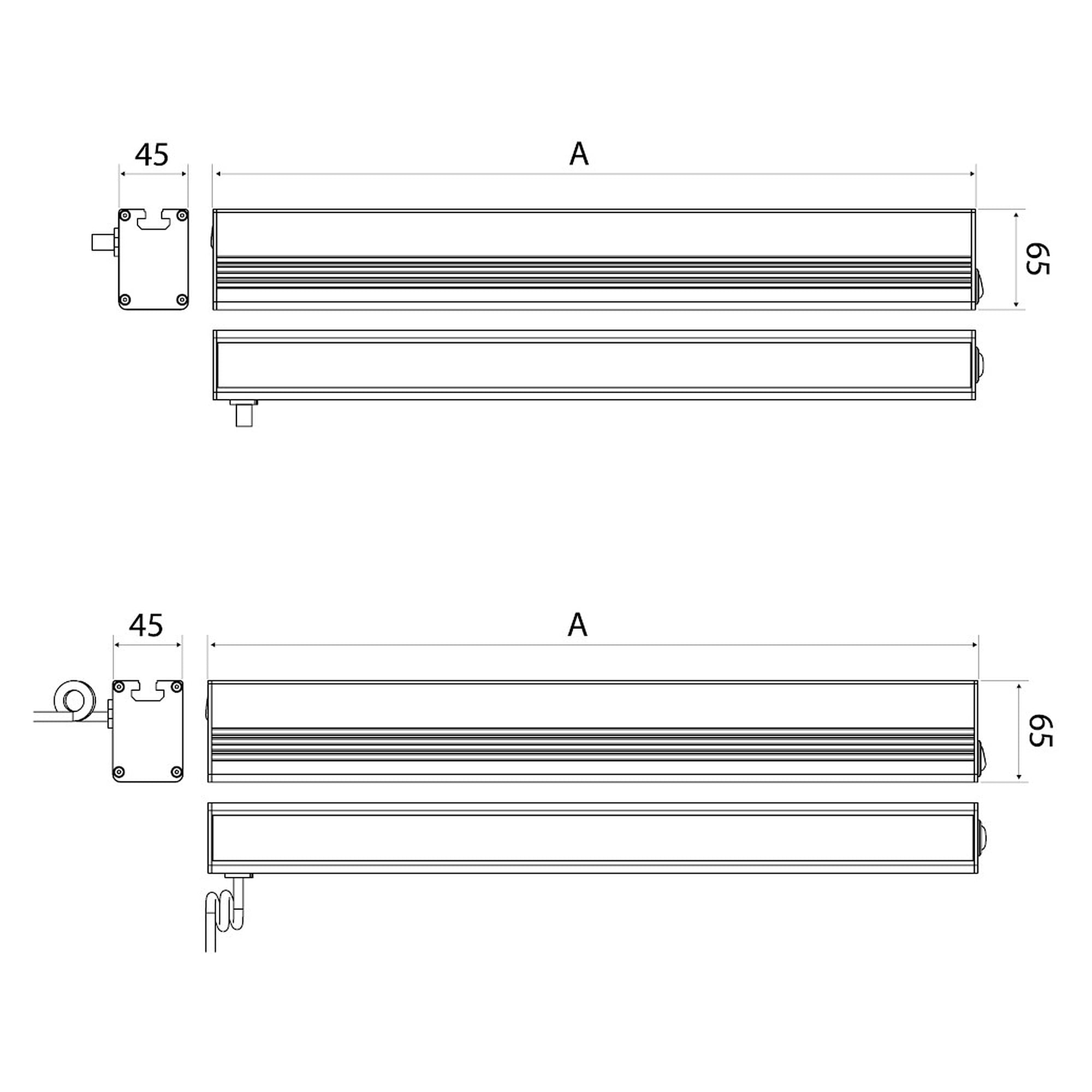

• Dimensions: 1000 mm x 65 mm x 45 mm
• Weight: 2140 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

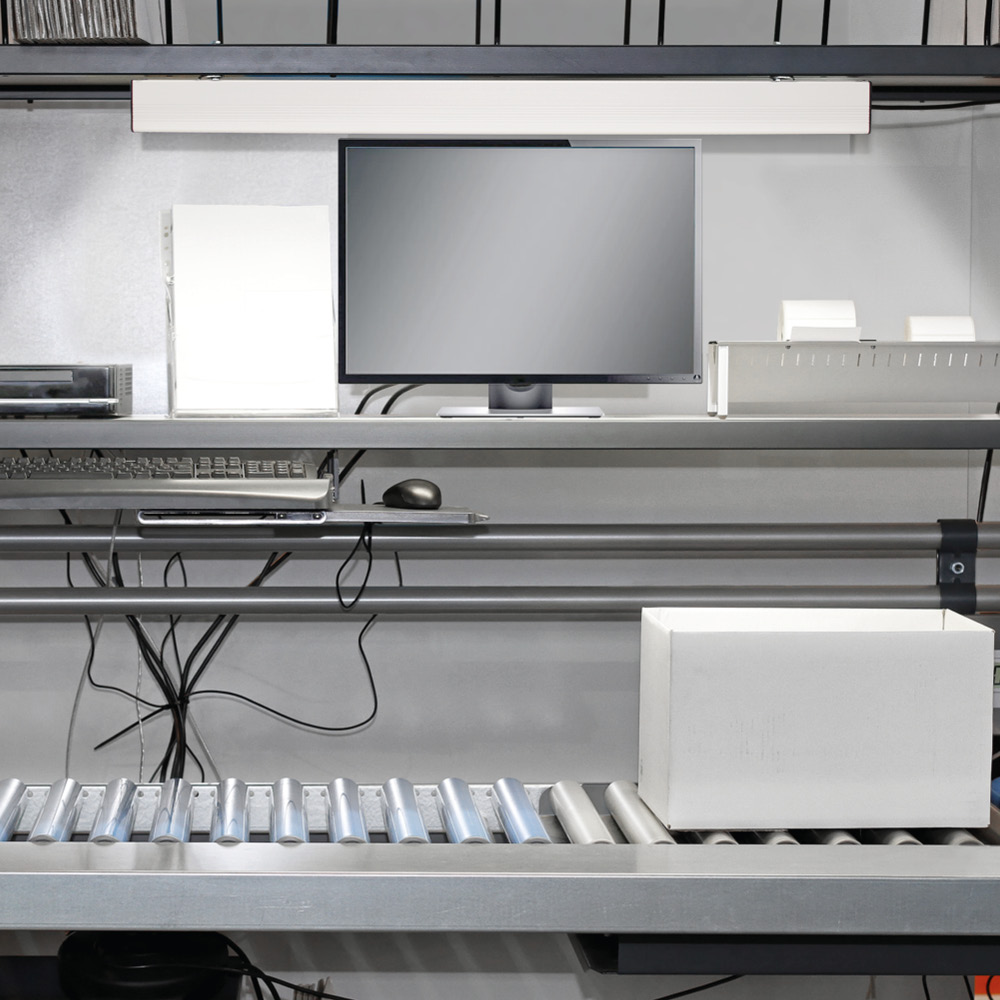

Applications

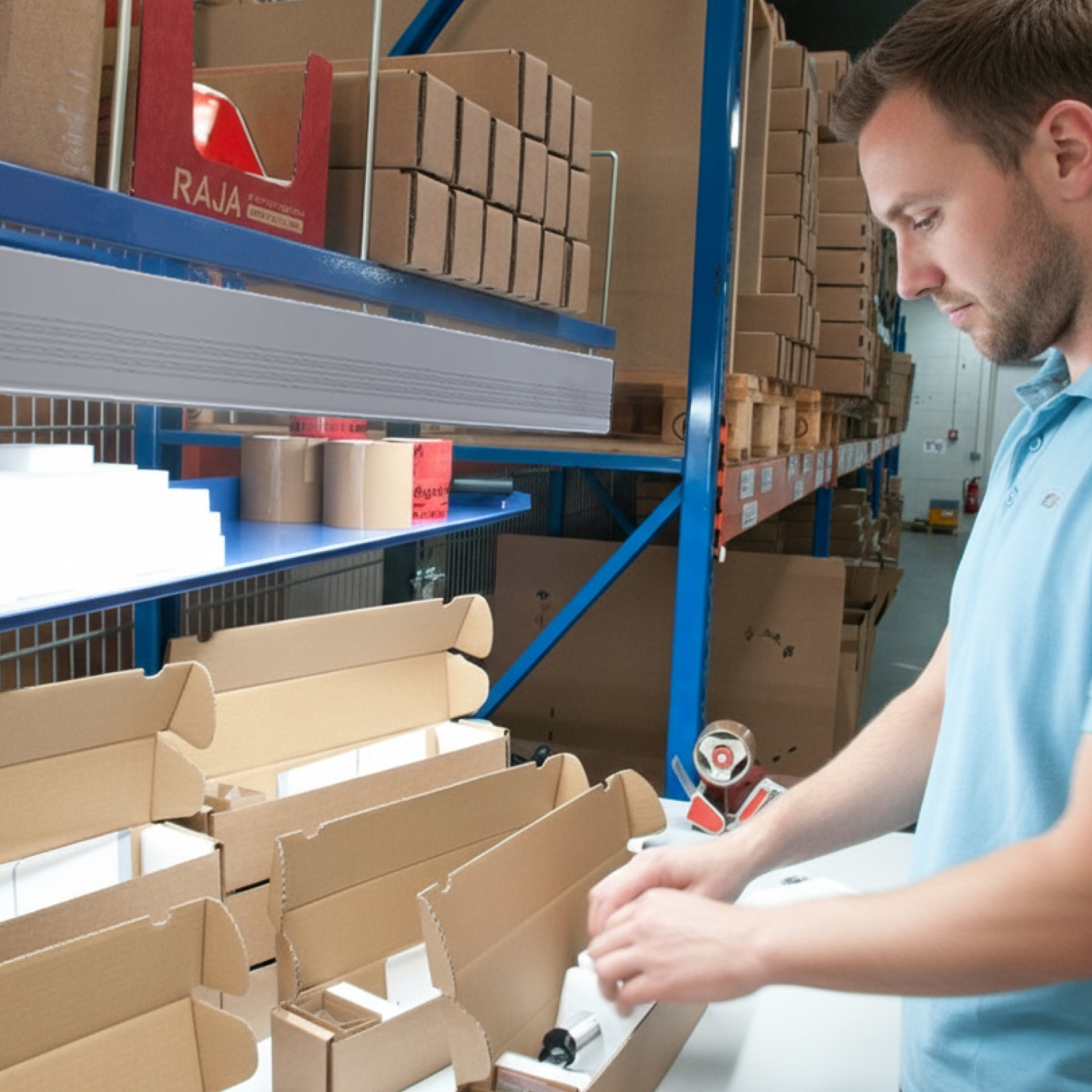

Ideal for lighting workstations in production, assembly and packaging as well as workshops and logistics areas. Mounting accessories are available as an option.
