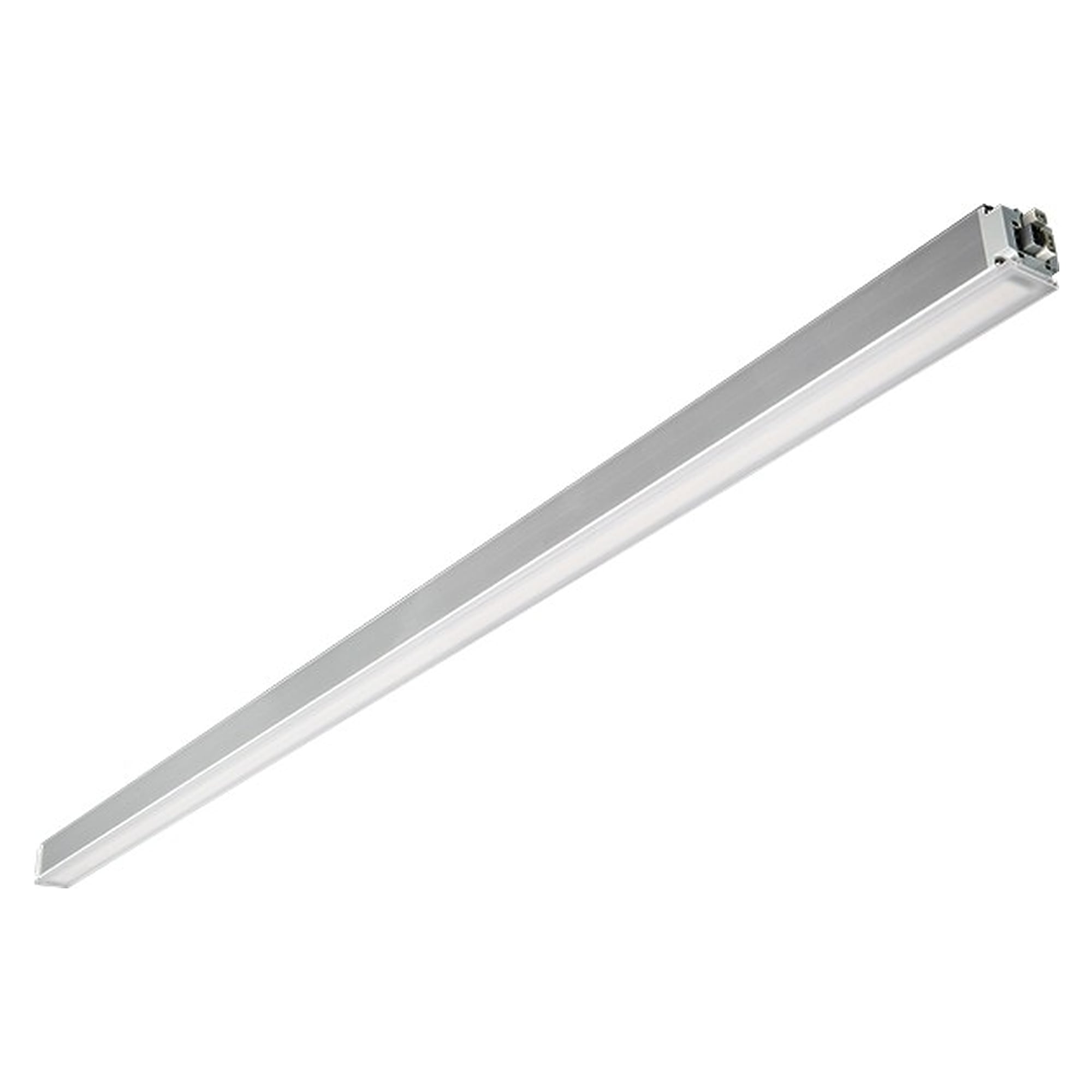

PROFILED LED profile light 1500 mm 37W 5700K, M12 24V DC IP40 - LED2WORK 150914-01

The PROFILED delivers even area lighting over workbenches and system workstations. With 5678 lm from around 37 W and a 100° beam angle, the 1500 mm light covers the working area with low shadowing.

Key benefits

• 5678 lm output at only ~37 W, around 155 lm/W
• Micro-prism cover for uniform, low-glare light distribution
• Connection via M12 A-coded for straightforward installation
• Rear T-slot for mounting on machine or bench profiles
• Long service life of more than 100,000 h (L80/B10)

Technical data

• Model: PROFILED
• Light source: SMD LED
• Power: ~37 W
• Luminous flux: 5678 lm
• Luminous efficacy: ~155 lm/W
• Light colour: 5700K 3-step MacAdam
• Colour rendering: Ra >85
• Beam angle: 100°
• Supply voltage: 24V DC ± 10%
• Connection: M12 A-coded
• Protection rating: IP40
• Protection class: III
• Operating temperature: -10 °C to +60 °C
• Service life: > 100,000 h (L80/B10)
• Housing: aluminium
• Cover: plastic (micro-prism)
• Dimensions: 1500 x 65 x 45 mm
• Weight: 2240 g
• Risk group (DIN EN 62471): exempt group
• Certifications: CE, UKCA, ETL Listed (5003529)
• Made in: Germany

Applications

Suited to manual workstations, assembly and packing lines, workshops and logistics areas that need even general lighting.

Supply and standards

Mounting accessories optional. Compliant with CE, UKCA, ETL Listed (5003529), exempt risk group per DIN EN 62471. Made in Germany.
