Profiled AC LED profile light 1000 mm dimmable, 3674 lm, 5700K, 100°, mains plug - LED2WORK 150714-04

Name: Profiled AC LED profile light 1000 mm dimmable, 3674 lm, 5700K, 100°, mains plug - LED2WORK 150714-04
Brand: LED2WORK
SKU: L2W-150714-04
Price: 227.92 EUR
Availability: InStock

LED2WORK ✓ Original product Brand new Made in Germany

Dimmable LED profile light for workshops and system workstations, 1000 mm long with 3674 lm luminous flux and an even 100° distribution. The rear T-slot allows quick mounting and the connection is made via 3 m supply cable with mains plug.

Net

€227.92

excl. VAT

Item L2W-150714-04

Manufacturer no. 150714-04

Question about this item

Datasheet (PDF) User manual 5 documents, all under Downloads

Specialist dealer since 2009
Invoice payment for regular customers
Worldwide shipping
Technical questions clarified with the manufacturer

Description

The PROFILED AC lights workshops, logistics areas and system workstations evenly and with low shadowing. Over 1000 mm it delivers 3674 lm at around ~27 W, while the microprism cover spreads the light softly across the work surface.

Benefits

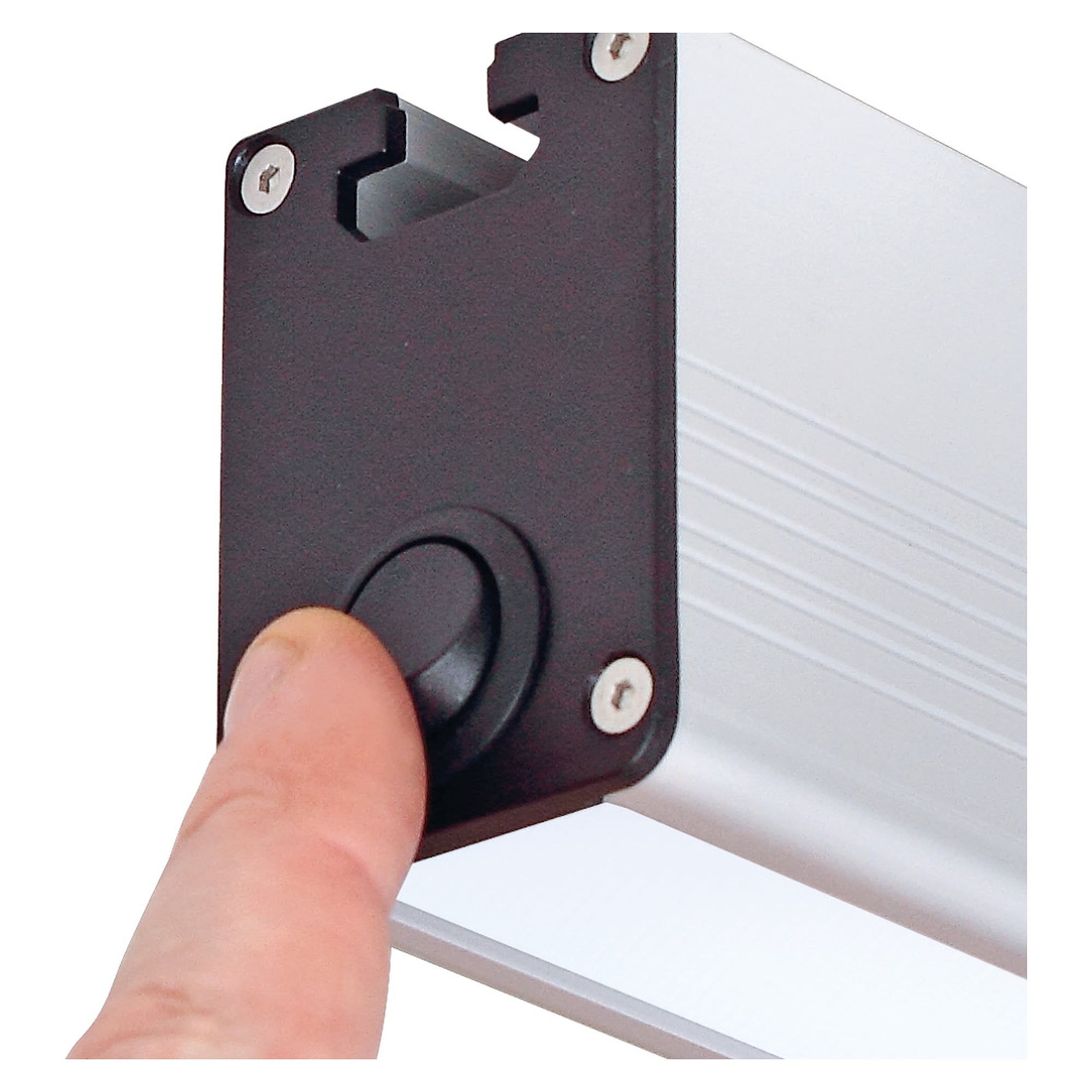

Continuously adjustable via the internal dimmer
Even area lighting from a 100° beam angle and microprism optics
Connection via 3 m supply cable with mains plug

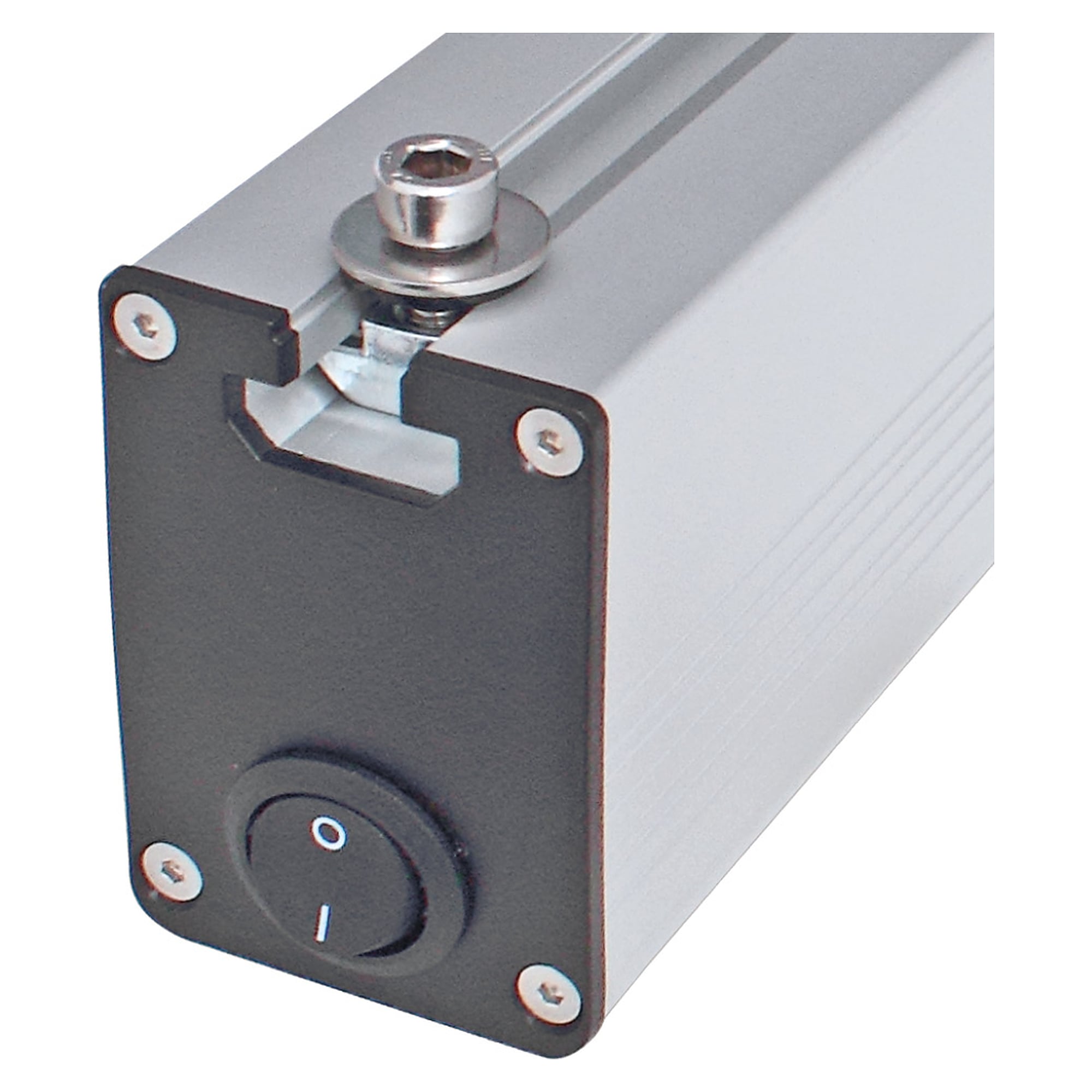

Fast mounting via the rear T-slot profile
3674 lm at around ~27 W, roughly 155 lm/W luminous efficacy
Long service life of over 100,000 h (L80/B10), maintenance-free
Sturdy aluminium housing, neutral white 5700K light with Ra above 85

Applications

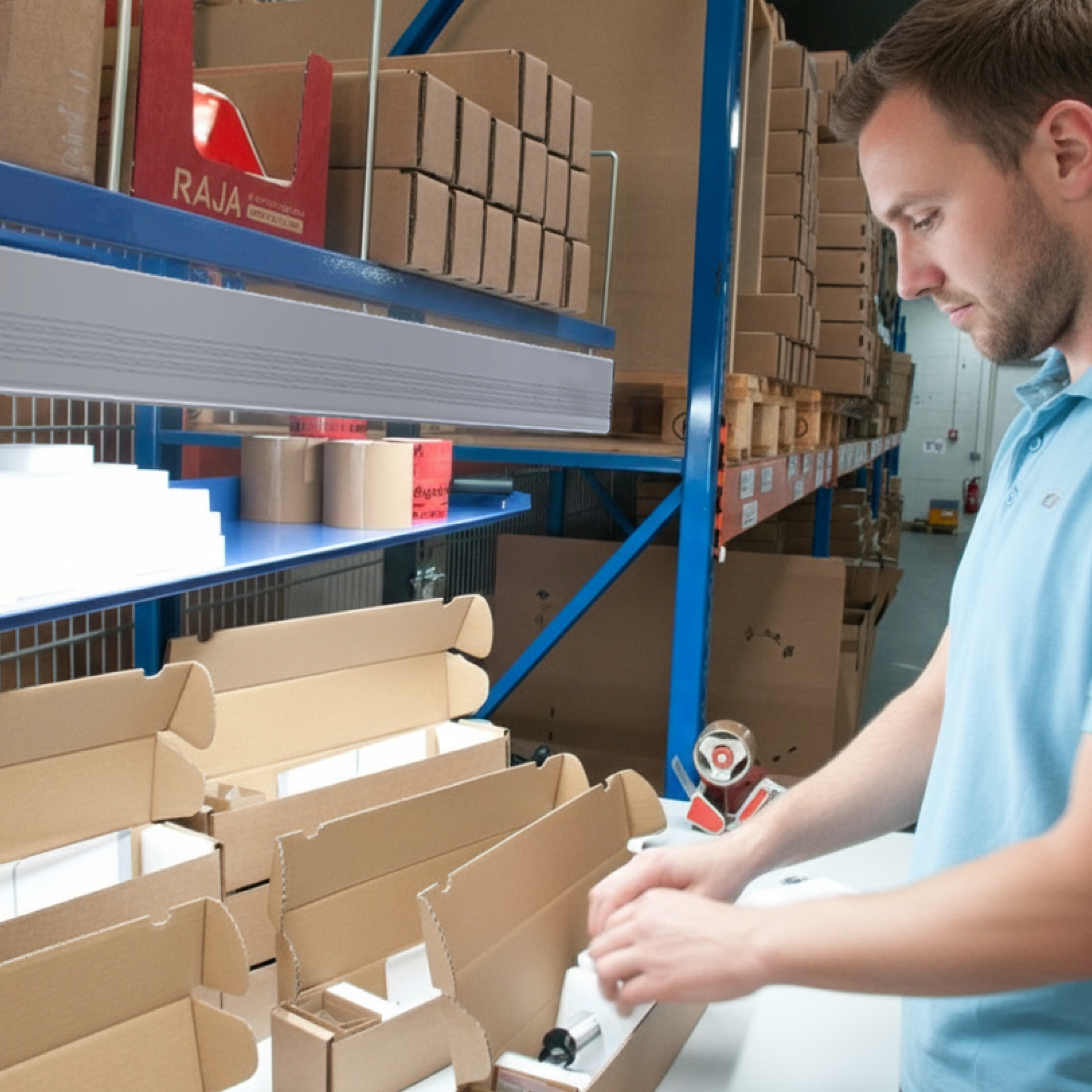

Ideal for lighting workstations in production, assembly and packaging as well as workshops and logistics areas. Mounting accessories are available as an option.

Technical data

Model	PROFILED AC
Design	profile light with rear T-slot
Light source	SMD LED
Total power incl. driver	~27 W
Power	~23 W
Luminous flux	3674 lm
Luminous efficacy	~155 lm/W
Light colour	5700K 3-step MacAdam
Colour rendering (Ra)	>85
Supply voltage	120-277V AC ± 10%, 50-60 Hz

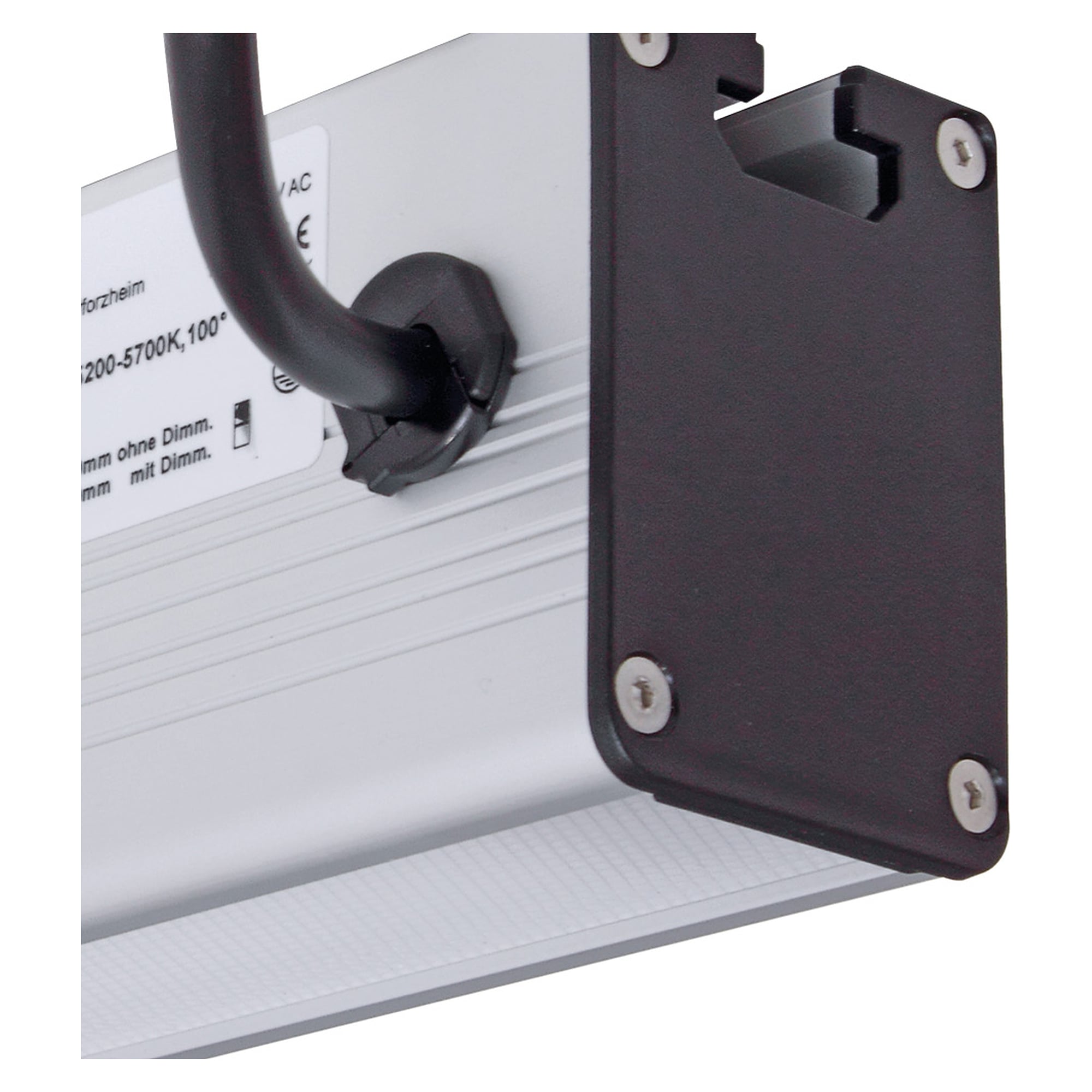

Connection	3 m supply cable with mains plug
Dimmable	internal dimmer
Protection rating (IP)	IP40
Protection class	I

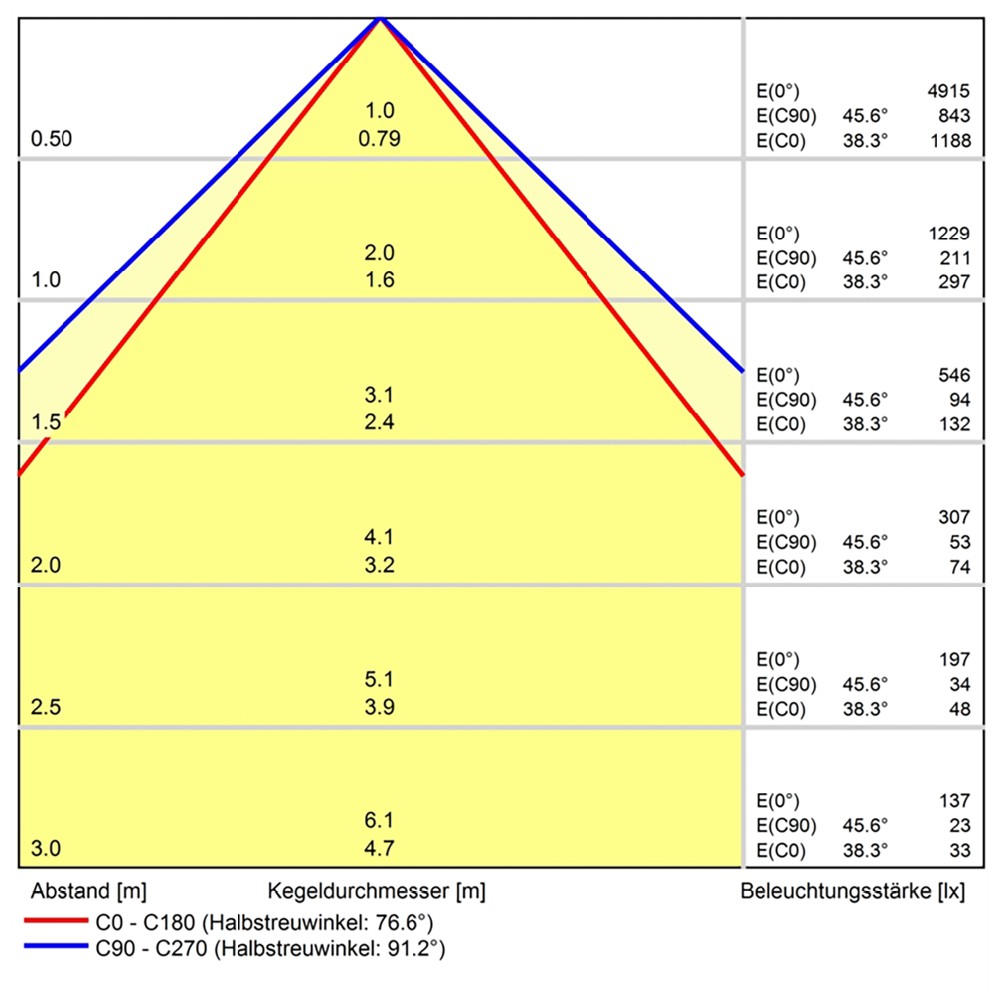

Beam angle	100°
Operating temperature	-10 °C to +45 °C
Service life	> 100,000 h (L80/B10)
Housing material	aluminium
Cover material	plastic

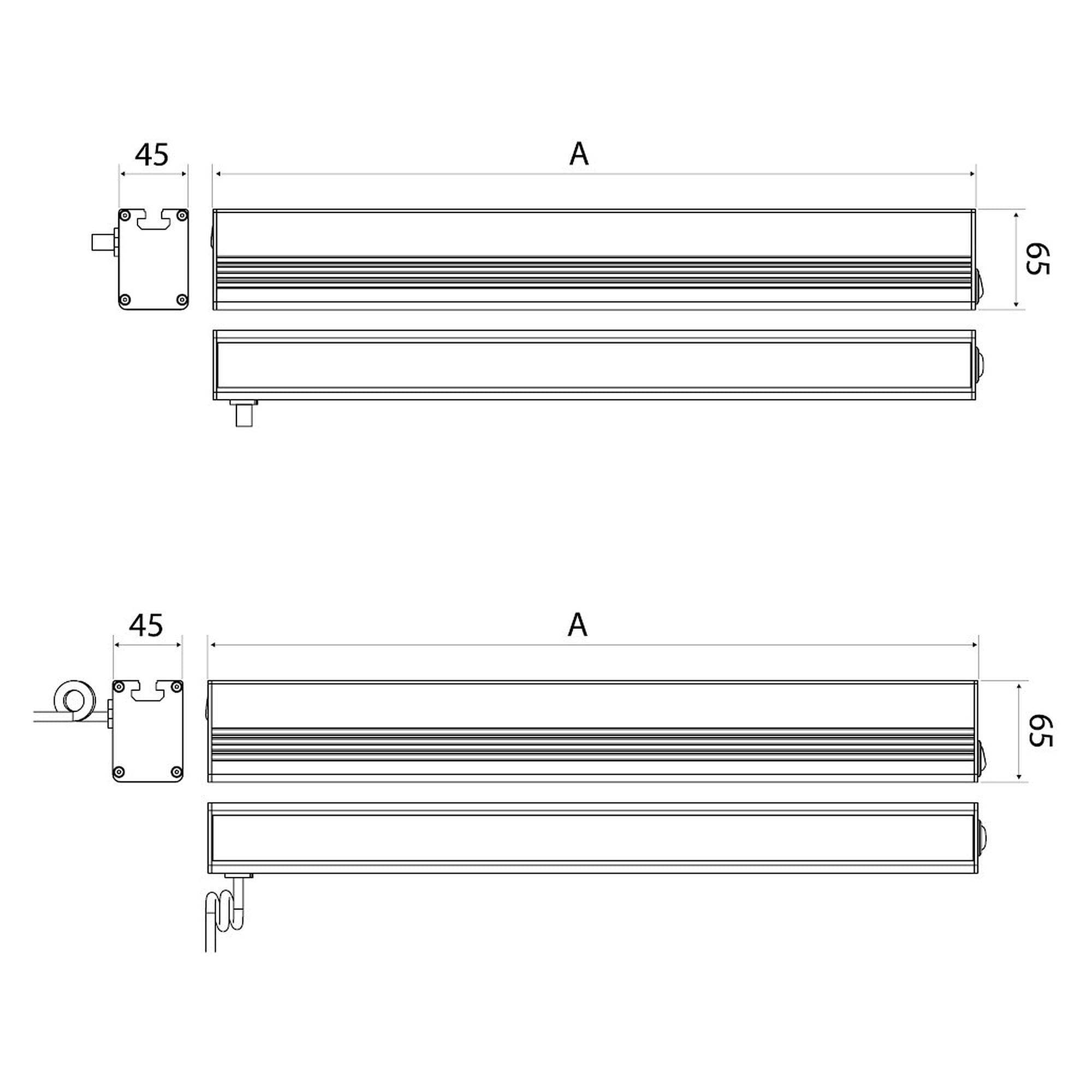

Dimensions	1000 mm x 65 mm x 45 mm
Weight	2440 g
Risk group (DIN EN 62471)	exempt group
Certifications	CE, UKCA
Made in	Germany
Manufacturer	LED2WORK
Manufacturer Nr.	150714-04
HS-Code	94054239
GPSR manufacturer information	LED2WORK GmbH, Stuttgarter Straße 13 A, 75179 Pforzheim www.led2work.com
Condition of article	New
Article authenticity	Original product
Country of Manufacture	Germany
Norm	DIN EN 62471
Control and dimming	Dimmable
Luminous flux (lumen)	3674 lm
Power (W)	27 W
Colour temperature	5700K
Mounting type	T-slot / profile
Operating voltage	120-277 V
Protection class (IP)	IP40
